Please read this user manual first! Dear Customer, Thank you for prefering a Beko product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference.
Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are...
1.1.1 Electrical safety Electrical safety instructions should be followed while electrical connection is made during the installation. • Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with the local regulations.
1.1.2 Product safety Points to be taken into consideration for fire hazard: Below specified laundry or items must not be dried in the dryer considering fire hazard. • Unwashed laundry items • Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the...
Page 6
Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying. Use softeners and similar products in accordance with the instructions of their manufacturers. Always clean the lint filter before or after each loading.
1.2 Mounting over a washing machine • A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent. • Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx.
1.4 Child safety • Packaging materials are dangerous for the children. Keep packaging materials away from children. • Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent the children to tamper with the dryer.
1.5 Compliance with the WEEE regulation and disposing of the waste product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling.

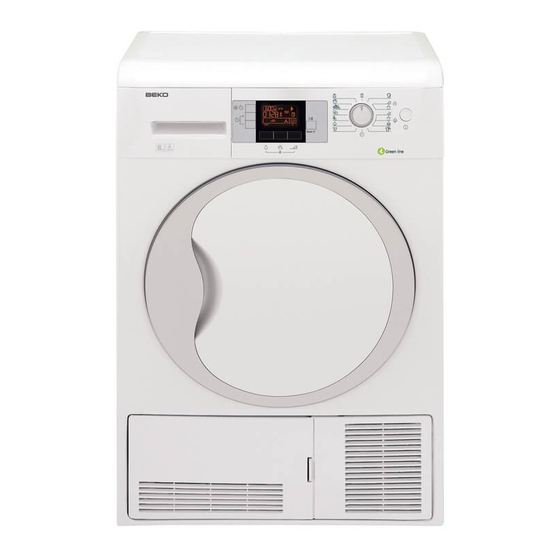

Your Dryer 2.1 Package Contents 1. Water drain hose * 2. Filter drawer spare sponge* 3. User Manual 4. Drying basket* 5. Drying basket user manual* *It can be supplied with your machine depending on its model. Dryer / User Manual EN / 10...
Installation Refer to the nearest Authorized Service Agent from the edges of other furniture. for installation of the product. To make the • The rear surface of the tumble dryer shall product ready for use, make sure that the be placed against a wall electricity and water drainage system are appropriate before calling the Authorized Do not place the product on the...
3.5 Adjusting the feet 3.4 Connecting to the drain In products equipped with condenser In order to ensure that the product operates unit, water accumulates in the water tank more silently and vibration-free, it must stand during the drying cycle. You should drain level and balanced on its feet.
3.8 Warnings about sounds It is normal to hear a metallic noise from the compressor sometimes during operation. Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process. 3.9 Changing the illumination lamp In case an illumination lamp is used in your laundry dryer.To change the Bulb/LED used...
Preparation 4.1 Laundry suitable for drying in the dryer • Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.
• Clean the lint filter before or after each Following weights are given as examples. (See 6.1 Cleaning Lint drying cycle. Approximate Filter / Loading Door Inner Surface) Laundry weights (g)* • Clean the filter periodically when there Cotton quit covers is visible air collection on it or when the 1500 (double)
Iron Dry Extra dry Cupboard Freshen Up Anti Cottons Synthetics Xpress Timer Creasing program Child-proof Filter Buzzer/ On/Off Start Tank Daily Jeans Shirts lock cleaning cancel pause full cancel BabyProtect Sport Spin Timer Wool Dryness Drying Delicates Delay Refresh Level Rack 5.2 Preparing the machine 5.4 Main programmes...
• Shirt • Ventilation This programme dries the shirts more Only ventilation is performed for 10 minutes sensitively and creases them less and thus, without blowing hot air. You can air the helps to iron them more easily. clothes that have been kept at closed environments for a long time and deodourise There may be a little moisture unpleasant odours thanks to this programme.
5.7 Auxiliary functions Changing the contrast Adjust the display contrast in order to make Audio Warning the symbols on the display appear clearer. It The machine will give an audio warning when may particularly be necessary to change the the programme comes to an end. If you do contrast setting of the display when the dryer not want the machine give an audio warning, is installed over a washing machine.
Cleaning of filter drawer Changing the delay time Warning symbol flashes with certain intervals If you want to change the time during to remind that the filter drawer needs to be countdown: cleaned. Press Start / Pause / Cancel button for 3 seconds to cancel the programme.
Drying • When the Child-proof Lock is activated: • Display symbols will not change even Drying symbol lights up in all programmes if the position of Programme Selection apart from ventilation. knob is changed while the machine is Iron Dry running or in halt.
Adding / removing laundry in Pause mode In order to add or take out laundry after the drying programme has started: Press Start / Pause / Cancel button to switch the machine to Pause mode. Drying process will stop. While in Pause mode, open the loading door, add or take out laundry and close As the inside of the machine will the loading door.
Maintenance and cleaning Service life of the product extends and A layer can build up on the frequently faced problems decrease if lint filter pores that can cause cleaned at regular intervals. clogging of the lint filter after This product must be unplugged using the machine for a while.
6.2 Cleaning the sensors 6.3 Draining the water tank Dampness of the laundry is removed and condensed during drying process and the water that arise accumulates in the water tank. Drain the water tank after each drying cycle. Condensed water is not potable! Never remove the water tank when the programme is running! If you forget to drain the water tank, the...
6.4 Cleaning the filter drawer Take out the filter drawer sponge. Lint and fibre that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Filter Drawer Cleaning warning light will light up maximum at every 5 drying cycles as a reminder.
6.5 Cleaning the evaporator Close the filter drawer as to lock the red button. Clean the lints accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner. 10. Place the filter drawer back into its place, turn the filter drawer cower clockwise making sure that it is closed securely.
Troubleshooting Drying process takes too much time. • Pores of the lint filter are clogged. >>> Wash the lint filter with warm water. • Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer. •...
Page 29
End symbol is on. • Programme is over. Turn off the dryer and take out the laundry. Lint Filter Cleaning symbol is on. • Lint filter is not cleaned. >>> Clean the lint filter. Lint Filter Cleaning symbol is flashing. •...
