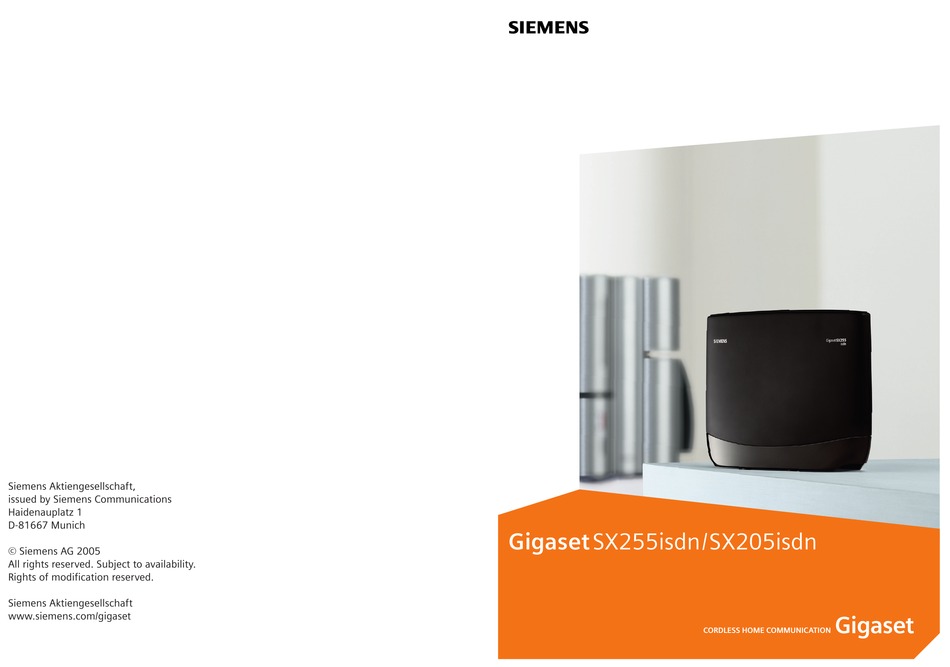

- Page 1 Siemens Aktiengesellschaft, issued by Siemens Communications Haidenauplatz 1 D-81667 Munich Gigaset SX255isdn/SX205isdn © Siemens AG 2005 All rights reserved. Subject to availability. Rights of modification reserved. Siemens Aktiengesellschaft www.siemens.com/gigaset CORDLESS HOME COMMUNICATION...
-
Page 2: Overview Of The Base Station
Overview of the base station Overview of the base station Centre LED (green): Indicates readiness for use in idle status and also acts as a Paging key (page 18) and Register key (flashes, page 12.) Right and left LED (red): Indicates the assignment of the two B channels. -
Page 3: Table Of Contents
Contents Contents Overview of the base station ....1 Safety precautions ......4 Getting started . - Page 4 Contents ISDN glossary ......41 Index ........49...
-
Page 5: Safety Precautions
Safety precautions Safety precautions Read the safety precautions and the operating instructions before ◆ use. Explain their contents to your children, and the potential hazards ◆ associated with using the telephone. Use only the power unit supplied, as indicated on the underside of the base station. -
Page 6: Getting Started
Getting started Getting started Pack contents 1 base ◆ 1 power supply cord with power unit ◆ 1 ISDN connection cable ◆ 1 USB cable ◆ 1 wall holder ◆ Operating instructions ◆ Notes on installation The installation location must have a 220/230V~ mains outlet and an ISDN tele- ◆... -
Page 7: Use As Desktop Unit
Getting started Use as desktop unit Your telephone can be used as a space-saving desktop unit. Before connecting the base, please read the notes on installation (page 4, page 5). Mounting the base as a wall unit Before mounting the base, please read the notes on installation (page 4, page 5). 1. -
Page 8: Connecting The Base
Getting started Connecting the base Front of unit Schematic illustration jack: Insert ISDN connection cable until connector clicks into place. 2. Insert ISDN connection cable into ISDN connection until connector clicks into place. 3. For NTBA with self-mounting, plug in the cable between the NTBA and the TAE (old telephone outlet) or Mini-Western connector until both connectors click into place. -
Page 9: Connecting Auxiliary Equipment
Getting started Connecting auxiliary equipment You can connect the following auxiliary equipment to your base: up to eight wireless devices (handsets see page 12, Gigaset data modules see ◆ page 31, Gigaset Repeater see page 31) up to two analogue, wire-based devices (e. g. telephone, answering machine, fax ◆... -
Page 10: Setting And Operating The Base
Getting started Setting and operating the base Preparing the base for use and making settings In order to be able to use your base, certain settings are required, e. g. the ISDN phone number (MSN). To do this, you need a handset or a PC. More details can be found in the operating instructions for your handset or your PC software. - Page 11 Getting started Operating the base from an S1 or SL1 handset The central operator control on the S1 and SL1 handsets is a control key p, which has four black direction arrows with the associated symbols. Pressing the various icons (up, down, right, or left) opens a different function.
- Page 12 Getting started Operating the base from a C1, C2 or C32 handset The C1, C2 and C32 handsets each have a rocker key, which has two functions. On the Gigaset C1, the upper half of the rocker key has the function of the Talk key the lower half the Phonebook key On the Gigaset C2 and C32, the upper half of the rocker key has the function of the Talk key...
-
Page 13: Registering Handsets
Getting started Registering handsets You can register a maximum of eight wireless devices on your base (including Gigaset data modules (page 31) and Gigaset Repeater (page 31)). The internal num- bers 11-18 are set aside for this purpose. Wire-based analogue devices do not have to be registered (page 26). - Page 14 Getting started Manually registering a Gigaset S44 handset Open the menu. s Ð Select the menu item and confirm. Select the menu item and confirm. Handset Select the menu item and confirm. Register H/Set Select base (1–4) and confirm, e. g. Base 1. Base 1 Enter the system PIN of the base (the default is 0000) and confirm.
- Page 15 Getting started Manually registering a C34 handset Open the menu. Select the menu item and confirm. Handset Settings Select the menu item and confirm. Handset Select the menu item and confirm. Register Handset Enter the system PIN of the base (the default is 0000) and confirm.
- Page 16 Getting started Registering a Gigaset 4000 Comfort/Micro handset Hold down, to turn on the handset. either ... Confirm the prompt. or ... Select the menu item and confirm. Settings Select the menu item and confirm. Register H/Set Select base (1–4) and confirm, e. g. Base 1. Base ...
- Page 17 Getting started Registering a Gigaset 3000 Comfort/Micro handset − Hold down, to turn on the handset. either ... Confirm the prompt. or ... Open the menu. Select the menu item and confirm. Stations Í Select the base (1-4) and open the sub-menu. Station 1 Select the menu item and confirm.
- Page 18 Getting started Registering a Gigaset 2000 C handset Press to turn on the handset. Open the menu. Select the menu item and confirm. Settings Select the menu item and confirm. Registration Select base (1-4) and confirm. Station 1 Í Open the submenu. Select the menu item and confirm.
-
Page 19: De-Registering Handsets
Getting started De-registering handsets Handsets are de-registered using a handset (see handset operating instructions). Exam- ple: Open the menu. Select the menu item and confirm. Base Settings Select the menu item and confirm. Settings If necessary, enter the system PIN of the base (the default is 0000) and confirm. -
Page 20: The Quick Way Into The World Of Isdn
The quick way into the world of ISDN The quick way into the world of ISDN What is an MSN? MSN = Multiple Subscriber Number. You can apply for up to ten different telephone numbers for one multiple ISDN connection. An MSN is one of the phone numbers assigned to you without an area code. -
Page 21: Answering Machine
Answering machine Answering machine Your ISDN telephone has three answering machines (AM1, AM2, AM3). Once you have connected your telephone, answering machine AM1 is shown and activated. By default, answering machines AM2 and AM3 are hidden. To use them, they must be shown and all shown answering machines must be assigned their own receive MSN. - Page 22 Answering machine Range of functions Using a handset registered on the base, the following functions are available (see the handset operating instructions for more details): Configuration of answering machine Assigning a receive MSN ◆ Hiding/showing an answering machine ◆ Specifying the number of rings before the answering machine starts ◆...
-
Page 23: Remote Control Of Answering Machines
Answering machine Remote control of answering machines With the remote control option, you can operate your answering machine, e. g. listen to and delete messages from a registered handset, a connected cord telephone or ◆ from external telephones and handsets. ◆... - Page 24 Answering machine Added-feature and standard handset Open list of internal users. Enter internal phone number for the answering machine: 91 or 92 or 93. Enter AM PIN if required. Handset made by another manufacturer (GAP mode) Lift the receiver. If necessary, press another key to initiate an internal call.
- Page 25 Answering machine Activating/deactivating the answering machine Activate/deactivate Playing back messages and memos All messages New messages only Pause/Stop Continue playback End playback Skipping messages and memos To start of message To previous message To next message Deleting messages and memos Single message during playback All messages after playback Recording an announcement...
- Page 26 Answering machine Selecting an announcement Announcement 1 Announcement 2 Announcement Concluding announcement Recording internal memos Begin recording End recording Help Check settings Check one-key functions Check two-key functions see page 22 End check...
-
Page 27: Connecting Devices
Connecting devices Connecting devices Connecting cord-based analogue devices The internal phone numbers Int.21/Int.22 are pre-assigned to the TAE connections. Devices connected to them must not be registered on the base. ◆ be set to tone (DTMF) dialling (pulse dialling not supported). ◆... - Page 28 Connecting devices Connecting a fax machine To operate a fax machine or a combination device (e. g. fax with telephone), the device type setting should be changed to Fax or Neutral. For problem-free fax operation regardless of the settings of the remote terminal, the device type setting Neutral is recommended (with the Fax setting, a successful fax con- nection depends on the settings of the remote terminal).
- Page 29 Connecting devices "Neutral" setting This setting is suitable for telephone, fax and modem operation. For problem-free fax operation regardless of the settings on the partner station, the device type setting Neutral is recommended (page 27). Call waiting is not supported in the device type setting Neutral. Adding a wait melody from an external device This device type setting is a requirement for adding the wait melody from an external device.
-
Page 30: Making Calls With Devices On The Analogue Connection (Tae Connection)
Connecting devices Making calls with devices on the analogue connection (TAE connection) Telephones with tone dialling (DTMF = dual tone multi-frequency dialling) can be oper- ated on the analogue connections. Telephones with pulse dialling are not supported. Automatic line seizure With automatic line seizure activated, the external line is seized as soon as the receiver is lifted. -
Page 31: Defining The Device Type
Connecting devices Making an external enquiry S Q ~ Switch between callers if necessary. Making an internal enquiry Making an internal enquiry Switch between the callers if necessary. Transfer call before/after answer either ... Transfer before answer: Hold down (return to idle status). or ... -
Page 32: Connecting Pc Via Usb
Connecting devices Connecting PC via USB You can connect a PC with a cable using the USB port on your base and connect one or more PCs without a cable using the Gigaset M10x data modules. Your base then offers you the option of using a connected PC to: Configure your base ◆... -
Page 33: Operation Of Entrance Telephone
In case of questions about the entrance telephones shown here or any other systems, please contact the respective manufacturers or suppliers. We ask for your understanding that Siemens AG cannot provide any guarantee of the currency, completeness and accuracy of the circuit diagrams. - Page 34 Operation of entrance telephone Caution! Connect base power unit 6573 and additional unit TFV5680 using enclosed bus connector. Ritto TwinBus entrance system Basis-BA Augsburg Caution! Connect base power unit 4753/01 and additional unit TFV4680/00 using enclosed bus connector. Door type 2 (DTMF) For details of connecting entrance telephones with DTMF control (door type 2), refer to the example below.
-
Page 35: Appendix
Questions and Answers If you have any questions about the use of your phone, you can contact us 24 hours a day at www.siemens.com/customercare. You will find the most frequently asked questions and the corresponding answers below. What has happened if … Possible Cause Possible solution …... -
Page 36: Service (Customer Care)
You can get assistance easily when you have technical questions or questions about how to use your device by using our online support service on the Internet at: www.siemens.com/customercare or by referring to the section entitled Questions and answers in this manual... - Page 37 Appendix If the device needs to be repaired, please contact one of our Customer Care Centers: Abu Dhabi....0 26 42 38 00 Luxembourg ... . . 43 84 33 99 Argentina .
-
Page 38: Specifications
Appendix Excerpt from the original declaration "We, Siemens AG, declare, that the above mentioned product is manufactured according to our Full Quality Assurance System certified by CETECOM ICT Services GmbH with ANNEX V of the R&TTE Directive 99/5/EC. The presumption of conformity with the essential requirements regarding Council Directive 99/5/EC is ensured."... -
Page 39: Accessories
SMS (CLIP must be enabled) ◆ Voice dialling ◆ PC interface for managing phonebook entries ◆ Headphone socket ◆ www.siemens.com/gigasets44 Gigaset SL1 Handset Large illuminated graphic display with date and time ◆ Illuminated keypad ◆ Phonebook for around 200 entries ◆... - Page 40 ◆ Phonebook for around 100 entries ◆ SMS (CLIP must be enabled) ◆ Room monitor ◆ Timer ◆ www.siemens.com/gigasetc34 Gigaset C32/C2 Handset Graphic display with date and time ◆ Phonebook for around 100 entries ◆ Handsfree ◆ ◆ EATONI predictive text ◆...
- Page 41 All accessories and batteries are available from your mobile phone retailer. Or you can order direct online from the Online Shop: www.siemens.com/shop. The Online Shop also has the latest product information. Only use original accessories. This will avoid possible health risks and dam-...
-
Page 42: Isdn Glossary
ISDN glossary ISDN glossary Added-feature connection ISDN connection that offers three more services than the standard connection: Call forwarding, transfer of charges after the connection, and a T-mailbox. AOC-D Advice of Charge: During the Call. Transfers the charge information during the con- nection. - Page 43 ISDN glossary Call divert (via second B channel) / internal call divert While external call divert takes place in the local telephone exchange of the network provider, internal call divert is implemented by your telephone. Your telephone for- wards the call via the second line of your ISDN connection. This means both phone lines are engaged for the duration of the call.
- Page 44 ISDN glossary Capture Performance feature "Identify/capture". MCID stands for "Malicious Call Identifica- tion". If you receive annoying calls, you can have the telephone exchange store the caller number. This performance feature must be requested from the network pro- vider. CCBS (Completion of Calls to Busy Subscriber) See "Callback when the number is busy"...
- Page 45 ISDN glossary D channel Control channel for an ISDN connection. See "Channel" Digital exchange Computer controlled switching units allow quick connection and the activation of such additional services as => enquiry calls, => call waiting, => three-way confer- ence, => call forwarding etc. Direct call Block the telephone for all phone numbers except for an individually entered number.
- Page 46 ISDN glossary Internal calls Connection between the base station and handsets made free of charge. Internal ringer Special ringtone on PABX's to distinguish between internal and external calls. ISDN Abbreviation for Integrated Services Digital Network, i.e., a digital network for inte- grating services.
- Page 47 ISDN glossary Notebook function During a phone call you can enter a phone number in the phone's temporary mem- ory to be dialled later. NT/NTBA Network terminating device (NT = Network Terminator and NTBA = Network Termi- nator Basic Access). The public T-ISDN is terminated with an NT. The NT acts as a bridge to the existing telephone outlet.
- Page 48 ISDN glossary Remote activation Allows the answering machine to be activated and deactivated during a call. This function is PIN-protected. Remote check Answering machine function. Listen to messages remotely, mostly together with options like delete messages or change announcements. Repeater A repeater increases the range of a handset connected to a base station.
- Page 49 ISDN glossary Wait melody Music on hold. During an enquiry call or when a call is being transferred, a melody is played which the waiting person can hear. Withhold own number (CLIR) Stops your personal phone number being transferred.
- Page 50 Index Index Accessories ....Cable Added-feature connection ..ISDN connection cable ... Analogue Power supply cord .
- Page 51 Index Users ..... . . ISDN ......D channel .
- Page 52 Index Pre-dialling ....Putting a connection on hold ..Wait melody ....Adding from am external device .
