60950. The power supply must be a SELV-LPS unit or a SELV - Class 2 unit (Safety Extra Low Voltage - Limited Power Source). CAUTION! The camera must be connected to earth. Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
Equipment change or modification could void the user's guarantee or authorization agreement. Connect the yellow/green earth wire of the camera to the system earth of the installation to ensure correct safety and EMC/RFI protection. AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
If auxiliary power (12 VDC or 24 VAC) and PoE are applied simultaneously, the camera selects auxiliary input and shuts off the PoE. Type label The type label is located on the side of the camera module. Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems". This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4. AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
FLEXIDOME HD VR Safety | en MicroSD cards Bosch Security systems recommends that local storage on microSD card should only be used for alarm recording and Automatic Network Replenishment (ANR) applications. To minimize the risk of loss of digital information, we recommend multiple, redundant recording systems, and a procedure to back up all digital information.
Bosch notices Video loss Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.
Digital Equipment Corporation not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. This software is based in part on the work of the Independent JPEG Group. Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
Integrated Ethernet interface (10/100 Base-T) – Power-over-Ethernet (PoE) – Password protection – Integrated Web server for live viewing and configuration via a browser – Firmware update through flash memory – Hybrid video outputs AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
The camera complies to the ONVIF standard which means that it is easier to install and integrate into larger systems. The ONVIF standard is a global standard for the interface of network video products. Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
Web browser connections can be protected using HTTPS. Protect the control channels via the SSL encryption protocol. With an additional license, the user data itself can be encrypted. AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
(Intranet) or from the Internet. Similarly, firmware updates and rapid loading of device configurations are also possible. Configuration settings can be stored as files on a computer and copied from one camera to another. Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
The Bosch Video Management System is a unique enterprise IP video surveillance solution that provides seamless management of digital video, audio, and data across any IP network. It is designed to work with Bosch CCTV products as part of a total video surveillance management system. Bosch Video Client The camera video server and the Bosch Video Client software combine to provide a high-performance system solution.
Computer with Windows XP/Vista/7 operating system, network access, and Microsoft Internet Explorer web browser version 9. -or- – Computer with network access and reception software, for example Bosch Video Client or Bosch Video Management System. Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...

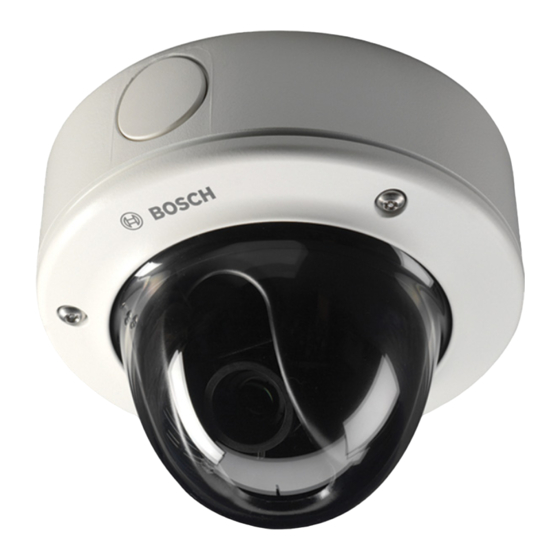

National Electrical Code or applicable local codes. Parts The camera/housing unit consists of the following parts: Surface Mount Box (some models only) Camera module and mounting base Inner liner Dome cover AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
Attach the surface mount box securely using the three supplied screws. If you use the side connection of the SMB, remove the cap covering the side entrance, otherwise, leave the cap in place. Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
Cut out the recess. Drill three holes with a diameter of 8 mm (0.3 in). Insert the supplied plugs into the holes. Partially insert two screws into the mounting holes. AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
Make the connections inside a water tight compartment. Isolate unused power wires individually. After connections are made ensure that the watertight compartment is tightly closed and cables and conduits are properly sealed to prevent ingress of water. Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
Page 22
RJ45 connector of the camera (Auto MDIX compliant - automatically detects the cable connection type). Power is supplied to the camera via the Ethernet cable, compliant with the Power-over-Ethernet standard. AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
Page 23
(NO) or normally closed (NC). Audio in / Audio out The unit has full-duplex mono audio. The two-way communication can be used to connect a speaker or door Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
Mount the camera Route the cable tree from the camera around the rear of the camera module and secure all cables. Attach the camera module securely using the three supplied screws. AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
Use this button to start the field-of - view installation wizard. 3. MicroSD card slot Insert a microSD card into the slot. 4. Service video 2.5 mm jack provides a CVBS signal output (for installation purposes only) Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
After power-up, wait a little (about 20 seconds). Press the Menu button. This stops the IP video stream and enables the service video analog output. S1460 CAUTION! Do not expose the sensors to direct sunlight. AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
5.6.2 Tilt For vertical adjustment (tilt): Loosen the two thumbwheels (1). Swing the camera module between the wings. Do not rotate more than 90°. Tighten the two thumbwheels (1). ≤90° Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
| Installation FLEXIDOME HD VR 5.6.3 Twist To obtain a horizontal horizon (for tilted ceilings or sidewall mounting), twist the camera module to align the picture shown on the monitor. AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
Focus Indicator: 0 CONTINUE 180° ROTATE Timeout: 300 <press short> <press long> – The lens type is identified and shown on the screen. – The iris is opened to its maximum value. Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
If the BNC video output is set to On, the second IP stream is disabled. Closing the unit When the camera position is set and all adjustments have been made, close the unit. AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
Page 31
Place the inner liner in position aligning its fin with the bracket on the base. Using the supplied screwdriver bit, secure the dome bubble to the camera base by tightening the three screws. Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
When the auto mode is selected and the switching level is set to -15, certain borderline scene lighting conditions can cause the camera to switch back and forth between day and night modes. Set a different switching level to avoid this. AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
The configuration options using the menu system of the camera itself are limited to setting up the lens and network. Note: The camera can also be configured using the supplied Bosch Video Client or the Bosch Video Management System. Protected network If a RADIUS server is used for network access control (802.1x...
Can you connect to the camera remotely? – Does the camera transmit all the data required? – Does the camera respond as desired to alarm events? – Is it possible to control peripheral devices, if necessary? AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
Faulty data transmission Check the data within the LAN. transmission with ping. The maximum number of Wait until there is a free connections has been connection and call the reached. transmitter again. Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
Page 36
Customer Service and firmware upload. file. replace if necessary. Incorrect firmware file. Enter the IP address of the unit followed by / main.htm in your Web browser and repeat the upload. AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
Customer service If a fault cannot be resolved, please contact your supplier or system integrator, or go directly to Bosch Security Systems Customer Service. The version numbers of the internal firmware can be viewed on a special page. Please note this information before contacting Customer Service.
Defective or superfluous devices and parts should be disposed of professionally or taken to your local collection point for hazardous materials. AM18-Q0637 | v1.0 | 2012.12 Installation Manual Bosch Security Systems...
IP 66, NEMA Type 4X Impact protection IK10 Operating -30 °C to +50 °C (-22 °F to +122 °F) temperature 10.1.1 Dimensions Ø158 (6.22) Ø95 (3.7) mm (in) Ø158 (6.22) mm (in) Bosch Security Systems Installation Manual AM18-Q0637 | v1.0 | 2012.12...
