Canon FAX-B180C Service Reference Manual

Hide thumbs Also See for FAX-B180C:

Advertisement

Quick Links

Download this manual See also: User Manual

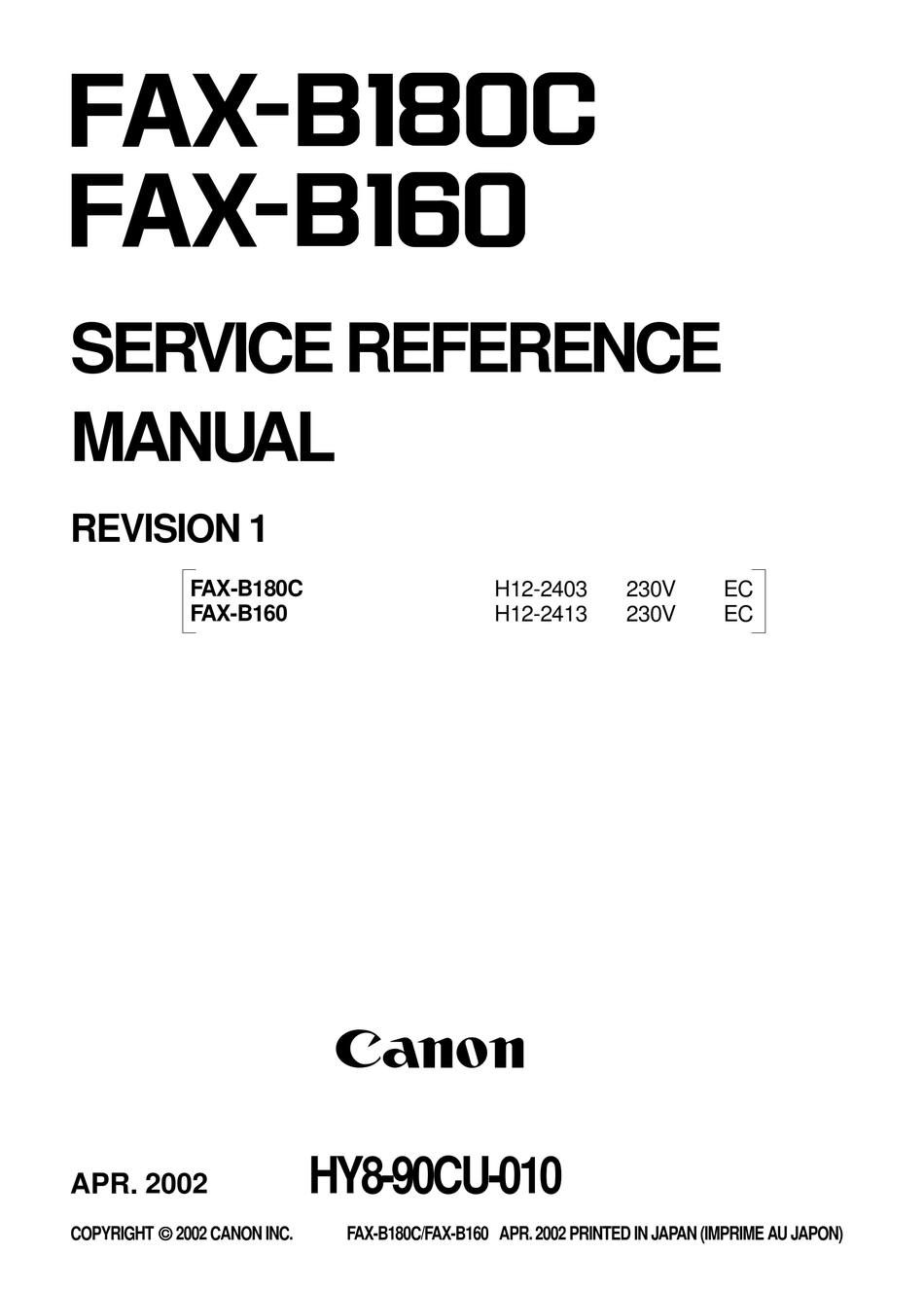

SERVICE REFERENCE
MANUAL
REVISION 1
FAX-B180C
FAX-B160
APR. 2002
COPYRIGHT      2002 CANON INC.
HY8-90CU-010
FAX-B180C/FAX-B160 APR. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)
H12-2403
230V
H12-2413
230V
EC
EC

Advertisement

loading

Related Manuals for Canon FAX-B180C

Summary of Contents for Canon FAX-B180C

  • Page 1 SERVICE REFERENCE MANUAL REVISION 1 FAX-B180C H12-2403 230V FAX-B160 H12-2413 230V HY8-90CU-010 APR. 2002 COPYRIGHT      2002 CANON INC. FAX-B180C/FAX-B160 APR. 2002 PRINTED IN JAPAN (IMPRIME AU JAPON)

  • Page 2: Parts Layout & Parts List

    FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST 2. PARTS LAYOUT & PARTS LIST FIGURE 1 PACKAGE CONTENTS...
  • Page 3 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 1 - 1 HB1-5413-000 1 TRAY, DOCUMENT 1 BX-20 BLACK BJ CARTRIDGE FAX-B160 1 BC-21e COLOR BJ CARTRIDGE FAX-B180C...
  • Page 4 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 2 UPPER COVERS & PRINTER COVER See page 5-1 See page 5-1 (FIGURE 2-a) (FIGURE 2-a) See page 5-1 (FIGURE 2-a)
  • Page 5 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 2 - 1 HB1-5411-000 1 COVER, PRINTER HB1-5412-000 1 SLIDER HB1-5416-000 1 KEY TOP, CARTRIDGE HB1-4137-000 1 COVER, UPPER HB1-5414-000 1 COVER, CONNECTOR FAX-B180C HB1-5415-000 1 COVER, CONNECTOR...
  • Page 6 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 3 SCANNER & OPERATION PANEL See page 2-11 for the disassembly See page 5-1 (FIGURE 3-a) See page 5-2 (FIGURE 3-d) See page 2-15 for the disassembly See page 5-1 (FIGURE 3-b) See page 5-1...
  • Page 7 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 3 - 1 1 OPERATION PANEL & ADF UPPER XB1-2300-607 2 SCREW, BH3X6(S) 1 ADF LOWER ASS’Y XB4-7301-009 2 SCREW, BINDING HEAD SELF-TPG HB1-2867-000 1 STOPPER, OPERATION PANEL...

  • Page 8: Printer & Power Supply

    FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 4 NCU BOARD & MODULER JACK BOARD & PRINTER & POWER SUPPLY...
  • Page 9 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 4 - 1 HB1-4074-000 1 COVER, POWER SUPPLY HH3-5384-000 1 POWER SUPPLY UNIT HG5-2587-000 1 NCU BOARD ASS’Y HG5-2058-000 1 MODULAR JACK BOARD ASS’Y XB4-7300-807 3 SCREW, TAP TIGHT, BINDING HEAD...
  • Page 10 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 5 MAIN FRAME ASS'Y...
  • Page 11 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 5 - 1 HB1-4077-000 1 ABSORBER, WASTE INK B HB1-4076-000 1 ABSORBER, WASTE INK A HF5-0667-000 1 MAIN FRAME ASS’Y HB1-4073-000 1 PLATE, GROUNDING QB1-3593-000 2 FOOT, PRINTER...
  • Page 12 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 6 OPERATION PANEL & ADF, UPPER 2-11...
  • Page 13 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 6 - 1 HH7-2659-000 1 OPERATION PANEL UNIT FAX-B180C HH7-2662-000 1 OPERATION PANEL UNIT FAX-B160 HH2-3183-000 1 CABLE, FLAT, 13P 1 DOCUMENT GUIDE UPPER XB4-7301-009 2 SCREW, BINDING HEAD SELF-TPG...
  • Page 14 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 7 ADF, UPPER See page 5-3 (FIGURE 7-a) * = Lubrication See page 4-1 2-13...
  • Page 15 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 7 - 1 HB1-4071-000 1 PLATE, GROUNDING HB1-4061-000 1 STOPPER, DOCUMENT XB4-7300-807 2 SCREW, TAP TIGHT, BINDING HEAD HB1-4062-000 2 PLATE, PRESSURE HS5-2168-000 1 SPRING HG5-2024-000 1 SEPARATION GUIDE ASS’Y...
  • Page 16 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 8 ADF, LOWER (1) See page 5-3 (FIGURE 8-a) See page 5-3 (FIGURE 8-b) 2-15...
  • Page 17 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 8 - 1 HB1-4054-000 1 COVER, ADF, LOWER HS5-0237-000 1 GEAR, 32T HS5-2027-000 1 SPRING, CLUCH HB1-1779-000 1 SPACER HB1-4561-000 1 ROLLER, SEPARATION XB4-7300-807 2 SCREW, TAP TIGHT, BINDING HEAD...
  • Page 18 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 9 ADF, LOWER (2) * = Lubrication See page 4-2 2-17...
  • Page 19 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 9 - 1 HB1-4053-000 1 FRAME, ADF, LOWER HS5-0283-000 1 GEAR, 19T HS1-1063-000 2 BUSHING HB1-4049-000 1 ROLLER, DOCUMENT FEED XD2-1100-402 1 RETAINING RING (E-TYPE) XB4-7300-807...
  • Page 20 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 10 AUTO SHEET FEEDER & SPCNT BOARD ASS'Y See page 2-33 for the disassembly See page 5-4 (FIGURE 10-b) See page 2-31 for the disassembly See page 5-3 (FIGURE 10-a) 2-19...
  • Page 21 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 10 - 1 HG5-2899-000 1 SPCNT BOARD ASS’Y FAX-B180C HG5-2900-000 1 SPCNT BOARD ASS’Y FAX-B160 HH2-3182-000 1 CABLE WITH CONNECTOR, 6P HH2-2934-000 1 CABLE, FLAT, 23P...
  • Page 22 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 11 PCARRIAGE SECTION See page 5-4 (FIGURE 11-a) See page 5-4 (FIGURE 11-b) * = Lubrication See page 4-3 2-21...
  • Page 23 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 11 - 1 QB1-3865-000 1 BELT, CARRIAGE QB1-0501-020 1 ROLLER, IDLER QB1-3834-000 1 BRACKET, IDLER QB1-0503-000 1 SPRING, COIL QB1-3897-000 1 CLIP, SHAFT XB5-6300-605 1 SCREW, TP, PH3X6...
  • Page 24 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 12 MOTORS 2-23...
  • Page 25 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 12 - 1 XB1-2300-407 4 SCREW, BH3X4 (S) QH4-4240-000 1 MOTOR, CARRIAGE QB1-0500-000 1 GEAR, SLOW DOWN HH7-2658-000 1 MOTOR, PULSE, PAPER FEED 2-24...
  • Page 26 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 13 PAPER FEED SECTION (1) See page 5-4 (FIGURE 13-a) See page 5-5 (FIGURE 13-b) * = Lubrication See page 4-4 2-25...
  • Page 27 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 13 - 1 QB1-3835-000 1 BUSHING QB1-0423-000 1 SPRING, COIL HG5-2032-000 1 PAPER FEED ROLLER ASS’Y HG5-2033-000 1 SPUR ASS’Y HG5-2898-000 1 PAPER FEED ASS’Y 1 PAPER EJECT ROLLER UNIT...
  • Page 28 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 14 PAPER FEED SECTION(2) & PURGE UNIT * = Lubrication See page 4-3 See page 5-5 (FIGURE 14-a) 2-27...
  • Page 29 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 14 - 1 XB1-2300-407 2 SCREW, BH3X4 (S) HB1-4036-000 1 FRAME, CARRIAGE GUIDE QB1-3832-000 4 SPRING, COIL XB4-7300-509 1 SCREW, TAPPING, M3X5 QB1-4879-000 1 PLATE, PRESSURE...
  • Page 30 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 15 PRINTER FRAME See page 5-5 (FIGURE 15-a) * = Lubrication See page 4-4 2-29...
  • Page 31 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 15 - 1 QB1-0412-000 1 SPRING, TORSION HB1-4086-000 1 ARM, PAPER SENSOR 1 GUIDE, PRESSURE PLATE 1 FRAME, PRINTER 1 SPRING, TORSION 1 HOOK, CARRIAGE QB1-3905-000...
  • Page 32 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 16 AUTO SHEET FEEDER See page 5-5 (FIGURE 16-a) * = Lubrication See page 4-4 2-31...
  • Page 33 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 16 - 1 1 SPRING, COIL HOOK END 1 GEAR, TRANSMISSION 1 GEAR, TRANSMISSION HG5-2026-000 1 PICK-UP ROLLER ASS’Y 2-32...
  • Page 34 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 17 SPCNT BOARD IC352 See page 5-6 BAT101 (FIGURE 17-a) JP101 IC351 IC51 IC151 IC501 2-33...
  • Page 35 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 17 - BAT101 WK1-5134-000 1 BATTERY, LITHIUM, CR2032THJ6 IC51 HH4-3644-000 1 IC, MR27V1652DD2RA, OTP-ROM FAX-B180C HH4-3647-000 1 IC, MR27V1652DA4RA, OTP-ROM FAX-B160 IC151 HH4-3475-000 1 IC, MB87L1930, GATE-ARRAY...
  • Page 36 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE & PART No. DESCRIPTION REMARKS KEY No. 18 - 1 HH2-2878-000 1 CABLE WITH CONNECTOR, 15P IC62 HH7-2528-000 1 IC, THS-65, HYBRID HH7-2427-000 1 TRANSFORMER, AUDIO 2-36...
  • Page 37 FAX-B180C/B160 2.PARTS LAYOUT & PARTS LIST FIGURE 18 NCU BOARD & MODULER JACK BOARD IC62 2-35...

This manual is also suitable for:

Fax-b160
