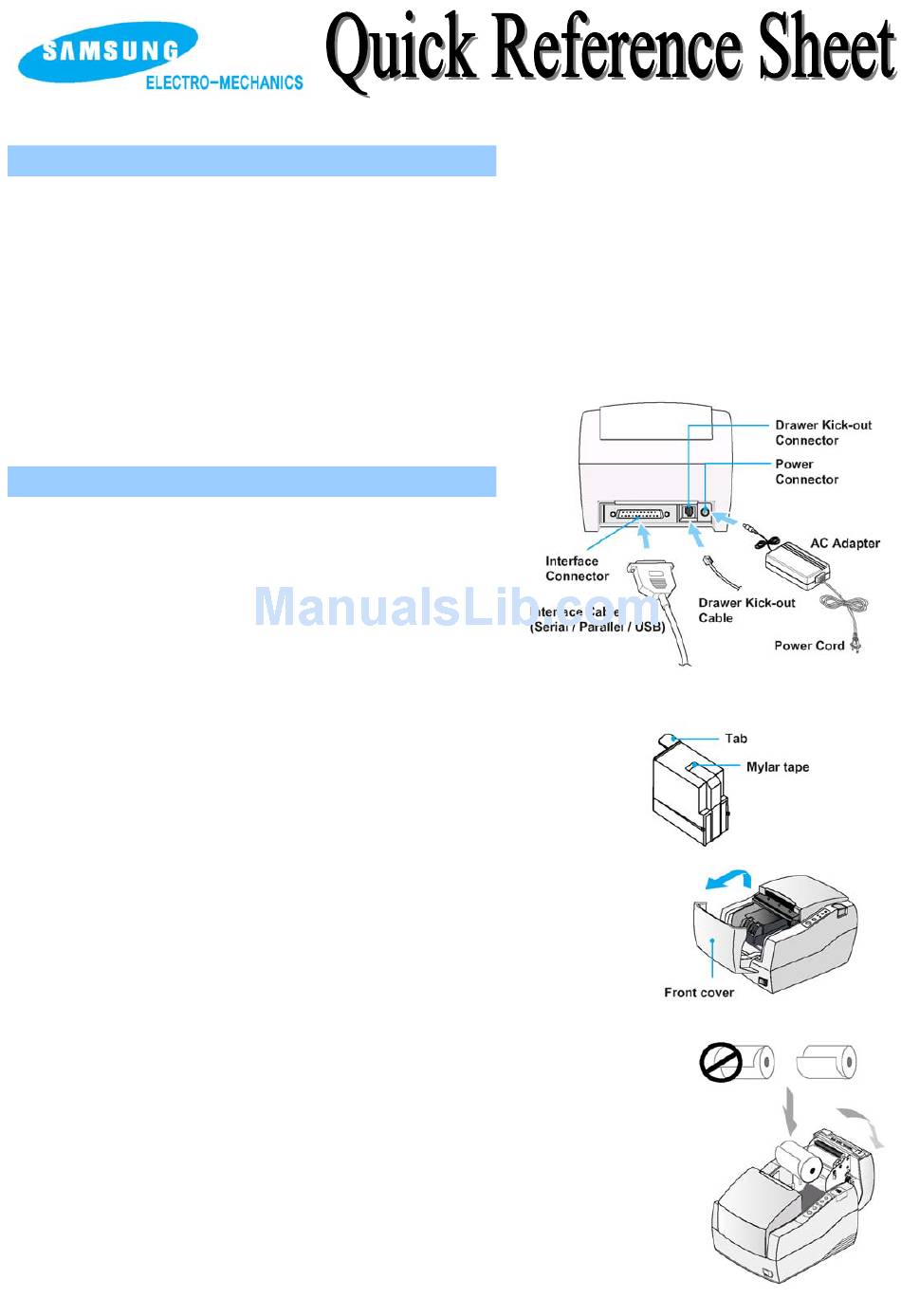

Samsung SRP-500 Quick Reference Sheet

Check that all Items are Present

◈
The following items are packed in the box. If any items appear to have
shipping damage or are missing, please contact your dealer.
•
POS Inkjet Printer SRP-500
•
Ink Cartridges
•
Paper Roll
•
AC Adapter & Power Cord
•
Operator's Manual & Quick Reference Sheet
•
Cable Cover
Startup Information
◈
•
Connecting the Cables
1. Connect Interface Cable
Depending on the Interface your system uses, connect the
serial, parallel or USB communication cable to the
connector on the back of the printer.
2. Connect the AC adapter cable to the power connector of
the printer.
•
Installing New Ink Cartridges
1. Turn the printer on.
2. Remove new ink cartridge from pouch and peel off mylar. Do not touch
cartridge's metallic connector area with your fingers. Touching this surface
contaminates the connector.
3. Open front cover of printer and pull down cartridge latch(es).
4. Take out old ink cartridge(s).
Place new cartridge(s) into carriage. Hold round tab to ensure clean
installation.
Black cartridges go into left carriage.
Color cartridges go into right carriage.
(Tab faces front of printer.)
5. Close latch(es) and front cover.
Notice
The ink drop counter is automatically reset when the ink-cartridge is
installed.
•
Loading New Paper Roll (refer to label on inside of cabinetry)
1. Turn the printer on and open the rear cover by pressing open button.
2. Insert new paper roll.
Be sure to note the correct direction of the paper roll.
3. Pull out a small amount of paper, then close the cover and tear off the extra
paper by pulling it toward the front of the printer.
POS Ink-jet printer SRP-500
