POWERED SUBWOOFER
SW-32HT
SERVICE MANUAL

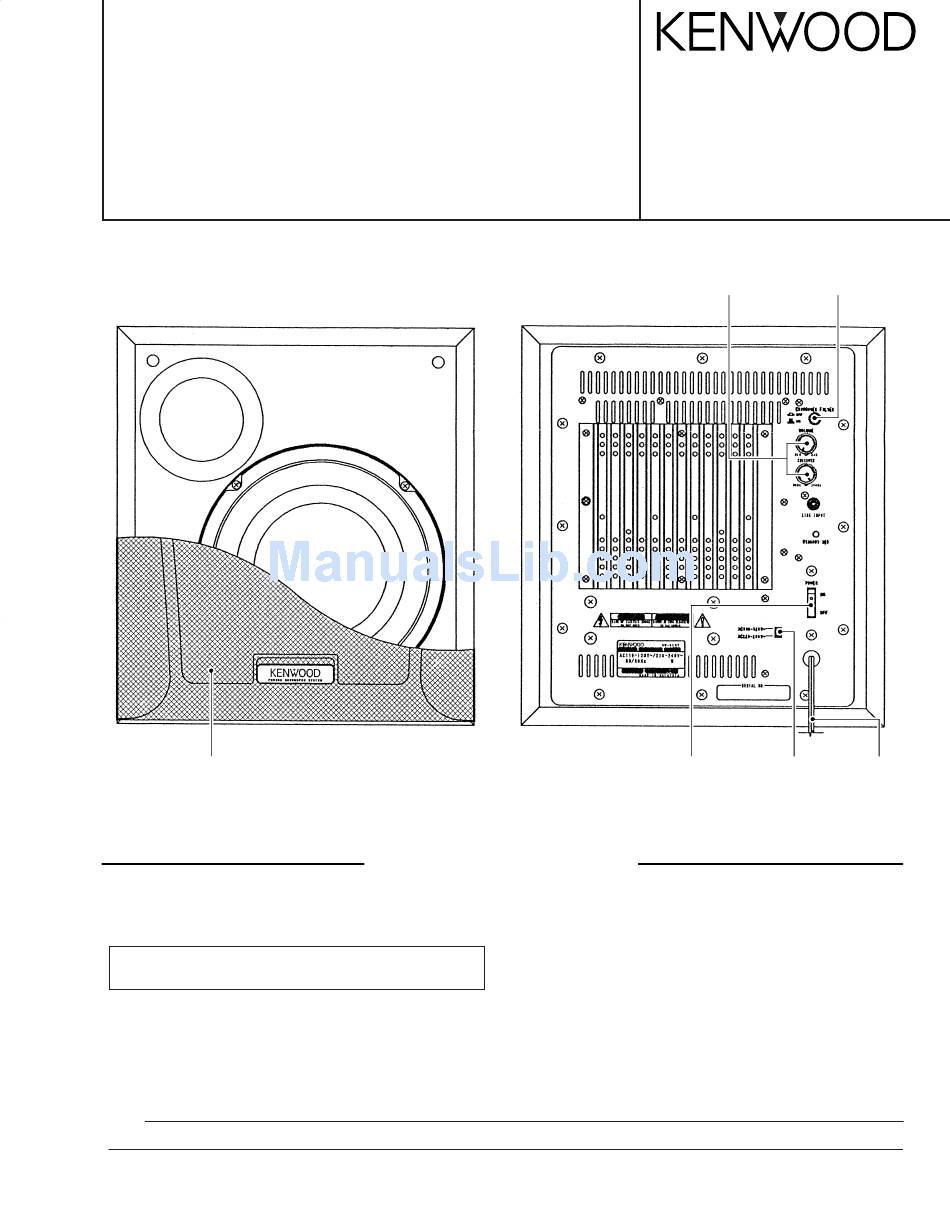

Grille assy
(B06-1257-08)
Type .......................................... Subwoofer system with built-in
[Amplifier]
100 watts RMS, at 4 Ω, from 20 Hz to 200 Hz with no more
than 0.09 % total harmonic distortion.
Input Sensitivity & Input Impedance
.............................................. 200 mV (12 kΩ)
Supply Voltage ....................... U.S.A. and Canada
Other countries AC 110 V - 120 V/ AC 220 V - 240 V
Rated Power Consumption .. 160 W
Note:
KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
SPECIFICATIONS
amplifier
AC 120 V
Digitized in Heiloo, Holland
© 1998-5/B51-5430-00 (K/K) 1416
Knob
(K29-0580-08)x2
Power switch
(S66-0203-08)
[Speaker]
Enclosure ................................. Bass-Reflex, Floor Standing
Speaker Units ......................... 200 mm (8") Cone type
Nominal Impedance .............. 4 Ω
Dimensions .............................. Width : 300 mm (11-13/16")
Net Weight .............................. 15 kg (33.1 lb)
Supplied Accessories ............ Pin-plug cord × 1
.................................................... Pads
NOTE: DO NOT REMOVE THE GRILLE.
7/9/2014
Push knob
(K27-0211-08)
Voltage selector*
AC power cord*
(S62-0208-08)
(E30-)
* Refer to parts list on page 7.
Type
Height : 333 mm (13-1/8")
Depth : 483 mm (19")
(× 4)
