Page 1 DVA-G3342SD Manual Firmware Version 2.0x DSL WLAN LAN VoIP ISDN Analog...
Page 2: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 3: Copyright Statement
Contents are subject to change without prior notice. Copyright ® 2007 D-Link Corporation. (Service level: April 22, 2008) Trademarks D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered trademarks are the property of their respective manufacturers or owners. Mark Ups...
Page 4 D-Link HorstBox DVA-G3342SD 1. The device must be used in accordance with the instructions for use. 2. For transport, use the original wrapping or a adequate wrap- ping. Protect the HorstBox against shocks and blows. 3. To avoid condensation wait until the device has reached room temperature before you put it into operation.
Page 5 D-Link HorstBox DVA-G3342SD 15. In emergencies switch off the device immediately, disconnect the power supply and contact a sales person. 16. Do not open the HorstBox! 17. Repairs should only be carried out by qualiﬁed service per- sonnel. Unauthorized openings and unqualiﬁed repairs endanger the user(s).
Page 6: Table Of Contents
Contents 1 Introduction 1.1 About this manual ....13 1.2 Installation Considerations ....13 1.3 Standards-Based Technology .
Page 7 Contents 4.1.4 Assign ISDN Account ....52 4.1.5 Edit ISDN Account ....55 4.1.6 Delete ISDN Account .
Page 8: Contents
Contents 4.9.7 Unpark A Call ....83 4.9.8 Park A Call (Phone with Park Function) ..83 4.9.9 Unpark A Call (Phone with Park Function) .
Page 9: Contents
Contents 6.3.1 Activate WLAN ....118 6.3.2 Enable WLAN ....118 6.3.3 Security Settings .
Page 10: Contents
Contents 7.1 Administration ..... . 142 7.2 Time ......143 7.2.1 Automaitc (NTP) .
Page 11: Contents
... 177 C.4 Technical Data ..... . 177 D D-LINK Limited Product Warranty E Technical Support Index...
Page 12: Introduction
The HorstBox connects D-Link’s experience in routing, WLAN, security and telephony over analog and digital lines with the know-how in VoIP.
Page 13: About This Manual
(chapter 2 Getting Started on p.18). The next chapter will guide you through the installation and conﬁguration of the HorstBox DVA-G3342SD (chapter 3 Wizard on p.27). The next chapters each introduce an area of funcionality each: 1. chapter 4 Telephony on p.49;...
Page 14 1.2 Installation Considerations on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines: 1. Keep the number of walls and ceilings between the HorstBox and other network devices to a minimum.
Page 15: Standards-Based Technology
D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings.
Page 16: Ports
1.4 Ports - Installing a WLAN sys- NSTALLATION AND ETWORK XPANSION tem can be fast and easy and can eliminate the need to pull cable through walls and ceilings. Wireless technology allows the network to go where wires cannot go - even outside the home or ofﬁce.
Page 17: Voip And Ethernet
1.4 Ports Note: For an ISDN line connect the NTBA with the port “S ext” on the HorstBox. This is mandatory! Connect the NTBA to the wall socket according to your service providers instructions. 1.4.3 VoIP and Ethernet The HorstBox provides 4 ethernet ports and one port to connect to the WAN.
Page 18: Getting Started
Note: According to the terms of guarantee the HorstBox must be operated only with the power adaptor provided. Elsewise the guarantee becomes void. To extend the range of the WLAN you may want to connect a different WLAN antenna, e.g. D-Link ANT24-0700 oder D-Link ANT24-0501, to the HorstBox.
Page 19: Description

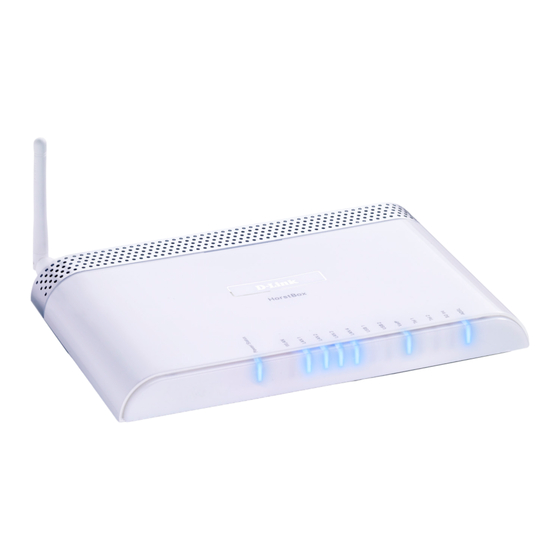

2.2 Description 2.2 Description 2.2.1 Front Panel On the front panel of the HorstBox you will ﬁnd LEDs, which inform about the status of the device and its ports. Figure 2.1: Front panel...
Page 20 2.2 Description Name Function Power/Status Power/Status Power: no Power: yes; Internet: no Blue Power: yes; Internet: yes WLAN Communication over WLAN Access Point: switched off Blue Access Point: switched on Blue & blinking Data activity LAN 1-4 Communication over LAN 1-4 Netwerk connection: no Blue Netwerk connection: yes...
Page 21: Back Panel
2.2 Description 2.2.2 Back Panel The back panel houses all ports of the HorstBox and the WLAN and Reset switches. Figure 2.2: Back panel Name Port type, Color Function Order from left to right ADSL WAN port, (RJ45), gray connect to DSL port on splitter a/b S Combi port, (RJ45), black...
Page 22: Installation
2.3 Installation 2.3 Installation Please read chapter 1.2 Installation Considerations p.13 before installing the HorstBox. 2.3.1 Preparations Before conﬁguring the HorstBox prepare the device as described in this section. • Install the HorstBox at the desired location. • Provide for air circulation. Do not cover the HorstBox. •...
Page 23: Connect To The Horstbox
2.3 Installation An easy way to conﬁgure the HorstBox is to connect a computer directly and let it get an IP address from the DHCP server of the HorstBox. Start the HorstBox ﬁrst, the computer second. 2.3.2 Connect to the HorstBox The HorstBox can be conﬁgured via a WLAN connection or via a LAN connection using an ethernet cable.
Page 24 2.3 Installation Figure 2.3: Sticker with Network Key The dialog W now shows the IRELESS ETWORK ONNECTIONS connection to network dlink. Note: For security reasons change the WPA-PSK key at once. The status tray will show a symbol for the wireless connection. LAN Connection To connect the HorstBox to your computer, use the blue ethernet cable delivered.
Page 25: Conﬁguration
2.3 Installation 2.3.3 Conﬁguration To conﬁgure the HorstBox via its graphic user interface, call up the URL http://horstbox in a browser. Figure 2.4: Enter address in browser Username and Password are pre-deﬁned as admin. If you didn’t change the password, just click on L to get access the OGIN HorstBox.: admin / default password: admin.
Page 26 2.3 Installation You can switch between basic and expert mode. While the expert mode provides more detailed settings, for most users the settings made in basic mode will be sufﬁcient. Figure 2.6: Graphical user interface No Name Function Switch Switch language and modes; status report Open a new tab by clicking on it Navigation column Open new page inside a tab for more settings Text...
Page 27: Wizard
3 Wizard The Wizard will guide you step-by-step through the installation and conﬁguration of the HorstBox. Within minutes the HorstBox will be ready to go. Note: For security reasons conﬁgure the HorstBox via a network cable only. Do not use a WLAN connection. To start the wizard click on S on the start page.
Page 28: Internet Connection
3.1 Internet Connection The conﬁguration of the HorstBox is arranged in ﬁve main steps: 1. connect the device to the Internet, 2. setup a wireless local network (WLAN), 3. connect your phone(s) to the HorstBox, 4. connect USB devices to the HorstBox and 5.
Page 29 3.1 Internet Connection Figure 3.3: Internet connection: DSL connectivity Use the gray network cable delivered with the HorstBox. Put one end into the DSL port (gray), the other end into the DSL port on the splitter. Click on N , to open the next page to enter the login details. Figure 3.4: Internet connection: Login details Your Internet Service Provider (ISP) will provide your login details.
Page 30 3.1 Internet Connection Enter User name and Password for the HorstBox to store and to establish an Internet connection. Your input has to be case sensitve. Click on N , to open the page for the time settings. Figure 3.5: Internet connection: Time Settings You can deﬁne a permanent Internet connection or an automatic disconnection after inactivity.
Page 31: Wlan
3.2 WLAN Figure 3.6: Internet connection: Summary 3.2 WLAN Here you will prepare the HorstBox for the WLAN. Attach the antenna to the device, enter a name for your wireless network and choose some simple security options. Figure 3.7: WLAN: Overview Click on N to get instructions on how to attach the antenna.
Page 32 3.2 WLAN Figure 3.8: WLAN: Attaching the antenna Plugin the antenna into the antenna socket and screw on clock- wise. Flip the antenna into an upright position. Click on N , to open the page to specify a name (SSID) for your WLAN.
Page 33 3.2 WLAN Enter a unique name for your WLAN in order to identify and propagate it wireless. Click on N , to open the page for the security settings. Note: Without any security your WLAN will be open for everyone! Figure 3.10: WLAN: Security settings Choose a encryption method and a strong password for the com- munication with and within your WLAN.
Page 34 3.2 WLAN Click on N , to open the summary page for the WLAN settings. Figure 3.11: WLAN: Summary If you used the WLAN switch to switch off the WLAN, a red framed warning will appear. You may continue using the wizard. All WLAN settings will become effective once the WLAN is switched on manually.
Page 35: Telephony
3.3 Telephony 3.3 Telephony To use the HorstBox as phone system PBX you must at least connect one phone (analog or ISDN). Conﬁgure the HorstBox and do a functional test. You may set up a VoIP account here as well. Figure 3.13: Telephony: Overview Click on N to learn how to connect an analog phone.
Page 36 3.3 Telephony Click on N Figure 3.15: Telephony: Name the analog phone Please choose unique phone names so the further administration of the HorstBox will become more comfortable. Click on N to open the functional test page. Figure 3.16: Telephony: Functional test...
Page 37 3.3 Telephony The functional test checks whether the phone is properly con- nected. The HorstBox sends a signal and the phone should ring. Pick up the receiver and put it back into the craddle. Click on N to continue. Figure 3.17: Telephony: Second analog phone If desired, you may connect and set up a second analog phone.
Page 38 3.3 Telephony Now you can connect and set up an ISDN phone. Connect the phone to the port “S Int” on the HorstBox. Use the red phone cable (ISDN) provided. Figure 3.18: Telephony: ISDN Phone Click on N Figure 3.19: Telephony: Name the ISDN phone Please choose unique phone names so the further administration of the HorstBox will become more comfortable.
Page 39 3.3 Telephony Click on N to open the functional test page. Figure 3.20: Telephony: Functional test The functional test checks whether the phone is properly con- nected. The HorstBox sends a signal and the phone should ring. Pick up the receiver and put it back into the craddle. Before executing the functional test you have to set up your ISDN phone to MSN 21.
Page 40 3.3 Telephony Now you will set up the external phone line. Figure 3.21: Telephony: External phone line Connect the HorstBox to the phone line. Analog main line: Connect the black analog cable to the black connector "‘a/b S0 Ext"’ at your HorstBox. Connect the other end to the corresponding jack at the DSL splitter.
Page 41 3.3 Telephony Afterwards you have to choose one of the options: I want to use the analog line (see left Fig.) or I want to use the ISDN line (see right Fig.). Click on N , to enter the phone numbers. Figure 3.22: Telephony: Phone numbers Enter the phone number(s).
Page 42 3.3 Telephony Before you can use Internet telephony you have to register with a VoIP provider, e.g. SipGate to receive a VoIP phone number. In the next step please enter your login details for the VoIP ac- count in order to make phone calls over the Internet. Click on N Figure 3.24: Telephony: VoIP login details Enter host name or IP address of the VoIP server into the ﬁeld...
Page 43: Usb
3.4 USB 3.4 USB Figure 3.26: USB: Overview Click on N to set up the storage shares. From the drop-down list Share (guest account) choose an option. Figure 3.27: USB: Storage Shares Click on N to set up the printer shares.
Page 44 3.4 USB Figure 3.28: USB: Printer Shares Select the printer you want to share in your LAN. Only one printer may be shared at a time. Click on N for the summary page of the USB devices. Figure 3.29: USB: Summary Click again on N for the system settings.
Page 45: System
3.5 System 3.5 System Only some more settings are required now: 1. System Time. To make sure that rules and tasks can be executed at the right time you have to set up the system time properly. 2. Password. To protect the HorstBox against unauthorized or illegal access you have to enter an Administration Password.
Page 46 3.5 System Note: It’s recommended to use the “automatic” option. To set the time manually, use the page T on the tab S YSTEM Choose one option and click on N to set up the password protection. A password protects against unauthorized or illegal access. Change the default password: admin at once! Figure 3.32: System: Password Protection Click on N...
Page 47 3.5 System Figure 3.34: Wizard: Finish Congratulation! Your HorstBox has been setup successfully and is now ready for use. You have completed all settings now. To ﬁnish the Wizard and to save all settings, click on N on the Finish page. To go back to a previous step please use B To close the Wizard click on C (on the left).
Page 48 3.5 System Figure 3.35: Status page Note: To call up the status page, use the link S (top right TATUS corner) or just click on the D-Link logo.
Page 49: Telephony
4 Telephony This chapter introduces all telephony settings. Additionally you may need: • Phone numbers/external MSNs as provided by your telephone service provider. • Manuals for your phone(s) To navigate in the tab T use the navigation column. ELEPHONY Figure 4.1: Navigation column Telephony Note: To stay online permanently use a ﬂatrate!
Page 50: Lines And Accounts
4.1 Lines and Accounts 4.1 Lines and Accounts 4.1.1 Main Telephone Line Before you conﬁgure the accounts choose the main telephone line: analog or ISDN. Select the desired entry in the drop down list Line Type and click on S Figure 4.2: Lines and Accounts In-bound and out-bound connections are established over ac- counts.
Page 51: Edit Analog Account
4.1 Lines and Accounts On the tab P you will link accounts to phones HONES AND EVICES or devices. You can use rules (see tabs C and D ULES ULES preselect which account will use what phone and when). 4.1.2 Edit Analog Account To edit the analog account, ﬁrst select Analog as line type.
Page 52: Delete Analog Account
4.1 Lines and Accounts You may block your caller ID by choosing the option Caller ID Blocking. Enter a preﬁx, e.g. . To block your caller ID for the next call dial as preﬁx before the phone number. To unblock your caller ID, simply press <Your phone number>.
Page 53 4.1 Lines and Accounts Call Transfers as ISDN Service You may set up some ISDN services as options. These ISDN services may be offered by your telephone service provider. The HorstBox will help you to conﬁgure the service, but the functions will be allocate at the switchboard.
Page 54 4.1 Lines and Accounts Figure 4.4: Add ISDN Account Saving successfully is reported in a success message (green frame). If an error occurs you will see an error message (red frame). Change the settings in the box with the red frame and again click on S To cancel the dialog, click on C .
Page 55: Edit Isdn Account
4.1 Lines and Accounts 4.1.5 Edit ISDN Account To edit an ISDN account click on E . The same dialog as for adding an account opens, but this time all ﬁelds contain values. Edit the values and click on S Figure 4.5: Edit ISDN Account 4.1.6 Delete ISDN Account To delete an ISDN account click on D...
Page 56 4.1 Lines and Accounts If an error occurs you will see an error message (red frame). Change the settings in the box with the red frame and again click on S To cancel the dialog, click on C . The previous page will be ANCEL displayed.
Page 57: Edit Voip Account
4.1 Lines and Accounts Figure 4.6: Assign VoIP Account 4.1.8 Edit VoIP Account To edit a VoIP account click on E . The same dialog as for adding an account opens, but this time all ﬁelds contain values. Edit the values and click on S 4.1.9 Delete VoIP Account To delete a VoIP account, click on D .
Page 58: Phones And Devices
4.2 Phones and Devices 4.2 Phones and Devices Register the connected phones with the HorstBox. You can set up external call diversions. For each connected device Dial and Call rules can be deﬁned. You may connect up to 2 analog devices and up to 4 ISDN devices. The HorstBox comes with some devices preconﬁgured.
Page 59: Default And Fallback Account
4.2 Phones and Devices 4.2.1 Default and Fallback account The Default account will be used for out-bound calls. The Fallback account will be used for out-bound calls, if the default account is now available. Therefor use different account types (analog, ISDN or VoIP) for default and fallback account. 4.2.2 Comfort Options The HorstBox offer a variety of comfort options for phones and devices.
Page 60 4.2 Phones and Devices Call forwarding on line busy: Activate this option and all in-bound calls to this phone number (MSN) will be transfered to the phone number entered in the ﬁeld N when the UMBER line is busy. Figure 4.8: Comfort options...
Page 61 4.2 Phones and Devices Black- and White Listing Manage in- and out-bound calls via Black or White Listing. Figure 4.9: Black and White Listing A “black list” will suppress all phone numbers entered. In-bound calls to these numbers will be rejected, while out-bound calls to any of the numbers entered will be blocked.
Page 62 4.2 Phones and Devices Add Black or White Listing To add black or white listing for incoming or out-bound calls, choose the appropriate optin form one of the drop-down lists Functionality, and click on A You may edit black or white lists. Figure 4.10: Add Black/White Listing Enter the phone number and click on A SSIGN...
Page 63: Edit Analog Device
4.2 Phones and Devices 4.2.3 Edit Analog Device The HorstBox allows for up to two analog devices to be connected. Both devices are already conﬁgured. Adjust those settings to your needs. Figure 4.11: Edit Analog Device To edit an analog device click on E In the ﬁeld N enter an unique name for the phone.
Page 64: Delete Analog Device
4.2 Phones and Devices For internal calls dial (double asterisk) as a preﬁx, e.g. to call the second analog phone. For outgoing call simply dial the phone number. Choose the default account and the Fallback account. Choose one or more comfort options, see 4.2.2 Comfort Options on p.59.
Page 65: Edit Isdn Device
4.2 Phones and Devices 4.2.5 Edit ISDN Device The HorstBox allows for up to four ISDN devices to be connected. All four devices are already conﬁgured. Adjust those settings to your needs. Use an ISDN hub, if you need to connect more than one ISDN device.
Page 66: Delete Isdn Device
4.2 Phones and Devices Figure 4.12: Edit ISDN Device 4.2.7 Delete ISDN Device The ISDN devices can not be deleted. Remove the cable if necces- sary.
Page 67: Call Rules
4.3 Call Rules 4.3 Call Rules Call Rules manage the handling of in-bound calls. For each account you can deﬁne which phone is supposed to ring. Of course several devices may signal an in-bound call in parallel. To use Call Rules you have to set up at least one account (see section 4.1 Lines and Accounts on p.50) and register one device...
Page 68: Delete Call Rule
4.3 Call Rules Figure 4.14: Edit call rules To cancel the dialog, click on C . The previous page will be ANCEL displayed. 4.3.2 Delete Call Rule Call rules cannot be deleted, but you can deactivate all options.
Page 69: Dial Rules
4.4 Dial Rules 4.4 Dial Rules Dial Rules can deﬁne favorable connections for out-bound calls. The application of these rules depends on the time of day and on the preﬁx number of the number you have dialed (e.g. long- distance-call, local call, cell phone call or VoIP call). Dialing spe- ciﬁc digits before the phone number allows Least-Cost-Routing.
Page 70: Pre-Deﬁned Emergency Call Dial Rules
4.4 Dial Rules 4.4.1 Pre-Deﬁned Emergency Call Dial Rules Adjust the pre-deﬁned emergency call dial rules to your needs. Al- ways keep these phone number current. Under no circumstances enter irregular phone numbers. In case of an emergency police, ﬁre brigade or ambulance cannot be called. To change the pre-deﬁned dial rules, click on E , change the phone numbers and click on S...
Page 71 4.4 Dial Rules Figure 4.16: Add/Edit Dial Rule...
Page 72: Edit Dial Rules
4.4 Dial Rules Change the settings in the box with the red frame and again click on S To discard all recent entries click on D ISCARD NTRY 4.4.3 Edit Dial Rules To edit a dial rule click on E .
Page 73 4.4 Dial Rules Figure 4.17: Least Cost Routing/Pre-Selection 5. Activate the option with amended phone number. 6. Leave the ﬁeld P (2 in ﬁg. 4.17) blank. REFIXES 7. Enter the phone number of the Call-by-Call provider. 8. To save the new rule, click on S All out-bound calls to the certain country will be routed via the chosen Call-by-Call provider.
Page 74 4.4 Dial Rules Example for Preﬁx Deﬁne a new call rule and activate the option with amended phone number. Phone number to call: 01234567890 Enter in ﬁeld P (1 in ﬁg. 4.17): 01234567890 REFIXES Leave the ﬁeld P (2 in ﬁg. 4.17) blank. REFIXES Enter in ﬁeld M (3 in ﬁg.
Page 75: Preselection
4.4 Dial Rules 4.4.6 Preselection You can set up the HorstBox to use a certain telephone service provider for every out-bound call, differentiate even for calls to mobile phone numbers or overseacalls. Deﬁne a new call rule and activate the option with amended phone number.
Page 76: Speed Dialing
4.5 Speed Dialing Example for Number Substitution Deﬁne a new call rule and activate the option with amended phone number. Phone number to dial: 01234567890 In ﬁeld P (1 in ﬁg. 4.17) enter: 012 REFIXES In ﬁeld P (2 in ﬁg. 4.17) enter: 012 REFIXES In ﬁeld M (3 in ﬁg.
Page 77: Edit Speed Dialing
4.5 Speed Dialing Figure 4.18: Speed Dialing Change the settings in the box with the red frame and again click on S To cancel the dialog, click on C . The previous page will be ANCEL displayed. 4.5.2 Edit Speed Dialing To edit a speed dialing number click on E .
Page 78: Phone Log
4.6 Phone Log 4.6 Phone Log The phone log shows an overview over all in-bound and out-bound calls. Figure 4.19: Phone Log 4.6.1 Delete Phone Log To delete the phone log and start a new one, click on D ELETE 4.6.2 Save Phone Log To save the recent phone log as a ﬁle on your computer, click on .
Page 79: Status
4.7 Status 4.7 Status The Phone Status indicates the attached VoIP devices and phones and assists you with the troubleshooting. Figure 4.20: Status...
Page 80: Qos
4.8 QoS 4.8 QoS QoS is short for Quality of Service. Voice data packets ﬂagged with a priority mark may be privileged by routers. Figure 4.21: QoS For SIP priority (for VoIP) the range is 0 to 63. The default value is 6.
Page 81: How To Telephone
4.9 How To Telephone 4.9 How To Telephone Note: Diverting calls to external numbers may cause additional costs. Please refer to the documentation of your phones to ﬁnd out which features they support. Sometimes your telephone service provider has to (de-)activate certain features. After you have connected and set up all devices to the HorstBox and added all neccessary (dial or call) rules, you may now use the phones.
Page 82: External Calls
4.9 How To Telephone Combination Device Port / Internal MSN Analog 1 "‘Tel 1"’ Analog 2 "‘Tel 2"’ – ISDN 1 – ISDN 4 MSN 21 – MSN 24 Table 4.6: Overview Combination +phone number for internal calls 4.9.3 External Calls Out-bound calls are handled by the default account, unless dial rules deﬁne a different account.
Page 83: Speed Dialing
4.9 How To Telephone 4.9.4 Speed Dialing (Numbers to be stored beforehand!) To use a speed dial or vanity number use as a preﬁx. Example The phone number of your bank is stored as speed dialing number 01. To call your bank just dial: 4.9.5 Transfer Calls •...
Page 84: Unpark A Call (Phone With Park Function)
4.9 How To Telephone 4.9.9 Unpark A Call on Phones with Park Function • To unpark a call use the menu on your phone. Please refer to the manual of your phone to learn more about this function. 4.9.10 Telephone Conference with 2 Additional Callers Analog Phone For a telephone conference with two more participants and an...
Page 85: Three-Way Calling (Analog Phone)
4.9 How To Telephone 4.9.11 Three-Way Calling (Analog Phone) • While talking to participant A you want to talk to participant • During the call press (aka Hook-Flash) and dial the phone number. • Participant A is on hold now.. •...
Page 86: Do Not Disturb
4.10 How to control the HorstBox via a phone 4.9.13 Do Not Disturb (DND) Activate Do Not Disturb Function • Lift the receiver. • Dial . All in-bound calls are blocked now, but you still do out-bound calls. Deactivate Do Not Disturb Function •...
Page 87 How to control the HorstBox via a phone Key Combination Function internal call to analog phones internal call to ISDN phones <Speed Dial> Call a phone number via speed dial Internal call to all phones <No. of account> <TN> Call a TN using analog or ISDN account <No.
Page 88: Internet
5 Internet This chapter introduces all settings to access the internet and how to set up other useful features of the HorstBox. The default IP address of the HorstBox is http://horstbox. Open this in a browser to start the graphical user interface. Figure 5.1: Enter the URL of the HorstBox Username and Password are pre-deﬁned as admin.
Page 89: Dsl Access
5.1 DSL Access To navigate in the tab N use the navigation column. ETWORK Figure 5.3: Navigation column Internet (expert and basic mode) 5.1 DSL Access You may need this information: • user name and password for the DSL access You get these details from your Internet Service Provider (ISP).
Page 90 5.1 DSL Access Figure 5.4: Login data Please note! Using the ethernet port as Internet access re- stricts the data transfer rate to 100MBit/s for all ports. Con- necting a VDSL modem (data transfer rate: 50MBit/s) leaves 50MBit/s for the 3 other ports. This restriction is not valid for WLAN connections.
Page 91: Internet Connection
5.1 DSL Access 5.1.2 Internet Connection Figure 5.5: Internet Connection If you change the passwort for the DSL access on the IPS’s web- site, you have to change it on this page as well. Failing to do so, will result in denied access to the internet. From the drop-down list Protocol select the protocol (PPPoE or PPPoA) and the modulation typ.
Page 92 5.1 DSL Access you do not have a ﬂatrate for your internet connection. This will help you to save valuable online time. When using a ﬂatrate activate the option keep the Internet Con- nection open. The HorstBox will stay online permanently. Deﬁne the period of inactivity before disconnecting, e.g.
Page 93: Additional Settings In Expert Mode
5.2 DNS 5.1.3 Additional Settings in Expert Mode Note: Do only change the following values if requested by your ISP. Choosing improper values may causes deterioration of performance and data transfer rate or no internet con- nectivity at all. Settings in Expert Mode Scope Default VPI: Virtual Path Identiﬁer...
Page 94 5.2 DNS Figure 5.6: DNS settings Choose the option Use only manually speciﬁed DNS servers an enter the names or IP address of a preferred and an alternate DNS server. You may choose DNS servers other than those your ISP provides. To save the settings, click on S .
Page 95: Dynamic Dns
5.3 Dynamic DNS 5.3 Dynamic DNS DDNS makes your computer accessible from the internet under a constant host name even if your IP address changes dynamically. The dynamic change of the IP address occurs regularly after ﬁxed periods of time and is enforced via a short connection interruption by your ISP.
Page 96: Register A Ddns Account
5.3 Dynamic DNS 5.3.1 Register a DDNS Account Before you can use DDNS you have to set up an user ac- count at dyndns.org (http://www.dyndns.org) or no-ip.com (http://www.no-ip.com). Please refer to information provided by your DDNS provider too. 5.3.2 Enable DDNS To enable Dynamic DNS you should have this information ready: •...
Page 97: Virtual Server
5.4 Virtual Server 5.4 Virtual Server Via the virtual server you can forward the access to speciﬁed ports of your external IP address to a virtual server within your internal network, e.g. for FTP or POP3 access. Towards the outside, the HorstBox plays the server part receiving requests from external users under your public IP address and routing them to the virtual server.
Page 98: Add A New Rule
5.4 Virtual Server 5.4.1 Add A New Rule To add a new rule, click on A Figure 5.9: Virtual Server, Add rule Fields Content Rule Name Enter a name for the new rule. Protocol Choose the protocol: - TCP - UDP - TCP &...
Page 99: Edit A Rule
5.4 Virtual Server Fields Content Port Map Enter the local port number. If neccessary change the application settings if you redirect to a non default port number. IP Address Enter the IP address of the local server. Table 5.2: Add a rule To save the rule, click on S If an error occurs you will see an error message (red frame).
Page 100: Filter
5.5 Filter 5.5 Filter Filters manage the LAN users’ access to the Internet. It is possible to permit the access to the Internet for speciﬁed IP addresses within your LAN or to restrict the access for speciﬁed IP addresses. You can also deﬁne ﬁlters for the access to ports. Figure 5.10: Filter 5.5.1 Add A New IP Filter IP ﬁlters block the access to speciﬁed internet addresses for single...
Page 101 5.5 Filter Figure 5.11: Add IP ﬁlter In the next dialog deﬁne the ﬁlter. Depending on the protocol choosen different settings are possible.
Page 102 5.5 Filter Protocol: Any Option Filter Source IP Address - any IP address or IP address range Destination IP Address - any IP address or IP address range Table 5.3: Filter options For ﬁltering a single IP address, please enter the same value into both ﬁelds (from/to).
Page 103: Activate Ip Filters
5.5 Filter Figure 5.12: Add IP ﬁlter, Ports 5.5.2 Activate IP Filters To activate the usage of IP ﬁlters, acticate the option Apply IP ﬁlter rules.
Page 104: Add A New Mac Filter
5.5 Filter 5.5.3 Add A New MAC Filter Mac address ﬁlters grant internet access for single computers in the local network allowing for speciﬁc time ranges. Figure 5.13: Add MAC ﬁlter From the drop-down list MAC Address choose the MAC address from one of the computers in your LAN.
Page 105: Activate Mac Filters
5.5 Filter To save the settings, click on S If an error occurs you will see an error message (red frame). Change the settings in the box with the red frame and again click on S To discard all recent entries click on D ISCARD NTRY 5.5.4 Activate MAC Filters...
Page 106: Firewall
5.6 Firewall 5.6 Firewall The ﬁrewall protects your LAN against intruders. You can choose to activate different options. In computing, a ﬁrewall is a piece of hardware and/or software which functions in a networked environment to prevent some communications forbidden by the security policy, analogous to the function of ﬁrewalls in building construction.
Page 107 5.6 Firewall PING Behavior Enable one or both option(s). • Discard PING forwarding: Suppress the transmission of ping packets via the HorstBox. • Discard PING from internet to gateway: Suppress the trans- mission of ping packets from the Internet to the HorstBox. Figure 5.15: Firewall options: PING behaviour Protection against DoS attacks With DoS attacks, the offender tries to prevent legal users from...
Page 108 5.6 Firewall Application related DoS attacks This setting lets you repel known attacks on popular software or protocols. Please enter the ports used by the software on their clients within the internal network (standard ports are pre-selected). Figure 5.16: Firewall options: Application related DoS attacks...
Page 109 5.6 Firewall Networking related DoS attacks Figure 5.17: Firewall options: Networking related DoS attacks These settings let you repel further attacks: Winnuke is an attack on older Microsoft operating systems; it should no longer be possible when using an up-to-date system. Xmas Tree Packets are normally used to scan a network.
Page 110 5.6 Firewall To repel Fraggle Attacks, specify the maximum number of UPD packets per second that should be allowed to pass through the HorstBox per second. With a Land Attack a manipulated TCP packet causes the target computer to repeatedly try to connect to itself. This may crash the system.
Page 111 5.6 Firewall DoS Scans Port scans are a popular method to detect vulnerable points in your network. A port scanner either tries to connect to a service (connect scan) or tries to retrieve information about a computer’s active services from the answers on invalid packets (stealth scan). A port scan sending a great number of packets can be considered a DoS attack as well.
Page 112: Dmz (Exposed Host)
5.7 DMZ (Exposed Host) 5.7 DMZ (Exposed Host) DMZ is short for Demilitarized Zone. A demilitarized zone is a network area (a subnetwork) that sits between your internal network and an external network, usually the Internet. The point of a DMZ is that connections from the internal and the external network to the DMZ are permitted, whereas connections from the DMZ are only permitted to the external network.
Page 113 5.7 DMZ (Exposed Host) Activate the option DMZ and enter the local IP address of the computer to become accessible from the Internet. To save the settings, click on S If an error occurs you will see an error message (red frame). Change the settings in the box with the red frame and again click on S To discard all recent entries click on D...
Page 114: Rip Settings
5.8 RIP Settings 5.8 RIP Settings The Routing Information Protocol (RIP) is one of the most com- monly used interior gateway protocol (IGP) routing protocols on internal networks (and to a lesser extent, networks connected to the Internet), which helps routers dynamically adapt to changes of network connections by communicating information about which networks each router can reach and how far away those networks are.
Page 115: Network
6 Network This chapter introduces all LAN settings. Conﬁgure your own WLAN and setup LAN and USB shares. In the basic mode you can access the page WLAN, only. To navigate in the tab N use the navigation column. ETWORK Figure 6.1: Navigation column Network (expert- and basic mode) 6.1 IP Settings You may need the following information:...
Page 116 6.1 IP Settings the same segment (i.e. 192.168.0.x) to communicate with other devices. • value for subnet mask This value has to be the same for all devices in your LAN. The default IP address of the HorstBox is: http://horstbox, and the default value for subnet mask: 255.255.255.0.
Page 117: Dhcp Server
6.2 DHCP Server 6.2 DHCP Server A DHCP Server will distribute IP addresses within the network on demand. Please deﬁne a range for the IP addresses and a duration of validity (Lease Time). The HorstBox is by default set up as DHCP server. This may cause conﬂicts with another DCHP server already in your LAN.
Page 118: Edit Settings
6.3 WLAN Deﬁne the lease time in the ﬁeld L . Default value: EASE 86400 seconds (= 24 hours). To save the settings, click on S If an error occurs you will see an error message (red frame). Change the settings in the box with the red frame and again click on S To discard all recent entries click on D ISCARD...
Page 119 Enter a SSID (Network name) for your WLAN and choose a chan- nel [Default: 7]. Best not to use a common name like D-Link WLAN or MYWLAN as SSID. Set up all other WLAN devices to use the same SSID and channel.
Page 120 6.3 WLAN Figure 6.5: WLAN settings...
Page 121: Security Settings
6.3 WLAN 6.3.3 Security Settings SSID Select from the menu list whether the SSID should be hidden or public. If the SSID is concealed, you must explicibly enter this in the settings of the remaining WLAN devices. If the SSID is public, the WLAN devices will ﬁnd it.
Page 122 6.3 WLAN From the drop-down list Security choose the desired seurity level. The display changes. Figure 6.6: WEP settings Choose the authentication type from the drop-down list Auth. Type: Open or Shared. Auth. Typ – Explanation Open The HorstBox is visible to all devices in the WLAN. Shared Communication is possible between devices with the same WEP settings only.
Page 123 6.3 WLAN Select a key and enter the pass key. Choose the length of the key accordingly. You may set up up to four keys. The key selected will be the default key. Key Strength Number of Hex Digits 64 Bit 128 Bit A higher key strength makes decrypting of the encrypted commu- nication more difﬁcult.
Page 124: Deactivate Wlan
6.3 WLAN WPA is based on the Temporal Key Integrity Protocol (TKIP) and offers Pre-Shared-Keys (PSK) for user authentication. The PSKs are used to generate temporary keys for the WLAN devices. Enter a time for automatically changing the group keys in the ﬁeld G ROUP NTERVAL...
Page 125: Wlan Performance
6.4 WLAN Performance 6.4 WLAN Performance Set up the performances of your Access Point here. You can mod- ify some of the parameters to obtain an improved performance. Always change just one parameter and keep track of the effects. The position of the HorstBox may inﬂuence the performance, especially the range of the radio signal.
Page 126 6.4 WLAN Performance Options Values Signal Interval Time interval for sending a beacon for synchronization. Range of valid values: 20 to 1000. Default: 200. DTIM The Access Point caches deliveries for its clients. Then a Delivery Trafﬁc Indication Message (DTIM) informs the client about the delivery.
Page 127: Routing
6.5 Routing 6.5 Routing Routing determines the data packet’s way from the sender to the receiver. Routing is managed via entries in a router’s routing table speci- fying how a data packet should be transmitted. Normally, data packets will be transmitted out of your LAN through a gateway, e.d.
Page 128: Edit Route
6.5 Routing Figure 6.11: Add Route To save the new route click on S If an error occurs you will see an error message (red frame). To cancel the dialog, click on C . The previous page will be ANCEL displayed.
Page 129: Snmp Settings
6.6 SNMP Settings 6.6 SNMP Settings SNMP is short for Simple Network Management Protocol. This protocol provides functionalities for controlling and monitoring a network. It responds to speciﬁc incidents such as errors and notiﬁes the administrator in an appropriate way. To use SNMP an additional software is necessary.
Page 130 6.6 SNMP Settings Figure 6.12: SNMP settings As default two communities were added: public (right: “Read Only”) and admin (right: “Read Write”).
Page 131: Enable Agent
6.6 SNMP Settings 6.6.1 Enable Agent To activate an agent activate the option Enable SNMP Agent, enter the necessary values and click on S To discard all recent entries click on D ISCARD NTRY 6.6.2 Edit Agent Change the settings and click on S 6.6.3 Disable Agent To deactivate the agent, deactivate the option Enable SNMP Agent and click on S...
Page 132: Delete Community
6.6 SNMP Settings 6.6.6 Delete Community To delete a Community, delete the entry in the ﬁeld C OMMUNITY and click on S 6.6.7 Add Trap To add a new trap at least one community has to be added. Activate the option Enable SNMP Traps. Enter the destination IP address, port number and a community.
Page 133: User Accounts For Network Shares
ﬁle systems: FAT, FAT32 and EXT2. Using an USB hub with an additional power supply (such as D-Link’s DUB-H7) several devices can be attached concurrently. Please be patient for a short moment while the HorstBox detects and initialises the attached USB device.
Page 134: Edit User Account
6.7 User Accounts for Network Shares Figure 6.13: User Accounts for Network Shares Figure 6.14: Add user account 6.7.2 Edit User Account To edit a user account, e.g. to change the password click on E The user name cannot be changed. To save the settings, click on S To cancel the dialog, click on C .
Page 135: Delete User Account
6.7 User Accounts for Network Shares Note: You do not have to enter a password yet, but this share will be open to any user in your LAN who knows the user name for this share. 6.7.3 Delete User Account To delete a user account click on .
Page 136: Network Shares
6.8 Network Shares 6.8 Network Shares For more information about network shares and the HorstBox see section 6.7 User Accounts for Network Shares on p.133. To connect a USB device simply plug it one of the USB ports on the back panel. You may use an USB extension cable or connect an USB hub as well.
Page 137 6.8 Network Shares Enter a name for the network share into the ﬁeld S HARE This name will appear in the list Current Shares once the network share is set up. Choose a user from the drop-down list User. Click on C to choose a partition.
Page 138: Edit Network Shares
6.8 Network Shares 6.8.3 Edit Network Shares To edit a network share click on E Note: Network shares with status “not connected” cannot be edited. Edit the settings. To save the changes, click on S 6.8.4 Delete Network Share To delete a network share click on delete. Conﬁrm the warning by again clicking on D ELETE Saving successfully is reported in a success message (green...
Page 139: Manage Usb-Storage Devices
6.9 Manage USB-Storage devices 6.9 Manage USB-Storage devices 6.9.1 Unmount USB Storage Device Removing a USB device without unmounting it ﬁrst may result in data losses, as the operating system may not have ﬁnished writing onto the device yet. To unmount a USB device click on U NMOUNT Figure 6.18: Unmount USB Storage Device Conﬁrm the warning by again clicking on U...
Page 140: Usb Printer
6.10 USB Printer 6.10 USB Printer The HorstBox comes with a build-in printer server to share one printer in a LAN. This printer server supports most printers connected to the USB port, except GDI-printers (host-based printers). Note: Only one USB printer may be shared at a time. 6.10.1 Share USB Printer Connect the USB printer to the USB port on the back panel of the HorstBox.
Page 141: Remove Usb Printer
6.10 USB Printer Figure 6.19: Share USB Printer 6.10.3 Remove USB Printer The HorstBox automatically detects all connected printer. To unconnect a printer, simply switch it off. Make sure that all print jobs are ﬁnished beforehand. Otherwise these print jobs may be lost.
Page 142: System
7 System To navigate in the tab S use the navigation column. YSTEM Figure 7.1: Navigation column System (expert and basic mode) 7.1 Administration Without a valid password you can not manage the HorstBox. Resetting the device to the factory settings may solve the problem. Enter a new password in the ﬁeld P and conﬁrm it in ASSWORD...
Page 143: Time
7.2 Time Figure 7.2: Admin 7.2 Time Please make sure that the time is set correctly in order to ensure that your rules will be applied at the right time. Note: It may happen that after a reboot all settings for date and time are lost.
Page 144 7.2 Time Choose an option, if necessary enter the required data and click on S Figure 7.3: Time To discard all recent entries click on D . The option ISCARD NTRY Automatic will (again) be activated.
Page 145: Automaitc (Ntp)
7.3 System Settings 7.2.1 Automatic (Simple Network Time Protocol) Choose this option to synchronize date and time via a NTP server in the Internet. You may use the predeﬁned NTP server ntp1.dlink.com or enter the name of another NTP server, e.g. ntp.dlink.com.tw.
Page 146 7.3 System Settings Figure 7.4: System settings...
Page 147: Load System Settings
7.3 System Settings 7.3.2 Load System Settings You may want to restore the settings you saved before. To do so, click on C and in the next dialog choose a conﬁguration HOOSE ﬁle. Click on O To load the conﬁguration ﬁle into the HorstBox, click on L The HorstBox now checks the chosen conﬁguration ﬁle.
Page 148: Firmware Update
7.4 Firmware Update For a manual ﬁrmware update you need to download a ﬁrmware ﬁle ﬁrst. Please obtain this ﬁle from D-Link’s Web-Site only! For security reasons always update the ﬁrmware via an ethernet connection (cable) only.
Page 149 7.4 Firmware Update Figure 7.6: Firmware update Update Firmware To update the ﬁrmware, click on U . The HorstBox ﬁrst PDATE veriﬁes the ﬁle and then starts the update procedure. This may take some minutes. Warning! Never switch off the HorstBox during a ﬁrmware update. Once the ﬁrmware update is ﬁnished, the HorstBox reboots to start the new ﬁrmware.
Page 150: Upnp
7.5 UPnP 7.5 UPnP UPnP (Universal Plug and Play) is based on a series of standard network protocols and ﬁle formats. Via UPnP various device, e.g. stereo system, router, printer, can be controlled, manufacturer spanning over an IP based network. Due to the lack of authentication mechanisms, the usage of UPnP may impose security risks.
Page 151: System Log
7.6 System Log 7.6 System Log System Log stores internal system information. The messages may be helpful when trouble shooting. Click on R to get the newest messages. EFRESH Figure 7.8: System log...
Page 152: Status
4. System: current date and time, synchronization method and ﬁrmware version. Click on R to get the newest data. EFRESH Note: To call up the status page, use the link S (top right TATUS corner) or just click on the D-Link logo.
Page 153 7.7 Status Figure 7.9: System status...
Page 154: Support
8 Support 8.1 Wizard The Wizard (see chapter 3 Wizard on p.27) guides you step-by- step through the conﬁguration of the HorstBox. 8.2 Online Help In the Online Help you can ﬁnd some information about the settings on tabs and pages. Clicking on the H tab opens an overview page of the Online Help.
Page 155 8.2 Online Help On each page you ﬁnd a link to the online help in the topic header line. Figure 8.2: Link to Online Help on settings page Clicking on the Help link on a single page will drop down the help topic for this page.
Page 156: The Horstbox On The Internet
8.3 The HorstBox on the Internet 8.3 The HorstBox on the Internet More Information about the HorstBox on the Web-Site of D-Link: http://www.dlink.eu/. Figure 8.4: D-Link Web-Site...
Page 157: Special Settings
8.4 Special Settings 8.4 Special Settings Special settings can be done in Expert Mode. Switch to expert mode ﬁrst, select the desired tab and the desired area. Note: In Basic Mode only the necessary settings are shown. For most users the settings made in basic mode will be sufﬁcient.
Page 158: A Quick Guides And Faqs
A Quick Guides and FAQs This chapter offers some Quick Guides and Frequently Asked Questions (FAQs). A.1 Internet Access To enter access data open the page DSL C on the tab ONNECTION . If requested by your Internet Service Provider (ISP), NTERNET you may change the settings for MTU, MRU, VPI and VCI in Expert Mode.
Page 159 A.2 How to Set Up an Analog Connection? • Open the conﬁguration interface in a web browser, default IP address: http://horstbox. • Change to the tab T ELEPHONY • If necessary change to the page L INES AND CCOUNTS • As Main Line choose Analog from the drop-down list Line Type and click on S •...
Page 160: How To Set Up An Isdn Connection
A.3 How to Set Up an ISDN Connection A.3 How to Set Up an ISDN Connection • Connect the black ISDN cable to the black connector “a/b S0 Ext”. Connect the other end to the corresponding con- nector/port at the NTBA. •...
Page 161: Assigning Msns
A.3 How to Set Up an ISDN Connection A.3.1 Assigning MSNs One ISDN devices may answer to several MSN (see next section). You have to set up the phone accordingly. Please refer to the documentation of the phone. Setting up MSNs may vary for different phones.
Page 162: Check List 2: Conﬁguration Of Devices
A.5 Why do I need Internal Phone Numbers? A.3.4 Check List 2: Conﬁguration of Devices • Check all cables connected to the devices. • Check whether NTBA and all devices are connected to their power supplies. If you want to connect more than 4 devices, the additional devices will need their own power supplies.
Page 163: How To Make An External Call
A.6 How to make an External Call A.6 How to make an External Call Just dial the phone number you wish to call. The HorstBox handles the number entered according to the Dial Rules set up earliers (see 4.4 Dial Rules on p.69) and starts the call.
Page 164: How To Set Up Call-By-Call To Mobile Phones
A.8 How to Set Up Call-by-Call to Mobile Phones A.8 How to Set Up Call-by-Call to Mobile Phones To use Call-by-Call providers for international calls, set up the HorstBox as follows: • On the T change to the page D ELEPHONY ULES •...
Page 165: How To Set Up Call-By-Call For Certain Time Periods
A.9 How to Set Up Call-by-Call for Certain Time Periods A.9 How to Set Up Call-by-Call for Certain Time Periods To use Call-by-Call providers for certain time periods, set up the HorstBox as follows: • On the T change to the page D ELEPHONY ULES •...
Page 166: A.11How To Block 0900-Numbers
A.11 How to Block 0900-Numbers A.11 How to Block 0900-Numbers 0900-numbers are Value Add Numbers. Beside the connection costs you have to pay additional for the service. To block 0900-numbers, set up the HorstBox as follows: • On the T change to the page D ELEPHONY ULES...
Page 167: A.13Emergency Calls And Power Black-Out
A.14 Power Supply for USB Devices A.13 Emergency Calls and Power Black-out The HorstBox’s lifeline support provides access to an analog line via an analog phone in times of electrical power outage. Line Type Phone Calls possible Analog Analog Analog ISDN ISDN Analog...
Page 168: B Troubleshooting
B Troubleshooting This chapter provides solutions to problems that can occur during the installation and operation of the HorstBox. For problems with your operating system please refer to the documentation provided. Note: For security reasons conﬁgure the HorstBox via a network cable only.
Page 169: No Connection To Internet In Infrastructure Mode
Please refer to the documentation provided by your ISP for the necessary IP addresses. B.4 No Wireless Connectivity Using D-Link (WLAN) products enables you to access your LAN and the Internet from almost any place. Please read the sec- tion 1.2 Installation Considerations...
Page 170: How To Avoid Wireless Connectivity Losses
B.4 No Wireless Connectivity avoid certain circumstances that may lead to the loss of wireless connectivity. B.4.1 How To Avoid Wireless Connectivity Losses Reposition the antenna of the HorstBox. Keep at least a distance of 15cm to the next wall or big objects. If you are using 2.4GHz cordless phones, X-10 equipment or other home security systems, ceiling fans, and lights, your wireless con- nection will degrade dramatically or drop altogether.
Page 171: Check Wlan Connection
B.5 Key Lost For Encryption B.4.4 Check WLAN Connection • Make sure that the SSID on the HorstBox is exactly the same as the SSID on the WLAN device. • Move the HorstBox and the WLAN device into the same room and then test the wireless connection.
Page 172: No Change To Basic Or Expert Mode
B.8 Electrical Power Outage and Emergency Calls Solution: Some analog phones or answering machines come with their own set of cables, because the pins inside the sockets are non-standard. Use the adaptor (RJ11 plug to TAE sockets) provided to connect the original cable to the HorstBox.
Page 173: Username And Passwords
B.9 Username and Passwords B.9 Username and Passwords Please note: Usernames and passwords may have to be entered case sensitive. 1&1 Username: 1und1/username@online.de or username@onlinehome.de Password: 1&1 password Alice Username: username@hansenet.de Password: Alice password Note: Mostly the username correlates to the Alice phone number. Any bandwidth higher than 2000 requires “high”...
Page 174 B.9 Username and Passwords Freenet Username: Realm/userername Password: PIN + password Username: GMX/kaxxxx-xxx@online.de Password: GMX password Hansenet Username: username Password: Hansenet password Inode Username: user id Password: Inode password Lycos Username: ﬂatrate/12345678910-username@lycos.de or lycos/12345678910-username@lycos.de Password: Lycos password M-Net Username: user id Password: M-Net password Netcologne Username: nc-user@netcologne.de...
Page 175 B.9 Username and Passwords Tiscali Business Username: ﬂatrate/user id@tiscali.de Password: Tiscali password T-Online Username: account id_T-Onlinenumber#0001@t-online.de Password: T-Online password Web.de Username: web.de:dsl/xxxx-xxxx-xxxx Password: Web.de password Table B.2: Usernames and Passwords No guarantee. Please refer to the login details provided by your ISP.
Page 176: C Speciﬁcation, Product Warranty, Technical Support
C Speciﬁcation, Product Warranty, Technical Support C.1 Speciﬁcation: Hard- and Software Hard- and Software Routing Voice Features/Codecs ADSL, ADSL2, ADSL2+ IPv4: G.711 (a-Law, -Law) Downstream: up to 24 MBit/s - TCP/UDP Fax Relay via G.711 Upstream : up to 1 MBit/s - ARP G.726 Standards:...
Page 177: Speciﬁcation: Telephony Functions
Humidity: 5% to 95% non-condensing Table C.4: Technical Data Note: Service Level: May 2007 Product speciﬁcations are subject to change without notice. D-Link is a registered trademark of D-Link Corporation/D-Link System Inc.. Other trademarks are the property of their respective owners.
Page 178: D D-Link Limited Product Warranty
THE EXTENT RESULTING FROM ANY this warranty card has to be pre- FRAUDULENT MISREPRESENTATION sented, too. ON THE PART OF D-LINK, OR (III) TO EXCEPT AS EXPRESSLY SET FORTH THE EXTENT ARISING UNDER PART IN THIS LIMITED WARRANTY, D-LINK 1 OF THE CONSUMER PROTECTION...
Page 179 D-LINK applicable to Hardware Products or its authorized service providers sold by D-Link Resellers in all Euro- offer warranty service subject to pean Countries as listed in the ad- the terms and conditions set forth in this Limited Product Warranty.
Page 180 This warranty THE INSTRUCTIONS FOR THE D-LINK shall also not apply to any particu- HARDWARE PRODUCT. lar product if any D-LINK serial num- ber has been removed or defaced in any way. Limited Product Warranty Period The Limited Product Warranty Pe-...
Page 181 D-Link (Europe) Ltd. D-Link House Abbey Road Park Royal +44-0 20-89 55-90 00 London NW10 7BX +44-0 20-89 55-90 01 Great Britain http://www.dlink.eu/ European Countries for D-LINK Limited Product Warranty Albania Andorra Austria Belarus Belgium Bosnia Herzegovina Bulgaria Croatia Cyprus...
Page 182 2004 to 31st October 2006 carry 2 years warranty and those sold in any other period will carry 5 years warranty. All products within this category sold in European Countries by D-LINK Resellers prior to 1 April 2007 carry 2 years warranty.
Page 183: E Technical Support
E Technical Support For technical support, updated documentation and recent ﬁrmware please visit D-Link’s Web-Site in the Internet: http: //www.dlink.eu/. In the drop-down list select your country to be transfer to your national D-Link Web-Site. Figure E.1: http://www.dlink.eu/ To request technical support you need to have the following infor-...
Page 184: Index
Index Back Panel ..... . . Access Point ....Basic Mode .
Page 185 Preferred ..... D-Link DNS server.....
Page 186 Index Additional settings ..Getting Started ....18–26 GMX ......Exposed Host (DMZ) .
Page 187 Index Unique ..... Assigning ....IP ﬁlter .
Page 188 Index Status ....79, Time ......Read Only .
Page 189 Index Speed Dialing ... . 76–77, Trap ......Add .
Page 190 Index Wired Equivalent Privacy ..WLAN status....152 Wizard ....25, 27–48, WLAN switch .

D-Link HorstBox DVA-G3342SD Manual

1 Introduction

2 Getting Started

3 Wizard

4 Telephony

5 Internet

6 Network

7 System

8 Support

A Quick Guides and Faqs

B Troubleshooting

C Speciﬁcation, Product Warranty, Technical Support

D D-LINK Limited Product Warranty

E Technical Support

Index

Quick Links

Related Manuals for D-Link HorstBox DVA-G3342SD

Summary of Contents for D-Link HorstBox DVA-G3342SD

Table of Contents
