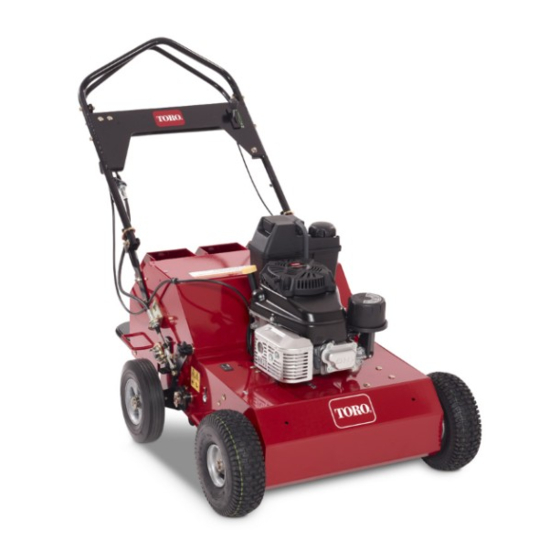

21-inch walk-behind aerator
Hide thumbs
Also See for 23515:
- Service manual (78 pages) ,
- Operator's manual (44 pages) ,
- Operator's manual (32 pages)
Related Manuals for Toro 23515
Summary of Contents for Toro 23515

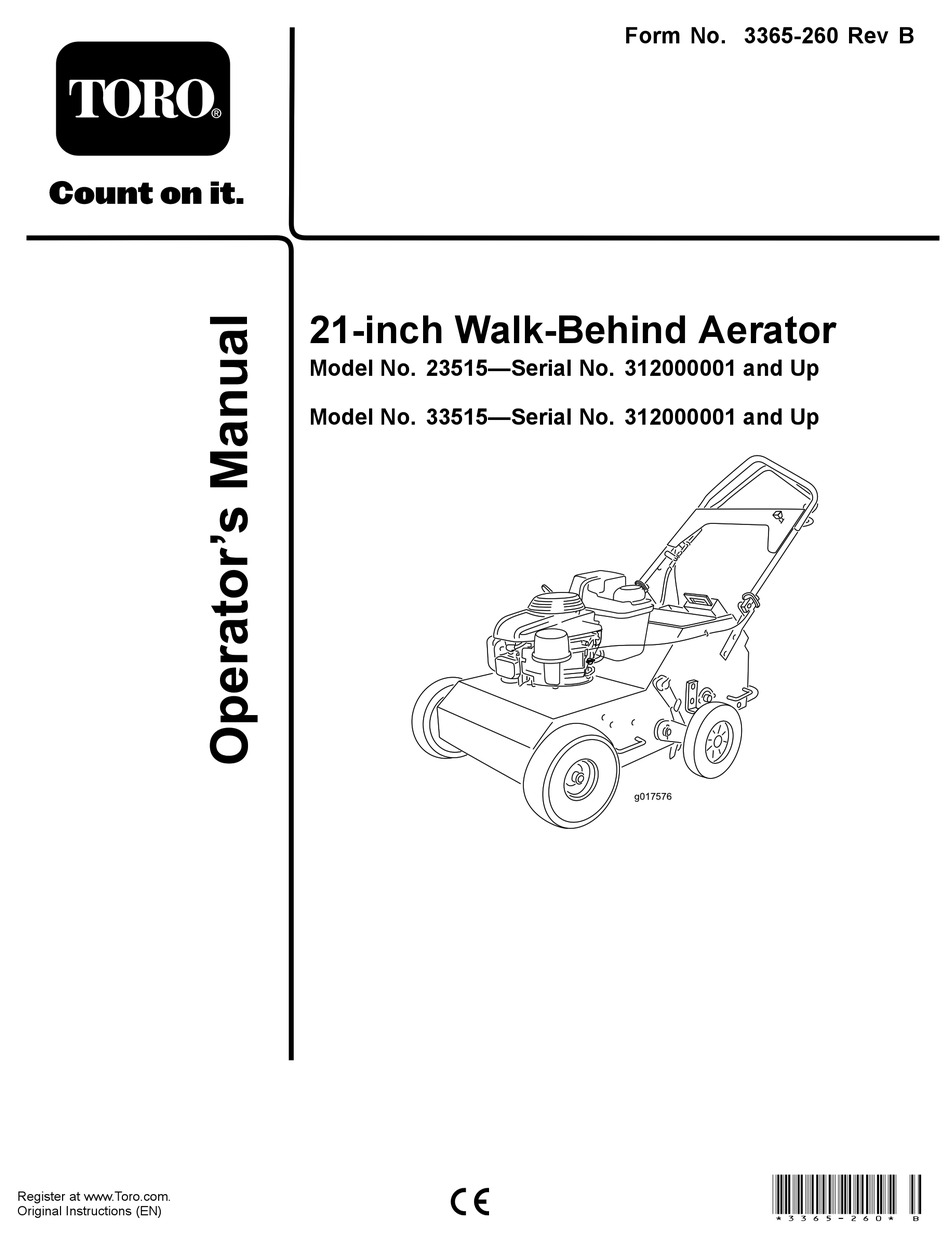

- Page 1 Form No. 3365-260 Rev B 21-inch Walk-Behind Aerator Model No. 23515—Serial No. 312000001 and Up Model No. 33515—Serial No. 312000001 and Up g017576 *3365-260* B Register at www.Toro.com. Original Instructions (EN)
-
Page 2: Introduction
You are responsible for operating the product properly and safely. You may contact Toro directly at www.Toro.com for product and accessory information, help finding a dealer, or to register Figure 2 your product. -
Page 3: Table Of Contents
Contents Safety Improper use or maintenance by the operator or Introduction ..............2 owner can result in injury. To reduce the potential Safety ................3 for injury, comply with these safety instructions and Safe Operating Practices........... 3 always pay attention to the safety alert symbol, which Slope Indicator ............ -
Page 4: Slope Operation
Stop the equipment and inspect the tines after striking an tightened. Replace all worn or damaged decals. object or if an abnormal vibration occurs. Make necessary • Use only Toro-approved attachments. The warranty repairs before resuming operation. may be voided if the machine is used with unapproved •... -
Page 5: Slope Indicator
Slope Indicator G011841 Figure 3 This page may be copied for personal use. 1. The maximum slope you can safely operate the machine on is 20 degrees. Use the slope chart to determine the degree of slope of hills before operating. Do not operate this machine on a slope greater than 20 degrees. Fold along the appropriate line to match the recommended slope. -
Page 6: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. 119-0217 1. Warning—stop the engine; stay away from moving parts; keep all guards and shields in place. -
Page 7: Setup
Setup Product Overview Unfolding the Handle 1. Raise the handle to the operating position. g017579 Figure 5 g017578 1. Fuel shut-off valve 9. Traction control lever 2. Air cleaner 10. Throttle lever Figure 4 3. Spark plug wire 11. Tine control lever 4. -
Page 8: Specifications
Contact your Authorized Service Dealer or 7. If the oil level reading is below the lower limit mark on Distributor or go to www.Toro.com for a list of all approved the dipstick, remove the dipstick and slowly pour only attachments and accessories. -
Page 9: Filling The Fuel Tank With Gasoline
Filling the Fuel Tank with • Oxygenated fuel with up to 10% ethanol or 15% MTBE by volume is acceptable. Gasoline • Do Not use ethanol blends of gasoline (such as E15 Fuel tank capacity: 1 US Gallon (3.8 l) or E85) with more than 10% ethanol by volume. -
Page 10: Stopping The Engine
Stopping the Engine 1. Release the traction control lever and allow it to return to neutral. 2. Move the throttle lever all the way rearward to stop the engine. Driving the Machine • To move forward, press the control lever forward (Figure 11). -
Page 11: Aerating
Note: If your machine is moving too slowly and not properly aerating, see Adjusting the Machine Ground Speed (page 20) Aerating 1. Drive the machine to the desired location and stop it. 2. Push the tine control lever down and forward to raise the rear wheels and engage the tines. -
Page 12: Securing The Machine For Transport
Securing the Machine for Transport When transporting the machine on a trailer, always use the following procedure: Important: Do not operate or drive the machine on roadways. 1. Drive the machine onto that trailer, stop the machine, stop the engine, turn off the fuel valve, and disconnect the spark plug wire. -
Page 13: Maintenance
Maintenance Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Change the engine oil. After the first 8 hours • Check the tension of the drive chains. After the first 10 hours • Check the tension of the hydrostatic drive belt. After the first 25 hours •... -
Page 14: Tipping The Machine
WARNING Mechanical or hydraulic jacks may fail to support machine and cause a serious injury. • Use jack stands when supporting machine. • Do not use hydraulic jacks. g017585 Figure 15 WARNING If you operate the machine with the rear access panel removed, some one could be severely injured by contact with the moving tines or by flying debris. -
Page 15: Lubrication
Lubrication engine to flood and the air cleaner to be fouled with gasoline. Greasing the Center Tines Service Interval: Before each use or daily 1. Raise the tines, stop the machine, stop the engine, and disconnect the spark plug wire. 2. -
Page 16: Engine Maintenance
Engine Maintenance 7. Install the foam pre-cleaner onto the paper air filter. Note: Use a new paper air filter if you discarded the old one. Servicing the Air Cleaner 8. Install the air filter assembly and cover. Service Interval: Every 25 hours—Clean the foam pre-cleaner (more frequently in dusty Changing the Engine Oil conditions). -
Page 17: Changing The Oil Filter
Figure 22 5. Install the new filter and hand tighten it 2/3 turn only. 6. Insert the dipstick into the filler neck and rotate the cap clockwise until it is tight. 7. Slowly pour oil into the oil fill tube, periodically g017582 checking the level with the dipstick, until the dipstick Figure 21... -
Page 18: Fuel System Maintenance
Fuel System Maintenance Replacing the Fuel Filter Service Interval: Every 250 hours 1. Stop the engine and wait for it to cool down. Figure 23 Important: Drain gasoline from a cold engine only. 1. Center electrode insulator 2. Side electrode 2. -
Page 19: Drive System Maintenance
Drive System Maintenance Checking the Tire Pressure Service Interval: Before each use or daily Maintain the air pressure in the tires as specified. Check the tires when they are cold to get the most accurate reading. g013126 Pressure: 46 psi (317 kPa) Figure 26 1. -
Page 20: Belt Maintenance
Belt Maintenance Controls System Maintenance Checking the Hydrostatic Drive Belt Adjusting the Machine Ground Service Interval: After the first 25 hours Speed Every 50 hours 1. Loosen the 2 bolts securing the cable attachment 1. Raise the tines, stop the machine, stop the engine, and bracket and slide it as far as possible to the left then disconnect the spark plug wire. -
Page 21: Tine Maintenance
Tine Maintenance Note: Ensure that the bail will reach the handle after the transmission is engaged. Checking/Replacing Tines Service Interval: Before each use or daily 1. Raise the tines, stop the machine, stop the engine, and disconnect the spark plug wire. 2. -
Page 22: Storage
Storage 1. Raise the tines, stop the machine, stop the engine, and disconnect the spark plug wire. 2. Remove dirt and grime from the entire machine. Important: You can wash the machine with mild detergent and water. Do not pressure wash the machine. -
Page 23: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action Engine will not start. 1. The throttle lever is in the Off position. 1. Move the throttle lever tot he Choke position. 2. The spark plug is disconnected. 2. Connect the spark plug. 3. The fuel is turned off. 3. - Page 24 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining guarantee information, contact the Toro importer.
