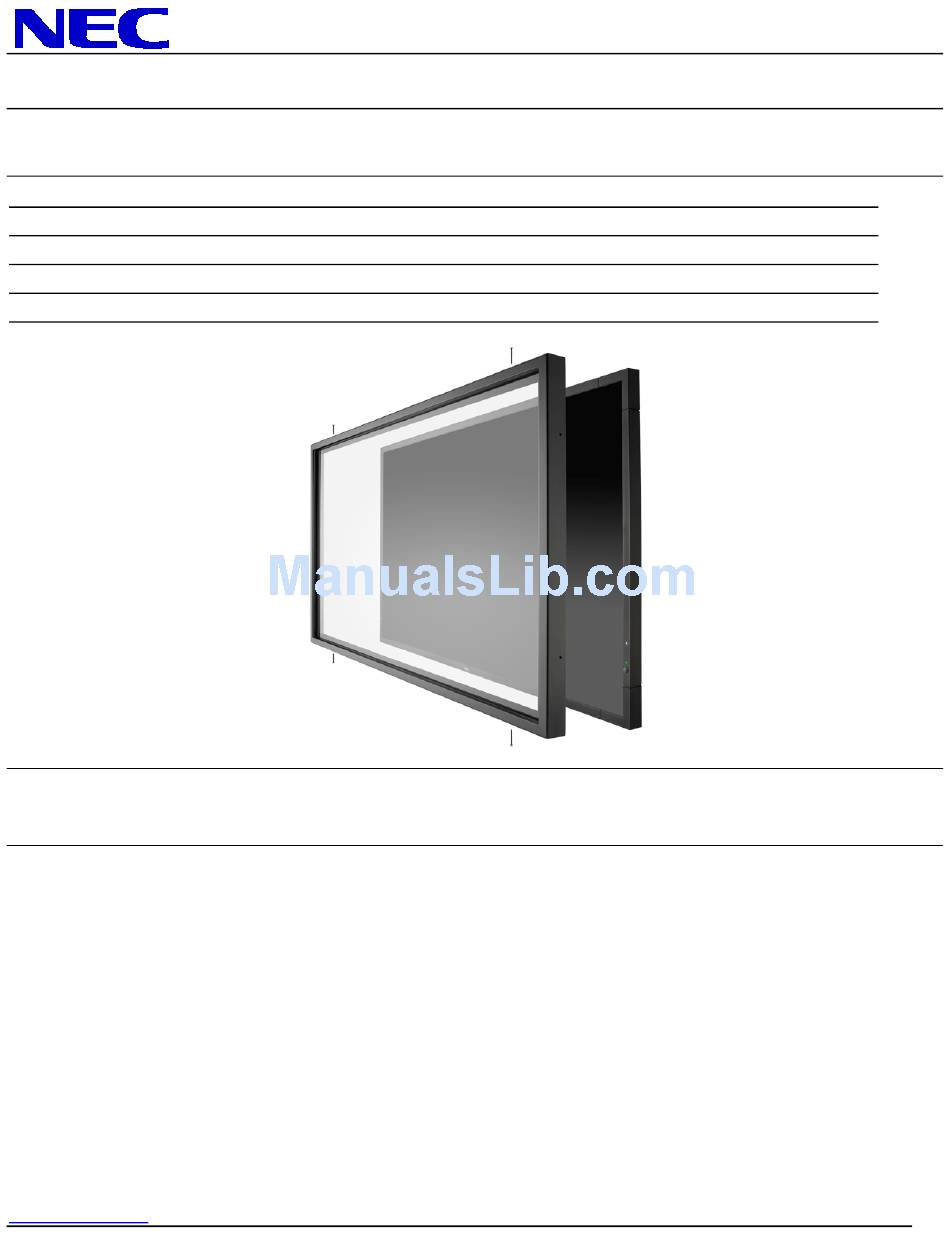

Integration Procedures Page 3 Purpose This procedure describes the steps to install the OL-V423 IR Touch Overlay onto the V423 display Notes and Warnings The overlay contains tempered glass. Use caution when handling. The overlay has an integrated USB cable located in the bottom right corner. Ensure the cable is not pinched, crushed, or damaged during installation.
Page 2
NEC Display Solutions of America, Inc. OL-V423 Installation Guide 10 Point Touch Overlay for the V423 Rev 1.0 Equipment OL-V423 IR touch screen overlay M3 x 30 Flathead Phillips Head Machine Screws Note: Quantity (1) Machine Screw Provided as Spare 10ft.
Page 3
NEC Display Solutions of America, Inc. OL-V423 Installation Guide 10 Point Touch Overlay for the V423 Rev 1.0 Integration Procedure Place the display face up on a padded surface for overlay integration 6.1.1 Note that if the unit is already mounted, removing the unit and placing it face up is optional;...
