Samsung SCV-5083 User Manual

High resolution wdr vandal-resistant dome camera
Hide thumbs Also See for SCV-5083:
Table of Contents

Advertisement

Quick Links

High Resolution WDR
Vandal-Resistant Dome Camera
User Manual
SCV-5083

Advertisement

Table of Contents
loading

Related Manuals for Samsung SCV-5083

Summary of Contents for Samsung SCV-5083

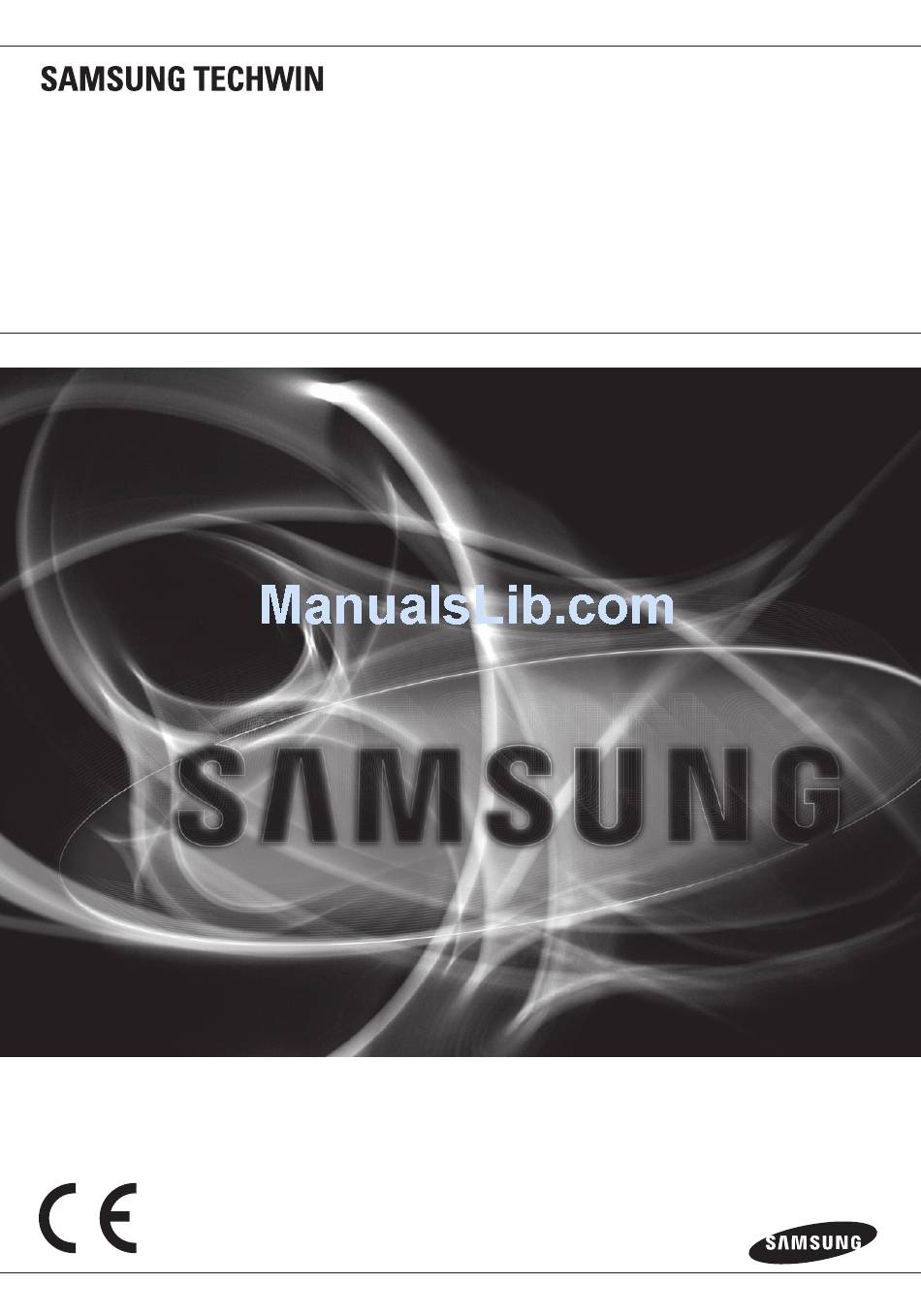

  • Page 1 High Resolution WDR Vandal-Resistant Dome Camera User Manual SCV-5083...

  • Page 2: User Manual

    Samsung Techwin. Disclaimer Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility.
  • Page 3 Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we'll introduce our model description. ■ SCV-5083 SERIES • NTSC MODEL • PAL MODEL SCV-5083N SCV-5083P ■ MODEL DESCRIPTION • SCV-5083X SIGNAL SYSTEM • SIGNAL SYSTEM...

  • Page 4: Safety Information

    safety information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
  • Page 5 If this product fails to operate normally, contact the nearest service center. never disassemble or modify this product in any way. (samsung is not liable for problems caused by unauthorized modifications or attempted repair.) When cleaning, do not spray water directly onto parts of the product.

  • Page 6: Fcc Statement

    safety information fCC statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : This device may not cause harmful interference, and This device must accept any interference received including interference that may cause undesired operation.

  • Page 7: Important Safety Instructions

    Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products.The Eco mark represents...

  • Page 8: Camera Operation

    contents inTroDuCTion Features Components and Accessories COMPONENT NAMES AND FUNCTIONS insTallaTion Before installation Installation Adjusting the monitoring direction for the camera ConnECTion Connecting to Monitor Connecting to Power Using Coaxial Communications CamEra oPEraTion Menu Configuration Menu Setup TroublEshooTing Troubleshooting sPECifiCaTions Specifications Dimension _ contents...
  • Page 9 Without an external sensor, you can use this product to detect motion and generate alarms and thus more efficient monitoring can be achieved. ssnr4 (samsung super noise reduction) function  High performance W7 Chip removes noises of GAIN resulting from the low light level and shows a vivid, high definition video even in the dark place.

  • Page 10: Components And Accessories

    - English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian, Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese ComPonEnTs anD aCCEssoriEs Check if the following items are included in the product package. Quick Manual SCV-5083 SCV-5083 Quick Manual Screws Video Output Cable...

  • Page 11: Component Names And Functions

    ComPonEnT namEs anD funCTions ➍ ❿ ⓫ ⓬ Dome Cover shield Case rotate base : control rotating angle of camera. Vari-focal lens module : 2.8 ~ 10.5mm (F1.2). ➍ function setup switch : Display the menu on the screen and move the cursor to four directions to confirm status or after changing a selected item.

  • Page 12: Before Installation

    Installation bEforE insTallaTion Ensure you read out the following instructions before installing the camera: You have to check whether the location (ceiling or wall) can bear five times the weight of your  camera. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. ...
  • Page 13 installing the camera on a ceiling or wall Drill holes on the ceiling by matching to the holes on the case bed, and insert plastic anchors (HUD 5) (not included) fully into the holes. Fix the case bed on the ceiling by using Tapping screws (TH M4 x L30). (3 places) Tapping screw Connect Power and video cables and arrange them through the hole you want to pass when mounting the main body on the mounting bracket, note that not...
  • Page 14 Adjust the lens in a desired direction. Secure the Shield case to the main unit. Assemble the camera on its mounting FRONT bracket with the three screws using L Wrench. Shield case Dome cover The installation should be done by qualifi ed service personnel or system installers. If the ceiling material is not strong enough to hold the installation screws, the camera may fall off.
  • Page 15 aDJusTing ThE moniToring DirECTion for ThE CamEra FRONT Tilt Lens rotation Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called Tilt, and turning the lens on its axis is called Rotation.

  • Page 16: Connecting To Monitor

    ConnECTing To moniTor Connect the Video OUT port on the rear panel of the camera to a monitor. SCV-5083 Monitor As the connecting method varies with the instruments, refer to the manual supplied  with the instrument. Only connect the cable when the power is turned off.

  • Page 17: Using Coaxial Communications

    When the resistance value of copper wire is at [20°C(68°F)] Copper wire size (AWG) #24 (0.22mm #22 (0.33mm #20 (0.52mm #18 (0.83mm Resistance value(Ω/m) 0.078 0.050 0.030 0.018 Voltage Drop (V/m) 0.028 0.018 0.011 0.006 As shown in the table above, voltage decreases as the wire gets longer. ...
  • Page 18 connection Video Cable The camera's video output port is connected to the monitor with a BNC coaxial cable, shown below. If the distance between the camera and the monitor exceeds the recommended maximum, please use an auxiliary video amp. Recommended Cable Distance Specification 300m...

  • Page 19: Menu Configuration

    camera operation mEnu ConfiguraTion main sETuP BASIC DAY/NIGHT BACKLIGHT ● ● ● PROFILE INDOOR USER ● ● ● SSDR ● ● OUTDOOR INDOOR ● ● ● WHITE BAL ● AWC  SET MANUAL MERCURY ● ● ● BRIGHTNESS ● LENS ●...
  • Page 20 camera operation MAIN SETUP Select the function ▶ 1. PROFILE BASIC Change the status using the Function using the Function 2. SSDR Setup switch. Setup switch. 3. WHITE BAL 4. EXPOSURE 5. BACKLIGHT 6. SPECIAL 7. EXIT SAVE Press the Function Setup switch. Main SETUP menu is displayed on the monitor screen.
  • Page 21 If you select the traffic monitoring mode, the shutter will be set to 1/200 sec. Noise can be detected at night. ssDr (samsung super Dynamic range) If an object has a large variance between bright and dark areas, it will keep bright areas bright and make selected dark areas bright, so that the overall brightness can be maintained.
  • Page 22 camera operation White bal (White balance) Use the White Balance function to adjust the screen color. When the SETUP menu screen is MAIN SETUP displayed, select ‘White Bal’ by 1. PROFILE BASIC using the Function Setup switch so 2. SSDR that the arrow indicates ‘White Bal’...
  • Page 23 ExPosurE When the SETUP menu screen is displayed, select ‘EXPOSURE’ by using the Function Setup switch so that the arrow indicates ‘EXPOSURE’. Select a desired mode using the Function Setup switch. EXPOSURE SETUP ▶ BRIGHTNESS ---- ----  brighTnEss : Adjusts the video ...
  • Page 24 camera operation baCKlighT The camera uses our own W7 chips that are designed to clearly display the object and the background despite severe reverse light. When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Function Setup switch. so that the arrow indicates ‘BACKLIGHT’. Select a desired mode using the Function Setup switch depending on the camera purpose.
  • Page 25 WDr : When there are both bright and dark areas at the same time, this mode makes  both areas distinctive. LEVEL : Select one from low, WDR SETUP med, high to adjust the LEVEL MIDDLE ▶ 1. brightness of the WDR RETURN setup.
  • Page 26 camera operation sPECial When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function Setup switch so that the arrow indicates ‘SPECIAL’. Select a desired mode using the SPECIAL SETUP Function Setup switch. DISPLAY ▶ 1. DisPlaY COMM ADJ ...
  • Page 27 FONT COLOR : You can change the OSD font color. (White, Yellow, Green, Red, Blue) LANGUAGE : You can select the menu language according to your requirements. RETURN : Return to the SPECIAL menu. Comm aDJ (Communication adjustment) :  COAX : You can select whether to COMM SETUP use COAX communication.
  • Page 28 camera operation DaY/nighT : You can display pictures in color or in black and white.  ❶ If the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow indicates ‘DAY/NIGHT’. ❷ Select a desired mode using the Function Setup switch according to the picture display you want.
  • Page 29 DEfog :  Y ou can use the defog mode to allow the camera to automatically  detect the fog density of the screen and display a clear image despite smog, fog or general poor visibility. ❶ If the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow indicates ‘DEFOG’.

  • Page 30: Video Analytics

    camera operation ViDEo analYTiCs  ❶ If the SPECIAL menu screen is VIDEO ANALYTICS displayed, use the Function Setup ▶ 1. TAMPERING switch so that the arrow indicates 2. MOTION ‘VIDEO ANALYTICS’. 3. INTELLIGENCE ❷ Select a desired mode using the RETURN Function Setup switch.
  • Page 31 DET. AREA : Set the areas of  MOTION DETECT AREA motion detection. SEL AREA AREA ▶ SEL AREA : Select from four MODE areas that users SENSITIVITY ---- ----  want. --------  MODE : Determine whether to BOTTOM -------- ...
  • Page 32 camera operation DET. SIZE : Selects an object size to detect on the screen.  FENCE  SEL FENCE : You can select VIRTUAL FENCE up to 4 FENCE. ▶ 1. SEL FENCE FENCE1 MODE : Determines whether MODE to use the fence 3.
  • Page 33 RETURN : Return to the VIRTUAL FENCE menu. COUNT : Displays how many times a subject passes over the fence on the screen. RETURN : Return to the INTELLIGENCE menu. APPEAR : Detects an object that emerges or disappears from the screen, or ...
  • Page 34 camera operation - If random objects obstruct the view of each other - If more than one objects merge or one object divides into multiple objects - If an object moves too fast (the same object should have overlapping areas between the consecutive frames) - If there are reflections/blurs/shadows created by a strong light such as direct sunlight, lights, and headlights.
  • Page 35 troubleshooting TroublEshooTing If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician. Problems Troubleshooting Nothing appears on the screen. Check that the power cord and line connection between the ...
  • Page 36 specifications sPECifiCaTions sCV-5083n sCV-5083P Video Imaging Device 1/3” 1.3M CMOS Total Pixels 1312(H) x 1069(V) Effective Pixels 1305(H) x 1049(V) Scanning System Progressive Scan Synchronization Internal H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz Frequency Color:1000TVL Horizontal Resolution...
  • Page 37 sCV-5083n sCV-5083P Digital Noise Reduction SSNR 4 ( Off / On ) Defog AUTO / MANUAL / OFF Purple Fringe Reduction Purple Fringe Reduction ( Off / Low / Middle / High) Digital Image Stabilization Off / On Off / On Tampering Off / On Motion Detection...
  • Page 38 DimEnsion Unit: mm 3_ specifications...
  • Page 39 MEMO...
  • Page 40 SALES NETWORK SAMSUNG TECHWIN CO., LTD. Samsung Techwin R&D Center, 6, Pangyo-ro 319beon-gil, Bundang-gu, Songnam-si, Gyeonggi-do 463-400, Korea TEL : +82-70-7147-8740~60, FAX : +82-31-8018-3745 SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660...
