KitchenAid KBLS22EVMS00 Parts List

Kitchenaid appliances refrigerator parts list
Hide thumbs Also See for KBLS22EVMS00:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instructions for Using
CABINET PARTS
REFRIGERATOR
For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00
(White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH)
10−08 Litho In U.S.A (mat) (psw)(bay)
1
Part No. W10234663 Rev.A

Advertisement

Table of Contents
loading

Related Manuals for KitchenAid KBLS22EVMS00

Summary of Contents for KitchenAid KBLS22EVMS00

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) 10−08 Litho In U.S.A (mat) (psw)(bay) Part No. W10234663 Rev.A...

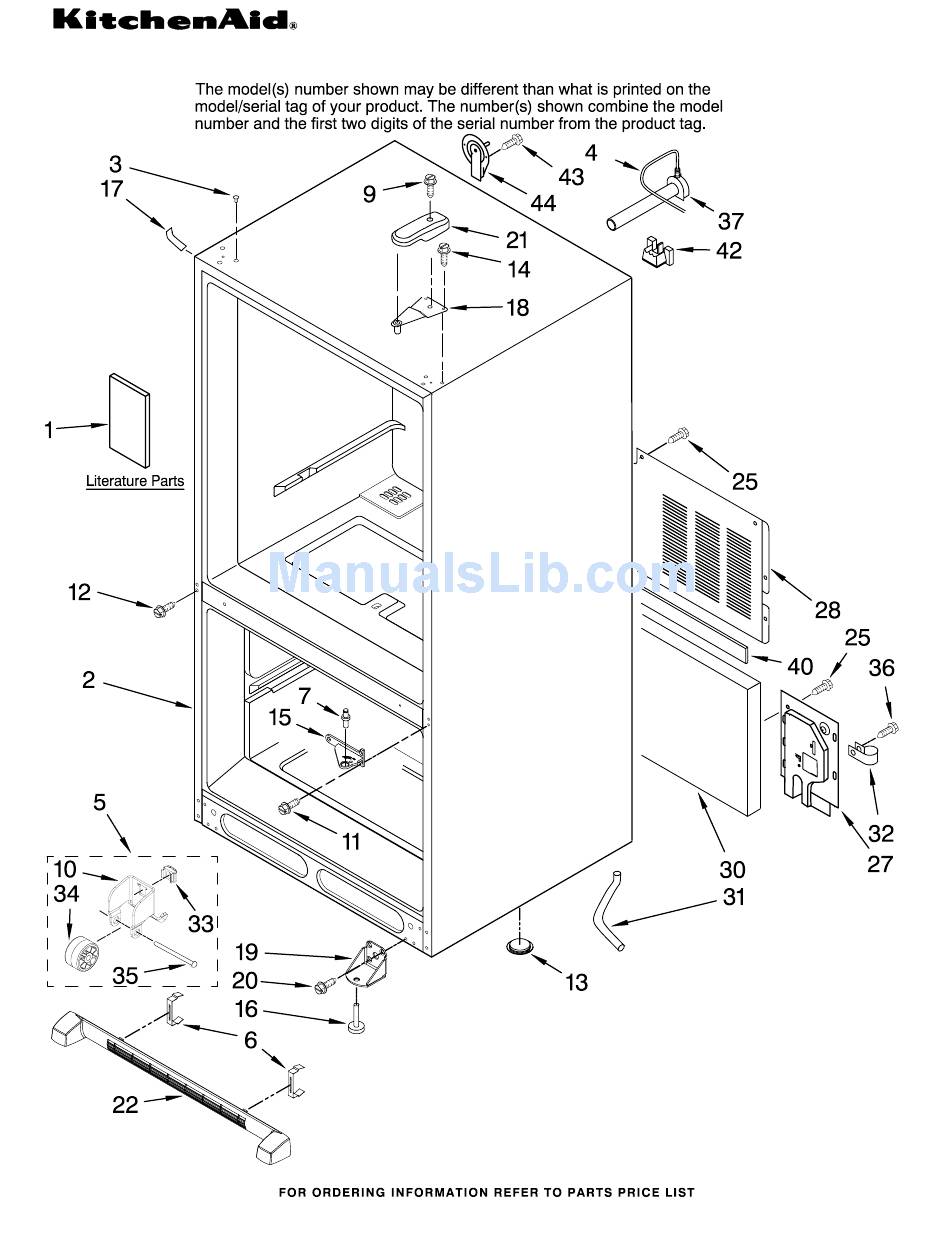

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) Illus. Part W10137649 Use & Care Guide W10212714 Energy Guide W10168777 Tech Sheet 67001130 White 67001131 Black 67003729 Tube, Plastic 5 12580304KVF Roller Foot 12627302 Clip, Grille 67006642 Pin, Center Hinge...

  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) W10234663...
  • Page 4 REFRIGERATOR LINER PARTS For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) Illus. Part Y67003896 Bracket, Control 3 W10209973 Overlay 4 W10185585 Module, Control 5 W10207861 Board, Control C3680310 Switch, Light 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2)

  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) W10234663...
  • Page 6 FREEZER LINER PARTS For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) Illus. Part 67001291 Gasket, Foam 12002497 Gear (2) 67003905 Cover, Light 67004261 Shaft Y12570701 Socket, Light 67006737 Screw A0282812 Bulb, Light 67001035 Housing, Light 67005872 Cover, Evaporator 67006425 Screw (7)

  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) W10234663...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) Illus. Part 12658583WQ White 12658583BQ Black 13023869SQ Stainless−RH 13023870SQ Stainless−LH 67001130 White 67001131 Black 67003819 Door, Dairy 67001279 Tray, Dairy 67005672 Bucket, Shelf (3) 6 12567321SP Gripper, Bucket(4)

  • Page 9: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) W10234663...
  • Page 10 FREEZER DOOR PARTS For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) Illus. Part 13092244WQ White 13092244BQ Black W10165719 Stainless W10119642 White W10119643 Black W10119644 Stainless 67006113 Mount, Handle W10164036 White W10164037 Black W10180623 Apollo Grey 67006901 Screw 10712401 White...

  • Page 11: Shelf Parts

    SHELF PARTS For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) W10234663...
  • Page 12 SHELF PARTS For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) Illus. Part 67001317 Ladder, Side 67006400 Screw 67001073 Ladder, Center 67006360 Screw (2) 12463509 Shelf, Fixed (2) 12463310 Shelf, Glide (2) 67006878 Glass, Crisper 67001056 Frame, Crisper 67001057 Support, Center...

  • Page 13: Unit Parts

    UNIT PARTS For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) W10234663...
  • Page 14 For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 Illus. Part DESCRIPTION 67006433 Screw 2 W10162928 Blade, Fan 12591404 Basepan 67006425 Screw 67005491 Block, Condenser 6 W10183706 Discharge, Tube 7 W10171661 Harness, Evap. Heater 67004713 Drain Pan 61004743 Grommet (3) 67001794 Evaporator Heater...

  • Page 15: Icemaker Parts

    For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 Illus. Part DESCRIPTION Mold & Heater Assembly (Not Available −− Order D7824706Q) 67004028 Arm, Shutoff 628356 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2195914 Support & Motor Assembly W10234663 ICEMAKER PARTS (White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH) Illus.
  • Page 16 OPTIONAL PARTS (NOT INCLUDED) For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392901 Biscuit PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350930 White 350939 Black 4392901 Biscuit Important: The spray paint is...

This manual is also suitable for:

Kbrs22evbl00Kbrs22evms00Kbrs22evwh00Kbls22ev - 21.9 cu. ft. bottom freezer refrigeratorKbls22evms - 21.9 cu. ft. bottom-freezer refrigerator
