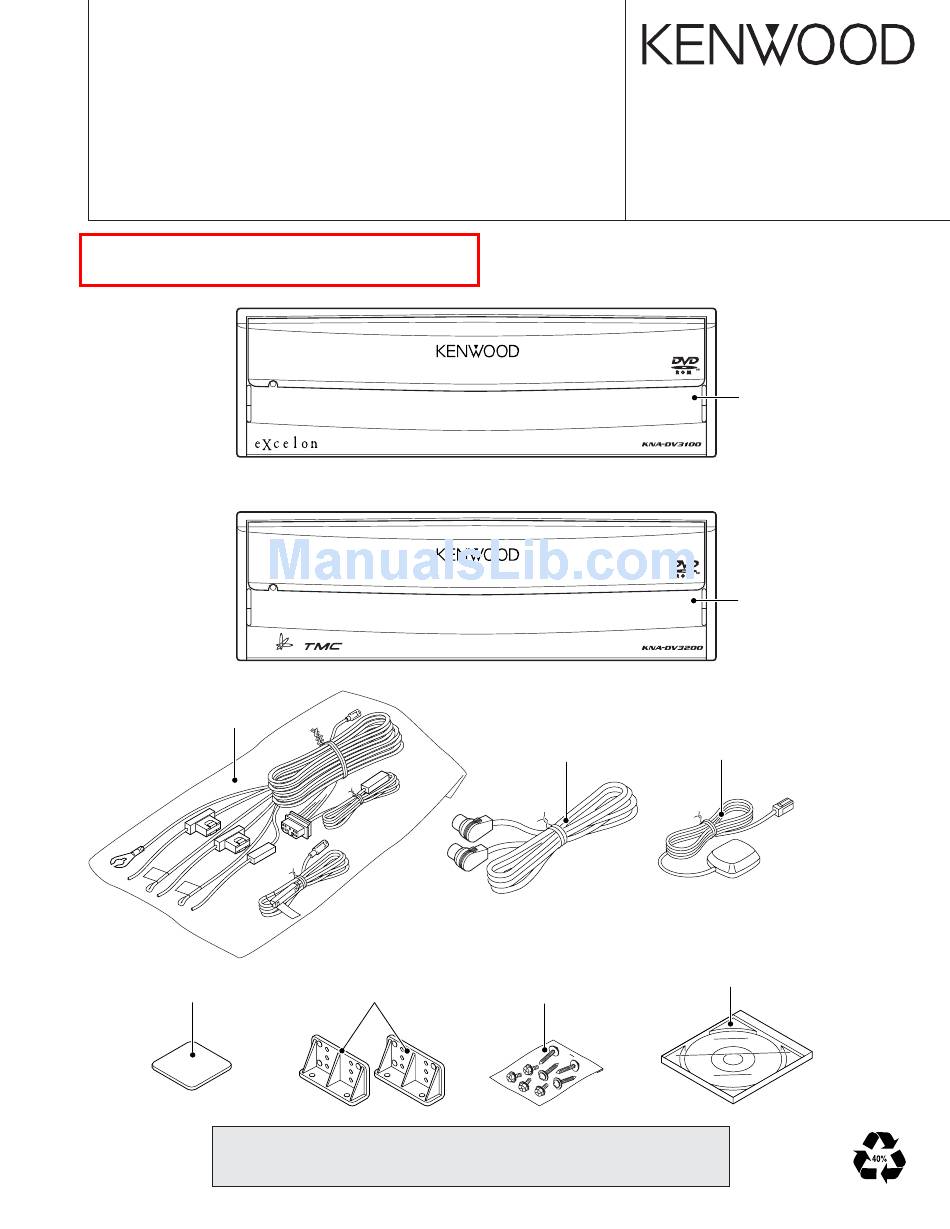

KNA-DV3200 Panel assy (A64-3106-03) DC cord assy (E30-4964-05) Connecting cord assy Electric circuit module (GPS ANT) (E30-6199-05) (W02-3261-05) (W01-1618-05) : KNA-DV3100 (W01-1619-05) : KNA-DV3200 Mounting hardware Bracket Screw set (J21-9867-04) (J19-5246-04) (N99-1713-05) CAUTION (Repair of NAVI board ) You can not repair IC521 (GPS Receiver) and IC701 (CORE1).
Page 3
KNA-DV3100/DV3200 COMPONENTS DESCRIPTION NAVI BOARD (W02-3395-15) Ref. No. Application/Function Operation/Condition/Compatibility IC101 Comparator Voltage detected IC102 Voltage detected IC103 SW regulator 8.3V power supply, 5V power source control IC104 SW regulator 3.3V power supply, 1.5V power source control IC105 3 terminal regulator Backup 3.3V power supply...
Page 4
KNA-DV3100/DV3200 COMPONENTS DESCRIPTION Ref. No. Application/Function Operation/Condition/Compatibility IC952 General purpose logic For generation of TMC control signal IC954~956 General purpose logic For generation of TMC control signal IC957 General purpose logic For mute signal generation T101 Transistor Power ON/OFF control...
Page 5
KNA-DV3100/DV3200 MICROCOMPUTER’S TERMINAL DESCRIPTION MICROCOMPUTER : MB89935B (NAVI BOARD : IC106) Pin No. Pin Name I/O Function Processing Operation Description FRES output Lo : Flash ROM and CORE1 reset RES output Lo : System reset NMI output Interrupt output to CORE1...
Page 6
KNA-DV3100/DV3200 TEST MODE • How to move to the access code input screen us- Diagnostics (DIAG) Screen Flow Chart ing the remote controller Press the right screen selection button for 5 seconds or CAUTION SCREEN MENU SCREEN FOR NO DISK more.
Page 7
KNA-DV3100/DV3200 TEST MODE Screen Name : Access Code input screen Screen Name : On-screen diagnostics menu screen Functions outline Functions outline • This screen is displayed after Diag operation is conducted. • On-screen diagnostics screen : This is the screen to be •...
Page 8
KNA-DV3100/DV3200 TEST MODE Display details Screen Name : NAVI Manual check screen q The PTT connection check is conducted. Screen appearance • The appropriate character set is displayed under the fol- lowing condition : <OK> : When the PTT switch is pressed.
Page 9
KNA-DV3100/DV3200 TEST MODE Screen Name : NAVI RGB test screen Screen Name : NAVI Voice Output test screen Functions outline Functions outline • This is the screen for testing the NAVI color display. • In this screen, the ADPCM output is tested.
Page 10
KNA-DV3100/DV3200 TEST MODE Definitions of the Button Names Screen Name : Remote control test screen The table below is the correspondence table between the Functions outline remote control silk names and displayed names on the diag • In this screen, remote control buttons are tested.
Page 11
KNA-DV3100/DV3200 TEST MODE Display details Screen Name : Navigation information screen q When ILL signal is displayed : Screen appearance • The condition of the PARK LAMP is displayed as : ON/OFF. w When PKB signal is displayed : • The condition of the parking brake signal is displayed as :...
Page 12
KNA-DV3100/DV3200 TEST MODE [2D] : When positioning is made on two dimensions. Screen Name : GPS information screen [3D] : When positioning is made on three dimensions. Functions outline [NG] : When positioning is not possible.. • This screen displays GPS-related information.
Page 13
KNA-DV3100/DV3200 TEST MODE Display details Screen Name : Parts information screen q Displays the map software version of the software that com- Functions outline prise navigation system. • Displays the conditions of the parts comprising the naviga- • NAVI : Displays the software version of the software that tion system.
Page 23
TP23 ASP-5V IN OUT 7.2V ASP-GND TP55 ASP-GND ACTIVE KNA-DV3100/3200 (2/2) SPEAKER I/F 220P 220P CAUTION : For continued safety, replace safety critical components 220P only with manufacturer's recommended parts (refer to parts list). TP30 Indicates safety critical components. To reduce the risk of electric...
CC73GCH1H221J CHIP C 220PF W01-1618-05 CK73GB1C104K CHIP C 0.10UF W01-1619-05 CK73GB1H472K CHIP C 4700PF W02-3261-05 ELECTRIC CIRCUIT MODULE (G-ANT) CC73GCH1H221J CHIP C 220PF K : KNA-DV3100 E1 : KNA-DV3200 Indicates safety critical components. (K : North America E : Europe)
Page 26
CHIP R J 1/4W C142 CK73GB1H104K CHIP C 0.10UF RK73GB2A223J CHIP R J 1/10W RK73EB2E620J CHIP R J 1/4W C143,144 CC73GCH1H681J CHIP C 680PF K : KNA-DV3100 E1 : KNA-DV3200 Indicates safety critical components. (K : North America E : Europe)
Page 27
CK73GB1H472K CHIP C 4700PF C556,557 CC73GCH1H101J CHIP C 100PF C755 C93-1325-08 CHIP C C561 CK73GB1H104K CHIP C 0.10UF C756 CK73GB1H472K CHIP C 4700PF K : KNA-DV3100 E1 : KNA-DV3200 Indicates safety critical components. (K : North America E : Europe)
Page 28
J 1/16W X701 L78-0884-08 RESONATOR 12.080964MHz R164 RK73EB2E331J CHIP R J 1/4W X702 L78-0886-08 RESONATOR 32.768kHz R165 RK73EB2E222J CHIP R 2.2K J 1/4W K : KNA-DV3100 E1 : KNA-DV3200 Indicates safety critical components. (K : North America E : Europe)
Page 29
CHIP R 8.2K J 1/16W R714 RK73HB1J223J CHIP R J 1/16W R311 RK73HB1J563J CHIP R J 1/16W R716 RK73HB1J220J CHIP R J 1/16W K : KNA-DV3100 E1 : KNA-DV3200 Indicates safety critical components. (K : North America E : Europe)
Page 30
CHIP R J 1/32W IC781 M5M5V416BTP70H IC RA908 R90-1538-08 CHIP R J 1/32W IC782,783 TC7SH00FU RA951,952 R90-1538-08 CHIP R J 1/32W IC784 MBM29LV160BE90 IC K : KNA-DV3100 E1 : KNA-DV3200 Indicates safety critical components. (K : North America E : Europe)
Page 31
2SB1690K TRANSISTOR T305 UMX18N TRANSISTOR T306 UMD3N TRANSISTOR T307 DTC143EUA DIGITAL TRANSISTOR T309 DTC143EUA DIGITAL TRANSISTOR T319 DTA143EU DIGITAL TRANSISTOR BAT10 W09-0741-08 BATTERY K : KNA-DV3100 E1 : KNA-DV3200 Indicates safety critical components. (K : North America E : Europe)
Page 32
KNA-DV3100/DV3200 PARTS LIST CAPACITORS 2 2 0 • Capacitor value CC45 Color* 010 = 1pF 0 = 22pF 1 = Type ... ceramic, electrolytic, etc. 4 = Voltage rating 100 = 10pF 2 = Shape ... round, square, etc. 5 = Value...
X92-4400-0x/4730-0x X92-4740-0x/4750-0x BLOCK DIAGRAM DVD MECHANISM ASS'Y ( X92-4400-0x : DVS-300x / X92-4740-0x : DVS-302x ) D3.3V DVD UNIT (X37-1020-00) DISC RESET IC S-80829CLBB VPU1 16.897849MHz DVD LD/CD LD SPINDLE D5V A3.3V D3.3V 1.8V CN4 : MOTOR VC(2.2V) Q1,2,4,5 50PIN MD(DVVD/CD) OPTICAL LASER PICKUP...
Page 37
X92-4400-0x/4730-0x X92-4740-0x/4750-0x BLOCK DIAGRAM DVD MECHANISM ASS'Y ( X92-4730-0x : DVS-301x / X92-4750-0x : DVS-303x ) D3.3V DVD UNIT (X37-1020-01) DISC RESET IC S-80829CLBB VPU1 16.897849MHz DVD LD/CD LD SPINDLE D5V A3.3V D3.3V 1.8V CN4 : MOTOR VC(2.2V) Q2,4,5 50PIN MD(DVVD/CD) OPTICAL LASER PICKUP...
Page 38
X92-4400-0x/4730-0x X92-4740-0x/4750-0x COMPONENTS DESCRIPTION DVD UNIT (X37-1020-00/01) Ref. No. Component Name Application/Function/Operation/Condition AN8703FH RF signal processor NJU7042 IOP detector OP amp MN103S26E ATAPI interface, Servo/Spindle/Seek control, DVD ROM/CD ROM digital signal processor, 2M DRAM S-80829CLBB System reset IC LA6505 Motor & pickup actuator driver DF2328VTE254Q8 System microprocessor S-80815CLBB...
Page 39
X92-4400-0x/4730-0x X92-4740-0x/4750-0x MICROCOMPUTER’S TERMINAL DESCRIPTION Pin No. Pin Name Purpose / Description / Processing / Operation Power supply input terminal 34~37 (NC) NC (PULL UP) 39~42 (NC) NC (PULL UP) 43~46 CPUDT0~3 DATA bus 48~51 CPUDT4~7 DATA bus Power supply input terminal (NC) (NC) Flash memory data output terminal...
Page 41
X92-4400-0x/4730-0x X92-4740-0x/4750-0x MECHANISM OPERATION EXPLANATION CONSTRUCTION OF MAJOR PARTS This mechanism consists of five units. 3. Disc guides assy (Maintenance and positioning of a disc 1. Main chassis assy (Maintenance of a disc and reading of and the crack to disc is prevented) signal) 4.
Page 42
X92-4400-0x/4730-0x X92-4740-0x/4750-0x MECHANISM OPERATION EXPLANATION Loading the disc BASIC CONSTRUCTION When the loading motor starts rotation, the worm gear also The following figure is looked at the mechanism for the re- starts to turn as shown in the figure. verse-side. The rotation force is transmitted to the gear train.
Page 43
X92-4400-0x/4730-0x X92-4740-0x/4750-0x MECHANISM OPERATION EXPLANATION Initial operation of the trigger slider Operation of the loading slider When the pressure of the disc rotates the trigger arm, the trig- When the trigger slider begins to move out for arrow side, the ger arm (part of A position) pushed the trigger slider (part of B boss part of the trigger slider will push the loading slider and position).
Page 44
X92-4400-0x/4730-0x X92-4740-0x/4750-0x MECHANISM OPERATION EXPLANATION Coupling condition • Lowering the clamp lever assy (for disc chucking) The parts used for performing the above functions are coupled As loading slider moves for arrow side, the plate spring sec- with the loading slider as shown below. tion contact with it moves along its groove and lowers the clamp q Moving the clamp lever assy downward part lever assy.
Page 45
X92-4400-0x/4730-0x X92-4740-0x/4750-0x MECHANISM OPERATION EXPLANATION 2) Operation of drive arm Floating position and lock position of the mechanism The pin to the drive arm is originally contacted with groove The disc is loaded and ejected by rotation of the rollers that on loading slider cam.
Page 46
X92-4400-0x/4730-0x X92-4740-0x/4750-0x MECHANISM OPERATION EXPLANATION • Floating position and mechanism lock position 2) Rear lock arm for lock and release function This mechanism has to two-lock system for front and rear part. The rear lock arm is pinched between the outer chassis and the main chassis, and position regulation of the back part is 1) Lock arm for lock and release function carried out.
Page 47
X92-4400-0x/4730-0x X92-4740-0x/4750-0x DISASSEMBLY AND ASSEMBLY OF MECHANISM Removing the outer chassis assy (4) Removing the clamp lever assy (21) 1) Removing the front chassis assy (6 or 7: 2 screws). 1) The clamp lever assy (21) is stood and it shifts upward and 2) Removing the stopper (48: 1 screw).
Page 48
X92-4400-0x/4730-0x X92-4740-0x/4750-0x DISASSEMBLY AND ASSEMBLY OF MECHANISM Repair for Optical Laser pickup (VPU1) • Assembly When you change the Optical Laser pickup (VPU1) you must Preparation: The Optical Laser pickup (VPU1), cam (29: 2 pcs) be used adjustment jig and cam change jig are required. And and the shaft (44) are assembled with cam press fit jig.
Page 49
X92-4400-0x/4730-0x X92-4740-0x/4750-0x DISASSEMBLY AND ASSEMBLY OF MECHANISM Removing the DVD unit (PCB) Removing the slider (17 and 18) 1) The lands (2 points) for LD protection of the Optical Laser 1) Removing the spring (62). pickup is short-circuited with solder. 2) Move the slider (18) in the center of main chassis (1).
Page 50
X92-4400-0x/4730-0x X92-4740-0x/4750-0x DISASSEMBLY AND ASSEMBLY OF MECHANISM Disassembly for loading cam (30) drive arm (19), lock slider (23), and rear lock arm (24) 1) The screw (D) and the loading cam (30) are re- moved. Note: The screw for loading cam (D) is not reus- able.
Page 51
X92-4400-0x/4730-0x X92-4740-0x/4750-0x PC BOARD (COMPONENT SIDE VIEW) DVD UNIT X37-1020-0x (J74-1352-22) X37-1020-0x Address IC12 C116 C117 R109 IC11 C104 R138 CP12 R141 R134 CP11 R142 C129 R143 C134 C130 C101 CP16 R132 IC10 C133 CP13 Refer to the schematic diagram for the values of resistors and capacitors.
Page 52
X92-4400-0x/4730-0x X92-4740-0x/4750-0x PC BOARD (FOIL SIDE VIEW) DVD UNIT X37-1020-0x (J74-1352-22) X37-1020-0x Address SW-F DVD C DVD D DVD A DVD B B CD R123 CD F SLD2 R127 CD E R121 C135 AGND A CD C136 CD MD R122 R129 C106 R117...
Page 53
X92-4400-0x/4730-0x X92-4740-0x/4750-0x DVD UNIT (X37-1020-0x) AGND TP84 TP71 TP64 R13 1.2M ACT T- 2.48V C17 470P TP65 2.25V 2.02V ACT F+ 3.3V TP66 C135 ACT F- TP74 TP67 R121 CD B 2.2V ACT T+ VIN5(B) 3300P 1.7V R122 DCFLT 2.2V TP75 CD A DVD VCC...
Page 56
X92-4400-0x/4730-0x X92-4740-0x/4750-0x EXPLODED VIEW ADJUSTMENT N09-4495-05 φ2x5 N09-4496-05 M1.7x1.8 N09-6060-05 M1.7x3.5 N09-6061-05 M1.7x3.5 N09-6103-05 φ2x10 N09-6104-05 M1.7x2.5 N09-6106-05 CONNECTION N09-6122-05 WASHER N19-2022-04 WASHER N19-2171-04 VPU1 VFC1 32 58 (X37-) Depends on the model. Refer to the parts list. Parts with the exploded numbers larger than 700 are not supplied.
Page 57
X92-4400-0x/4730-0x X92-4740-0x/4750-0x PARTS LIST New parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Desti- Desti- Ref. No. Parts No. Description Ref. No. Parts No.
Page 58
X92-4400-0x/4730-0x X92-4740-0x/4750-0x PARTS LIST New parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. DVD UNIT (X37-1020-00/01) Teile ohne Parts No. werden nicht geliefert. Desti- Desti- Ref. No. Parts No. Description Ref.
Page 59
X92-4400-0x/4730-0x X92-4740-0x/4750-0x PARTS LIST New parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. DVD UNIT (X37-1020-00/01) Teile ohne Parts No. werden nicht geliefert. Desti- Desti- Ref. No. Parts No. Description Ref.
Page 60
X92-4400-0x/4730-0x X92-4740-0x/4750-0x SPECIFICATIONS ITEM DVD-ROM (SINGLE/DUAL) CD-ROM (XA) DVD-R * CD-DA Ver1.0 CD-R * Ver2.0 for General CD-RW * Ver2.0 for Authoring DVD-RW * Ver1.0 Correspondence for physical media Ver1.1 DVD+R * DVD+RW * * Record media may be unreproducible with the performance of disc and disc writer. CD-R and CD-RW correspond to multi-session and packet-writing.
