Kenwood DPC-781 Instruction Manual

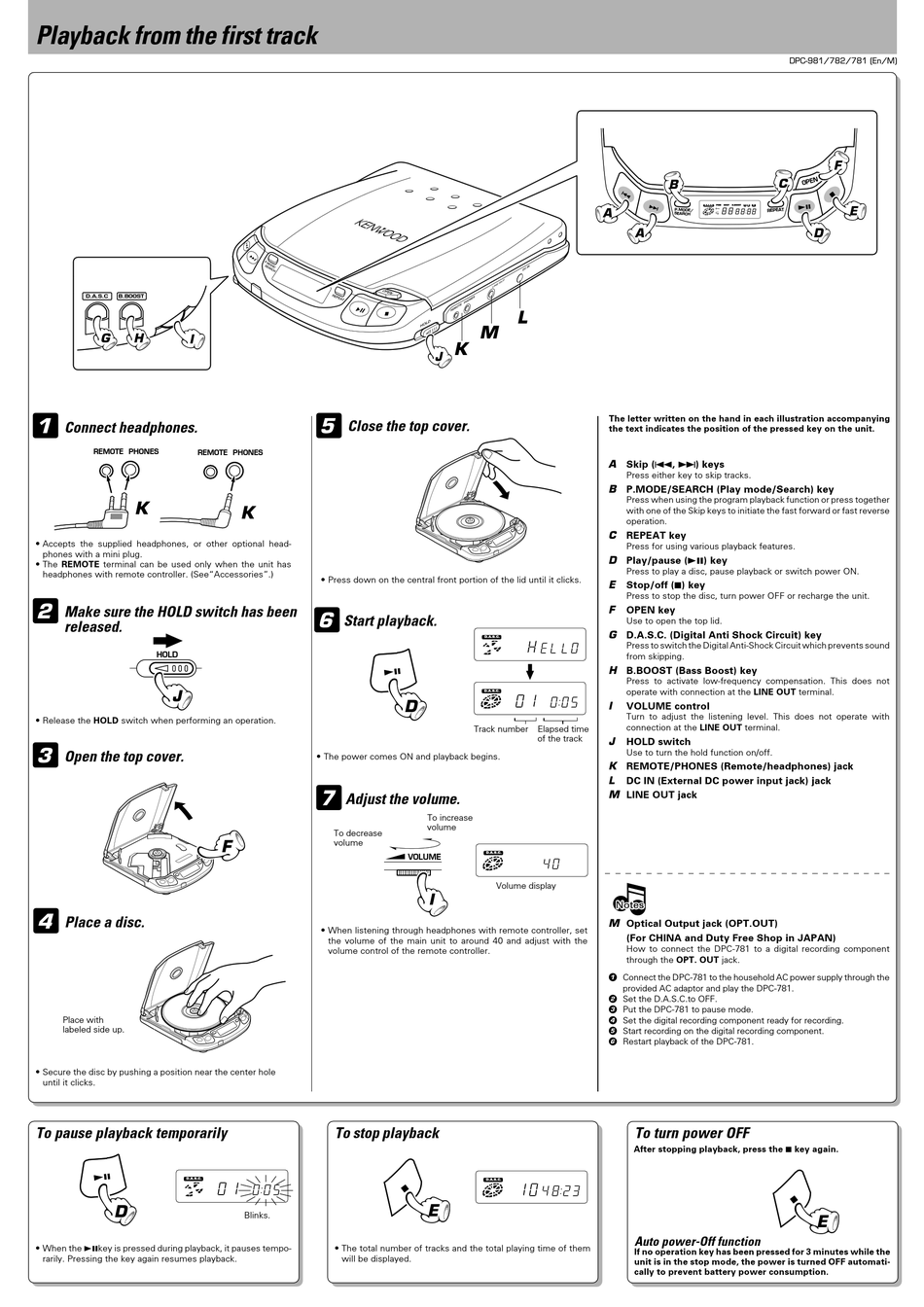

Playback from the first track
D.A.S.C B.BOOST
G H
I
1
Connect headphones.
REMOTE PHONES
REMOTE
K
• Accepts the supplied headphones, or other optional head-
phones with a mini plug.
• The REMOTE terminal can be used only when the unit has
headphones with remote controller. (See"Accessories".)
2
Make sure the HOLD switch has been
released.
HOLD
J
• Release the HOLD switch when performing an operation.
3
Open the top cover.
4
Place a disc.
Place with
labeled side up.
• Secure the disc by pushing a position near the center hole
until it clicks.
To pause playback temporarily
D.A.S.C.
D
• When the 38key is pressed during playback, it pauses tempo-
rarily. Pressing the key again resumes playback.
5
Close the top cover.
PHONES
K
• Press down on the central front portion of the lid until it clicks.
6
Start playback.
• The power comes ON and playback begins.
7
Adjust the volume.
To decrease
volume
F
• When listening through headphones with remote controller, set
the volume of the main unit to around 40 and adjust with the
volume control of the remote controller.
To stop playback
0 1
0 0 5
Blinks.
• The total number of tracks and the total playing time of them
will be displayed.
L
M
K
J
D.A.S.C.
H
E L L O
D.A.S.C.
0 1
0 0 5
D
Track number Elapsed time
of the track
To increase
volume
D.A.S.C.
VOLUME
40
Volume display
I
D.A.S.C.
1 0
4 8 2 3
E
B
D.A.S.C. PGM SHUF B.BOOST 1 2 C
8 8
A 8 8 8 8
A
The letter written on the hand in each illustration accompanying
the text indicates the position of the pressed key on the unit.
A Skip (4, ¢) keys
Press either key to skip tracks.
B P.MODE/SEARCH (Play mode/Search) key
Press when using the program playback function or press together
with one of the Skip keys to initiate the fast forward or fast reverse
operation.
C REPEAT key
Press for using various playback features.
D Play/pause (38) key
Press to play a disc, pause playback or switch power ON.
E Stop/off (7) key
Press to stop the disc, turn power OFF or recharge the unit.
F
OPEN key
Use to open the top lid.
G D.A.S.C. (Digital Anti Shock Circuit) key
Press to switch the Digital Anti-Shock Circuit which prevents sound
from skipping.
H B.BOOST (Bass Boost) key
Press to activate low-frequency compensation. This does not
operate with connection at the LINE OUT terminal.
I VOLUME control
Turn to adjust the listening level. This does not operate with
connection at the LINE OUT terminal.
J
HOLD switch
Use to turn the hold function on/off.
K REMOTE/PHONES (Remote/headphones) jack
L
DC IN (External DC power input jack) jack
M LINE OUT jack
Notes Notes
M Optical Output jack (OPT.OUT)
(For CHINA and Duty Free Shop in JAPAN)
How to connect the DPC-781 to a digital recording component
through the OPT. OUT jack.
1 Connect the DPC-781 to the household AC power supply through the
provided AC adaptor and play the DPC-781.
2 Set the D.A.S.C.to OFF.
3 Put the DPC-781 to pause mode.
4 Set the digital recording component ready for recording.
5 Start recording on the digital recording component.
6 Restart playback of the DPC-781.
To turn power OFF
After stopping playback, press the 7 key again.
Auto power-Off function
If no operation key has been pressed for 3 minutes while the
unit is in the stop mode, the power is turned OFF automati-
cally to prevent battery power consumption.
DPC-981/782/781 (En/M)
F
C
E
D
E
