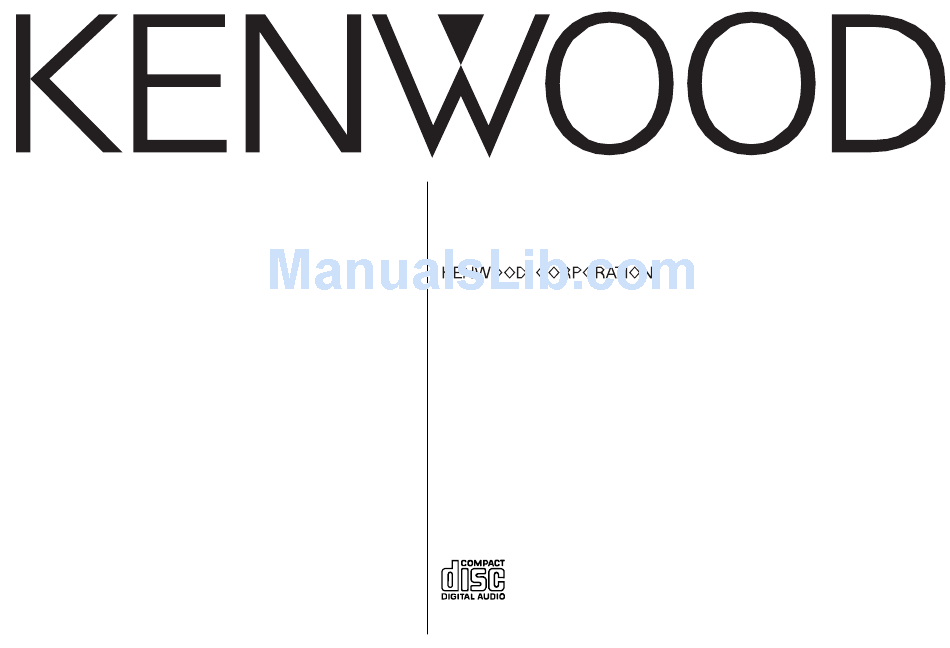

- Page 1 KDC-MPV7023 KDC-6023 KDC-5023R KDC-5023 CD-RECEIVER INSTRUCTION MANUAL © B64-2517-00/00 (MW)
-
Page 2: Table Of Contents
Contents Safety precautions...3 About GSM Hand Free Unit...5 About CDs...5 Notes on playing MP3 ...6 General features ...8 Power Selecting the Source Volume System Q Audio Control Speaker Setting Switching Display Station/Disc Naming (SNPS/DNPS) Auxiliary Input Display Setting Non-fading Output Theft Deterrent Faceplate TEL Mute Tuner features ...13... -
Page 3: Safety Precautions
KENWOOD disc changers/ CD players released in 1998 or later can be connected to this unit. Refer to the catalog or consult your Kenwood dealer for connectable models of disc changers/ CD players. Note that any KENWOOD disc changers/ CD... - Page 4 NOTE • If you experience problems during installation, consult your Kenwood dealer. • If the unit does not seem to be working right, try pressing the reset button first. If that does not solve the problem, consult your Kenwood dealer.
-
Page 5: About Gsm Hand Free Unit
About GSM Hand Free Unit Function of the KDC-MPV7023/6023 Refer to the instruction manual of GSM Hands Free Unit KCA-HF521 (optional accessory), when connected, for the operation method. The locations of the buttons to be pressed are shown below. SRC ¢ 4 MENU DISP GSM About CDs... -
Page 6: Notes On Playing Mp3
Notes on playing MP3 This unit can play MP3(MPEG1, 2, 2.5 Audio Layer 3). Note, however, that the MP3 recording media and formats acceptable are limited. When writing MP3, pay attention to the following restrictions. Acceptable media The MP3 recording media acceptable to this unit are CD-ROM, CD-R, and CD-RW. - Page 7 MP3 playing order When selected for play, Folder Search, File Search, or for Folder Select, files and folders are accessed in the order in which they were written by the CD writer. Because of this, the order in which they are expected to be played may not match the order in which they are actually played.
-
Page 8: General Features
General features Release button ¢ AM / System Q/ KDC-MPV7023/6023 KDC-5023R/5023 Power Turning ON the Power Press the [SRC] button. When the power is ON, the <Security Code> (page 24) is displayed as "CODE ON" or "CODE OFF". Turning OFF the Power Press the [SRC] button for at least 1 second. -
Page 9: System Q
System Q You can recall the best sound setting preset for different types of music. Select the source to set Press the [SRC] button. Select the Sound type Press the [System Q] button. Each time the button is pressed the sound setting switches. Sound setting Display Flat... -
Page 10: Speaker Setting
General features Speaker Setting Fine-tuning so that the System Q value is optimal when setting the speaker type. Enter Standby Press the [SRC] button. Select the "ALL OFF" display. Enter Speaker Setting mode Press the [System Q] button. Select the Speaker type Press the [4] or [¢] button. -
Page 11: Station/Disc Naming (Snps/Dnps)
- FM: 32 (KDC-MPV7023/ 6023)/ 28 (KDC-5023R/ 5023) stations - AM: 16 (KDC-MPV7023/ 6023)/ 10 (KDC-5023R/ 5023) stations - Internal CD player: 30 (KDC-MPV7023/ 6023)/ 10 (KDC-5023R/ 5023) discs - External CD changer/ player: Varies according to the CD changer/ player. -
Page 12: Auxiliary Input Display Setting
General features Auxiliary Input Display Setting Selecting the display when this device is switched to Auxiliary input source. Select Auxiliary input source Press the [SRC] button. Select the "AUX"/ "AUX1" display. Enter Auxiliary input display setting mode Press the [DISP] button for at least 2 seconds. The presently selected AUX Name is blinks. -
Page 13: Tel Mute
2 Push the faceplate in until it clicks. The faceplate is locked in place, allowing you to use the unit. Function of the KDC-5023R TEL Mute The audio system automatically mutes when a call comes in. When a call comes in "CALL"... -
Page 14: Tuning Mode
Tuner features Function of the KDC-MPV7023/KDC-6023/KDC-5023 Tuning Mode Choose the tuning mode. Press the [AUTO] button. Each time the button is pressed the Tuning mode switches as shown below. Tuning mode Display Operation Auto seek "Auto 1"/" Automatic search for a station. -
Page 15: Auto Memory Entry
Function of the KDC-5023 Auto Memory Entry Putting stations with good reception in the memory automatically. Select the band for Auto Memory Entry Press the [FM] or [AM] button. Open Auto Memory Entry Press the [AME] button for at least 2 seconds. -
Page 16: Tv Tuning
Tuner features Function of the KDC-MPV7023/KDC-6023 TV Tuning (Function of LX BUS Television) The TV channel of a connected LX BUS Television (optional accessory) can be selected. The action depends on the setting of the connected LX BUS Television. Refer to the user instruction of the LX BUS Television for details. -
Page 17: Rds Features
RDS features Function of the KDC-5023R ¢ 1 – 6 PTY indicator TI indicator Traffic Information Switching to traffic information automatically when a traffic bulletin starts even when you aren't listening to the radio. Press the [TI] button. Each time the button is pressed the Traffic Information function turns ON or OFF. -
Page 18: Pty (Program Type
RDS features Function of the KDC-5023R PTY (Program Type) Selecting the Program Type and searching for a station. Enter PTY mode Press the [PTY] button. During PTY mode the "PTY" indicator is ON. This function can't be used during a traffic bulletin or AM reception. Select the Program Type Press the [FM] or [AM] button. -
Page 19: Changing Language For Pty Function
Presetting the Program Type Select the Program Type to preset Refer to <PTY (Program Type)> (page 18). Preset the Program Type Press the desired [1] — [6] button for at least 2 seconds. Calling up the preset Program Type Enter PTY mode Refer to <PTY (Program Type)>... -
Page 20: Playing External Disc
Select the display for the disc player you want. Display examples: Display "CD2" "DISC CH" Pause and play Press the [38] button. Each time the button is pressed it pauses and plays. — 20 — Disc player CD player CD changer/ MD changer... -
Page 21: Fast Forwarding And Reversing
• Disc 10 is displayed as "0". • The functions that can be used and the information that can be displayed will differ depending on the external disc players being connected. Fast Forwarding and Reversing Fast Forwarding Hold down on the [¢] button. Release your finger to play the disc at that point. -
Page 22: Track/File/Disc/Folder Repeat
CD/MP3/External disc control features Track/File/Disc/Folder Repeat Replaying the song, disc in the Disc changer or MP3 folder you're listening to. Press the [REP] button. Each time the button is pressed the Repeat Play switches as shown below. In CD & External disc source Repeat play Display Track Repeat... -
Page 23: Folder Select
<Folder name display> Displays the current folder name. Select the folder level Press the [FM] or [AM] button. With the [FM] button you move 1 level down and with the [AM] button 1 level up. Selecting a folder in the same level Press the [4] or [¢] button. -
Page 24: Menu System
Menu system ¢ MENU 1 – 6 KDC-MPV7023/6023 Menu display KDC-5023R/5023 NEWS indicator (KRC-5023R only) Menu display RDS indicator (KRC-5023R only) Menu System Setting during operation beep sound etc. functions. The Menu system basic operation method is explained here. The reference for the Menu items and their setting content is after this operation explanation. -
Page 25: Security Code
When the Security Code function is activated it can't be released. Note, your Security Code is the 4 digit number entered in your "Car Audio Passport" in this package. Enter Standby Press the [SRC] button. Select the "ALL OFF" display. Enter Menu mode Press the [MENU] button for at least 1 second. -
Page 26: Illumination Color Setting
Menu system Manual Clock Adjustment KDC-5023R: This adjustment can be done when the <Synchronize Clock> (page 26) is set as OFF. Select Clock Adjustment mode Press the [FM] or [AM] button. Select the "Clock Adjust"/ "CLK ADJ" display. Enter Clock Adjust mode Press the [4] or [¢] button for at least 1 second. -
Page 27: Contrast Adjustment
Quick call up the preset color Press the desired [1] — [4] button. Button Color Silky White Blue Blue Green Selecting the Color mode Press the [6] button. Each time the button is pressed the Color mode switches as shown below. Display Color mode "Scan"... -
Page 28: Dual Zone System Setting
Menu system Function of the KDC-MPV7023/KDC-6023 Dual Zone System Setting <When the Dual Zone System is OFF> Setting the Front channel and Rear channel sound in the Dual Zone System. Display Setting "Zone 2 Rear" The front is this unit's internal source, and the rear is selected source sound. -
Page 29: Auto Memory Entry
Function of the KDC-MPV7023/KDC-6023/KDC-5023R Auto Memory Entry For the operation method refer to <Auto Memory Entry> (page 15). Function of the KDC-MPV7023/KDC-6023/KDC-5023 CRSC (Clean Reception System Circuit) <In FM reception> Temporarily have reception switched from stereo to mono to reduce multi-path noise when listening to the FM station. -
Page 30: Monaural Reception
Display Setting "MONO OFF" The monaural reception is OFF. "MONO ON" The monaural reception is ON. Function of the KDC-MPV7023/KDC-6023/KDC-5023 Text Scroll Setting the displayed text scroll. Display Setting "Scroll Auto"/ "SCL AUTO" Repeats scroll. "Scroll MANU"/ "SCL MANU"... -
Page 31: Basic Operations Of Remote
Basic Operations of remote – FM/AM/DISC /DISC [0] — [9] NOT USED Loading and Replacing the battery Use one lithium battery (CR2025). Insert the batteries with the + and – poles aligned properly, following the illustration inside the case. 4/¢ 2WARNING Store unused batteries out of the reach of children. - Page 32 Basic Operations of remote In Tuner source [FM]/ [AM] buttons Select the band. Each time the [FM] button is pressed it switches between the FM1, FM2, and FM3 bands. [4]/ [¢] buttons Tune up or down band. [0] — [9] buttons Press buttons [1] —...
-
Page 33: Kdc-Mpv7023/6023/5023
Accessories (KDC-MPV7023/6023/5023) External view External view ... Number of items ...1 ...2 ...4 ...4 The use of any accessories except for those provided might result in damage to the unit. Make sure only to use the accessories shipped with the unit, as shown above. Installation Procedure (KDC-MPV7023/6023/5023) 1. -
Page 34: Connecting Wires To Terminals Kdc-Mpv7023/6023/5023
AUX left input (White) (KDC-MPV7023/6023 only) Front right output (Red) (KDC-MPV7023/6023 only) Front left output (White) (KDC-MPV7023/6023 only) KENWOOD disc changer control input To connect the Disc changer, consult your Disc changer manual. Fuse (10A) Power control wire (Blue/White) P.CONT Motor antenna control wire (Blue) ANT. -
Page 35: Kdc-5023R
Accessories (KDC-5023R) External view External view ... Number of items ...1 ...2 ...4 ...4 The use of any accessories except for those provided might result in damage to the unit. Make sure only to use the accessories shipped with the unit, as shown above. Installation Procedure (KDC-5023R) 1. -
Page 36: Kdc-5023R
Connecting Wires to Terminals (KDC-5023R) KENWOOD disc changer input Connector Function Guide Pin Numbers for Cable Color Functions ISO Connectors External Power Connector Battery A–4 Yellow Blue/White Power Control A–5 Ignition (ACC) A–7 Earth (Ground) A–8 Black Connection Speaker Connector Rear Right (+) B–1... - Page 37 Connecting Wires to Terminals (KDC-5023R) 2WARNING Connecting the ISO Connector The pin arrangement for the ISO connectors depends on the type of vehicle you drive. Make sure to make the proper connections to prevent damage to the unit. The default connection for the wiring harness is described in 1 below. If the ISO connector pins are set as described in 2 or 3, make the connection as illustrated.
-
Page 38: Installation
Installation Installation Firewall or metal support Screw (M4X8) (commercially available) Metal mounting strap Self-tapping screw (commercially available) (commercially available) Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (for example, the sound may skip). Installing in Japanese-Made Cars Refer to the section <Removing the hard rubber frame>... - Page 39 Screwing the Faceplate on the Unit If you want to fasten the faceplate to the main unit so that it does not fall off. Refer to the section <Removing the hard rubber frame> (page 40) and then remove the hard rubber frame. Drop open the faceplate by pressing the Release button.
- Page 40 Installation Removing the hard rubber frame Engage the catch pins on the removal tool and remove the two locks on the upper level. Upper the frame and pull it forward as shown in the figure. Lock Accessory2 Removal tool When the upper level is removed, remove the lower two locations.
-
Page 41: Troubleshooting Guide
Troubleshooting Guide What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems. General The power does not turn ON.01 The fuse has blown. - Page 42 Troubleshooting Guide The display color changes subtly. 38-2 This is because the temperature is different than the temperature when the setting was done. The display color condition changes subtly according.to the ambient temperature. Tuner source Radio reception is poor.39 The car antenna is not extended. Pull the antenna out all the way.
- Page 43 After setting it in the Disc Changer, DNPP was done without having it been played at least 1 time.E58 The CD player section is not operating properly.E59 Reinsert the CD. If the CD cannot be ejected or the display continues to flash even when the CD has been properly reinserted, please switch off the power and consult your nearest service center.
-
Page 44: Specifications
Frequency response (±1 dB) ...10 Hz – 20 kHz Total harmonic distortion (1 kHz) ...0.01 % Signal to Noise ratio (1 kHz) KDC-MPV7023/6023 ...105 dB KDC-5023/5023R ...93 dB Dynamic range ...93 dB Channel separation KDC-MPV7023/6023 ...96 dB KDC-5023/5023R ...85 dB MP3 Decode (KDC-MPV7023) ...Compliant with MPEG-1.0/2.0/2.5 Audio Layer-3...
