Siemens RWB1007 User Instructions

RWB1007 User instructions
Section 1 Introduction and features
Section 2 Factory settings
Section 3 Setting on/off times
Section 4 Boost /Advance
Section 5 Review Programme
Section 6 Setting Clock
Section 7 Service interval*

1. Introduction

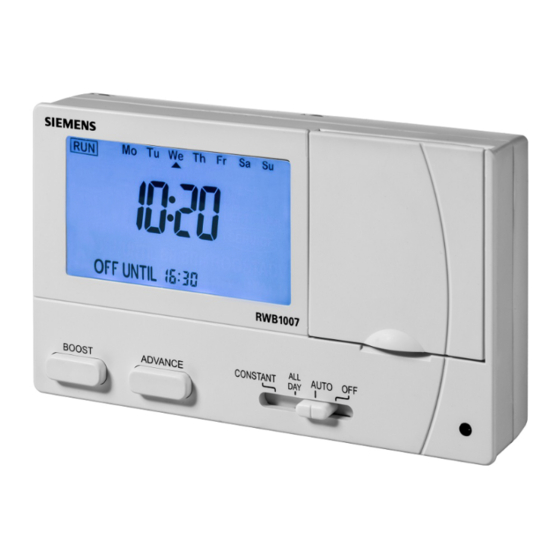

The RWB1007 is a 7 day or 5day 2 day Timer with Volt Free contacts and is Ideal for Combination Boilers
Features
Larger Digital display
2 or 3 On /Off Periods per day
Advance feature to bring forward the next On/Off period
Boost Feature to give an immediate 1 hour On
Automatic Summer /Winter change over (Summer winter changeover switch occurs at 2am)
Built in Calendar
Service Interval capable*
Copy Facility

2. Factory settings

Before leaving the factory the RWB1007 was programmed with the correct date and time with the following switching
times dependent on Dip switch setting on back of RWB (factory default 2 On/Off)
Monday - Friday
2 On /Off switching Times
On 6.00 Off 8.30
On 4.30 Off 10.30

Operating Instructions

3. Setting The On/Off Times

The RWB1007 is supplied with factory settings (see section 2)
If you wish to change the factory settings to your own times you can do so easily
ON/OFF times are adjustable in 10 minute steps
Slide switch (1) to Prog display will show all the days of the week with triangle under Mo Press Yes if wish to
program Monday or press Day until the triangle goes under the required day then press Yes
Setting times
First On time will appear 6.00am to change the time press the + or – button when you have reached the desired time
press YES the display will show the first Off 8.30 repeat process until all times are entered for that day
Copy
Copy Yes / NO will appear in the display if you wish to copy to next day Press YES and repeat for each day you wish
to be the same, if you do not wish to copy press No and then repeat setting times when all programming is complete
slide the switch to Run
Note LIMIT will come in the display if you try moving a programme time forward or backward and it comes up against
an existing time
4. Boost Pressing this will switch your heating on for one hour if in an off period or will add an hour if in an On period
Advance Pressing this will bring forward the next on or off period this feature only works in Auto or All day
3 On /Off switching Times On
6:00 Off 8.30
On 12.00 Off 2.00
On 4.30 Off 10.30

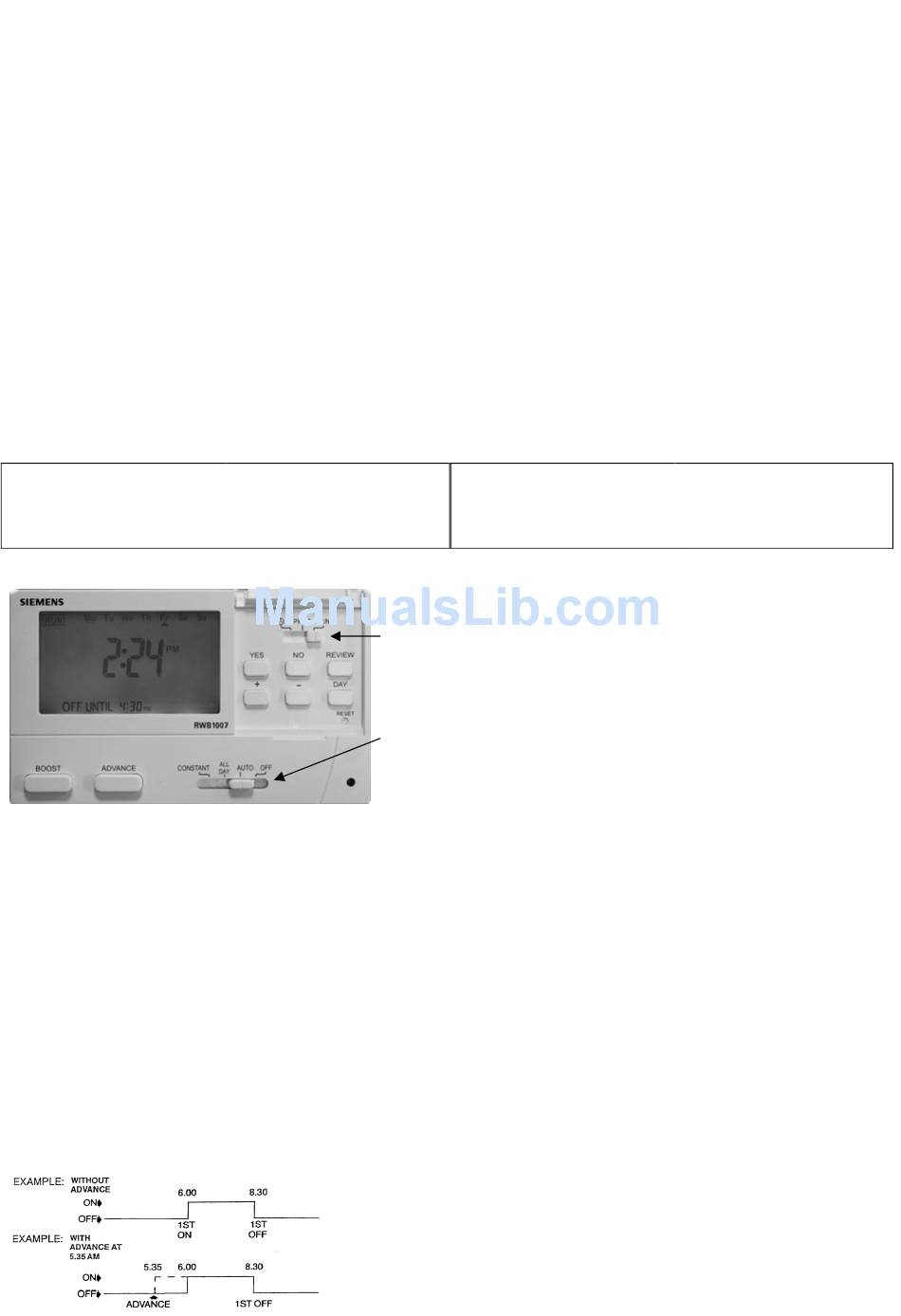

Switch 1
Switch 2
Weekend
2 On /Off switching
On 7.00 Off 9.00
On 4.30 Off 11.00
Switch (1) Programming switch. When all programming
has been done this switch must be in Run
Switch (2) This switch allows you to choose how the
RWB...operates
Constant the RWB is permanently ON
All Day The RWB will Switch on at the 1
the last OFF
Auto The RWB will Switch automatically at the
programmed times
3 On /Off switching Times On
7:00 Off 9.00
On 12.00 Off 2.00
On 4.30 Off 11.00
st
ON and Off at
