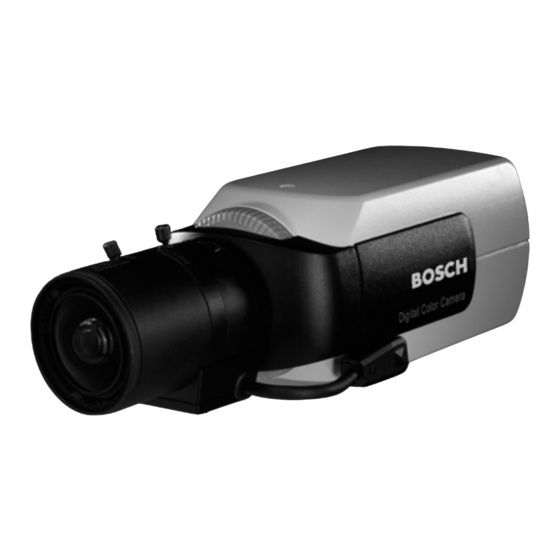

LTC 0435 & LTC 0455
Installation Manual
Digital Color Cameras
EN
Manuel d'installation
Caméra Numérique
FR
Couleur
Installationsanleitung
Digitale Farbkamera
DE
Manual de instalación
Cámara Digitale de Color
ES
Installatiehandleiding
Digitale Kleurencamera
NL
Manuale d'installazione
Videocamera Digitale a Colori
IT
Manual de Instruções
Câmara Digital Colorida
PT
ZH
Advertisement
Table of Contents
Related Manuals for Bosch LTC 0435
Summary of Contents for Bosch LTC 0435
- Page 1 LTC 0435 & LTC 0455 Installation Manual Installatiehandleiding Digital Color Cameras Digitale Kleurencamera Manuel d’installation Manuale d’installazione Caméra Numérique Videocamera Digitale a Colori Couleur Installationsanleitung Manual de Instruções Digitale Farbkamera Câmara Digital Colorida Manual de instalación Cámara Digitale de Color...
- Page 2 LTC 0435 & LTC 0455 | Installation Manual TABLE OF CONTENTS ENGLISH ..............1 FRANÇAIS ............. 15 DEUTSCH .............. 28 ESPAGÑOL ............41 NEDERLANDS ............54 ITALIANO .............. 66 PORTUGUÊS ............79 CHINESE ..............91 Bosch Security Systems | 2004-12 | Version 3...
-
Page 3: Safety Precautions
LTC 0435 & LTC 0455 | Installation Manual EN | 1 SAFETY PRECAUTIONS DANGER The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk to persons. - Page 4 LTC 0435 & LTC 0455 | Installation Manual EN | 2 7. Do not defeat the purpose of a polarized or grounded mains plug. A polarized plug has dissimilar prongs (one wider than the other) to ensure correct polarity, while a grounded plug has an additional 'ground' prong provided for your safety.
-
Page 5: Fcc Information
LTC 0435 & LTC 0455 | Installation Manual EN | 3 FCC INFORMATION CAUTION Any changes or modifications to construction of this device that are not expressly approved by the party responsible for compliance could void the userfs authority to operate the equipment. -
Page 6: Specifications
LTC 0435 & LTC 0455 | Installation Manual EN | 4 SPECIFICATIONS LTC 0435/x0 LTC 0455/x1 Standard resolution High resolution Standard NTSC NTSC Active pixels (H x V) 512 x 582 512 x 492 752 x 582 768 x 494 Imager 1/3"... -
Page 7: Type Number Overview
LTC 0435 & LTC 0455 | Installation Manual EN | 5 Type number overview Low voltage High voltage PAL (Europe) NTSC (USA) PAL (Europe) NTSC (USA) Standard resolution LTC 0435/10 LTC 0435/20 LTC 0435/50 LTC 0435/60 High resolution LTC 0455/11... -
Page 8: Composite Video
LTC 0435 & LTC 0455 | Installation Manual EN | 6 To open the quick-connect, push in on the tabs. Connections are not polarity sensitive Use stranded or solid wire AWG16 to AWG22, cut back 10mm (0.4") of insulation. Composite Video... -
Page 9: Back Focus Adjustment
LTC 0435 & LTC 0455 | Installation Manual EN | 7 Video iris lens DC iris lens Supply (11 V, 50 mA max.) Damp- Not used Damp+ Video signal 1 Vpp, 1 kΩ Drive+ Ground Drive- • Video-iris and DC-iris lenses are recommended for the best picture performance. -
Page 10: Mounting The Camera
LTC 0435 & LTC 0455 | Installation Manual EN | 8 2. Turn the back focus adjustment as required. (See Note 1). 3. Lock the back focus locking button. Notes: 1. To optimize picture sharpness in both bright and low-level lighting, it... -
Page 11: Advanced Setup
LTC 0435 & LTC 0455 | Installation Manual EN | 9 ADVANCED SET-UP The camera will normally give an optimal picture without the need for further adjustments. However for special circumstances advanced set up options are available. Hints for menu navigation... -
Page 12: Menu Navigation
LTC 0435 & LTC 0455 | Installation Manual EN | 10 Menu Navigation Press the menu button MAIN MENU SHUT/AGC MENU LEVEL SHUTTER SHUT/AGC COLOR AUTOBLACK SYNC LINE LOCK VPHASE 0¡ NIGHTSENSE EXIT EXIT Shutter/AGC Menu Main Menu COLOR MENU... - Page 13 LTC 0435 & LTC 0455 | Installation Manual EN | 11 Main menu Function Selection Description LEVEL -15 - 0 - +15 Adjusts video level. SHUT/AGC Select next menu Shutter / Automatic Gain Control menu. When 'ON', the level is optimized at the center of the screen.
-
Page 14: Shutter/Agc Menu
LTC 0435 & LTC 0455 | Installation Manual EN | 12 Shutter/AGC menu Function Selection Description SHUTTER (AES) Auto-shutter sets the optimum shutter speed FL for manual iris lenses. (FL) Flickerless mode avoids OFF interference from light sources (recommended for use with video-iris or DC-iris lenses only). -
Page 15: Installer Menu
LTC 0435 & LTC 0455 | Installation Manual EN | 13 Accessing installer menu • To access the installer menu, press and hold the menu/select key for five seconds. Installer menu Function Selection Description VERSION Read-only firmware release number (for service purposes). - Page 16 LTC 0435 & LTC 0455 | Installation Manual EN | 14 Adjustment procedure DC-iris Lens: 1. Unlock the back focus locking button. 2. Access the "Lens Wizard" menu. 3. The "SET BACK FOCUS NOW" option is highlighted in the menu.
- Page 17 Bosch Security Systems B.V. Bosch Sicherheitssysteme GmbH Ludwig-Bölkow-Allee P.O. Box 80002 85521 Ottobrunn 5600 JB Eindhoven The Netherlands Germany www.bosch-sicherheitssysteme.de www.boschsecuritysystems.com 3122 165 23071 04-50 © 2003 Bosch Security Systems B.V. Subject to change Printed in Portugal...
