Bosch VG4 Series Installation Manual

Bosch VG4 Series Installation Manual

Modular camera series
Hide thumbs Also See for VG4 Series:
Table of Contents

Advertisement

Quick Links

See also: Manual

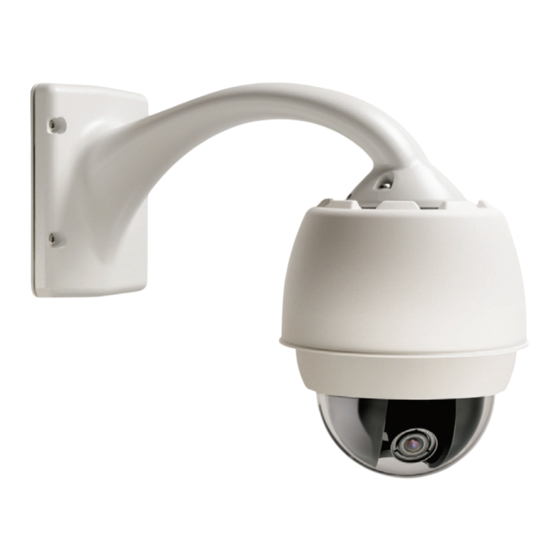

VG4 Modular Camera Series
VG4 Series
en
Installation Manual

Advertisement

Table of Contents
loading

Related Manuals for Bosch VG4 Series

Summary of Contents for Bosch VG4 Series

  • Page 1 VG4 Modular Camera Series VG4 Series Installation Manual...

  • Page 3: Table Of Contents

    Mount Power Supply Box 3.3.1 Attach Cover Door Route Wires and Attach Connectors 3.4.1 Wiring the Power Supply Box 3.4.2 Wiring the Fiber Optic Model 3.4.3 Power Supply Box Connections Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 4 Wire Distance Guide for Pendant Video and Control Cables Control-only Cables Fiber Optic Module with an RS232/RS422 Controller 5.5.1 Connecting to an LTC 4629 Head End Data/Video Transceiver 5.5.2 Configuring the VG4 AutoDome F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
  • Page 5 Bubble Handling and Cleaning Handling Cleaning 7.2.1 Cleaning the Bubble Interior 7.2.2 Cleaning the Bubble Exterior Installation Notes for AutoTracker Camera Height Mount/Mounting Surfaces Field of View Unwanted Motion Index Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 6: Safety

    ON/OFF switch is in the ON position. The power cord is the main power disconnect device for switching off the voltage for all units. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
  • Page 7 17. Attachments, changes or modifications - Only use attachments/accessories specified by the manufacturer. Any change or modification of the equipment, not expressly approved by Bosch, could void the warranty or, in the case of an authorization agreement, authority to operate the equipment.

  • Page 8: Safety Precautions

    Camera grounding - For mounting the camera in potentially damp environments, ensure to ground the system using the ground connection of the power supply connector (see section: Connecting external power supply). F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
  • Page 9 Please dispose of these units at an environmentally compatible recycling facility, per European Directive 2002/96/EC. Environmental statement - Bosch has a strong commitment towards the environment. This unit has been designed to respect the environment as much as possible.
  • Page 10 Because the ISDN circuits are treated like telephone-network voltage, avoid connecting the SELV circuit to the Telephone Network Voltage (TNV) circuits. Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.
  • Page 11 UL MAKES NO REPRESENTATIONS, WARRANTIES, OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING- RELATED FUNCTIONS OF THIS PRODUCT. Copyright This user guide is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.

  • Page 12: Customer Support And Service

    | Safety VG4 Modular Camera Series Customer Support and Service If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions. Service Centers Telephone: 800-366-2283 or 585-340-4162 Fax: 800-366-1329 Email: cctv.repair@us.bosch.com...

  • Page 13: Installing The Pendant Arm Wall, Corner, And Mast (Pole) Mounts

    Verify that all the parts listed in the Parts List below are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. See Section 1.5 Customer Support and Service, page 12 for contact information.
  • Page 14 Pendant Arm Pendant Housing Environmental Shield (optional) Pressurized Environmental Housing (optional) Heater Module (optional) COMMS Module CPU Module Camera Module Dome Bubble Bubble Support Ring for Pressurized Environmental Housing (optional) F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 15: Description

    No. 2 Phillips screwdriver – Socket wrench and 9/16-in. socket – Banding tool (Bosch P/N TC9311PM3T) - if installing a mast (pole) mount – 3/4 in. (20-mm) NPS right angle conduit connector - if installing a mast (pole) mount with a VG4-ARMPLATE –...

  • Page 16: Mount Power Supply Box

    The mounting material must be able to withstand this pull out force. For example, 19-mm (3/4-inch) minimum for plywood. Place the Power Supply Box into the optional Trim Skirt. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 17: Route Wires And Attach Connectors

    Mast Plate to the pole. Contact your Bosch Sales Representative to order Banding Tool P/N TC9311PM3T. Secure the Power Supply Box to the Corner Plate or Mast Plate using the four (4) 3/8 x 1- 3/4-inch bolts and split lock washers (supplied).
  • Page 18 NOTICE! If “daisy chaining” a series of AutoDomes, a terminating resistor is required in the last dome of the series. The Bosch Power Supply Box is supplied with a 100 ? terminating resistor located between the Biphase terminals C- and C+ (pins 1 and 2) of the P106 control connector.
  • Page 19 Connector to the appropriate incoming wires. See Figure 2.3, Page 19, above, for the wire connections. See Section 6 Alarms and Relay Connections, page 96 for more details about wiring alarms and relays. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 20: Power Supply Box Connections

    T 5.0 A T 2.0 A T 3.15 A 115 V T 1.6 A T 2.0 A T 3.15 A 230 V T 0.8A T 2.0 A T 3.15 A F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 21: Route Power Through Intermediate Power Supply Box

    Figure 2.5 VG4-PSU1/VG4-PSU2 Power Supply Box 120/230 VAC Power In Transformer Ground Wire In/Out Conduit (1/2 in. [15 mm] NPS Fitting P101 Connector 24 VAC Power Out to VG4-PA0 P107 Connector Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 22 Ensure that you connect the outgoing power supply wires to the P107 heater connectors (HN and HL). The heater power (XF103) fuse can handle a higher amperage (3.15 A) than the camera power (XF102) fuse (2.0 A). F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
  • Page 23 3 P101 Connector 4 Control Data and Video In/Out Wires Follow the instructions in Section 2.6 Attach Pendant Arm to Power Supply Box, page 24, to continue the installation. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 24: Attach Pendant Arm To Power Supply Box

    Serious injury or death can occur if the hinge pins of the Pendant Arm are not fully engaged (locked) to the Power Supply Box. Exercise caution before releasing the Pendant Arm. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 25: Make Connections In Power Supply Box

    Do not connect the RJ45 connector unless using UTP video or Ethernet. Connect the 5-pin, 24 VAC to Dome Plug from the Pendant Connector Harness to its corresponding color mating connector P107 on the right side of the box. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 26 24V NC GND TXD RXD C+ C- Figure 2.11 Optional Fiber Optic Module Transformer In/Out BNC to Dome ST Connector (Fiber) In/Out Power In From Arm Harness Data In/Out F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 27: Installing The Vg4-A-Armplate

    Follow the instructions provided with the banding tool to securely mount the Mast Plate to the pole. Contact your Bosch Sales Representative to order Banding Tool P/N TC9311PM3T.

  • Page 28: Attach The Pendant Arm To The Mounting Plate

    Mounting Plate. Compress the bottom hinge pin by pushing the pin lever downward and rotating it behind the Hinge Pin Stop. Figure 2.12 Connect Pendant Arm to Mounting Plate F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 29: Route And Connect Wires To A Power Supply Box

    Cable Cable Cable Cable Grounding Strap (black) UTP Video/Ethernet (blue) 24 VAC Power (red) Alarm Outputs (white) Relay Contacts (yellow) Alarm Inputs (gray) Coax Video (black) Serial Communications (green) Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 30 UTP Video/Ethernet cable (cable 5). Refer to Section 5 Cable and Wire Standards, page 85, for detailed wire and connection information. 11. Connect the outgoing alarm wires to the flying leads coming from the 4-pin Alarm Outputs cable (cable 6). F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 31: Assemble Pendant In Packing Box

    Remove the plastic bag from the Pendant Housing, and place the housing back into the packing box. Remove the Camera Module from its packing box and remove the protective plastic bag. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 32 Place the bubble over the Camera Module and rotate it clockwise (approximately 1/8 turn) until it locks in place. You will hear an audible click when it locks. Figure 2.16 Attach bubble F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 33: Attach Pendant To Arm And Tighten

    CAUTION! If you feel any resistance when rotating the dome housing or when engaging the connector, stop immediately and start over. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 34 See the figure below. Rotate the Bubble Assembly counterclockwise approximately 20 degrees until the bubble assembly releases from the Pendant Housing. Figure 2.18 Pendant Bubble Release Opening F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 35: Installing The Pressurized Environmental Housing

    Schrader fill valve, located on the back side of the housing, and a pressure relief valve, located on the top of the housing cap. Figure 2.19 VG4 Pressurized Environmental Housing Schrader Fill Valve Pressure Relief Valve Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 36: Required Equipment

    This tool is required to tighten the eight (8) captive screws that secure the bubble to the housing. A small pin-in Torx tool comes with the VG4 Pressurized Environmental Housing module, but you may prefer to use a larger driver. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 37: Attaching The Housing To The Arm

    10-12 N-m (90-105 in.-lbs). CAUTION! If you feel any resistance when rotating the dome housing or when engaging the connector, stop immediately and start over. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 38: Calibrating The Pressure Sensor

    Apply power to the VG4 unit. The green LED, located at the left side of the camera module, illuminates and remains constant. After approximately 30 seconds the LED begins to blink, indicating that the VG4 unit is ready for calibration. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 39: Attaching The Bubble To The Housing

    Clean the groove inside the rubber bubble gasket with pressurized air to remove debris. Then, using alcohol, clean the groove to remove oil and grease. Insert the sealing edge of the bubble into the groove in the rubber bubble gasket. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 40 Start tightening screw 1, then tighten screw 2. Next, tighten screw 3 and continue to screw 4. Continue tightening the screws in this pattern. Note: Make sure not to overtighten the screws. Figure 2.25 Bubble Support Ring Tightening Pattern F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 41: Pressurizing The Housing

    Support the bubble with your hand to ensure that it does not fall as you fully remove the captive screws using an alternating pattern. Remove the bubble and the bubble support ring. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 42: Installing Roof Parapet And Pipe Mounts

    Verify that all the parts listed in the product's Parts List below are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. See See Section 1.5 for Customer Support and Service contact information.
  • Page 43 Interface Module Environmental Shield (optional) Pressurized Environmental Housing (optional) Pendant Housing COMMS Module Thermal Module (optional) CPU Module Camera Module Dome Bubble Bubble Support Ring for Pressurized Environmental Housing (optional) Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 44: Description

    The VG4-A-9230 Series are stationary mounts intended for rooftop parapet vertical walls. They are made of light weight aluminum with a corrosion-resistant finish and are used for all Bosch AutoDome Modular Camera systems up to a rated load of 29 kg (64 lb). These mounts can be fitted to the inside or outside of parapet walls and can swivel for ease of positioning and for servicing the AutoDome.

  • Page 45: Mount Power Supply Box

    Attach the 3/4 in. (20 mm) watertight pipe fittings (not supplied) to the holes of the Power Supply Box through which you will run the power, video, and control data wires. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 46: Attach Cover Door

    NOTICE! After all wiring is complete, close the cover door and tighten the two (2) captive screws on the cover door to 10-12 N-m (90-105 in.-lbs) to ensure the Power Supply Box is watertight. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 47: Route Wires And Attach Connectors

    C+ C- Figure 3.3 VG4-A-PSU1 or VG4-A-PSU2 Power Supply Box 120 VAC/230 VAC Power In Video Wire P101 Connector Control Wire Ground Connection 24 VAC Power Out Transformer P107 Connector Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 48 Heater Power NOTICE! Fiber Optic Models require that the Biphase control wires be routed from the Power Supply Box P106 connector out to the Pipe Interface Board P105 connector. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 49: Wiring The Power Supply Box

    Section 5 Cable and Wire Standards, page 85 for fiber optic specifications. NOTICE! You will need a barrel connector (not supplied) to connect the BNC connector from the Pipe Interface Board coax cable to the Fiber Optic Module BNC connector. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 50 (6) pin control data connector to the wires in the Power Supply Box. (GND) NC 24V GND TXD RXD C+ C- Transformer In/Out BNC to Dome ST Connector (Fiber) In/Out Power In From Arm Harness Data In/Out F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 51: Power Supply Box Connections

    T 5.0 A T 2.0 A T 3.15 A 115 V T 1.6 A T 2.0 A T 3.15 A 230 V T 0.8A T 2.0 A T 3.15 A Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 52: Installing The Vg4-A-9230 Roof Parapet Mount

    Parapet arm for the AutoDome to clear the top of the wall when it is swung into position. Provide enough slack in the wires to rotate the pipe arm over the roof and back when camera maintenance is required. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
  • Page 53 LTC 9230/01 Roof Mount Plate to the roof and then attach the Parapet Wall Bracket to the Roof Mount Plate. Insert the Parapet Pipe Arm into the mounting bracket until it bottoms in the bracket. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 54 You must thread the Dome Cap onto the Down Pipe until it is tight. Failure to do so can result in damage, serious injury, or death. Figure 3.8 Attach Dome Cap Thread Sealant or tape Dome Cap F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 55: Installing The Vg4-A-9543 Pipe Mount

    NOTICE! Each fastener must have a minimum pullout strength of 275 kg (600 lbs). The mounting material must be able to withstand this pull-out force. For example, 19-mm (3/4- inch) minimum for plywood. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 56 Figure 3.9, Page 55. WARNING! You must thread the Dome Cap onto the pipe until it is tight. Failure to do so can result in damage or serious injury or death. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 57: Wire The Pipe Interface Board

    Board, as illustrated below. See Section 5 Cable and Wire Standards, page 85 for cable and wiring recommendations and specifications. AGND OUT 3 OUT 2 OUT 1 Figure 3.10 Pipe Interface Board Connections Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 58: Wiring For Multiple Autodomes

    UTP cable and connect the plug to its mating connector J101 on the Pipe Interface Board. WARNING! Do not connect the RJ45 connector unless using UTP video or Ethernet. This connection causes video distortion. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
  • Page 59 Section 6 Alarms and Relay Connections, page 96 for more details on wiring alarms and relays. Note: There is a slot located at the top of the Interface Board to tie the wires to the circuit board with a cable tie. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 60: Assemble The Pendant In Packing Box

    Remove the plastic bag from the Pendant Housing, and then place it back into its box. NOTICE! The Pendant Housing box is designed to hold the housing in-place during the assembly of the Pendant. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
  • Page 61 Place the Bubble Assembly over the Camera Module. Using both hands firmly rotate the Bubble Assembly clockwise (approximately 1/8 turn) until it locks in place. (An audible click can be heard when it locks.) Figure 3.14 Attach the Pendant Bubble Assembly Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 62: Attach Pendant To Pipe And Tighten

    CAUTION! If you feel any resistance when rotating the dome housing or when engaging the connector, stop immediately and start over. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 63: Make Connections In The Power Supply Box

    BNC connector of the Fiber Optic Module. Connect the six (6) control plugs from the dome, installed previously, to the P106 control I/O connector in the Power Supply Box. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 64 Figure 3.16 Pendant Bubble Release Opening Firmly rotate the bubble counterclockwise approximately 20 degrees until the bubble assembly releases from the Pendant Housing. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 65: Installing The Pressurized Environmental Housing

    Schrader fill valve, located on the back side of the housing, and a pressure relief valve, located on the top of the housing cap. Figure 3.17 VG4 Pressurized Environmental Housing Schrader Fill Valve Pressure Relief Valve Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 66: Required Equipment

    This tool is required to tighten the eight (8) captive screws that secure the bubble to the housing. A small pin-in Torx tool comes with the VG4 Pressurized Environmental Housing module, but you may prefer to use a larger driver. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 67: Attaching The Housing To The Pipe

    Rotate the housing down to a vertical position and gently push upward to engage the connector on top of the dome housing. CAUTION! If you feel any resistance when rotating the dome housing or when engaging the connector, stop immediately and start over. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 68: Make Connections In The Power Supply Box

    BNC connector of the Fiber Optic Module. Connect the six (6) control plugs from the dome, installed previously, to the P106 control I/O connector in the Power Supply Box. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 69: Calibrating The Pressure Sensor

    Once the sensor is calibrated and the data is permanently stored, the LED shuts off and you can release the calibration switch. Figure 3.20 Location of the Calibration Switch Calibration Switch Schrader Fill Valve Turn the power off to the VG4 unit. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 70: Attaching The Bubble To The Housing

    Place the bubble support ring over the bubble and align the eight (8) captive screws with the threaded inserts on the plastic gasket ring. Figure 3.22 Attach Bubble Support Ring F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
  • Page 71 2.71 N-m (24 in.-lbs). 13. Perform a final check, using the same diametrical pattern, of each screw. Adjust any screw that is below 2.71 N-m (24 in.-lbs) of torque. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 72: Pressurizing The Housing

    Support the bubble with your hand to ensure that it does not fall as you fully remove the captive screws using an alternating pattern. Remove the bubble and the bubble support ring. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 73: Installing The In-Ceiling Mount

    Verify that all the parts listed in the product's Parts List below are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. See See Section 1.5 for Customer Support and Service contact information.

  • Page 74: Description

    Straight slot screwdrivers ~ 2.5 mm (0.1 inch) – 3.1 mm (1/8 inch) – No. 2 Phillips screwdriver – Appropriate tool for cutting a hole in drywall or ceiling tile – Pliers F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 75: Pre-Installation Check List

    Use the bracket Base Plate as a template or cut a 178 mm (7 in.) hole in the ceiling with a drywall utility saw or Jig Saw. Proceed to Section 4.6 Wire the Interface Box, page 78, for further instructions. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 76: Prepare Suspension Ceiling For Installation

    Use the bracket Base Plate as a template or cut a 178 mm (7 in.) hole in the center of the ceiling tile with a drywall utility saw or Jig Saw. Figure 4.3 Cut Hole in Ceiling Tile F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
  • Page 77 Tighten the four (4) securing screws to the Bracket Assembly. Figure 4.4 Tighten Bracket Securing Screw Secure the Bracket Assembly to an overhead securing point with a safety wire. Figure 4.5 Secure Bracket Assembly Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 78: Wire The Interface Box

    UTP cable and connect it to its matting connector J101 in the Interface Box. See Section 5 Cable and Wire Standards, page 85 for specifications. Connect the 24 VAC power wires to the P101 connector in the Interface Box. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
  • Page 79 To connect supervised alarms and relays, attach the appropriate wires to their terminals on the P104 connector on the Pipe Interface Board. See Section 6 Alarms and Relay Connections, page 96 for more details on wiring alarms. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 80: Interface Box Connections

    P101 24 VAC Line Earth Neutral J102 Video BNC Connector Input J101 UTP/Ethernet Connector Input Table 4.1 Interface Box Wire Terminals WARNING! 24 VAC Class 2 power supply only. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 81: Attach Housing To The Interface Box

    Figure 4.11, Page 82, below for an illustration of this process. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 82: Secure Housing To Ceiling

    Over torquing the Ceiling Clamps can damage the clamp or ceiling. Only tighten the clamp until it contacts the ceiling and you start to feel some resistance. If using a power screwdriver, set the torque level to the lowest setting. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 83: Align And Install Camera Module

    Then place the black trim ring over the inner ring, and replace and tighten the four (4) screws. Figure 4.13 In-Ceiling Bubble In-ceiling Housing 3 Camera Module Ceiling Bubble Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 84 Phillips screwdriver until the bubble can rotate freely. Then rotate the bubble counterclockwise approximately 1/4 turn until it releases from the In-Ceiling Housing. See the figure below for an illustration. Figure 4.14 Bubble Release Screw F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 85: Cable And Wire Standards

    Bilinx control data can also be sent over the same cable. Bilinx is a Bosch 2-way communication protocol that allows remote control, configuration, and updates over a video coax cable. Bilinx is available on all AutoDomes, except Ethernet models, using the standard communications module.
  • Page 86 Bilinx control data can also be sent over the same two video wires (1 & 2). Bilinx is a Bosch 2- way communication protocol that allows remote control, configuration and updates over a passive UTP cable.
  • Page 87 4 km (2.5 miles) Minimum Bandwidth 20 MHz (Video - 850 nm / Control - 1300 nm) Requirement Bosch LTC 4629 Fiber Receiver at controller end of system Terminal Connector Singlemode Fiber Type 9/125 µm, low loss single glass fiber...

  • Page 88: Control-Only Cables

    Control-only Cables Biphase (Shielded 2-wire, half-duplex, multi-drop, 5000 ft. cable limit) Biphase is the standard Bosch protocol used to send Pan/Tilt/Zoom control over 2-wire shielded twisted pair (STP) terminated with a 100 ? terminal resistor. The AutoDome has a 100 ? termination resistor between the Biphase C+ and C- terminals.
  • Page 89 C- (Biphase) Dome 3 C+ (Biphase) Dome 2 Earth Ground Dome 1 Head End Biphase C- (Biphase) Signal Ground C + (Biphase) Last Dome Data In/Out Shield P105/P106 Connector Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 90 AutoDome Data In/Out C+ (Biphase) P105/P106 Connector Earth Ground Head End RS232 Signal Ground Ground Figure 5.5 Position of CPU Switch for RS232 Operation Switch Location LEDs RS232 CPU Module F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
  • Page 91 LEDs (default). CAUTION! Bosch recommends that multiple RS485 connections be arranged as a connected series of point-to-point (multi-dropped) nodes, as a line or as a bus. It is not recommended to arrange RS485 connections as a star, ring, or as a multiple-connected network. Star and ring topologies may cause signal reflections or excessively low or high termination impedance.

  • Page 92: Fiber Optic Module With An Rs232/Rs422 Controller

    RS232 controller or a Pelco® RS422 controller. To control a VG4 Series Autodome from an RS232 or from a Pelco RS422 controller you must run control wires from the controller to an LTC 4629 head-end fiber optic module.

  • Page 93: Configuring The Vg4 Autodome

    Green RxD wire connected to C+ Blue Ground wire connected to C- Connect the fiber optic cable from the AutoDome to the LTC 4629. Close the door to the power supply unit. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 94: Audio Cables

    22 AWG to Biphase connector (P105/P106) Shield Bare copper braid: 95% coverage Center conductor Stranded bare copper NOTICE! Separate the audio cables from the AC power lines to avoid noise. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
  • Page 95 C+ (Biphase) P105/P106 Connector Earth Ground Audio Out Signal Ground NOTICE! See the AutoDome Modular Camera System User Manual for configuring and using audio over an IP Ethernet network. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 96: Alarms And Relay Connections

    Connect the alarm wires to input 1 or 2 (pin 5 or 6) and to the ground (pin 7) at the AutoDome. 2.2K Figure 6.1 N.O.S. - Normally Open Supervised Connections Dry Contact Dome Connector Alarm 1 or 2 only (Pin 5 or 6) Ground (Pin 7) F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 97: Configuring A Normally Closed Supervised Alarm

    From the AutoDome main menu select Alarm Setup>Inputs Setup, and set Alarm Input # to N.C.S. See the table below for contact and condition details. AutoDome Programmed N.C.S. Contact Alarm Condition Open Alarm Closed Normal Short Tamper Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 98: Configuring Non-Supervised Alarms (Inputs 1 Through 7)

    From the AutoDome main menu select Alarm Setup>Inputs Setup, and set Alarm Input # to N.C. See the table below for contact and condition details. AutoDome Programmed N.C. Circuit Alarm Indication Open Alarm Closed Normal F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 99: Alarm Outputs

    @ 150 ma. Connect the appropriate stripped wire to the open connector (1, 2, or 3) of the transistor. Connect the appropriate stripped wire to the ground (GND) connector. Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...

  • Page 100: Bubble Handling And Cleaning

    Do Not scrape the bubble with razor blades or other sharp instruments. – Do Not use Benzene, Gasoline, Acetone, or Carbon Tetrachloride on the bubble. – Do Not clean bubbles in the hot sun or on very hot days. F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

  • Page 101: A Installation Notes For Autotracker

    The height of the AutoDome determines the maximum effective distance that the AutoTracker can track an individual. Bosch recommends a minimum camera height of 3.6 m (12 ft). It is also important to note that the AutoDome will not tilt above the horizon when tracking.

  • Page 102: Mount/Mounting Surfaces

    Use the Virtual Masking feature (see chapter 7 in the VG4 200,300,500i Series User Manual) to mask unwanted motion from trees or cars. – Bosch recommends that you draw the virtual mask 10% larger than the object to be masked. –...

  • Page 103: Index

    42 RS232 90 roof parapet 42 control data I/O plug 18 Mouting Plate 16 copper wire 85 corner installation 17 corner plate 17 cover door 46 Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03...
  • Page 104 75 suspension ceiling 76 pressurized environmental housing calibrating 38 installing 35 pendant arm, corner, or mast mount 35 roof parapet or pipe mount 65 protocol RJ45 78 F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
