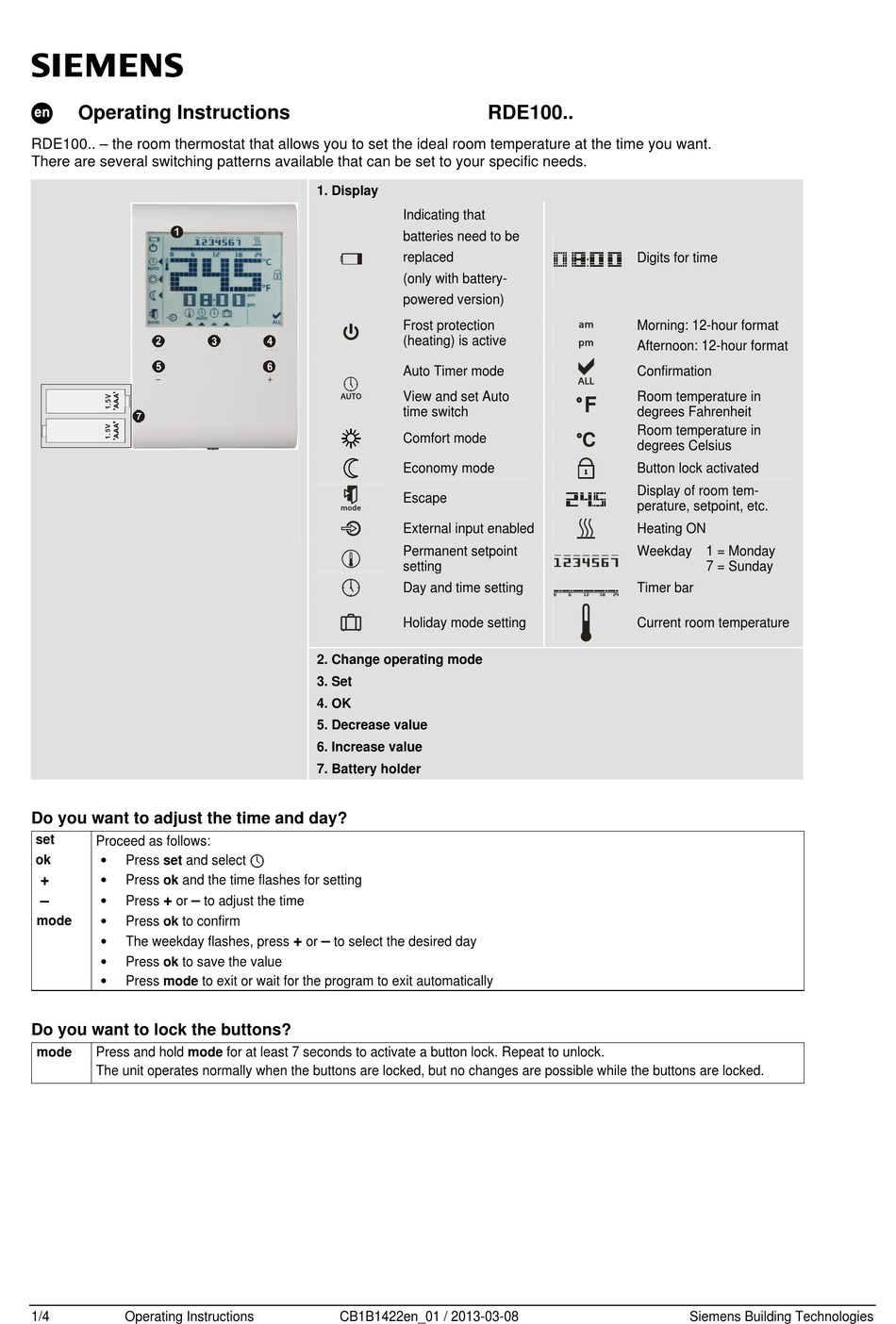

Operating Instructions

RDE100.. – the room thermostat that allows you to set the ideal room temperature at the time you want.
There are several switching patterns available that can be set to your specific needs.
Do you want to adjust the time and day?
set
Proceed as follows:
•
ok
Press set and select
•
+
Press ok and the time flashes for setting
•
– + –
Press or
•
mode Press ok to confirm
•
The weekday flashes, press
•
Press ok to save the value
•
Press mode to exit or wait for the program to exit automatically
Do you want to lock the buttons?
mode Press and hold mode for at least 7 seconds to activate a button lock. Repeat to unlock.
The unit operates normally when the buttons are locked, but no changes are possible while the buttons are locked.
1/4 Operating Instructions
1. Display
2. Change operating mode
3. Set
4. OK
5. Decrease value
6. Increase value
7. Battery holder
to adjust the time
+ –
or to select the desired day
CB1B1422en_01 / 2013-03-08
RDE100..
Indicating that
batteries need to be
replaced
(only with battery-
powered version)
Frost protection
(heating) is active
Auto Timer mode
View and set Auto
time switch
Comfort mode
Economy mode
Escape
External input enabled
Permanent setpoint
setting
Day and time setting
Holiday mode setting
Digits for time
Morning: 12-hour format
Afternoon: 12-hour format
Confirmation
Room temperature in
F
degrees Fahrenheit
Room temperature in
C
degrees Celsius
Button lock activated
Display of room tem-
perature, setpoint, etc.
Heating ON
Weekday 1 = Monday
7 = Sunday
Timer bar
Current room temperature
