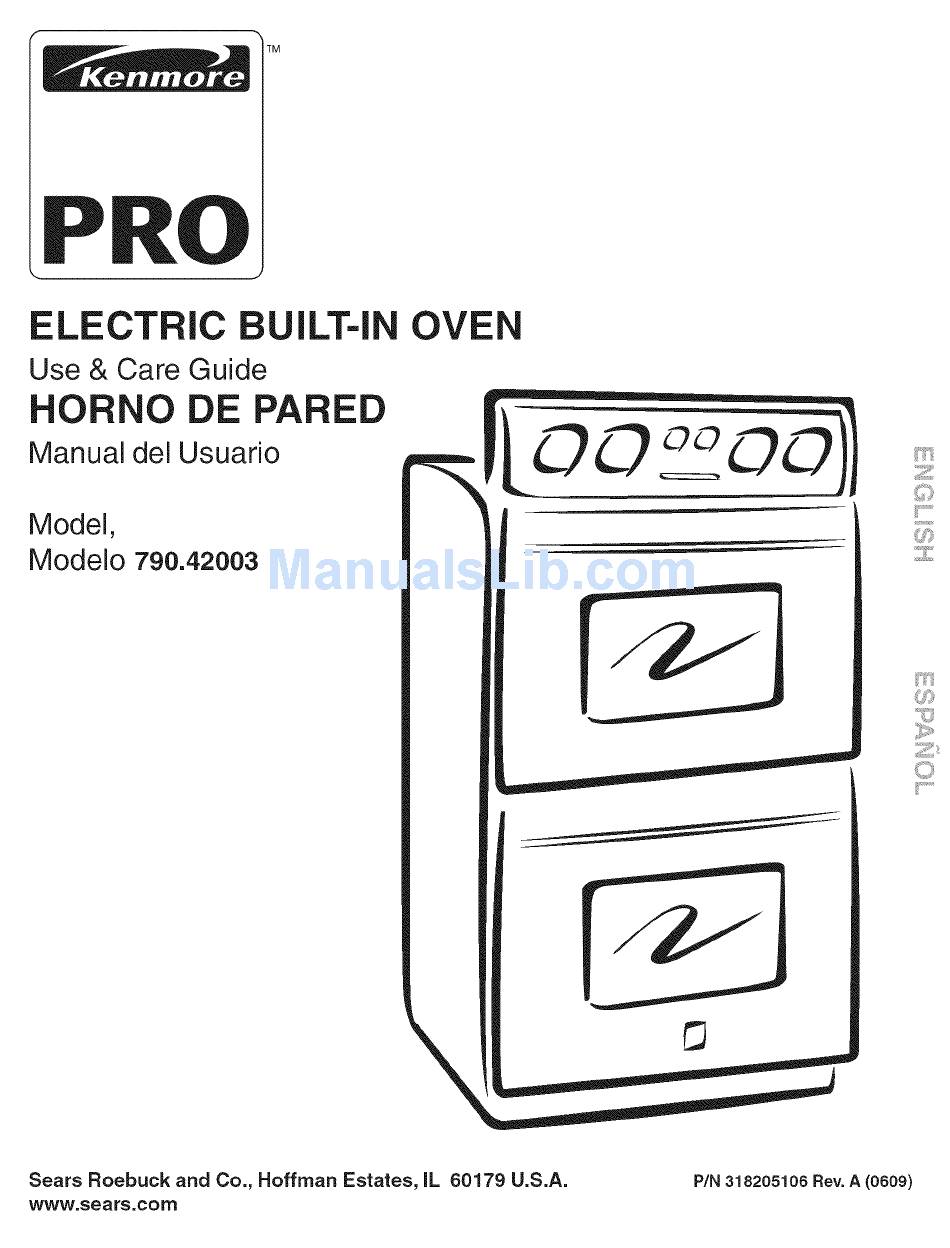

- Page 1 LECTRIC Use & Care Guide HORNO Manual del Usuario Model, Modelo 790.42003 Sears Roebuck and Co., Hoffman www,sears,oom OVEN Estates, IL 60179 U.S.A. iii ... P/N 318205106 Rev. A (0609)
-
Page 2: Table Of Contents
Oven Ladder Racks Positions ... Control Pad Features ... Setting the Clock ... Consumer Defined ControJ Features ... Kenmore Pro Appliance Warranty OneYear Limited Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ®... -
Page 3: Important Safety Instructions
important Safety instructions Read all instructions Save these This manual contains important safety symbols and instructions.Please pay attention to these symbols and follow all instructionsgiven. _This symbol will help alert you to situations that may cause serious bodily harm, death or property damage. This symbol will help alert you to situations that •... -
Page 4: Product Record
important Safety instructions IMPORTANT INSTRUCTIONS YOUR OVEN • Use Care When Opening an Oven Door--Stand side of the appliance when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven. •... -
Page 5: Protection Agreements
Master Protection Agreements Congratulations on making a smart purchase. Your new Kenmore ®product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation. -
Page 6: Wall Oven Features
Your Electric Wall Oven Features At a Glance Broil Element Temperature Probe Outlet Self-Clean Convection Oven Searing Grill Broil Pan Insert Broil Pan Wall Oven Features Oven Selector Control Knob Oven Temperatu re Control Knob Oven Temperature Indicators Oven Control Display with Clock, Kitchen Timer &... -
Page 7: Oven Vent And Racks
Oven Vent and Racks UpperOven Vent Location Oven The oven is vented through air is released through the vent. This venting is necessary for proper air circulation in the oven and good baking results. Arranging ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). -
Page 8: Control Pad Features
Control Button Features READ THE iNSTRUCTiONS CAREFULLY familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this Use & Care Guide. SELECTOR CONTROL KNOB= Used to select the Bread Proof, Warm &... -
Page 9: Consumer Defined Controj Features
Setting the Clock (cont'd) Setting Continuous Bake or 12 Hour Energy The oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous Baking. To set the control for Continuous Timer2 Press and hold the _... - Page 10 Setting Oven Controls Oven Baking For best cooking results, pre-heat the oven before baking cookies, breads, cakes, pies or pastries, etc. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. If you feel your oven is too hot or too cold, you can adjust its temperature. Baking Causes Problems...
- Page 11 Setting Oven Controls Setting Convection Bake Use the Convection Bake feature when fast cooking is desired. The oven can be programmed for Convection baking at any temperature between 170°F and 550°F. Convection baking uses a fan to circulate the oven's heat evenly and continuously within the oven (See Figure 1).
- Page 12 Setting Oven Controls Using the Temperature For many foods, especially roasts and poultry, testing the internal temperature is the best method to insure properly cooked food. The Temperature Probe gets the exact temperature you desire without having to guess. IMPORTANT: Use only the probe supplied with your appliance;...
- Page 13 Setting Oven Controls Setting the Warm & Hold TM Feature The Warm & Hold feature will maintain an oven temperature of 170°F, and will keep oven baked foods warm for serving for 3 hours after cooking has finished. The Warm & Hold feature may be used without any other cooking operations or can be used after cooking has finished.
-
Page 14: Self-Cleaning
Self-Cleaning During the self-cleaning cycle, the outside of the wall oven can become very hot to the touch. DO NOT leave small children unattended near the appliance. The health of some birds is extremely sensitive to the fumes given off during the self-clean cycle of any wall oven. -
Page 15: Adjusting The Oven Temperature
Self-Cleaning Self=Clean Cycle Time Length If you are planning to use the oven directly after a self-clean cycle remember to allow time for the oven to cool down and the oven door to unlock. This normally takes about 11/2hour. So a self-clean cycle (3 hours) will actually take about 41/2hours to complete. -
Page 16: General Care & Cleaning
General Care & Cleaning Cleaning Various Parts of Your Oven Before cleaning any part of the oven, be sure all controls are turned OFF and the oven is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS DIFFICULTY OF MAJOR CLEANING LATER. -
Page 17: Care And Cleaning Of Stainless Steel
General Care & Cleaning Hinge Slot Lock in normal position Figure I Lock engaged for door removal Figure 2 Door removed from the oven Figure 3 Lift up and pull out. Halogen Light Bulb Care and Cleaning of Stainless This model is equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the appearance of stainless parts. -
Page 18: Beforeyou Call
Before you call for service, review this list. it may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE Oven Control Beeps and Displays any F code error (example Fll). "d=o"... -
Page 19: Beforeyou Call
OCCURRENCE Oven smokes excessively during broiling. Poor baking results. Self-cleaning cycle does not work. Soil not completely removed after self=cleaning cycle is completed. Flames inside oven or smoke from vent. Before You Call Solutions to Common Problems POSSIBLE CAUSE / SOLUTION Oven door is closed. -
Page 20: Sears Service
iiiiiiiiiiiiiiiiii;? For repair-in lawn and garden equipment, no matter who made it, no matter who sold it! For,the replacement owner s manuals that you need to do-it-yourself. For Sears professional and items like garage door openers and water heaters. 1-800-4-MY-HOIVIE ® (1-800-4694663) Call anytime, For repair of carry-in items like vacuums, and electronics,...
