please read these instructions carefully and save this manual for future use.
Precautions
Refer installation work to the dealer.
Installation work requires technique and experience. Failure to observe this may cause fire, electric
shock, injury, or damage to the product.
Be sure to consult the dealer.
Mounting procedures
Read the following descriptions together with the Installation Guide of the camera. The WV-SFR631L
is used as an example in these descriptions.
Note:
When a smoke type dome cover is used, the IR LED irradiation distance and the illuminance level
●
for switching between color and monochrome are lower than for a standard clear type dome
cover. Check the settings after attaching the enclosure.

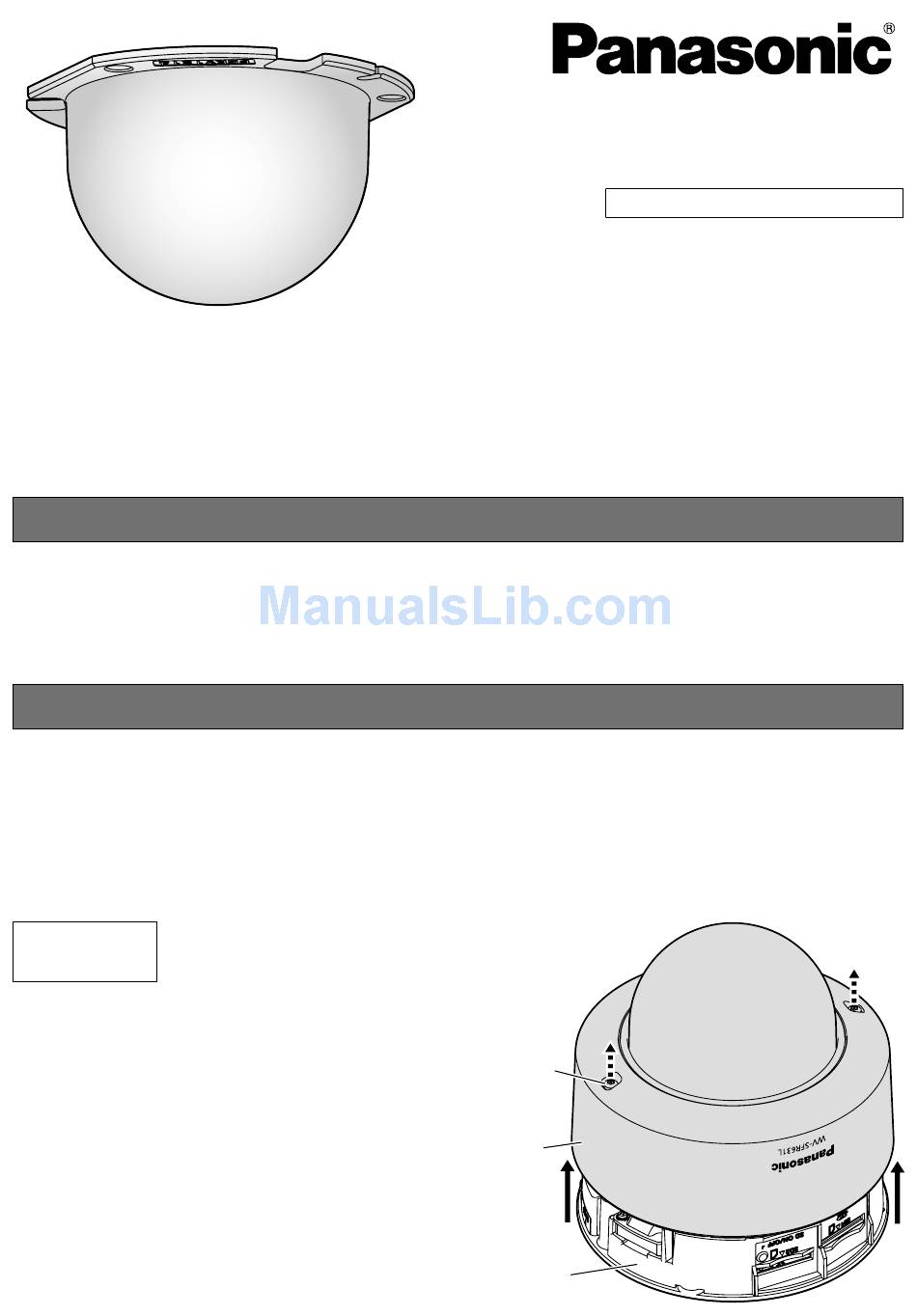

Remove the enclosure
Step1
from camera
Use the bit included with the camera to loosen
the 2 screws that secure the enclosure, and then
remove the enclosure from the camera body.
Note:
The enclosure is still connected to the cam-
●
era with the auxiliary wire at this stage.
Before attempting to connect or install this product,
The model number is abbreviated in some descriptions in this manual.
Operating Instructions
Included Installation Instructions
Model No.
Enclosure
fixing screws
(x2)
Enclosure
Camera body
Dome Cover
WV-CR1S
