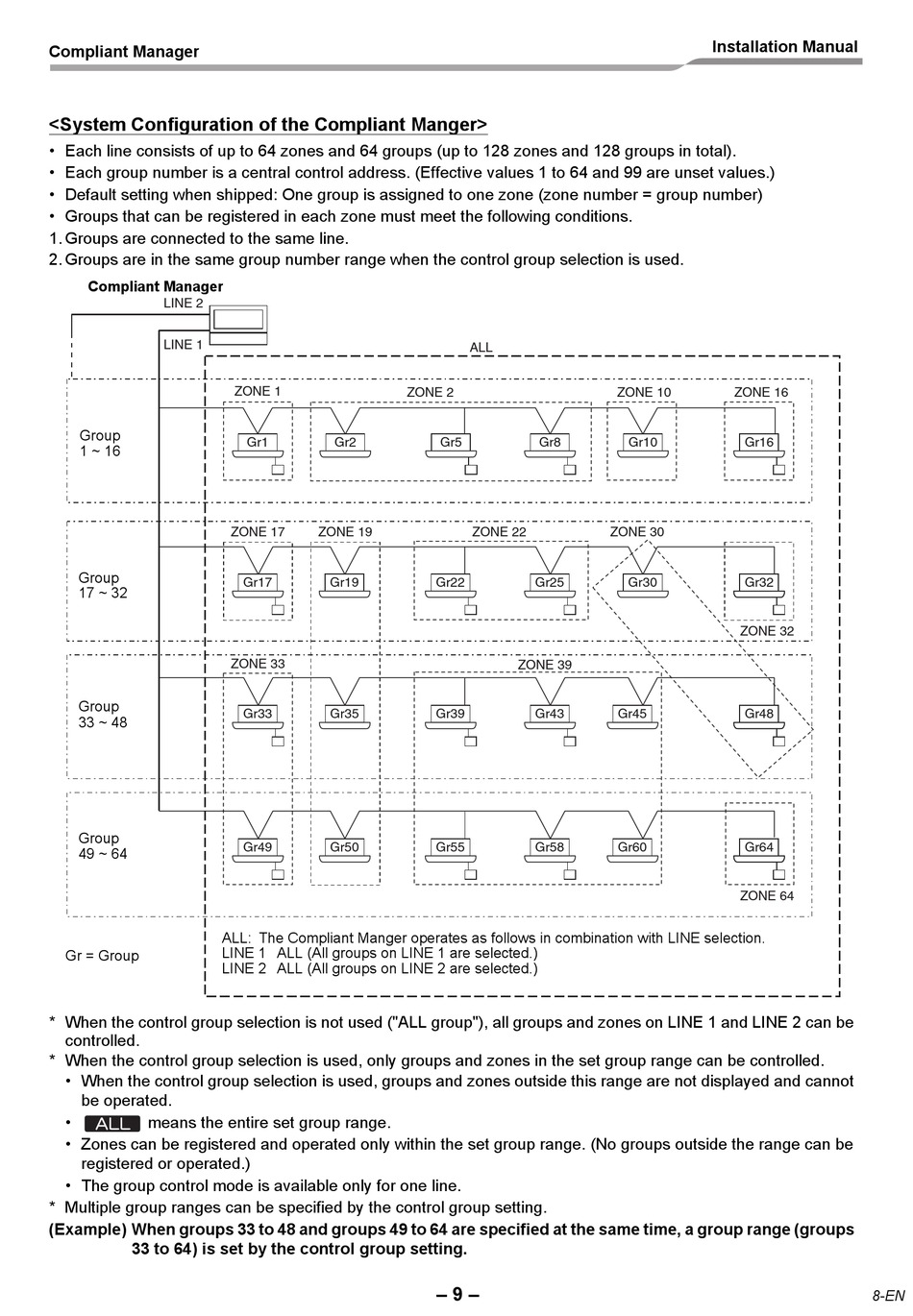

<System Configuration of the Compliant Manger>
• Each line consists of up to 64 zones and 64 groups (up to 128 zones and 128 groups in total).
• Each group number is a central control address. (Effective values 1 to 64 and 99 are unset values.)
• Default setting when shipped: One group is assigned to one zone (zone number = group number)
• Groups that can be registered in each zone must meet the following conditions.
1. Groups are connected to the same line.
2. Groups are in the same group number range when the control group selection is used.
Compliant Manager
LINE 2
LINE 1
Group
1 ~ 16
Group
17 ~ 32
Group
33 ~ 48
Group
49 ~ 64
Gr = Group
* When the control group selection is not used ("ALL group"), all groups and zones on LINE 1 and LINE 2 can be
controlled.
* When the control group selection is used, only groups and zones in the set group range can be controlled.
• When the control group selection is used, groups and zones outside this range are not displayed and cannot
be operated.
• means the entire set group range.
• Zones can be registered and operated only within the set group range. (No groups outside the range can be
registered or operated.)
• The group control mode is available only for one line.
* Multiple group ranges can be specified by the control group setting.
(Example) When groups 33 to 48 and groups 49 to 64 are specified at the same time, a group range (groups
33 to 64) is set by the control group setting.
ZONE 1
Gr1 Gr2
ZONE 17 ZONE 19
Gr17 Gr19
ZONE 33
Gr33 Gr35
Gr49 Gr50
ALL: The Compliant Manger operates as follows in combination with LINE selection.
LINE 1 ALL (All groups on LINE 1 are selected.)
LINE 2 ALL (All groups on LINE 2 are selected.)
ALL
ZONE 2
Gr5 Gr8
ZONE 22
Gr22 Gr25
ZONE 39
Gr39 Gr43
Gr55 Gr58
