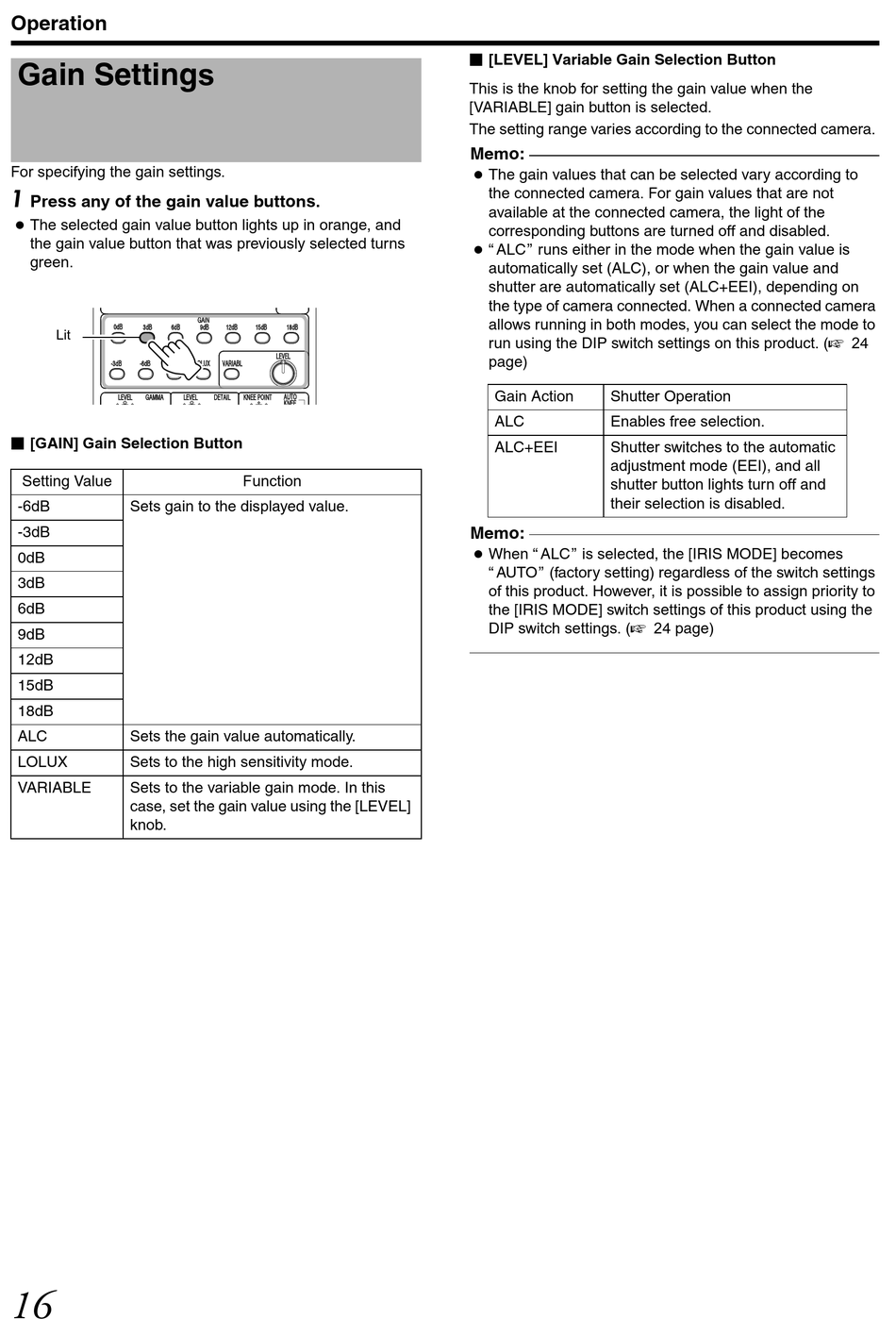

Operation

Gain Settings

For specifying the gain settings.
1
Press any of the gain value buttons.
● The selected gain value button lights up in orange, and
the gain value button that was previously selected turns
green.
0 0 d d B B
3 3 d d B B 6 6 d d B B
Lit
- - 3 3 d d B B - - 6 6 d d B B A A L L C C
L L E E V V E E L L G G A A M M M M A A
[GAIN] Gain Selection Button
Setting Value
-6dB Sets gain to the displayed value.
-3dB
0dB
3dB
6dB
9dB
12dB
15dB
18dB
ALC Sets the gain value automatically.
LOLUX Sets to the high sensitivity mode.
VARIABLE Sets to the variable gain mode. In this
case, set the gain value using the [LEVEL]
knob.
GAIN GAIN
9 9 d d B B 1 1 2 2 d d B B 1 1 5 5 d d B B 1 1 8 8 d d B B
L L E E V V E E L L
L L O O L L U U X X
V V A A R R I I A A B B L L
L L E E V V E E L L D D E E T T A A I I L L K K N N E E E E P P O O I I N N T T A A U U T T O O
K K N N E E E E
Function
[LEVEL] Variable Gain Selection Button
This is the knob for setting the gain value when the
[VARIABLE] gain button is selected.
The setting range varies according to the connected camera.
Memo:
● The gain values that can be selected vary according to
the connected camera. For gain values that are not
available at the connected camera, the light of the
corresponding buttons are turned off and disabled.
● ALC runs either in the mode when the gain value is
automatically set (ALC), or when the gain value and
shutter are automatically set (ALC+EEI), depending on
the type of camera connected. When a connected camera
allows running in both modes, you can select the mode to
run using the DIP switch settings on this product. (A 24
page)
Gain Action Shutter Operation
ALC Enables free selection.
ALC+EEI Shutter switches to the automatic
adjustment mode (EEI), and all
shutter button lights turn off and
their selection is disabled.
Memo:
● When ALC is selected, the [IRIS MODE] becomes
AUTO (factory setting) regardless of the switch settings
of this product. However, it is possible to assign priority to
the [IRIS MODE] switch settings of this product using the
DIP switch settings. (A 24 page)
