with flush-mounted microphone, loudspeaker,
channel selector and headphones.
The software modules running on the system PC would
typically include:
• Microphone Management or Synoptic Microphone
Control - to configure and control delegate micro-
phone status, determine microphone operating
mode, and generate control signals for the Allegiant
Video Switcher
• Video Display - to allow video-oriented displays to
show conference-related information
• Startup
• System Installation
• Delegate Database
• Simultaneous Interpretation
• Multi Voting
• Message Distribution
• Attendance Registration
• ID-Card Encoder
• Camera Control
LBB 9095 LBB 3520
Interpreter Interpreter Unit &
Headphones LCD Display
Headphones
LBB 3546/00
Delegate Unit &
ID-card Reader,
LCD Display &
LBB 3547/00
Channel Selector
Chairman Unit & ID-card
Reader, LCD Display &
Channel Selector
LBB 3500
Basic Central Control Unit
LBB 3508
Audio Media Interface Unit
Mixing Amplifier
LBB 3513/00
Analog Audio Input/
Output Module
Interpreter Site
Headphones
LBB 3537
Microphone & Control Panel
LBB 3538 LBB 3524
Loudspeaker Panel Electronic Channel Selector Unit

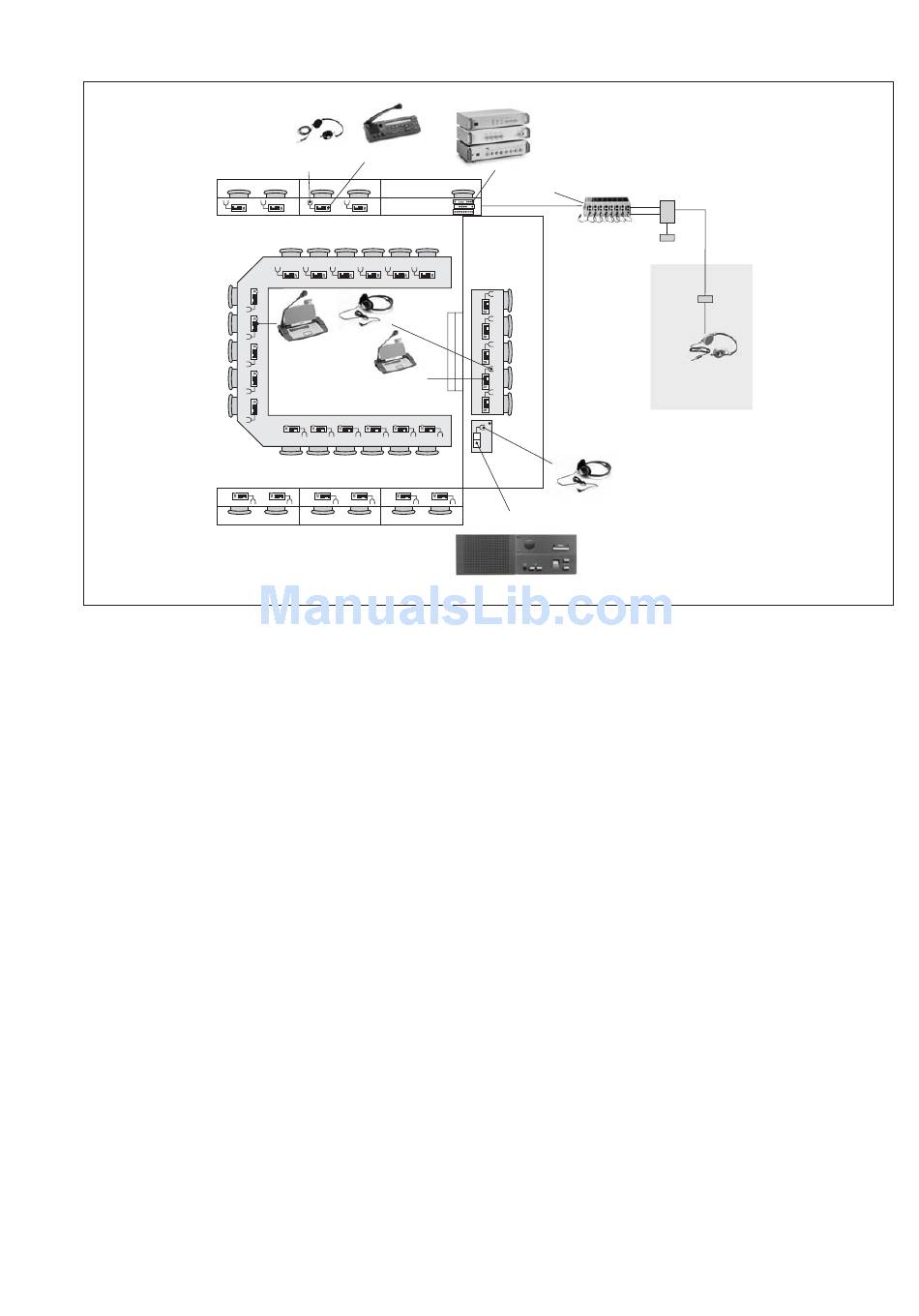

Example 6 - conference with remote interpretation
This example shows a conference that enables real-time
language interpretation at a remote location using the
LBB 3513 Analog Audio Input/Output (AIO) Module.
This saves time and reduces costs since interpreters no
longer have to be accommodated at the DCN site itself.
One AIO module per interpreter is used, and a telephone
coupler.
The floor or chosen language is sent to the interpreter
via the telephone coupler, and the translation is
returned via the coupler and AIO module, and distributed
throughout the DCN system. Conventional telephone
lines providing basic telephone speech can be used, or
for higher speech intelligibility, ISDN (recommended).
The contribution units and other equipment illustrated
above are as used in example 3.
The DCN AIO module provides the interface between
DCN systems and external analog audio signals.
Other application possibilities using this module
include linking different DCN systems to allow sharing
of interpretations, and offering extra scope for recording
translations and distributing external music and speech.
The AIO module can also interface with a Video
Conference System to make simultaneous interpretation
as lifelike as possible.
DCN Data Brochure | Introduction | 15
Telephone
Coupler
Telephone
Handset
Telephone
Handset
Telephone
Headset
