Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description October 24, 2012 • Initial release...

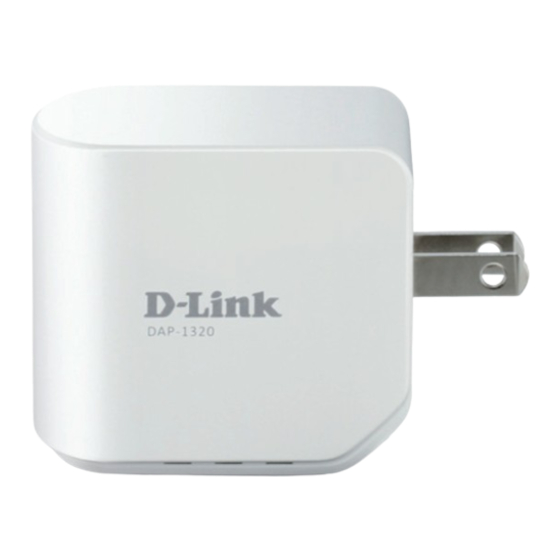

Section 1 - Product Overview Package Contents DAP-1320 Wireless Range Extender N300 Wi-Fi Configuration Card If any of the above items are missing from your package, please contact your reseller. D-Link DAP-1320 User Manual...
• Firefox 12.0 or later • Safari 4 or later • Google Chrome 20.0 or later Windows .Users: Make sure you have the latest version of Java ® installed. Visit www.java.com to download the latest version. D-Link DAP-1320 User Manual...
TOTAL.NETWORK.SECURITY The DAP-1320 supports wireless security features to prevent unauthorized access, be it from over the wireless network or from the Internet. Support for WPA/WPA2 standards ensure that you’ll be able to use the best possible encryption method, regardless of your client devices.
Section 1 - Product Overview Features •.Faster.Wireless.Networking - The DAP-1320 provides a wireless connection of up to 300 Mbps* with other 802.11n wireless clients. This capability allows users to participate in real-time activities online, such as video streaming, online gaming, and real-time audio.
Section 1 - Product Overview Hardware Overview Front/Top LED Indicator This indicates the current status of the DAP-1320, as detailed in the table below. LED Indicator Color Status Description Solid Green The device is powered ON and operating properly Blinking Green...
Hardware Overview Side and Bottom 1. Pressing the WPS button for 5 seconds allows you to set up the DAP-1320 through One-Touch AP Configutation. WPS Button 2. Pressing the WPS button for 1 second allows you to connect with Wi-Fi clients.
Page 10
Section 1 - Product Overview The DAP-1320 acts as a repeater to extend the range of an existing wireless network to provide better signal for parts of your home or office that may have poor reception. Wireless Router Wireless Devices...
1. Keep the number of walls and ceilings between the D-Link repeater and other network devices to a minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.
LED has turned blinking amber before continuing. There are three ways to configure your DAP-1320 - using the One- Touch AP configuration method, using the QRS Mobile app on your smartphone or tablet device, or using the Web GUI on your...
The DAP-1320 supports One-Touch AP configuration using the WPS (Wi-Fi Protected Setup) button to connect to a wireless router to extend the Wi-Fi network in your home, as well as for connecting devices to the DAP-1320’s extended wireless network. Note: To use One-Touch AP Configuration to connect to a wireless router, please make sure the router features a WPS button.
Section 2 - Configuration Web-based Configuration To access the configuration utility for the DAP-1320 on your PC, first connect to the DAP-1320 wirelessly using the network name (SSID) and password located on your Wi-Fi Configuration Card. Then open a web browser and enter http://dlinkap.local in the address bar.
Section 2 - Configuration QRS Mobile App Setup The DAP-1320 can be set up from your iOS or Android smartphone or tablet device using the QRS Mobile app. Use your mobile device to scan a QR code to download the QRS.Mobile app from the App Store (left) for your iOS device, or from Google Play (right) for your Android device.
Page 16
Once your mobile device is connected, tap on the QRS Mobile icon. Click Start to continue. QRS Mobile will first detect your DAP-1320, then scan for available Wi-Fi networks. Select the network you wish to extend and enter the password if required.
Page 17
Enter a network name (SSID) and password for the extended Wi-Fi network. You may keep the existing SSID and password if you wish. Click Next to continue. Create an admin password for the DAP-1320’s Web-based configuration utility. Click Next to continue. D-Link DAP-1320 User Manual...
Page 18
After the Setup Wizard is complete, the following screen will appear. You can now change your mobile device and laptop Wi-Fi settings to the wireless network name and password you just created. D-Link DAP-1320 User Manual...
Extended.Wi-Fi.Setup and refer to “Extended Wi-Fi Setup” on page 23 for more details. This wizard is designed to guide you through a step-by-step process to configure your new D-Link wireless range extender to extend your wireless network and connect to the Internet. Click Next to continue.
Page 20
Select whether you want to use the WPS (Wireless Protected Setup) method or the Manual method to set up an extended wireless network using your DAP-1320 and click Next. These two methods are described in the following sections in the following pages.
Using the WPS method The DAP-1320 uses the Push-button method for WPS. After selecting WPS, the DAP-1320 will ask you to press the WPS Push button on the AP (access point) or router you want to connect to. You have 120 seconds to press the button on your AP or router.
Page 22
Section 3 - Web-based Configuration The DAP-1320 will first scan for available Wi-Fi networks and list the networks it has found. If the network you would like to connect to isn’t listed, click Rescan for the DAP-1320 to perform another scan.
Page 23
Setup is complete, and your wireless network name and password will be displayed. It is recommended that you write this information down for future reference. Click Next to save your settings and reboot the repeater for your settings to take effect. D-Link DAP-1320 User Manual...
Section 3 - Web-based Configuration Using the manual method The DAP-1320 will first scan for available Wi-Fi networks and list the networks it has found. If the network you would like to connect to isn’t listed, click Rescan for the DAP-1320 to perform another scan.
Page 25
Section 3 - Web-based Configuration Setup is complete, and your wireless network name and password will be displayed. It is recommended that you write this information down for future reference. Click Save to save your settings and reboot the repeater. D-Link DAP-1320 User Manual...
Section 3 - Web-based Configuration Wi-Fi Setup This page lets you configure the Wi-Fi settings to connect your DAP-1320 to another wireless network. After making your changes, click the Save.Settings button. Wireless Mode: This is set to Repeater mode and cannot be changed.
Page 27
Select the length of the password for your wireless network. Password: Enter the password for your wireless network. It will need to meet the length requirement that you selected above. Authentication: Choose what authentication type to use. D-Link DAP-1320 User Manual...
Section 3 - Web-based Configuration Extended Wi-Fi Setup This page lets you configure a wireless LAN for your DAP-1320. After making your changes, click Save.Settings. Wi-Fi Network Name: This is set in Wi-Fi Setup and cannot be changed here. Please go to Wi-Fi Setup if you wish to change it.
Page 29
Select the length of the password for your wireless network. Password: Enter the password for your wireless network. It will need to meet the length requirement that you selected above. Authentication: Choose what authentication type to use. D-Link DAP-1320 User Manual...
Page 30
If you selected Link-Local. only, you will see the following settings: LAN IPv6 The IPv6 Link-Local Address is the IPv6 Address that you use tto access the Web-based management interface. Link-Local Address: D-Link DAP-1320 User Manual...
Page 31
You can either choose to obtain IPv6 DNS Servers automatically, or enter the servers you wish to use. Primary DNS Enter the primary DNS Server address. Server: Secondary Enter the secondary DNS Server address. DNS Server: D-Link DAP-1320 User Manual...
Maintenance Admin This page will allow you to set a new password for the administrator account for configuring the DAP-1320. You can also turn on graphical authentication (CAPTCHA) on this page. After making your changes, click the Save.Settings button. New Password: Enter the new password.
Section 3 - Web-based Configuration System This page allows you to save or restore your system configuration, reset or reboot the DAP-1320. After making your changes, click the Save.Settings button. Save Settings Save the system settings onto a file to the local hard drive.
Section 3 - Web-based Configuration Firmware Firmware and language upgrades might be provided for the DAP-1320 in future. You can check and upgrade your firmware and language pack on this page. Please check the D-Link support website for firmware updates at http://support.dlink.com.
NTP Server Used: Select the NTP Server you wish to use. Date and Time: Set the date and time manually. Copy your Computer’s Time Settings: Click to use your computer’s time settings. D-Link DAP-1320 User Manual...
This page displays details about your wireless and network connection, and the firmware version. General: Displays the time and firmware version. Wi-Fi Network: Displays information about the Wi-Fi network. Extended Wi- Fi Network: Displays information about the extended Wi-Fi network. D-Link DAP-1320 User Manual...
Section 3 - Web-based Configuration Logs The DAP-1320 keeps a running log of events and activities occurring on the DAP-1320. If the DAP-1320 is rebooted, the logs are automatically cleared. Log Options: There are several types of logs that can be viewed: System.
Statistics The DAP-1320 keeps statistics of the traffic that passes through it. You can view the amount of packets that pass through the LAN and wireless portions of the network. Click Refresh.Statistics to update the information, or click Clear.Statistics.to reset all statistics.
Section 3 - Web-based Configuration Help Menu This page provides helpful information on the Setup, Maintenance, and Status sections in this Web GUI. Click on a link to learn more about that topic. D-Link DAP-1320 User Manual...
Blu-ray DVD players, wireless printers and cameras will have a WPS button (or a software utility with WPS) that you can press to connect to the DAP-1320. Please refer to your user manual for the wireless device you want to connect to make sure you understand how to enable WPS.
If you are joining an existing network, you will need to know the security key or passphrase being used. 1. Click on the wireless icon in your system tray (lower-right corner). Wireless Icon 2. The utility will display any available wireless networks in your area. D-Link DAP-1320 User Manual...
Page 43
If you get a good signal but cannot access the Internet, check your TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. 4. The following window appears while your computer tries to connect to the router. D-Link DAP-1320 User Manual...
Page 44
It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as on the wireless router. D-Link DAP-1320 User Manual...
(displayed using the SSID) and click Connect. If you get a good signal but cannot access the Internet, check you TCP/ IP settings for your wireless adapter. Refer to the Networking.Basics section in this manual for more information. D-Link DAP-1320 User Manual...
1.. Open the Windows Vista® Wireless Utility by right-clicking on the wireless computer icon in your system tray (lower right corner of screen). Select Connect.to.a.network. 2.. Highlight the wireless network (SSID) you would like to connect to and click Connect. D-Link DAP-1320 User Manual...
Page 47
It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as on the wireless router. D-Link DAP-1320 User Manual...
(displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check you TCP/ IP settings for your wireless adapter. Refer to the Networking.Basics section in this manual for more information. D-Link DAP-1320 User Manual...
1. Open the Windows® XP Wireless Utility by right-clicking on the wireless computer icon in your system tray (lower-right corner of screen). Select View.Available.Wireless.Networks. 2. Highlight the wireless network (SSID) you would like to connect to and click Connect. D-Link DAP-1320 User Manual...
Page 50
It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be exactly the same as on the wireless router. D-Link DAP-1320 User Manual...
1..Why.can’t.I.access.the.web-based.configuration.utility? When entering the IP address of the D-Link repeater (dlinkap.local for example), you are not connecting to a website nor do you have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility.
Page 52
• Close your web browser (if open) and open it. • Access the web management. Open your web browser and enter the IP address of your D-Link repeater in the address bar. This should open the login page for your web management.
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.
Why.D-Link.Wireless? D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers the performance you need at a price you can afford. D-Link has all the products you need to build your network. How.does.wireless.work? Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B.
Page 55
Who.uses.wireless?. Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, office, business, D-Link has a wireless solution for it. Home • Gives everyone at home broadband access •...
The wireless connection in public places is usually called “hotspots”. Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like: Airports, Hotels, Coffee Shops, Libraries, Restaurants, and Convention Centers.
• 48 x 42 x 53.5 mm (1.89 x 1.65 x 2.11 inches) Device.Management • Web UI Weight • 69 grams (0.152 lb) Diagnostic.LEDs • Status/WPS Operating.Temperature • 0 to 40 ˚C (32 to 104 ˚F) Frequency range varies depending on local regulations D-Link DAP-1320 User Manual...
WRITTEN OFFER FOR GPL AND LGPL SOURCE CODE Where such specific license terms entitle you to the source code of such software, D-Link will provide upon written request via email and/or traditional paper mail the applicable GPL and LGPLsource code files via CD-ROM for a nominal cost to cover shipping and media charges as allowed under the GPL and LGPL.
Page 59
Therefore, we have designed this version of the GPL to prohibit the practice for those products. If such problems arise substantially in other domains, we stand ready to extend this provision to those domains in future versions of the GPL, as needed to protect the freedom of users. D-Link DAP-1320 User Manual...
Page 60
(except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list meets this criterion. D-Link DAP-1320 User Manual...
Page 61
The Corresponding Source need not include anything that users can regenerate automatically from other parts of the Corresponding Source. The Corresponding Source for a work in source code form is that same work. D-Link DAP-1320 User Manual...
Page 62
License with respect to the covered work, and you disclaim any intention to limit operation or modification of the work as a means of enforcing, against the work’s users, your or third parties’ legal rights to forbid circumvention of technological measures. D-Link DAP-1320 User Manual...
Page 63
“aggregate” if the compilation and its resulting copyright are not used to limit the access or legal rights of the compilation’s users beyond what the individual works permit. Inclusion of a covered work in an aggregate does not cause this License to apply to the other parts of the aggregate. D-Link DAP-1320 User Manual...
Page 64
Corresponding Source of the work are being offered to the general public at no charge under subsection 6d. A separable portion of the object code, whose source code is excluded from the Corresponding Source as a System Library, need not be included in conveying the object code work. D-Link DAP-1320 User Manual...
Page 65
Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying. D-Link DAP-1320 User Manual...
Page 66
) Requiring indemnification of licensors and authors of that material by anyone who conveys the material (or modified versions of it) with contractual assumptions of liability to the recipient, for any liability that these contractual assumptions directly impose on those licensors and authors. D-Link DAP-1320 User Manual...
Page 67
30 days after your receipt of the notice. Termination of your rights under this section does not terminate the licenses of parties who have received copies or rights D-Link DAP-1320 User Manual...
Page 68
License, and you may not initiate litigation (including a cross-claim or counterclaim in a lawsuit) alleging that any patent claim is infringed by making, using, selling, offering for sale, or importing the Program or any portion of it. D-Link DAP-1320 User Manual...
Page 70
The terms of this License will continue to apply to the part which is the covered work, but the special requirements of the GNU Affero General Public License, section 13, concerning interaction through a network will apply to the combination as such. D-Link DAP-1320 User Manual...
Page 71
USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. D-Link DAP-1320 User Manual...
Page 72
Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee. D-Link DAP-1320 User Manual...
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. D-Link DAP-1320 User Manual...
Page 74
Les conditions de fonctionnement sont sujettes à deux conditions: (1) Ce périphérique ne doit pas causer d’interférence et. (2) Ce périphérique doit accepter toute interférence, y compris les interférences pouvant perturber le bon fonctionnement de ce périphérique. D-Link DAP-1320 User Manual...
