- Page 1 CCTV CMCC1020 Colour Monitors CMCC1420 User’s Manual CMCC1725 CMCC2120 Fire & Security Products Siemens Building Technologies...
- Page 2 Data and design subject to change without notice. / Supply subject to availability. © Copyright by Siemens Building Technologies AG We reserve all rights in this document and in the subject thereof. By acceptance of the document the recipient acknowledges these rights...
-
Page 3: Table Of Contents
Manufacturer’s Conformity Declaration ............18 FCC Information..................19 Safety Precautions................. 20 General Features ................... 21 CMCC1020 FRONT AND REAR VIEW............22 CMCC1420 FRONT AND REAR VIEW............23 CMCC1725 FRONT AND REAR VIEW............24 CMCC2120 FRONT AND RE AR VIEW ............25 Connections and Controls................. -
Page 4: Important Safeguards
EN 61000-3-3:1995 EN 50130-4: 1998 ( EN 61000-4-2,3,4,5,6,8,11) In accordance with the above EU Directive, the EU Declaration of Conformity can be made available to the authorities concerned by: Siemens Gebäudesicherheit GmbH & Co. oHG, Security Siemensallee 84 76187 Karlsruhe Siemens Building Technologies 19.05.2003... -
Page 5: Fcc Information
Ÿ Shielded interface cables and A.C. power cord, if any, must be used in order to comply with emission limits. Ÿ Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Siemens Building Technologies 19.05.2003 Fire & Security Products... -
Page 6: Safety Precautions
Warning: Serious shock hazards exist within the covers of this monitor. Do not open the covers under any circumstances, there are no user serviceable components inside. Siemens Building Technologies 19.05.2003 Fire & Security Products... -
Page 7: General Features
Compatible with: PAL / NTSC System • Scanning System: NTSC 15750 / 60 Hz or PAL 15625 / 625 Lines, 50 Hz • Video Input Signal: CVBS • Input Power: 100 to 240 V AC Siemens Building Technologies 19.05.2003 Fire & Security Products... -
Page 8: Cmcc1020 Front And Rear View

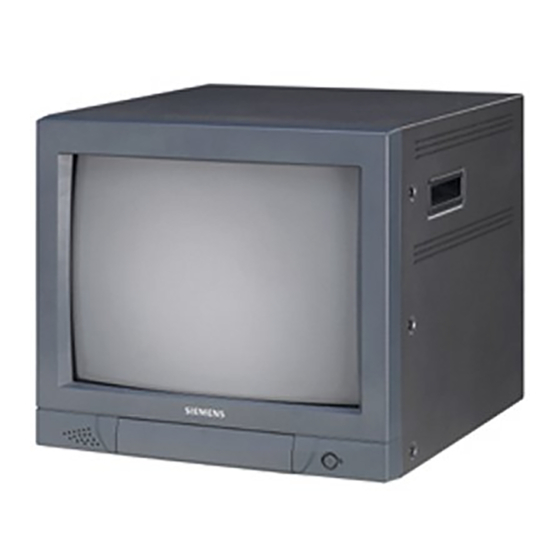

CMCC1020 FRONT AND REAR VIEW Front View Power On/Off Switch Power-On Indicator Contrast Adjustment Brightness Adjustment Tint (NTSC only) Colour Adjustment Sharpness Adjustment Volume adjustment CVBS or Y/C Selector Switch Rear View 10 Power Inlet 11 Video Load Impedance Switch... -
Page 9: Cmcc1420 Front And Rear View
14 Audio 1 Input : RCA Jack 15 Audio 1 Output : RCA Jack 16 Y/C Load Impedance Switch 17 Y/C Input 4 Pin DIN Connector 18 Y/C Output 4 Pin DIN Connector Siemens Building Technologies 19.05.2003 Fire & Security Products... -
Page 10: Cmcc1725 Front And Rear View
20 Audio 2 Input : RCA Jack 21 Audio 2 Output : RCA Jack 22 Y/C Load Impedance Switch 23 Y/C Input 4 Pin DIN Connector 24 Y/C Output 4 Pin DIN Connector Siemens Building Technologies 19.05.2003 Fire & Security Products... -
Page 11: Cmcc2120 Front And Rear View
22 Audio 2 Input : RCA Jack 23 Audio 2 Output : RCA Jack 24 Y/C Load Impedance Switch 25 Y/C Input 4 Pin DIN Connector 26 Y/C Output 4 Pin DIN Connector Siemens Building Technologies 19.05.2003 Fire & Security Products... -
Page 12: Connections And Controls
Manual selection of the audio inputs. Under scan Selector Switch (CMCC2120) For the selection of the complete video picture. 16:9 Aspect Selector Switch (CMCC2120) For the selection of 16:9 aspect ratio when required. Siemens Building Technologies 19.05.2003 Fire & Security Products... -
Page 13: Operating Instructions
The monitor will detect the f r equency of the input signal automatically, and the image may be adjusted through the function VR on front control panel. Adjust the user controls to optimise picture quality. Package Contents Item Monitor User`s Manual Mains cable Siemens Building Technologies 19.05.2003 Fire & Security Products... - Page 14 Siemens Building Technologies 19.05.2003 Fire & Security Products...
