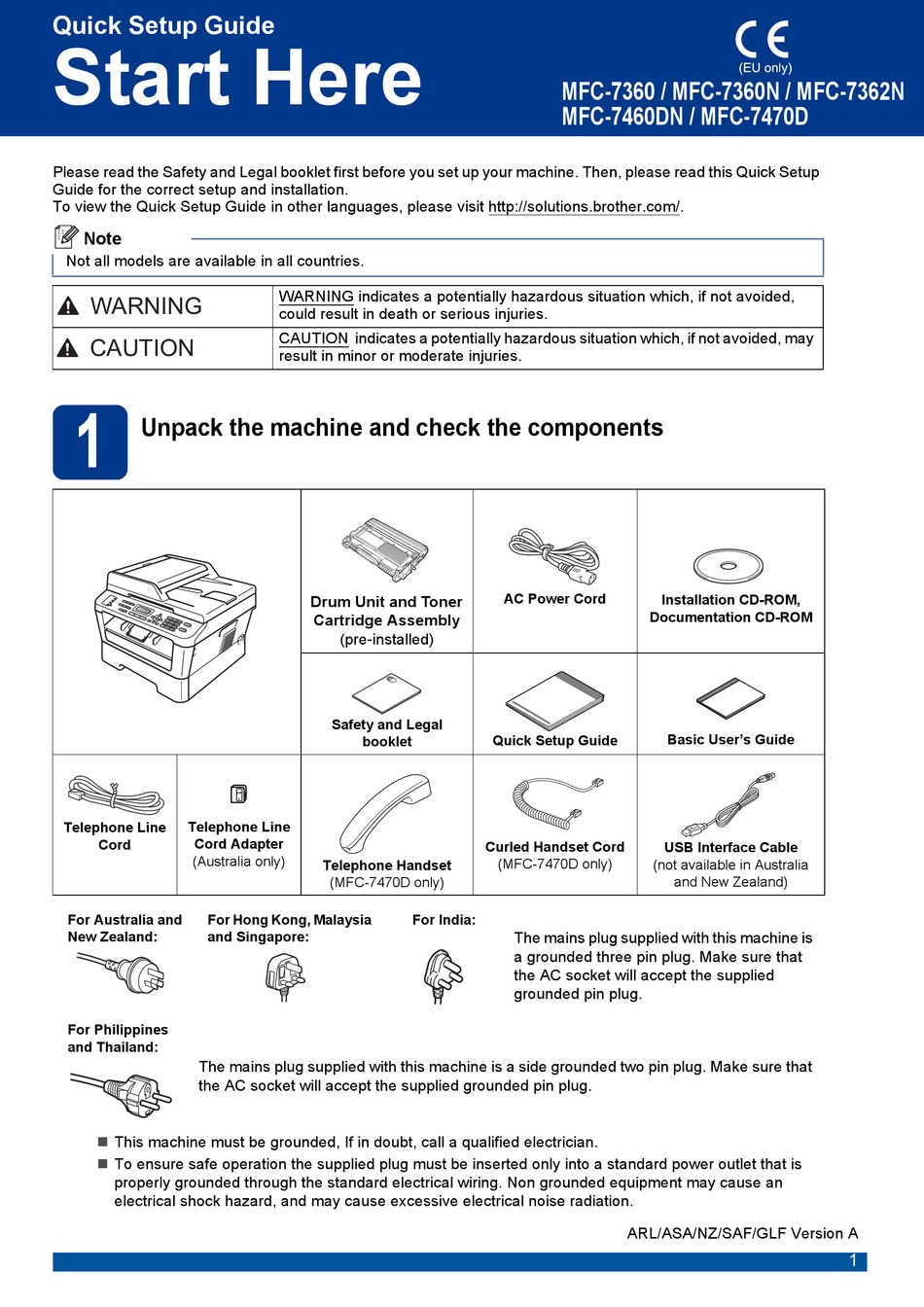

Quick Setup Guide
Start Here
Please read the Safety and Legal booklet first before you set up your machine. Then, please read this Quick Setup
Guide for the correct setup and installation.
To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.
Note
Not all models are available in all countries.
WARNING
CAUTION
1
Unpack the machine and check the components
Telephone Line
Telephone Line
Cord Adapter
Cord
(Australia only)
For Australia and
For Hong Kong, Malaysia
New Zealand:
and Singapore:
For Philippines
and Thailand:
The mains plug supplied with this machine is a side grounded two pin plug. Make sure that
the AC socket will accept the supplied grounded pin plug.
This machine must be grounded, If in doubt, call a qualified electrician.
To ensure safe operation the supplied plug must be inserted only into a standard power outlet that is
properly grounded through the standard electrical wiring. Non grounded equipment may cause an
electrical shock hazard, and may cause excessive electrical noise radiation.
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injuries.
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injuries.
Drum Unit and Toner
Cartridge Assembly
(pre-installed)
Safety and Legal
booklet
Telephone Handset
(MFC-7470D only)
For India:
MFC-7360 / MFC-7360N / MFC-7362N
MFC-7460DN / MFC-7470D
AC Power Cord
Documentation CD-ROM
Quick Setup Guide
Curled Handset Cord
(MFC-7470D only)
(not available in Australia
The mains plug supplied with this machine is
a grounded three pin plug. Make sure that
the AC socket will accept the supplied
grounded pin plug.
ARL/ASA/NZ/SAF/GLF Version A
Installation CD-ROM,
Basic User's Guide
USB Interface Cable
and New Zealand)
1

Advertisement

Table of Contents
loading

Related Manuals for Brother MFC-7360

Summary of Contents for Brother MFC-7360

  • Page 1 Please read the Safety and Legal booklet first before you set up your machine. Then, please read this Quick Setup Guide for the correct setup and installation. To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/. Note Not all models are available in all countries.
  • Page 2 CAUTION CAUTION (For MFC-7360 / MFC-7360N / MFC-7362N / MFC-7460DN) When you move the machine, grasp the side handholds that are under the scanner. DO NOT carry the machine by holding it at the bottom. (For MFC-7470D) When you move the machine, grasp the handset holder and the side handhold that are under...
  • Page 3 Note • Keep a minimum gap around the machine as shown in the illustration. MFC-7360 / MFC-7360N / MFC-7362N / MFC-7460DN 250 mm 90 mm 100 mm 100 mm MFC-7470D 250 mm 90 mm 100 mm 100 mm • The components included in the box may differ depending on your country.
  • Page 4 Remove the packing Lift the elastic band off the drum. material from the machine IMPORTANT DO NOT connect the AC power cord yet. Remove the packing tape from the outside of the machine and the film covering the scanner glass. Open the front cover.

  • Page 5: Install The Handset

    Gently shake it from side to side several times Install the Handset to distribute the toner evenly inside the assembly. (MFC-7470D only) Connect the curled handset cord to the machine and the other end to the handset. Put the drum unit and toner cartridge assembly back in the machine.

  • Page 6: Load Paper In The Paper Tray

    Fan the stack of paper well to avoid paper jams Load paper in the paper and misfeeds. tray Pull the paper tray completely out of the machine. Put paper in the tray and make sure: The paper is below the maximum paper ...

  • Page 7: Connect The Power Cord

    Note Connect the power cord If you are sharing one telephone line with an and telephone line external telephone, connect it as shown below. Before you connect the external telephone, remove the protective cap from the EXT. jack IMPORTANT on the machine. DO NOT connect the interface cable yet.
  • Page 8 Set your country (for Australia/ Do one of the following: If the LCD shows the correct country, press  New Zealand/South Africa/ 1 to go to Step f. Others customer only) Press 2 to go back to Step b to select the ...

  • Page 9: External Tad

    Choose a Receive Mode Set the LCD contrast (if needed) There are four possible receive modes: Fax Only, If you are having difficulty reading the LCD, try Fax/Tel, Manual and External TAD. changing the contrast setting. Do you want to use the telephone features of your Press Menu, 1, 5.

  • Page 10: Set The Date And Time

    Set the date and time Enter personal information (station ID) The machine displays the time, and if you set up the The machine displays the date and time, and if you station ID the date and time will be added to each fax set up the station ID, it will add it to each fax you send.

  • Page 11: Set The Telephone Line Type

    Fax Transmission Report Set the telephone line type (Middle East and Africa only) Your Brother machine is equipped with a If you are connecting the machine to a line that Transmission Verification Report that can be used as features a PABX (PBX) or ISDN to send and receive confirmation that you sent a fax.

  • Page 12: Set Daylight Saving Time

    Note Set Daylight Saving Time PBX and TRANSFER (Oceania and Asia only) The machine is initially set to Normal, which lets the machine connect to a standard PSTN (Public Switched Telephone Network) line. However, You can set the machine to change for Daylight many offices use a central telephone system or Saving Time.

  • Page 13: Choose Your Connection Type

    , go to page 14 Macintosh, go to page 16 For Wired Network ® Windows , go to page 18 Macintosh, go to page 20 Note You can download the latest drivers and utilities for your machine from the Brother Solutions Center at http://solutions.brother.com/.

  • Page 14: Before You Install

    • If there are any programs running, close Note them. If the Brother screen does not appear • The screens may differ depending on your automatically, go to My Computer (Computer), operating system. double-click the CD-ROM icon, and then double-click start.exe.
  • Page 15 Connect the USB cable to the USB connector documents. Please download the latest driver marked with the symbol on your machine by accessing the Brother Solutions Center at and then connect the cable to your computer. http://solutions.brother.com/. Turn the machine on, and follow the on-screen instructions to complete setup.
  • Page 16 For Mac OS X 10.4.10 users, upgrade to Mac OS X 10.4.11 - 10.6.x. (For the latest drivers and information on the Mac OS X you are using, visit http://solutions.brother.com/.) Note (MFC-7470D only) If you want to install the PS...
  • Page 17 Macintosh Download and install Presto! PageManager When Presto! PageManager is installed OCR capability is added to Brother ControlCenter2. You can easily scan, share and organize photos and documents using Presto! PageManager. On the Brother Support screen, click Presto! PageManager and follow the on-screen instructions.

  • Page 18: For Wired Network Interface Users

    For Windows 2000 (SP4 or greater) users, Note when the ScanSoft™ PaperPort™ 11SE If the Brother screen does not appear download screen appears during the installation automatically, go to My Computer (Computer), of MFL-Pro Suite, follow the on-screen double-click the CD-ROM icon, and then instructions.
  • Page 19 11SE on up to 5 PCs on the network. If you want to use more than 5 PCs with ScanSoft™ PaperPort™ 12SE or ScanSoft™ PaperPort™ 11SE installed, please purchase the Brother NL-5 ® If you are not using the Windows...
  • Page 20 For Mac OS X 10.4.10 users, upgrade to Mac OS X 10.4.11 - 10.6.x. (For the latest drivers and information on the Mac OS X you are using, visit http://solutions.brother.com/.) Remove the protective cap from the LAN connector marked with a symbol.
  • Page 21 Network Configuration Report on page 22. When Presto! PageManager is installed OCR • If this screen appears click OK. capability is added to Brother ControlCenter2. You can easily scan, share and organize photos and documents using Presto! PageManager. On the Brother Support screen, click...

  • Page 22: Web Based Management (Web Browser)

    Print the Network Configuration (web browser) Report The Brother print server is equipped with a web server You can print the Network Configuration Report to that allows you to monitor its status or change some confirm the current network settings.

  • Page 23: Other Information

    Other Information Brother CreativeCenter Get inspired. If you're using Windows, double-click the Brother CreativeCenter icon on your desktop to access our FREE web site with many ideas and resources for personal and professional use. Mac users can access Brother CreativeCenter at this web address: http://www.brother.com/creativecenter/...
  • Page 24 Consumables When the time comes to replace consumable items, an error will be indicated by the LCD on the control panel. For more information about the consumables for your machine, visit us at http://solutions.brother.com/ or contact your local Brother reseller.
  • Page 25 The contents of this manual and the specifications of this product are subject to change without notice. Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.
