Panasonic WV-SMR10 Operating Instructions Manual

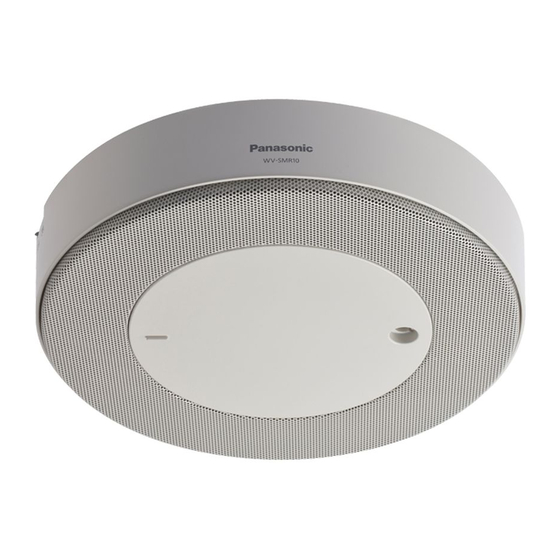

Network microphone
Hide thumbs Also See for WV-SMR10:
Table of Contents

Advertisement

Quick Links

Download this manual

Operating Instructions

Network Microphone
WV-SMR10
Model No.
Before attempting to connect or operate this product, please read these instructions
carefully and save this manual for future use.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic WV-SMR10

Summary of Contents for Panasonic WV-SMR10

  • Page 1: Operating Instructions

    Operating Instructions Network Microphone WV-SMR10 Model No. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
  • Page 2 ® ® Universal Plug and Play is described as UPnP™. In this document, the Panasonic 360° network camera (WV-SF438, WV-SF448, WV-SF448E, and WV-SW458) is described as 360° camera. Plugin software It is necessary to install the plugin software “Network Microphone Plugin” (ActiveX ) to use the functions of the ®...
  • Page 3 Preface Furthermore, a network camera can be used with the microphone by registering it. It is necessary to install separate plugin software to display network camera images. For further information, refer to the operating instructions of the network camera to be used. IMPORTANT •...

  • Page 4: Table Of Contents

    Table of Contents Table of Contents 1 Monitor sound on a PC ................6 Display the “Live” page ....................6 About the “Live” page ......................9 Listen to audio .........................11 2 Action at a malfunction notification .............12 Action at a malfunction notification ................12 3 About the network security ..............13 Equipped security functions ..................13 4 Display the setup menu from a PC ............14...
  • Page 5 Installing Panasonic “IP Setting Software” ..............63 12.3 Installing the manuals ....................64 12.4 Installing the plugin software ..................64 12.5 Configure the network settings of the microphone using the Panasonic “IP Setting Software” .........................65 13 About the displayed system log ............68 14 Troubleshooting ..................70 Operating Instructions...

  • Page 6: Monitor Sound On A Pc

    1.1 Display the “Live” page Start up the web browser. Enter the IP address designated using the Panasonic “IP Setting Software” in the address box of the browser. • Example when entering an IPv4 address: http://URL registered using IPv4 address http://192.168.0.10/...
  • Page 7 1 Monitor sound on a PC When a camera is not registered When a camera is registered When “On” is selected for “User auth.”, the authentication window will be displayed before displaying live images for the user name and password entries. The default user name and password are as follows. User name: admin Password: 12345 IMPORTANT...
  • Page 8 1 Monitor sound on a PC Note • A maximum of 3 users can concurrently access the microphone and receive audio. If 3 users are concurrently accessing the microphone, the access limit message will be displayed for users who subsequently attempt to access the microphone. When “Multicast” is selected for “Transmission type”...

  • Page 9: About The "Live" Page

    • [Off] button: Marker is hidden. Panasonic logo Indicates the position corresponding to the Panasonic logo printed on the microphone. Malfunction notification button This button will blink when a microphone malfunction is detected. When this button is clicked, the blinking will stop.
  • Page 10 1 Monitor sound on a PC Mic input button Turns on/off the audio output. When this button is clicked, the button will turn into the button and audio from the microphone will not be heard on the PC. Audio volume can be adjusted (Low/ Middle/ High) by moving the volume cursor Note •...

  • Page 11: Listen To Audio

    1 Monitor sound on a PC 1.3 Listen to audio To listen to audio from a specified position, display the “Live” page and perform the following procedure. When a desired position is clicked on the screen, the icon is displayed on the sound collection position. Depending on the transmission image of the camera, audio from the specified position may not be heard.

  • Page 12: Action At A Malfunction Notification

    Notify of malfunctions to the designated addresses (Panasonic alarm protocol notification) This function is available only when a Panasonic device, such as the network disk recorder, is connected to the system. When “On” is selected for “Panasonic alarm protocol”, the connected Panasonic device will be notified that the microphone element of the unit is malfunctioning.

  • Page 13: About The Network Security

    3 About the network security 3 About the network security 3.1 Equipped security functions The following security functions are featured in this microphone. Access restrictions by the host authentication and the user authentication It is possible to restrict users from accessing the microphone by setting the host authentication and/or the user authentication to “On”.

  • Page 14: Display The Setup Menu From A Pc

    4 Display the setup menu from a PC 4 Display the setup menu from a PC The settings of the microphone can be configured on the setup menu. IMPORTANT • The setup menu is only operable by users whose access level is “1. Administrator”. Refer to page 28 for information on how to configure the access level.

  • Page 15: How To Operate The Setup Menu

    4 Display the setup menu from a PC 4.2 How to operate the setup menu Menu buttons Setup page Click the desired button in the frame on the left of the window to display the respective setup menu. When there are tabs at the top of the “Setup” page displayed in the frame on the right of the window, click the desired tab to display and configure the setting items relating to the name of the tab.

  • Page 16: About The Setup Menu Window

    4 Display the setup menu from a PC 4.3 About the setup menu window [Setup] button Displays the “Setup” page. [Live] button Displays the “Live” page. [Basic] button Displays the “Basic” page. The basic settings such as time and date and microphone title can be configured on the “Basic”...
  • Page 17 4 Display the setup menu from a PC [Maintenance] button Displays the “Maintenance” page. System log check, firmware upgrade, status check and initialization of the setup menu can be carried out on the “Maintenance” page. (®page 57) Microphone title The title of the microphone whose settings are currently being configured will be displayed. Setup page Pages of each setup menu will be displayed.

  • Page 18: Configure The Basic Settings Of The Microphone [Basic]

    5 Configure the basic settings of the microphone [Basic] 5 Configure the basic settings of the microphone [Basic] The basic settings such as microphone title, time and date, and network settings for the Internet can be configured on the “Basic” page. The “Basic” page has the [Basic] tab and the [Internet] tab. 5.1 Configure the basic settings [Basic] Click the [Basic] tab on the “Basic”...
  • Page 19 5 Configure the basic settings of the microphone [Basic] IMPORTANT • Use an NTP server when the more accurate time & date setting is required for the system operation. (®page 35) [Time display format] Select the time display format from “24h” or “12h”. Enter the current hour reflecting this setting when entering the current time and date for “Date/time”.

  • Page 20: Configure The Internet Settings [Internet]

    5 Configure the basic settings of the microphone [Basic] [Alarm status update mode] Select an interval of the microphone status notification from the following. When the status of the microphone changes, the malfunction notification button will be displayed to notify of the microphone status.
  • Page 21 5 Configure the basic settings of the microphone [Basic] [UPnP (Auto port forwarding)] Select “On” or “Off” to determine whether or not to use the port forwarding function of the router. To use the auto port forwarding function, the router in use must support UPnP and the UPnP must be enabled. •...

  • Page 22: Configure The Settings Relating To Audio [Audio]

    6 Configure the settings relating to audio [Audio] 6 Configure the settings relating to audio [Audio] The settings relating to microphone sensitivity and audio transmission type can be configured on the “Audio setup” page. (®page 14, page 15) [Microphone sensitivity] Configure the sensitivity of the microphone according to the installation environment.
  • Page 23 6 Configure the settings relating to audio [Audio] • Unicast port (MANUAL): Up to 3 users can access a single microphone concurrently. It is necessary to select “Unicast port” manually to transmit audio from the microphone. It is possible to fix the port number of the router used for audio transmission via the Internet by setting “Unicast port (MANUAL)”...

  • Page 24: Register A Camera For The "Live" Page [Camera Reg.]

    Enter the connection port number of the camera to be registered. [Set] button Register the setting details on this page. [Delete] button Delete the currently displayed registration. Note • The unit supports the following Panasonic 360° camera images. – Fisheye images – Panorama images – Quad PTZ images –...
  • Page 25 7 Register a camera for the “Live” page [Camera reg.] – The registered 360° camera is updated to the latest firmware (®page 10) Refer to our website (http://security.panasonic.com/pss/security/support/info.html) for further information about the firmware of supported 360° cameras. • The image capture size when “JPEG” is selected for “Camera image format” is as follows.

  • Page 26: Configure The Malfunction Notification Settings [Failure Notif.]

    “Failure Notif.” page. (®page 14, page 15) Panasonic alarm protocol notification [Panasonic alarm protocol] Select “On” or “Off” to determine whether or not to provide notification by Panasonic alarm protocol when an error occurs in the microphone element. •...
  • Page 27 Destination of notification [Address 1] - [Address 4] Enter the destination IP address or host name of the Panasonic alarm protocol. Up to 4 destination server addresses can be registered. To delete the registered destination server address, click the [Delete] button respective to the desired destination server address.

  • Page 28: Configure The Settings Relating To The Authentication [User Mng.]

    9 Configure the settings relating to the authentication [User mng.] 9 Configure the settings relating to the authentication [User mng.] The settings relating to authentications and restrictions for users and PCs accessing the microphone with a PC can be configured on the “User mng.” page. The “User mng.”...

  • Page 29: Configure The Settings Relating To The Host Authentication [Host Auth.]

    9 Configure the settings relating to the authentication [User mng.] Note • When the [Authentication] setting has been changed, close the web browser, and then access the microphone again. • For other devices such as network disk recorders, unless otherwise stated, Digest authentication is not supported.

  • Page 30: Configure The Settings Relating To The Priority Stream [System]

    9 Configure the settings relating to the authentication [User mng.] The restriction settings of PCs (IP address) from accessing the microphone can be configured on this page. [Host auth.] Select “On” or “Off” to determine whether or not to authenticate the host. •...
  • Page 31 9 Configure the settings relating to the authentication [User mng.] Priority stream destinations (IP addresses) can be configured here. Priority stream [Activation] Select “On” or “Off” to determine whether or not to use the priority stream. • Default: Off [Destination IP address(1)] Enter the first destination IP address.

  • Page 32: Configuring The Network Settings [Network]

    10 Configuring the network settings [Network] 10 Configuring the network settings [Network] The network settings can be configured on the “Network” page. The “Network” page has the [Network] tab, and the [Advanced] tab. 10.1 Configure the network settings [Network] Click the [Network] tab on the “Network” page. (®page 14, page 15) The following information is required to configure the network settings.
  • Page 33 10 Configuring the network settings [Network] • Static: The IP address is configured by entering manually on “IP address(IPv4)”. • DHCP: The IP address is configured using the DHCP function. • Auto(AutoIP): The IP address is configured using the DHCP function. When the DHCP server is not found, the IP address is automatically configured.
  • Page 34 • Default: Auto [Easy IP Setup accommodate period] Select “20min” or “Unlimited” to determine how long the network setting operation using the Panasonic “IP Setting Software” can be allowed. • 20min: The network setting operation using the Panasonic “IP Setting Software” are allowed for 20 minutes since the microphone starts up.

  • Page 35: Configure Advanced Network Settings [Advanced]

    Default: 20min Note • The list display of camera related devices using the Panasonic “IP Setting Software” is allowed without time limitation, and live images of the unit can be opened using the [Open the device window] button. • Refer to the network administrator for the addresses of each server.
  • Page 36 10 Configuring the network settings [Network] IMPORTANT • Use an NTP server when the more accurate time & date setting is required for the system operation. [Time adjustment] Select the time adjustment method from the following. Time adjusted by the selected method will be used as the standard time of the microphone.

  • Page 37: Configure The Upnp Settings

    10 Configuring the network settings [Network] • Available port number: 1 - 65535 • Default: 123 The following port numbers are unavailable since they are already in use. 20, 21, 23, 25, 42, 53, 67, 68, 69, 80, 110, 161, 162, 443, 995, 10669, 10670 [Time adjustment interval] Select an interval (1 - 24 hours: in 1 hour intervals) of synchronization with the NTP server.

  • Page 38: Configure The Https Settings

    10 Configuring the network settings [Network] For Windows Vista [Start] ® [Control Panel] ® [Network and Internet] ® [Network and Sharing Center] ® expand the section of [Network discovery] of [Sharing and Discovery] ® select [Turn on network discovery] ® click [Apply] ®...

  • Page 39: Configure The Settings Relating To Ddns

    10 Configuring the network settings [Network] [CA Certificate - Generate Certificate Signing Request] When using the security certificate issued by CA (Certificate Authority) as the security certificate used for the HTTPS protocol, the CSR (Certificate Signing Request) will be generated. To generate the CSR, click the [Execute] button to display the “CA Certificate - Generate Certificate Signing Request”...

  • Page 40: Configure The Settings Relating To Snmp

    10 Configuring the network settings [Network] Refer to page 55 for information on how to configure the settings relating to DDNS. [Service] Select the DDNS service to determine whether or not to use DDNS. • Off: Does not use the DDNS function. •...

  • Page 41: Configure The Diffserv Settings

    10 Configuring the network settings [Network] • Available number of characters: 0 - 32 characters • Default: None (blank) [Location] Enter the name of the location where the microphone is installed. • Available number of characters: 0 - 32 characters •...

  • Page 42: How To Configure Https Settings

    10 Configuring the network settings [Network] 10.3 How to configure HTTPS settings The settings relating to the HTTPS protocol that can enhance the network security by encrypting the access to microphones on this page. The HTTPS settings will be configured in the following procedure. Generation of the CRT key (SSL encryption key) When using the self-signed certificate When using the server certificate...

  • Page 43: Generation Of The Crt Key (Ssl Encryption Key)

    10 Configuring the network settings [Network] Note • To use the server certificate, you need to apply for the approval and the issue of the server certificate by CA. • Either the self-signed certificate or the server certificate will be used. If both of them are installed, the server certificate will take priority over the self-signed certificate.

  • Page 44: Generation Of The Self-Signed Certificate (Security Certificate)

    10 Configuring the network settings [Network] key. When the [Apply] button is clicked on the “Previous CRT key” dialog box, it is possible to replace the current CRT key with the previous one. 10.3.2 Generation of the self-signed certificate (security certificate) IMPORTANT •...
  • Page 45 10 Configuring the network settings [Network] Item Description Available number of characters [Organizational Enter the unit name of the organization. 64 characters Unit] (Omission is OK.) [CRT key] Displays the key size and generation time & date of the current key. Note •...

  • Page 46: Generation Of Csr (Certificate Signing Request)

    10 Configuring the network settings [Network] • When the [Delete] button is clicked, the generated self-signed certificate (security certificate) will be deleted. • When “HTTPS” is selected for “Connection”, it is impossible to delete the self-signed certificate. 10.3.3 Generation of CSR (Certificate Signing Request) IMPORTANT •...

  • Page 47: Installation Of The Server Certificate

    10 Configuring the network settings [Network] Item Description Available number of characters [CRT key] Displays the key size and generation time & date of the current key. Note • To use the server certificate, follow the requests from the CA about the information to be entered. •...

  • Page 48: Configuration Of The Connection Protocol

    10 Configuring the network settings [Network] • When the [Confirm] button is clicked, the registered information of the installed server certificate will be displayed in the “CA Certificate - Confirm” dialog box. (Only “Organizational Unit” will be displayed with an asterisk (*).) •...

  • Page 49: Access The Microphone Using The Https Protocol

    10 Configuring the network settings [Network] • When using the server certificate: In advance, install the root certificate and intermediate certificate on the browser in use. Follow the instructions of CA for information on how to obtain and install these certificates. 10.4 Access the microphone using the HTTPS protocol Start up the web browser.
  • Page 50 10 Configuring the network settings [Network] • When the security certificate is properly installed, a key icon is displayed in the address box of the web browser that has accessed the microphone. • When using Internet Explorer 10 or Internet Explorer 11, note that some of the displayed windows may differ from the following descriptions.
  • Page 51 10 Configuring the network settings [Network] Click “Install Certificate...”. Note • If [Install Certificate...] is not displayed, close Internet Explorer once, and select [Run as Administrator] to launch Internet Explorer again. Click [Start] ® [All Programs] ® right click [Internet Explorer] ®...
  • Page 52 10 Configuring the network settings [Network] Click “Next” displayed on “Certificate Import Wizard”. Note • When using Internet Explorer 10 or Internet Explorer 11, select “Store Location”, and then click “Next”. Operating Instructions...
  • Page 53 10 Configuring the network settings [Network] Select “Place all certificates in the following store”, and click “Browse...”. Select “Trusted Root Certificate Authorities”, and click “OK”. Operating Instructions...
  • Page 54 10 Configuring the network settings [Network] Click “Next”. Click “Finish”. Operating Instructions...

  • Page 55: How To Configure The Settings Relating To Ddns

    10 Configuring the network settings [Network] Click “Yes”. → When the import is successfully completed, the screen “The import was successful.” will be displayed. Click “OK”. → When the browser is restarted after the certificate is imported, “Certificate Error” will not be displayed. 10.5 How to configure the settings relating to DDNS By using the DDNS function, the microphone can be accessed at all times through the designated domain name, even in an environment where the IP address changes dynamically.

  • Page 56: When Using "Dynamic Dns Update

    10 Configuring the network settings [Network] 10.5.1 When using “Dynamic DNS Update” [Host name] Enter the host name to be used for the Dynamic DNS Update service. • Available number of characters: 3 - 250 characters Enter in the form of “(host name). (domain name)”. •...

  • Page 57: Maintenance Of The Microphone [Maintenance]

    11 Maintenance of the microphone [Maintenance] 11 Maintenance of the microphone [Maintenance] System log check, firmware upgrade, status check and initialization of the setup menu can be performed on this page. The “Maintenance” page has the [System log] tab, the [Upgrade] tab, [Status] tab, the [Default reset] tab, and the [Data] tab.
  • Page 58 11 Maintenance of the microphone [Maintenance] The current firmware can be checked and upgraded to the latest version on this page. Contact the dealer for further information about the firmware upgrade. [Model no.], [MAC address], [Serial no.], [Firmware version], [IP address(IPv6)], [Time past from the date of manufacture] Information of each item will be displayed.

  • Page 59: Check The Status [Status]

    Router global address: The global address of the router will be displayed. [Self check] The self check result of the hardware will be displayed. Note • Refer to our website (http://security.panasonic.com/pss/security/support/info.html) for further information about the contents of the displayed statuses. Operating Instructions...

  • Page 60: Reset The Settings/Reboot The Microphone [Default Reset]

    11 Maintenance of the microphone [Maintenance] 11.4 Reset the settings/Reboot the microphone [Default reset] Click the [Default reset] tab of the “Maintenance” page. (®page 14, page 15) The settings and reboot of the microphone can be performed on this page. [Reset to the default (Except the network settings)] Click the [Execute] button to reset the settings to the default.
  • Page 61 11 Maintenance of the microphone [Maintenance] The setting related to settings data and backing up or restoring logs can be configured in this section. Backup • [Setup data] Click the [Execute] button to backup the setup data of the microphone to a PC. •...

  • Page 62: Using The Cd-Rom

    Using the supplied CD-ROM, the following actions can be performed. The Panasonic “IP Setting Software” can be installed on the PC. (®page 63) Settings related to the microphone’s network can be set from the Panasonic “IP Setting Software”. (®page 65) The manuals can be installed on the PC.

  • Page 63: Installing Panasonic "Ip Setting Software

    12 Using the CD-ROM 12.2 Installing Panasonic “IP Setting Software” On the CD launcher window, click the [Install] button next to [IP Setting Software] to display the Panasonic “IP Setting Software” installation window. Confirm the following settings before starting the installation.

  • Page 64: Installing The Manuals

    To uninstall the manuals, delete the shortcut icon from where you specified it to be installed (the default is on the desktop) during installation and the [Manual] folder from the folder (the default is C: \Panasonic) you specified during installation. 12.4 Installing the plugin software The plugin software “Network Microphone Plugin”...

  • Page 65: Configure The Network Settings Of The Microphone Using The Panasonic "Ip Setting Software

    However, settings can be changed after 20 minutes for microphones in the initial set mode. To start the Panasonic “IP Setting Software”, click the [Run] button next to [IP Setting Software] from the CD launcher menu window, or double-click on the shortcut icon created after installing the software on the •...
  • Page 66 12 Using the CD-ROM • It is possible to change the “List of camera-related device” display between IPv4 addresses and IPv6 addresses in accordance with the protocol in use. • The information displayed can be sorted by clicking the title of each displayed item. •...
  • Page 67 12 Using the CD-ROM IMPORTANT • It may take for around 2 minutes to complete uploading the settings to the microphone after clicking the [Save] button. The settings may be invalidated when the LAN cable is disconnected before completing the upload. In this case, perform the settings again. •...

  • Page 68: About The Displayed System Log

    13 About the displayed system log 13 About the displayed system log Error indications relating to Dynamic DNS Update Category Indication Description DDNS server error Failed to resolve the DDNS server • The designated IP address of the DNS address from DNS. may be incorrect.
  • Page 69 “On” is selected for “Host auth.”. Error indications relating to malfunction notifications Category Indication Description Panasonic alarm Failed to find destination of • The IP address of the destination of protocol notification notification. notification may be incorrect. Check if the...

  • Page 70: Troubleshooting

    If the network settings (IP address, subnet mask, and default gateway) are incorrect, reboot the microphone and change the network settings by using the Panasonic “IP Setting Software” within 20 minutes after the restart. – In networks that do not have a DHCP server, the IP address of the microphone will be configured to “192.168.0.10”...
  • Page 71 14 Troubleshooting Symptom Cause/solution Reference pages • Is “554” selected for the HTTP port number? For the HTTP port number, select a port number other than the following port numbers used by the microphone. The number used by the microphone: 20, 21, 23, 25, 42, 53, 67, 68, 69, 110, 123, 161, 162, 443, 554, 995, 10669, 10670, 59000 - 61000 •...
  • Page 72 14 Troubleshooting Symptom Cause/solution Reference pages • Are you accessing the microphone using the local address (the IP address used in a local network)? When accessing the microphone, use the global address (or the URL registered in the DDNS service) and the port number of the microphone as the IP address to be used in the Internet.
  • Page 73 14 Troubleshooting Symptom Cause/solution Reference pages Cannot hear audio. • Is the speaker connected correctly and firmly? Confirm that it is connected correctly and firmly. • Is the speaker on the Windows desktop muted? • Is the mute on the “Live” page turned off? •...
  • Page 74 For information about the firmware of supported 360° the image of the 360° cameras, refer to our website below. camera. http://security.panasonic.com/pss/security/support/info.html • Follow the Installation Guide, and attach the 360° camera and the unit correctly. Old logs are displayed.
  • Page 75 14 Troubleshooting Symptom Cause/solution Reference pages No image is displayed on • Press the [F5] key on the keyboard of the PC or click the “Live” page. the [Live] button. • Is the plugin software of the network camera installed? Refer to the operating instructions of the network camera in use.
  • Page 76 Internet Explorer 11) The following message is • Select [Allow]. displayed on the information bar. “This webpage wants to run the following add-on: `WebVideo Module' from `Panasonic System Networks Co.,Ltd.`.” (Internet Explorer 9, Internet Explorer 10, or Internet Explorer 11) Operating Instructions...
  • Page 77 “This site might require the Click the [Install] button on the displayed following ActiveX control “Security Warning” window. 'nwmpsetup.exe' from 'Panasonic System Networks Co.,Ltd.'. Click here to install...” (Internet Explorer 7 or Internet Explorer 8) The following message is •...
  • Page 78 Notes Operating Instructions...
  • Page 79 Notes Operating Instructions...
  • Page 80 For U.S. and Canada: Panasonic System Communications Company of North America, Unit of Panasonic Corporation of North America www.panasonic.com/business/ For customer support, call 1.800.528.6747 Two Riverfront Plaza, Newark, NJ 07102-5490 Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905)624-5010 www.panasonic.ca...
