Haier HMS1000TVE Service Manual

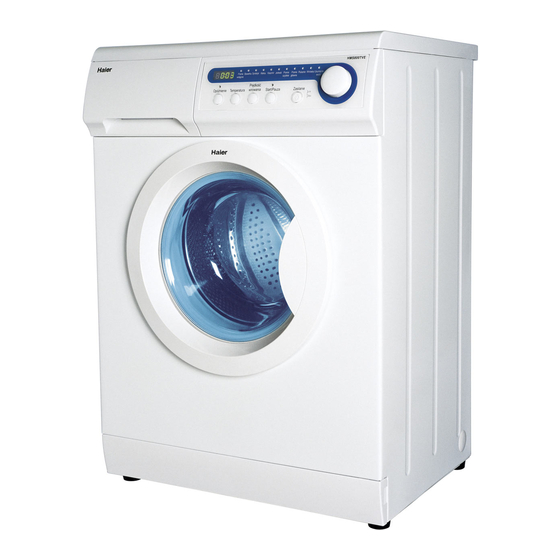

Front load washing machine
Hide thumbs Also See for HMS1000TVE:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Operating Manual
FRONT LOAD WASHING MACHINE
Features
300mm diameter porthole, door may be open at a 180 degrees.
Class-A energy-saving; Homocentric tubs with higher energy efficiency
Multi-gear speed controller
Unique gasket design featuring no residual water hidden inside
Delay time adjustive
Large wash load capacity 5kg,Europe standard ABC
Serial Number: S M - H M S 1 0 0 0 T V 0 1
Front Load Washing Machine

Service Manual

Version: 1.00
Suited model:
HMS1000TVE
Edition: 2006-6
Model:
HMS1000TVE

Advertisement

Table of Contents
loading

Related Manuals for Haier HMS1000TVE

Summary of Contents for Haier HMS1000TVE

  • Page 1: Service Manual

    Model: Front Load Washing Machine HMS1000TVE FRONT LOAD WASHING MACHINE Service Manual Suited model: HMS1000TVE Features 300mm diameter porthole, door may be open at a 180 degrees. Class-A energy-saving; Homocentric tubs with higher energy efficiency Multi-gear speed controller Unique gasket design featuring no residual water hidden inside...

  • Page 2: Table Of Contents

    Front Load Washing Model:HMS1000TVE 1. Contents----------------------------------------------------------------------------------------1 2. Product code illumination and series introduction-----------------------------------2 3. Features ---------------------------------------------------------------------------------------3 4. Specification ----------------------------------------------------------------------------------4 5. Safety --------------------- ---------------------------------------------------------------------6 6. Installation ------------------------------------------------------------------------------------9 7. Net dimension -------------------------------------------------------------------------------11 8. Names of the parts-------------------------------------------------------------------------12 9. Operational functions----------------------------------------------------------------------13 10. Program description table -------------------------------------------------------------15 11.

  • Page 3: Product Code Illumination And Series Introduction

    Front Load Washing Machine Model:HMS1000TVE PRODUCT CODE ILLUMINATION AND SERIES INTRODUCTION Model code rule description Model identification HMS 1000 T V E C D E A Serial code B Max spin speed C Temprature adjustive Spin speed adjustive Computer control...

  • Page 4: Features

    Model:HMS1000TVE Front Load Washing Machine FEATURES 300mm diameter porthole, door may be open at a 180 degrees. Facilitate view of wash process, facilit ate unloading and easy to use with large porthole. Multi-gear speed controller According to different costuming you can slect corresponding spin speed from 400 to 1000 rpm.

  • Page 5: Specification

    Front Load Washing Machine Model:HMS1000TVE SPECIFICATION Proposal 2006 New Sensor Front load washing machines HMS1000TVE Brand position center upper frame of door / chromed sticker Model number serigraphy right top corner control panel On white: silver / On silver : black or dark grey...

  • Page 6: Safety

    Front Load Washing Model:HMS1000TVE Delay timer (from - to) 0.5-24 Self cleaning suds pump Water inlet hose Water drain hose Adjustable feet n° Safety systems Auto door lock Motor overheating protection No heating without water Auto water cool-down (before drain 80°C boiled water)

  • Page 7: Matters Needing Attention

    Model:HMS1000TVE Front Load Washing Machine Matters Needing Attention 2. Hold the plug and not the electric cable .A separate earthed socket is required for the power supply. The washing machine must be when unplugging the washing machine. positioned so that the plug is accessible.
  • Page 8 Model:HMS1000TVE Front Load Washing Matters Needing Attention 9.The carpet must not obstruct the ventilation .The washing machine should not be install- openings in the base of the washing machine. ed outdoors or in a damp place. In the event of water leakage or splashes allow the machine to dry naturally.
  • Page 9 Model:HMS1000TVE Front Load Washing Matters Needing Attention 3. Do not place heavy, heating source or wet 4. Do not hot wash foam rubber or sponge-like materials. articles on the top of the washing machine. 5. Before washing, do up zippers, buttons and 6.

  • Page 10: Installation

    Model:HMS1000TVE Front Load Washing Machine Installation Dismantle the packing bolts as shown in Fig. 2. The packing bolts are designed for clamping anti-vibration components inside of the washing machine during the transportation process. Beforeuse: 1. Remove the back plate; 2. Remove the three packing bolts on the back plate and take out the rubber hose;...

  • Page 11: Joining The Inlet Hose To The Washing Machine

    Model:HMS1000TVE Front Load Washing Installation Joining the Inlet Hose to the Washing Machine 1. Connect the nut on the inlet hose to the connector on the water valve. Connect of water inlet valve The height of the drainage outlet must be 80-100cm. To prevent the drainage hose from dropping off, fix it to the drainage hose clip at the back of the washing machine.

  • Page 12: Net Dimension

    Model:HMS1000TVE Front Load Washing Net Dimension height: 850mm / width: 595mm / depth: 520mm Page 11...

  • Page 13: Names Of The Parts

    Model:HMS1000TVE Front Load Washing Name of the parts Detergent dispenser Top Cover Program selector Button Door handle Porthole Bottom plaque Page 12...

  • Page 14: Operational Functions

    Front Load Washing Model:HMS1000TVE Opertional Functions Pre-wash Cotton Synthetic Wool Cashmere Silk Quick Wash Rinse Spin Drain Delay Power Temperature Spin Start/Pause Power Switch Press this button to switch on the washing machine. Press it again to switch it off.
  • Page 15 Model:HMS1000TVE Front Load Washing Machine Functions F: Delay Button Touch this button lightly, the washing machine will start operation after a period of time and the corresponding indicator will go on. The range is 0.5-24 hours; each touch of this button increases a half hour.

  • Page 16: Program Description Table

    Model:HMS1000TVE Front Load Washing Machine Page 15...

  • Page 17: Error Display And Troubleshooting

    Model:HMS1000TVE Front Load Washing Machine HMS1000TVE Error Display and Troubleshooting Error message:Door is not properly shut 20s after program is started. Troubleshooting: Pushing the door to Check Whether Door Shut the door properly. is properly shut or not 220-230v Cut off the power and then turn on again.
  • Page 18 Model:HMS1000TVE Front Load Washing Machine Error message:Temperature sensor is not properly connected or damaged (display at the end of a program). Troubleshooting: Cut off power and measure the resistance NTC exist open circuit .Replace it of temperature sensor by multimeter, is...

  • Page 19: Troubleshooting

    Model:HMS1000TVE Front Load Washing Machine Error message:The required water level is not reached within 8 min Troubleshooting: Check if water is leaking from washer Readjust or replace the broken parts bottom. inlet pipe. drain pipe or other pipe connection Check if tap is closed or water pressure is too Open the tap or wait for normal water pressure to use low (usual between0.3 -1 MPa)
  • Page 20 Model:HMS1000TVE Front Load Washing Machine Error message. Motor overheat protection or damaged. Troubleshooting: Cut off power and check if motor wires Reconnect well are connected well Put the motor in normal temperature about Measure if resistance of motor winding by ten minutes, and then test again.
  • Page 21 Model:HMS1000TVE Machine Front Load Washing Error message. Water level exceeds protective value. Troubleshooting: Clean water switch hose and air Check if water switch hose and air collector collector are jammed Pull out water switch inserts and turn on power, then set wash mode. While water...
  • Page 22 Front Load Washing Machine Model:HMS1000TVE Examination & HMS1000TVE Troubleshooting Failure:Display nothing Troubleshooting: Repair power supply Measure the power supply ,is it exists 220V-230V AC voltage Press the power switch Is power switch on? Press power switch and check the voltage...
  • Page 23 Front Load Washing Machine Model:HMS1000TVE Failure:no draining Troubleshooting: Adjust the height of drain pipe to Is the height of drain pipe too high? 80-100 cm Turn filter anticlockwise open and check if Clean and tighten filter clockwise. filter is jammed...

  • Page 24: Failure:water Leaking Troubleshooting

    Front Load Washing Machine Model:HMS1000TVE Failure:water leaking Troubleshooting: Check if water is leaking from the inlet pipe Readjust it. or the tap Replace drain pipe Is drain pipe broken Remove clothes Check if there is foreign material nipped between cushion of sight window and...

  • Page 25: Wiring Circuit

    Front Load Washing Machine Model:HMS1000TVE Page 24...

  • Page 26: Exploded View And List Of Parts

    Model:HMS1000TVE Front Load Washing Machine Sincere Forever Haier Industrial Park, No.1, Haier Road 266101, Qingdao, China http://www.haier.com Page 30...
