Miele KM 3010 Operating And Installation Instructions

Miele km 3010 gas cooktop operating and installation instructions
Hide thumbs Also See for KM 3010:
Table of Contents

Advertisement

Quick Links

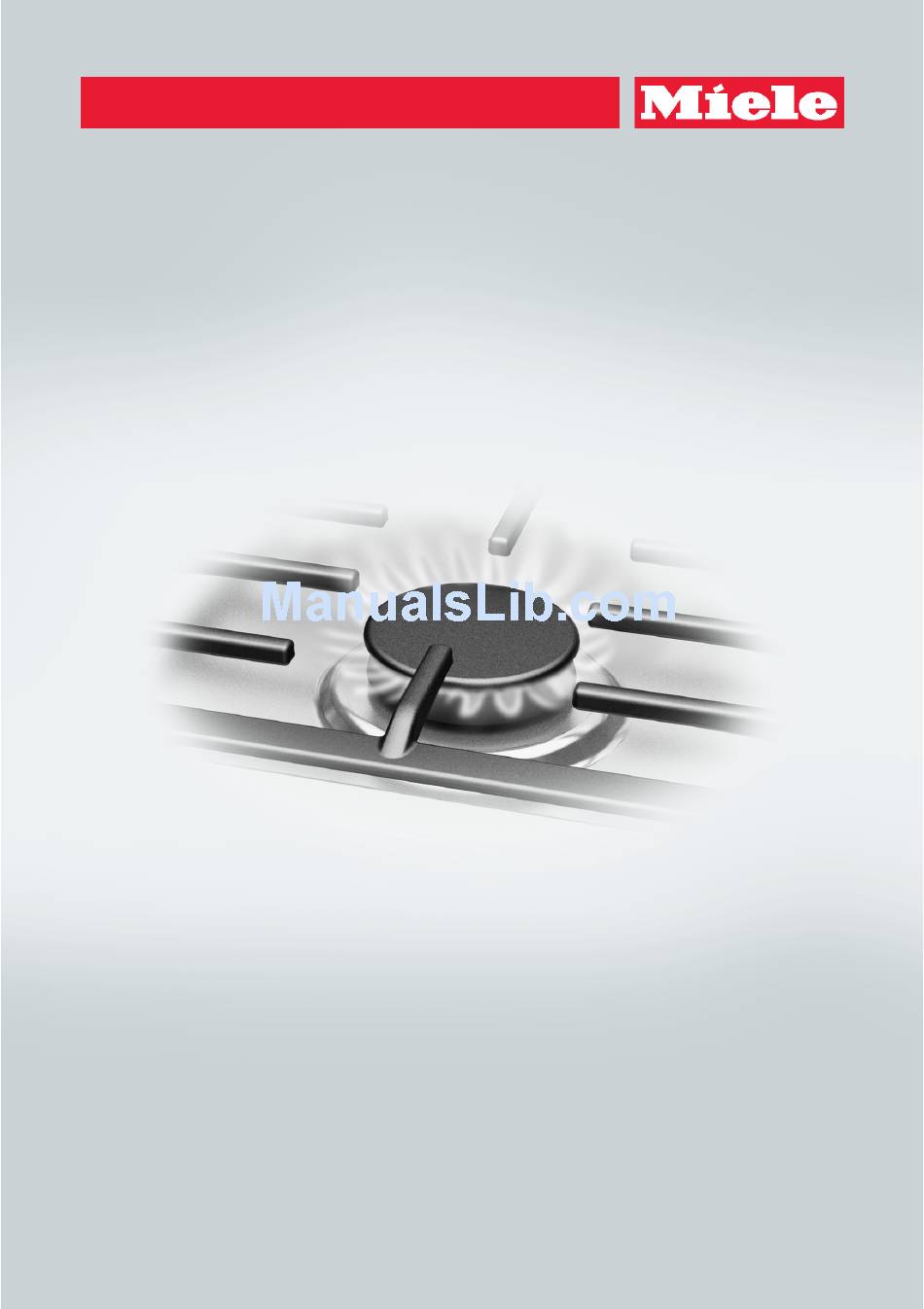

Operating and Installation Instructions
Gas Cooktop
To prevent accidents and machine damage, read the Operating Manual
before installation or use.
en - US, CA
M.-Nr. 09 317 500

Advertisement

Table of Contents
loading

Related Manuals for Miele KM 3010

Summary of Contents for Miele KM 3010

  • Page 1 Operating and Installation Instructions Gas Cooktop To prevent accidents and machine damage, read the Operating Manual before installation or use. en - US, CA M.-Nr. 09 317 500...
  • Page 2 WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. – Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

  • Page 3: Table Of Contents

    Contents IMPORTANT SAFETY INSTRUCTIONS....... . . 4 Guide to the appliance ..........8 Before the first use .

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Correct usage WARNING - When using your gas This appliance is intended for use in appliance follow basic domestic households and in similar precautions, including the working and residential environments. following: Only use this gas cooktop for residential purposes such as cooking This gas cooktop conforms to all and keeping food warm.
  • Page 5 Children should not be left Installation, repair and maintenance unattended in an area where the work should be performed by a Miele appliance is in use. Never allow authorized service technician in children to sit or stand on any part of accordance with local building and the appliance.
  • Page 6 Contact Miele Technical Ser- While the appliance is under vice. warranty repairs should only be performed by a Miele authorized ser- Safety vice technician. Otherwise the warranty is void. The appliance is hot during use and...
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS Do not flambé under an exhaust Make sure all components of the hood. Flames could be drawn up into gas burner are assembled correctly the hood by the suction or the grease before using the cooktop. filters may ignite. Do not use pans that extend past Take care that drafts do not blow the burner grate.
  • Page 8 IMPORTANT SAFETY INSTRUCTIONS When using a portable appliance near the cooktop, make sure that its power cord does not come in contact with the cooktop. If there is a drawer directly underneath the appliance without a wooden base in between, ensure that no aerosols, combustible liquids or other easily flammable materials are kept in it.

  • Page 9: Guide To The Appliance

    Guide to the appliance Cooktop a Fast burner Control knobs: b Auxiliary burner g Front right burner cd Normal burners h Right rear burner e Grates i Left rear burner f Burner symbols j Front left burner...
  • Page 10 Guide to the appliance Burners Fast, Auxiliary and Normal burners a Burner cap b Burner head c Burner base d Ignition safety control (Thermocouple) e Ignitor...

  • Page 11: Before The First Use

    Before the first use Adhere the data plate sticker, which is included with the appliance documents, on the appropriate place marked in "Technical Service". Cleaning the cooktop ^ Remove any protective films. ^ Wash the removable parts of the gas burner in a mild solution of warm water and liquid dish soap.
  • Page 12 Before the first use Metal components have a protective coating which may give off a slight odor the first time your new appliance is heated. The harmless odor will dissipate after a short time and does not indicate a faulty connection or appliance defect.

  • Page 13: Operation

    Operation Control knobs The control knob is used to turn on the burner and to regulate the strength of the flame. Fast, Auxiliary and Normal burners ß The gas supply is turned off & Highest flame / Lowest flame Turning on ^ To light the burner, press the corresponding burner control knob and turn it counterclockwise to the largest flame symbol.

  • Page 14: Turning On In The Event Of A Power Failure

    Operation Turning on in the event of a power failure If there is a power loss, you can ignite the flame manually, e.g. with a match. ^ Press the burner control knob and turn it counterclockwise to the largest flame symbol. ^ Keep the knob pressed and ignite the escaping gas-air mixture with a match.

  • Page 15: Cookware

    Cookware – Select the cookware to match the burner: large diameter = large burner small diameter = small burner. – Using oversized pans may cause the flames to spread out and damage the surrounding countertop or other countertop appliances. The proper pan size will also improve efficiency.

  • Page 16: Energy Saving Tips

    Energy saving tips – If possible, cook in covered pots or pans. This prevents unnecessary heat loss. – Cook with less water. – The cooking time can be significantly reduced by using a pressure cooker. – After cooking or frying, promptly set to a lower flame. –...

  • Page 17: Safety Feature

    Safety feature Ignition safety control The appliance is equipped with an Ignition safety control. This control cuts the gas supply if the flame goes out and reignition is unsuccessful, e.g. from a boilover or a draft. Any further escape of gas is prevented. ^ To reignite the burner knob clockwise to "ß"...

  • Page 18: Cleaning And Care

    Cleaning and care Never use a steam cleaner to clean this cooktop. Pressurized steam could cause permanent damage to the surface and to components. Do not use any sharp or pointed objects which could damage the seal between the frame and the countertop. Keep the ignitor in the burner dry.

  • Page 19: Cleaning Instructions

    This results in an invisible Clean with the Miele ceramic surface and stainless film which causes steel cleaner (see the Miele online store) and with discoloration of the glass kitchen paper or a clean cloth. ceramic. This discoloration Do not apply cleaner to a hot cooktop as this can is permanent.

  • Page 20: Assembling The Burners

    Cleaning and care Assembling the burners Auxiliary, normal and fast burners ^ Place the burner head b on the burner base c so that the thermocouple d and the ignitor e feed through the holes of the burner head. The burner head must engage properly.
  • Page 21 Cleaning and care Wok burner ^ Place the burner head c on the burner base d so that the thermocouple e and the igintor f feed through the hole of the burner head. The burner head must engage properly. ^ Place on the burner caps ab. Make sure the burner parts are assembled in the right order.

  • Page 22: Frequently Asked Questions

    Frequently asked questions Repairs should only be carried out by an authorized technician in accordance with local and national safety regulations. Unauthorized repairs could cause injury or appliance damage. Problem Cause Solution The burner does not The burner is not assembled Assemble the burner correctly.

  • Page 23: Technical Service

    Please note that unless expressly approved in writing by the Miele Service department, Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele. Our goal is to prevent unauthorized (and untrained) service personnel from working on your Miele products, possibly doing further damage to them, you and/or your home.

  • Page 25: Installation Instructions

    Technical Service Installation Instructions IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE Information is subject to change. Please refer to our website to obtain the most current product specification, technical & warranty information. To prevent accidents and appliance damage read these instructions before installation or use.

  • Page 26: Important Installation Safety Instructions

    IMPORTANT INSTALLATION SAFETY INSTRUCTIONS Installation The power cord and a flexible gas connection line must be attached in The minimum distances given in such a way that they are not in contact these Installation instructions are to with moving parts of kitchen elements combustible surfaces, and must be (e.g.

  • Page 27: Safety Distances Above The Appliance

    IMPORTANT INSTALLATION SAFETY INSTRUCTIONS Safety distances above the appliance The minimum safety distance given by the hood manufacturer must be maintained between the combiset and the hood above it. See the installation instructions of the hood for these safety measurements. If the hood manufacturers instructions are not available or if flammable objects are installed over the combiset (e.g.
  • Page 28 IMPORTANT INSTALLATION SAFETY INSTRUCTIONS Safety distances When installing a gas cooktop, there may be cupboard or room walls of any size on the rear side and on one side (right or left) (see illustrations). The following minimum safety distances must be maintained: Not allowed a 2"...

  • Page 29: Installation Dimensions

    Installation dimensions a Appliance front b Installation height c Power supply box with connection cable L = 4 ft ( 1.2 m) d Gas connection...

  • Page 30: Installation

    Installation ^ Create the countertop cutout as per the dimension drawing. Remember to maintain a minimum safety distance from the back wall, as well as from any tall unit or side wall to the right or left of the cooktop (see "IMPORTANT INSTALLATION SAFETY INSTRUCTIONS").

  • Page 31: Sealing

    Installation Sealing Tiled surfaces The grouting a and shaded area under The sealing strip under the edge of the the appliance frame must be flat and top part of the cooktop provides a even so that the frame will lie evenly sufficient seal for the countertop.

  • Page 32: Electrical Connection

    Electrical connection This appliance must be grounded This appliance is equipped with a according to local or national codes. three-prong grounding plug to prevent shock hazards. It should be All electrical work should be plugged directly into a properly performed by a qualified electrician grounded outlet.

  • Page 33: Wiring Diagram

    Electrical connection Wiring diagram Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

  • Page 34: Gas Connection

    Gas connection Installation and service must be The gas connection must be made performed by a qualified installer, in accordance with local codes or, service agency or gas supplier. in the absence of local codes, with In Massachusetts installation must the National Fuel Gas Code, be performed by a licensed ANSI Z 21.1 / NFPA 54...

  • Page 35: Gas Pressure Regulator

    - 4" w.c. LP gas - 10" w.c. Do not use any regulator unless it has been supplied by Miele. Doing so may cause a gas leak. If there is any doubt concerning installation contact the Miele Technical Service Department.

  • Page 36: Conversion To Another Type Of Gas

    If the appliance is to be connected to a type of gas other than it was originally configured for, both the regulator and burners must be converted. A conversion kit is available as an optional accessory from the Miele Technical Service Department.

  • Page 37: Nominal Ratings

    Burner capacity Nominal ratings Maximum output Gas type BTU/hr Auxiliary burner Natural Gas (NG) 3,750 1.10 Propane (LP) 3,300 0.97 Normal burner Natural Gas (NG) 5,800 1.70 Propane (LP) 6,400 1.88 Fast burner Natural Gas (NG) 9,300 2.73 Propane (LP) 9,800 2.87 Total output...

  • Page 38: Conversion To A Different Type Of Gas

    Conversion to a different type of gas The conversion to a different type of gas must only be carried out by a fitter approved by the responsible gas supply company. When converting to a different type of gas, the jets and needle valves of the burner must be changed.

  • Page 39: To Convert The Burner

    Conversion to a different type of gas To convert the burners Conversion to a different type of gas should only be performed by an authorized gas technician. Turn off the main gas supply (if the appliance has been installed) and disconnect the appliance from the main electrical power supply before proceeding.

  • Page 40: Changing The Needle Valves

    Conversion to a different type of gas Changing the needle valves To change the needle valves, the screws of the burner must be loosened and the upper part of the appliance removed. ^ Pull the burner control knob off upwards. ^ Remove the burner parts.

  • Page 41: After Conversion

    Conversion to a different type of gas After conversion Check all gas fittings for leaks by operating the burners without the combiset surface in place (use a match to ignite the flame). ^ Reassemble the appliance. ^ Light each of the burners in turn to be sure they are operating correctly.

  • Page 42: Help Protect Our Environment

    Help protect our environment Disposal of packing materials Disposal of an old appliance The cardboard box and packing Old appliances contain materials that materials are biodegradable and can be recycled. Please contact your recyclable. Please recycle. local recycling authority about the possibility of recycling these materials.
  • Page 43 INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION.
  • Page 44 KM 3010 en - US, CA M.-Nr. 09 317 500 / 00...
