Installation Instructions for Gas Conversion

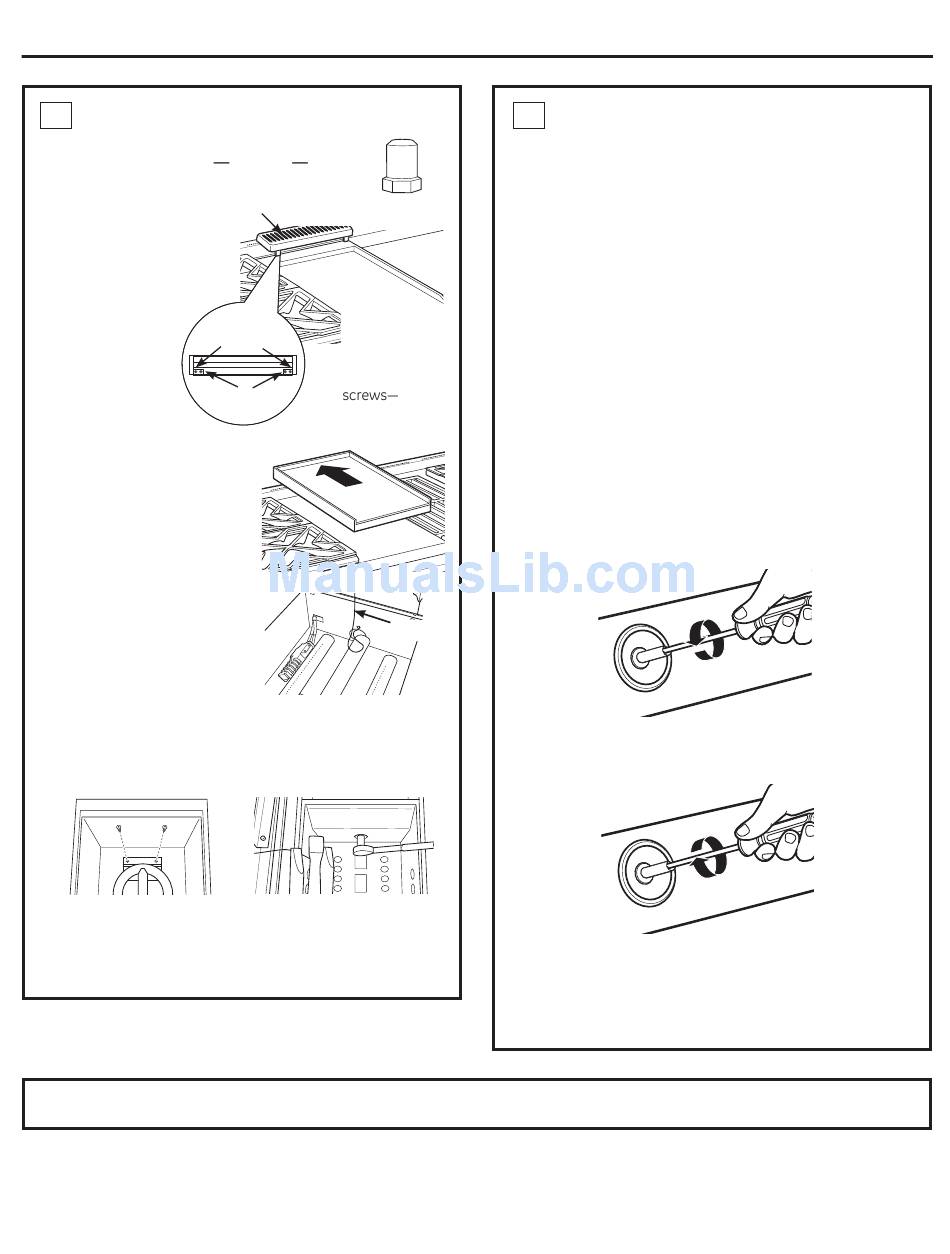

5 CHANGE GRIDDLE ORIFICE
Locate the 3/4" long griddle orifice.
Select for your gas type. LP .047, NAT .076
A. Lift off the
griddle flue
A
cover. Remove
the 2 inside
clamping
screws.
B. Lift out the
Leveling Screws
cast-iron
grease trough.
Slide the
Clamping
griddle toward
the rear and
out of the
hold-down tabs along the
bottom.
C. Carefully lift and hold
the griddle while pulling
additional length of the
capillary from the entry
hole. Stand the griddle on
end in the grease sump.
D. Remove the 2 hold-down
screws at the rear of the
burner.
Pull the burner straight
back toward the rear and
out of the gas inlet.
E. Use a 1/2" deepwell
socket to remove and replace the orifice.
D
Back of Range
Reverse these steps to reassemble the griddle.
Push excess capillary back into the entry hole.
Place the unused orifice in the holder for possible
future use.
Once the conversion is complete and checked, fill out the conversion label and affix the label near the rating label. For ranges,
place the label beneath the control panel. For rangetops, place the label on the bottom of the unit.
(if present)
Griddle Flue Cover
NOTE: Remove
the 2 screws
positioned on
the inside only.
Do not remove
the outermost
they are for
Screws
leveling.
B
C
Capillary
Front of Range
E
6 ADJUST BURNER FLAMES
Normally, burners do not need further adjustment.
Make adjustments only when necessary.
A. Turn on the gas. Plug in electrical cord.
B. Turn all burners on highest setting and check the
flames. They should be blue in color. When using
LP gas, the flames may have some yellow tipping
at the ends of the flame. Foreign particles in the
gas line may cause an orange flame at first, but
this will soon disappear.
C. Turn the burner knob to "LO" while observing the
flame.
Adjust the setting of the upper row of flames using
the valve bypass screw as follows:
Adjustments must be made with two other burners
in operation on a medium setting. This prevents the
upper row of flames from being set too low, resulting
in the flame being extinguished when other burners
are turned on.
D. To adjust the flame, remove the knobs. Insert a small
flat-blade screwdriver into the hole in the center of
the valve stem to engage screw.
• If the flames are too small or flutter, turn the screw
counterclockwise.
• If the flames are too large, turn the screw
clockwise.
E. Make the adjustment by slowly turning the screw
until flame appearance is correct.
