Summary of Contents for Bosch UHO-HBPS

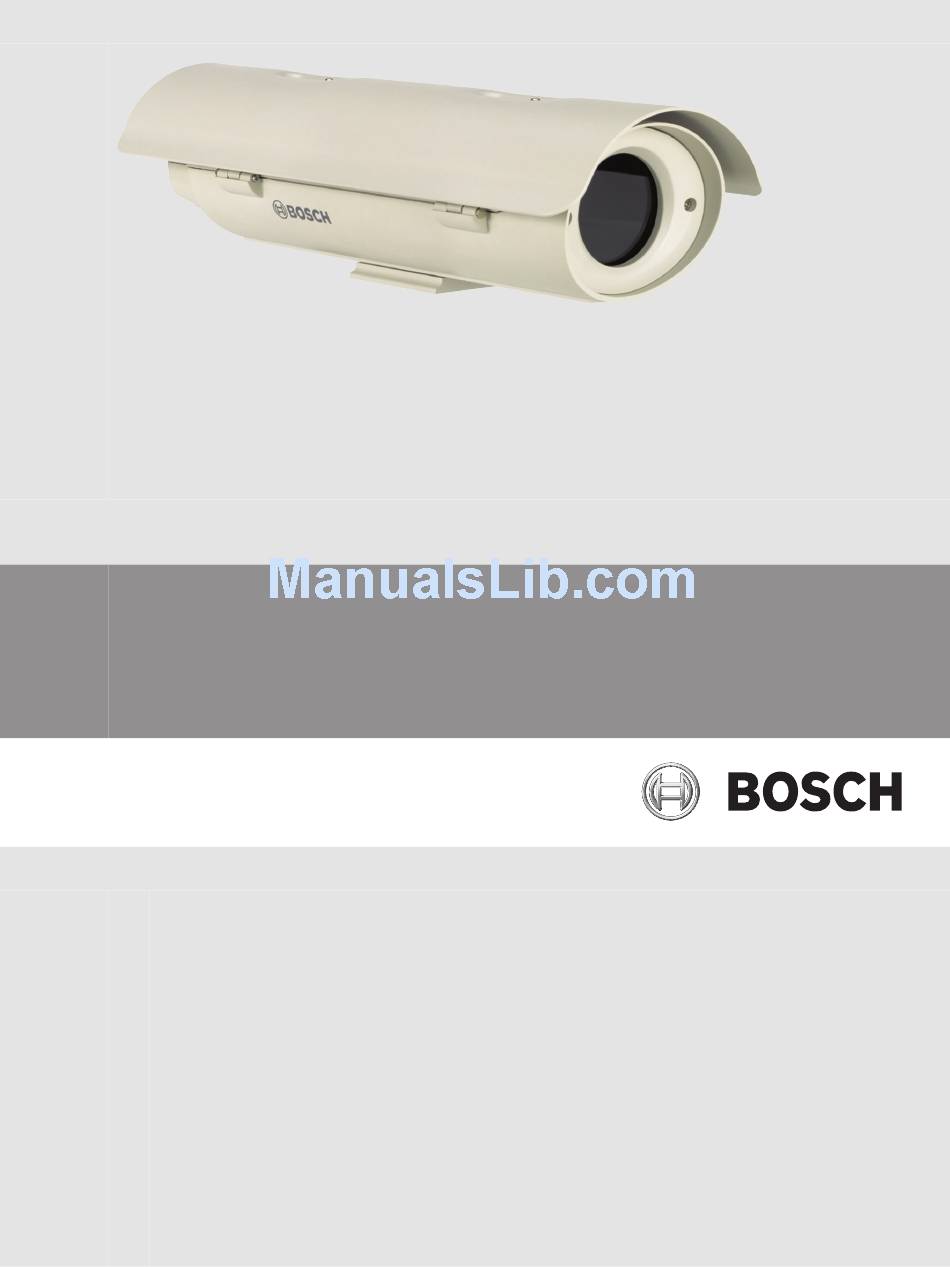

- Page 1 UHO Camera Housing UHO-HBPS | UHO-HBGS | UHO-HGS | UHO-HPS Installation Manual...
-
Page 3: Table Of Contents
Connection – UHO – Rear housing video connection 6.3.2 Connection – UHO – Rear housing power connection Final assembly 6.4.1 Camera operation 6.4.2 Closing the housing 6.4.3 Positioning sunshield Maintenance Fuse replacement Decommissioning Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418... -
Page 4: Safety
Caution! To protect the device, the branch circuit protection must be secured with a maximum fuse rating of 16A. This must be in accordance with NEC 800 (CEC Section 60). 2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems... -
Page 5: Important Safety Instructions
Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418... -
Page 6: Fcc And Ices Compliance
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4. 2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems... -
Page 7: Short Information
All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. More information For more information please contact the nearest Bosch Security Systems location or visit www.boschsecurity.com Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418... -
Page 8: System Overview
UHO-HBGS and UHO-HBPS models have a blower (fan). – UHO-HGS and UHO-HBGS models have feed-through holes for power and signal cabling. – UHO-HPS and UHO-HBPS models have a 4-pin power connector and a BNC connector instead of feed-through holes. The following models are available: Model... -
Page 9: Planning Information
Polyamide / neoprene Cable gland, M20 x 1.5 Polyamide / neoprene UHO-HBPS-11 model Quantity Item Material 4-pin cable connector, Male UHO-HPS-51 and UHO-HBPS-51 models Quantity Item Material 4-pin cable connector, Female Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418... -
Page 10: Unpacking
This equipment should be unpacked and handled with care. If an item appears to have been damaged in shipment, notify the shipper immediately. Verify that all parts are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. -
Page 11: Installation
10 W Maximum weight 1 kg (2.2 lb) Maximum size (H x W x D) 91 x 81 x 262 mm (3.6 x 3.2 x 10.3 in) mm (in) 262 (10.3) Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418... -
Page 12: Housing Mounting
Open the cover by unlatching the three latches (1) on the side of the housing. If the optional tamper-resistant screws have been installed, use the supplied wrench to remove the screws before opening the latches. 2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems... -
Page 13: Feed-Through Cables
Feed the power and video cables through separate cable glands into the housing. Ensure that the holes in the bottom of the housing are covered with the rubber plugs provided. Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418... -
Page 14: Camera/Lens Installation
With the spacers, use the 1/4-20 x 3/4 in. screw, the spring washer, and plastic clamp (or second spacer) as necessary to attach the camera/lens to the camera tray. 4 mm 9 mm 1/4-20 x 3/4 in. 2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems... -
Page 15: Mounting The Camera/Tray In The Housing
Lower the tray so that the holes at the side fit over the two screws of the housing. Slide the entire assembly forward approximately 5 mm (0.2 in.) from the front of the window. Tighten the two screws to lock the tray in place. Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418... -
Page 16: Connection
Strip the incoming power safety earth wire and crimp into the lug. Reattach the ground connections in the order shown: Lock washer Flat washer Input power ground lug Grounding post 2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems... -
Page 17: Incoming Power Wires
- L (blue) power wire - N (brown) power wire Power input grounding post AC power input terminal block connectors AC power output to camera 12 VDC power output to camera Fuse Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418... -
Page 18: Camera Connections
Do not nick the wires. – Connect the camera power cord wires to the 120VAC OUT (or 230VAC OUT) connections (4) of the terminal block. 2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems... -
Page 19: Housings With Rear Connectors
Function Wire color AC neutral Blue AC live Brown No Connection (do not use) Ground Green/yellow Assemble the cable connector and plug it into the power receptacle on the housing. Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418... -
Page 20: Final Assembly
Slide the sunshield to the desired position. It has a range of 50 mm (2 in). Tighten the screws to lock the sunshield into position. If the sunshield is not installed, seal the two screw holes with the plugs supplied. Sunshield 2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems... -
Page 21: Maintenance
Camera voltage Fuse rating 24 VAC 4 A, 250 VAC 120 VAC 2 A, 250 VAC 230 VAC 2 A, 250 VAC There is a spare fuse inside the housing. Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418... -
Page 22: Decommissioning
Decommissioning The unit should only be passed on together with this installation guide. Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic and electrical appliances, which have reached the end of their working life, must be collected and disposed of separately from household waste material. - Page 24 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven The Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2014...
