BOSCH Customer Care
Search
Dealer Locator
Add Page To My Favorites
View My Favorites
1 of 1
Contact Us
Installation Instructions for Bosch Integra 300 Series Dishwashers
SHX33A0xUC
Here you can download a printable version of the Installation Instructions for your product.
Adobe Acrobat is required to view this file.
Download Installation Instructions

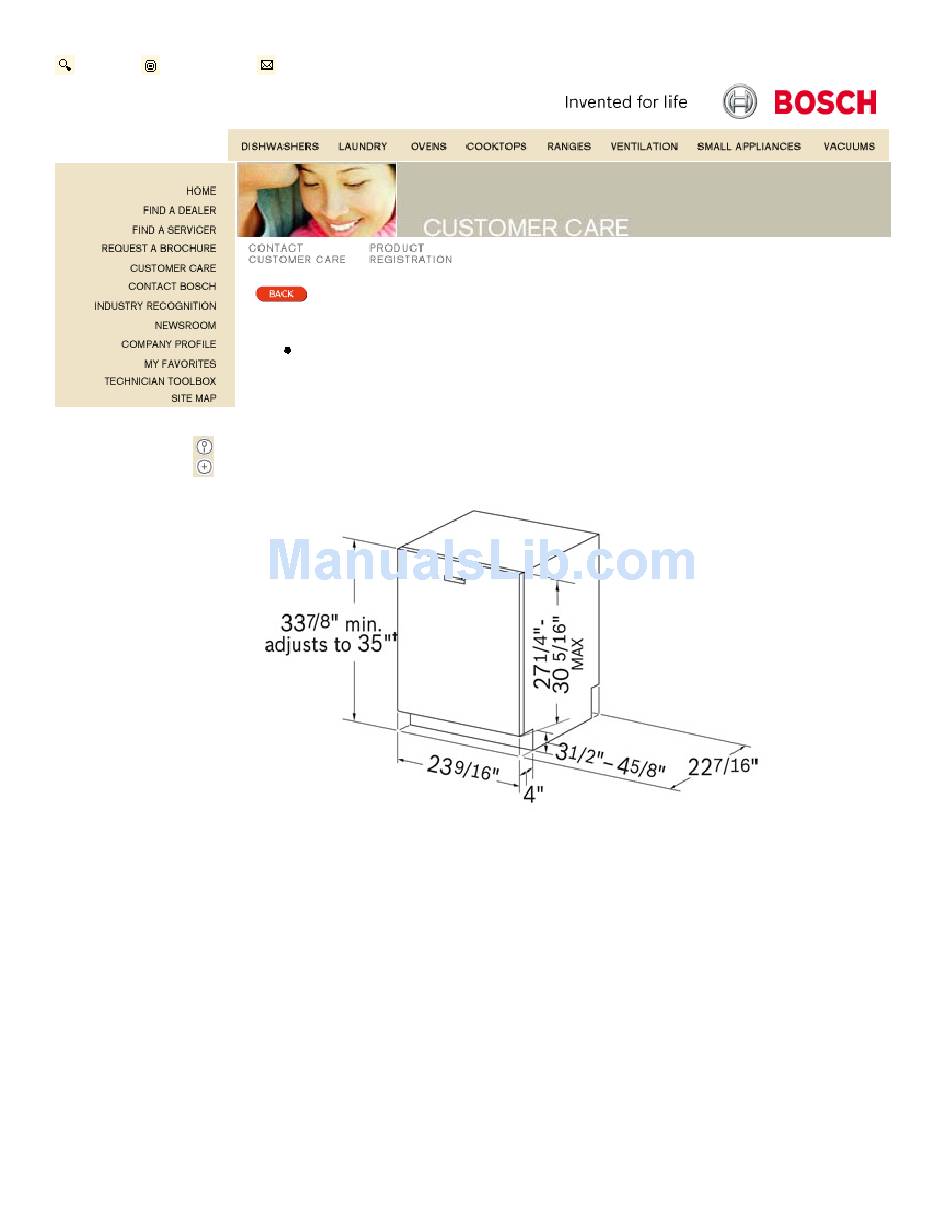

SHX/SHV Dimensions: Dimensions for planning only. For details see installation manual.
Specifications subject to change without notice.
†
Maximum height of 36" possible with toe-kick from cabinet supplier.
http://www.boschappliances.com/customer_care/default_SHX33A0xUC_...
Click here to download Adobe Acrobat.
Terms of Use
9.7.2005
9/7/2005 2:08 PM
Advertisement
Table of Contents

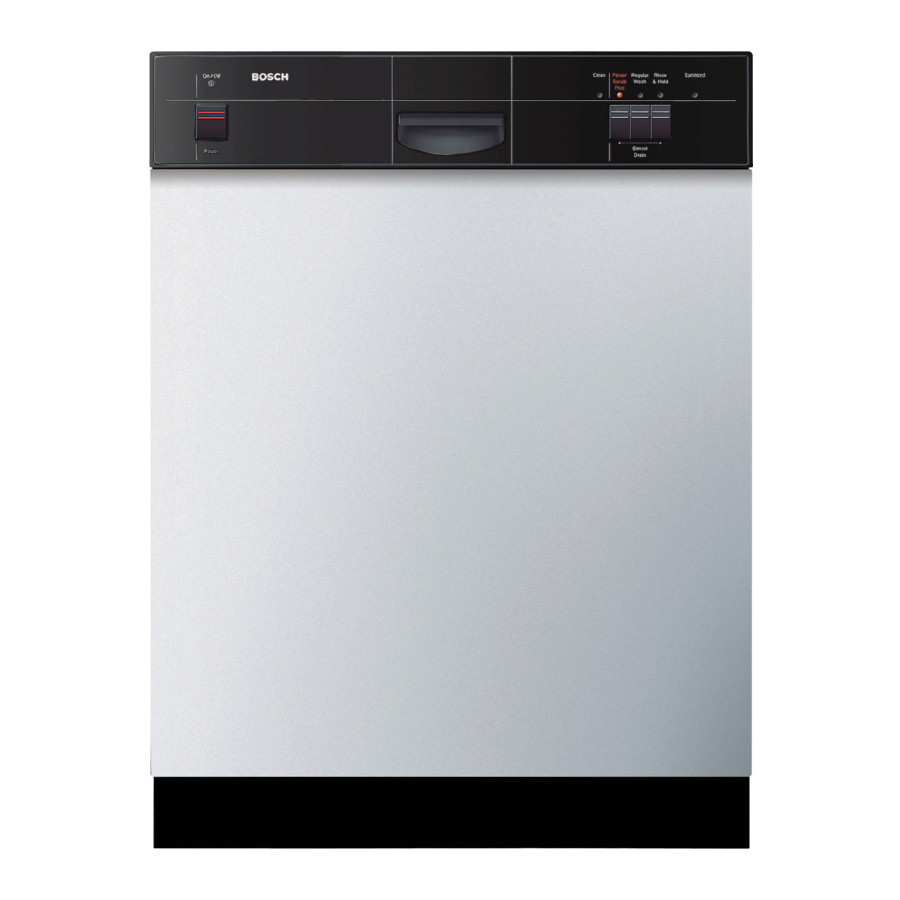

Related Manuals for Bosch SHI66A
Summary of Contents for Bosch SHI66A
- Page 1 Dealer Locator Contact Us Terms of Use 9.7.2005 Installation Instructions for Bosch Integra 300 Series Dishwashers SHX33A0xUC Here you can download a printable version of the Installation Instructions for your product. Adobe Acrobat is required to view this file. Click here to download Adobe Acrobat.
- Page 2 Wash Wash Hold Power Scrub Rinse Regular & Hold Wash Delay Power Start Rack Temp.Options Power Only Cancel Hours Drain Cycles SHI66A, SHU33A, SHU43C, SHU53A, SHU66C, SHU43E, SHU53E, SHU66E, SHV46C, SHV66A, SHV99A SHX33A, SHX46A, SHX46B, SHX56B, SHX99B SHY56A, SHY66C, SHY99A...
-
Page 3: Table Of Contents
Table of Contents IMPORTANT INSTRUCTIONS ..2 Placing the Dishwasher ....20 Tools Needed ......... 4 Securing the Dishwasher ....20 Materials Needed ......5 Drain Hose Connection ....22 Materials Supplied ......6 Hot Water Connection ..... 24 Enclosure Preparation ....8 Electrical Connection ....... - Page 4 VERY IMPORTANT INSTRUCTIONS - TO BE READ WARNING - OBSERVE ALL WARNINGS AND CAUTIONS These instructions are intended for use by qualified installers only. In addition to these instructions, the dishwasher shall be installed: • In accordance with all local codes or, in the absence of a local code, •...
-
Page 5: Important Instructions
• The dishwasher drain hose must be installed with a portion of it at least 20” (508mm) off the cabinet floor; otherwise the dishwasher may not drain properly. • Bosch dishwashers are intended for residential use only, and should not be used in commercial food service establishments. -
Page 6: Tools Needed
TOOLS NEEDED Hammer Hole Saw Pipe Wrench Adjustable Wrench Tape Measure Slot Screwdriver Torx Screwdriver Phillips Screwdriver Wire Cutter Wire Stripper Drill Level OUTILS NÉCESSAIRES Marteau Scie- Clé à tuyau Clé réglable cloche Tournevis à Ruban à Tournevis à fente Tournevis Phillips pointe mesurer... -
Page 7: Materials Needed
MATERIALS NEEDED (Additional materials may be required to comply with local codes.) Electrical Supply Cable - Minimum #14 AWG, 2 conductor, 1 ground, insulated copper conductors. Hot Water Supply Line - Minimum 3/8” O.D. copper tubing or metal braided dishwasher supply line. Shut-off valve and fittings appropriate for hot water supply line (copper tubing/compression fitting, or braided hose). -
Page 8: Materials Supplied
(NOTE: Illustrations are not to scale). If any parts are missing, contact your dealer immediately. Manual Set Bag All Bosch dishwashers come with a Manual Set Bag containing: • Use & Care Manual • Installation Instructions • Quick Reference Guide •... -
Page 9: Enclosure Preparation
Serious injury could result if cabinet work is performed by unqualified persons. Only qualified carpenters or cabinetmakers should perform cabinet work. NOTE: Bosch dishwashers are de- signed to be enclosed on the top and 34" both sides by standard residential (864mm) minimum kitchen cabinetry. -
Page 10: Electrical Preparation
E n g l i s h ELECTRICAL PREPARATION WARNING: ELECTRICAL SHOCK HAZARD - Working on an energized circuit could result in serious injury or death. Only qualified electricians should perform electrical work. Do not attempt any work on the dish- washer electric supply circuit until you are certain the circuit is de- energized. -
Page 11: Plumbing Preparation
E n g l i s h PLUMBING PREPARATION WARNING: SCALD HAZARD - Serious injury could result if work is performed on a charged hot water line. Only qualified plumbers should perform plumbing work. Do not attempt any work on the dishwasher hot water supply plumbing until you are certain the hot water supply is shut off. -
Page 12: Dishwasher Preparation
E n g l i s h PLUMBING PREPARATION (continued) Drain Plumbing Dishwasher Connection Piece If the dishwasher is to drain either directly into the household drain plumbing or through an air gap, install a dishwasher connection piece under the sink, as shown in Figure 8, letter A. - Page 13 E n g l i s h DISHWASHER PREPARATION (continued) Removing the Toe Panel Regular Toe Panel The toe panel is loosely attached with tape. Remove the tape and pull the toe panel away from the dishwasher. Set the toe panel aside. It will be reinstalled later.
-
Page 14: Door Panel Installation
E n g l i s h DOOR PANEL INSTALLATION SHU Models - Accessory Panel Installation 25” 1/4” max. If you have an SHU model and have (636 mm) (6 mm) ordered an accessory panel kit, install the panel prior to sliding the dish- washer into place. -
Page 15: Placing The Dishwasher
E n g l i s h PLACING THE DISHWASHER 1) Straighten and position the hot water supply line and the electrical supply cable as shown in Figure 18 so that they will align with their channels under the dishwasher base. 14"... -
Page 16: Drain Hose Connection
E n g l i s h DRAIN HOSE CONNECTION The dishwasher drain hose may be connected to the drain plumbing in one of four ways: 1) Directly to the undersink dishwasher drain connection, as shown in Figure 2) Directly to a disposer dishwasher drain connection, as shown in Figure 3) To the undersink dishwasher drain connection through an air gap, as... -
Page 17: Hot Water Connection
E n g l i s h HOT WATER CONNECTION WARNING: SCALD HAZARD - Working on a charged hot water line could result in serious injury or death. Do not attempt any work on the dishwasher hot water supply plumb- ing until you are certain the hot water supply is shut off. -
Page 18: Electrical Connection
E n g l i s h ELECTRICAL CONNECTION WARNING: ELECTRICAL SHOCK HAZARD - Working on an energized circuit could result in serious injury or death. Only qualified electricians should perform electrical work. Do not attempt any work on the dish- washer electric supply circuit until you are certain the circuit is de- energized. -
Page 19: Door Tension Adjustment
E n g l i s h ELECTRICAL CONNECTION (continued) WARNING: FIRE HAZARD - LOOSE OR IMPROPER ELECTRICAL CONNEC- TIONS CAN CAUSE FIRE. MAKE CER- TAIN THAT ALL ELECTRICAL CONNEC- TIONS ARE PROPERLY MADE. • Do not pre-twist the wires before connecting them with wire nuts. -
Page 20: Final Instructions
Do not attempt to repair the appliance yourself. Any work performed by unauthorized personnel may void the warranty. If you are having a problem with your Bosch dishwasher and are not pleased with the service you have received, please take the following... -
Page 21: Servicio Al Cliente
CUSTOMER SERVICE Please be sure to include (if you are writing), or have available (if you are calling), the following information: • Model number • Serial number • Date of original purchase • Date the problem originated • Explanation of the problem Also, if you are writing, please include a daytime phone number where you can be reached.
