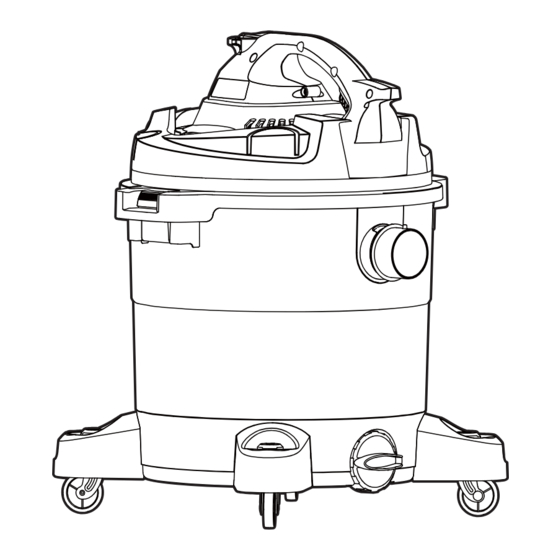

Operator’s Manual 10 Gallon Wet/Dry Vacuum Model No. 125.38907 Safety Assembly CAUTION: Before using this Operation product, read this manual Maintenance and follow all its Safety Rules Parts and Operating Instructions. Español - página 18 Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A...
This ONE YEAR warranty is void if this product is ever used while providing commercial services or if rented to another person. For 90 DAY commercial and rental use terms, see the Craftsman warranty web page. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
starting, unplug power cord before Observe the following warnings that changing or cleaning fi lter. appear on the motor housing of your Vac: • Do not leave Wet/Dry Vac unattended DOUBLE INSULATED when plugged in. Unplug from outlet GROUNDING NOT REQUIRED. when not in use and before servicing.
Introduction This Wet/Dry Vac is intended for Read this operator's manual to vacuuming wet and dry materials and familiarize yourself with the product may be used as a blower. features and to understand the specifi c usage of your new Wet/Dry Vac. Table of Contents Section Page...
Assembly Remove entire contents of carton and check for parts inside the collection tank. Check each item against the Carton Contents List. If any parts are missing or damaged please call 1-800-469-4663 for replacement. Carton Content List Key Description ......Qty. Vac Assembly ......
Assembly (continued) A Phillps head screw driver is required. WARNING: Do not plug in power 6. For dry vacuum cleaning, install the cord to power outlet, make sure supplied reusable cloth fi lter. (fi g. 6) plug is disconnected before See page 12 for fi...
Operation Vacuuming Dry Materials WARNING: Be sure to read, understand and apply all the information in the Important Safety Instructions section at the beginning of this operator's manual. Do not vacuum in areas with fl ammable gases, vapors, or explosive dusts in the air.
Operation (continued) Vacuuming Liquids WARNING: Be sure to read, understand and apply all the information in the Important Safety Instructions section at the beginning of this operator's manual. Do not vacuum in areas with fl ammable gases, vapors, or explosive dusts in the air.
Operation (continued) Blowing Feature WARNING: Always wear safety goggles complying with ANSI Z87.1 (or in Canada, CSA Z94.3) before using blower. WARNING: Keep bystanders clear from blowing debris. WARNING: Wear a dust mask if blowing creates dust that might be inhaled. This Wet/Dry Vac has blowing capabilities.
Operation (continued) Detachable Blowing Operation This Wet/Dry Vac converts to a detachable blower that can be used for leaf blowing in yards, decks and patios. To use the detachable blower feature follow the instructions listed. CAUTION: To reduce the risk of hearing damage, wear ear protection when using the vac/blower for extended hours or when using it in noisy areas.
Maintenance Emptying the Collection Tank 7. Place power head on collection tank and 1. Verify that the power cord is secure latches. disconnected from the outlet. (Fig. 1) 2. Disconnect the hose from the vacuum. (Fig. 2) NOTICE! The fi lter included is made of 3.
Maintenance (continued) Installing & Cleaning the Supplied Cartridge Filter Removing and Cleaning Cartridge Filter Installing Cartridge Filter 1. Position power head in the upside down 1. Verify that the power cord is position. If the retainer nut was used to disconnected from the outlet.
Installing A Replacement Cartridge Filter Craftsman Filter with Rubber Top Craftsman Filter with Plastic Top THIS VACUUM CLEANER IS DESIGNED TO USE CRAFTSMAN CARTRIDGE FILTERS. 1. Carefully slide the Craftsman cartridge 1. Carefully slide the Craftsman cartridge fi lter over the fi lter cage and press fi...
Maintenance (continued) Installing & Cleaning Foam Sleeve Filter Installing Foam Sleeve Filter Cleaning Foam Sleeve Filter 1. Verify that the power cord is 1. With the removed power head in the disconnected from the outlet. (Fig. 1) upside down position, carefully 2.
Troubleshooting WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK UNPLUG BEFORE TROUBLESHOOTING. Problem Possible Causes Corrective Action Vacuum will not operate 1) No power supply. 1) Check power supply – cord, breakers, fuses. 2) Unplug and check the power 2) Faulty power cord. cord.
Repair Parts 125.38907 10 Gallon Wet/Dry Vac Always order by part number, not by key number. Always mention the model number when ordering parts. The model number is found on the serial plate located on the vacuum. To order parts, call 1-800-469-4663.
Page 17
Repair Parts (Continued) 10 Gallon Wet/Dry Vac...
Page 18
Manual Del Operador Aspiradora Para Materiales Húmedos/ Secos De 10 Galones Núm. de modelo 125.38907 Seguridad Ensamble PRECAUCIÓN: Antes de usar Operación este producto, lea este manual y siga todas las reglas de Mantenimiento seguridad e instrucciones de Piezas operación.
Para obtener los términos de uso comercial y de renta por 90 DÍAS, consulte la página web de la garantía de Craftsman. Esta garantía le ofrece derechos legales específicos y también puede tener otros derechos que varían de estado a estado.
un encendido accidental, desconecte el cable de Obedezca las siguientes advertencias corriente antes de cambiar o limpiar el fi ltro. que aparecen en la caja del motor de su • No deje la aspiradora de materiales húmedos/ aspiradora: secos desatendida cuando la enchufe. NO REQUIERE DE CONEXIÓN A TIERRA Desconéctela del tomacorriente cuando no esté...
Introducción Esta aspiradora de material húmedo/seco Lea este manual del operador para está diseñada para aspirar materiales familiarizarse con las características del húmedos y secos, además puede usarse producto y para entender el uso específi co como un soplador. de su nueva aspiradora de material húmedo/seco.
Ensamble Retire todo el contenido de la caja y verifi que si hay partes dentro del tanque de recolección. Verifi que cada parte contra la lista de contenido de la caja. Si hay alguna parte faltante o dañada, llame al 1-800-469-4663 para recibir un reemplazo.
Ensamble (continuación) Se requiere un destornillador de cabeza plana. 6. Para una limpieza con aspiradora de ADVERTENCIA: No enchufe el materiales secos, instale el fi ltro de tela cable de corriente al tomacorriente; asegúrese de que el enchufe esté reutilizable que se proporciona. (Fig. 6) desconectado antes de ensamblar la Consulte la página 29 para obtener las aspiradora de material húmedo/seco.
Operación Aspiración de Materiales Secos ADVERTENCIA: Asegúrese de leer, entender y aplicar toda la información de la sección de instrucciones de seguridad importantes que está al inicio de este manual de operaciones. No aspire en áreas con gases infl amables, vapores o polvos explosivos en el aire.
Operación (continuación) Aspiración de Líquidos ADVERTENCIA: Asegúrese de leer, entender y aplicar toda la información de la sección de instrucciones de seguridad importantes que está al inicio de este manual de operaciones. No aspire en áreas con gases infl amables, vapores o polvos explosivos en el aire.
Operación (continuación) Función de Soplado ADVERTENCIA: Siempre use lentes de seguridad que cumplan con la norma ANSI Z87.1 (o en Canadá, CSA Z94.3) antes de usar el soplador. ADVERTENCIA: Mantenga a los transeúntes lejos de los desechos voladores. ADVERTENCIA: Use una mascarilla anti polvo si el soplado crea polvo que pudiera inhalarse.
Operación (continuación) Operación del Soplador Desmontable Esta aspiradora de material húmedo/seco se convierte en un soplador desmontable que puede usarse para soplar hojas secas en jardines, pórticos y patios. Para usar la función de soplador desmontable, siga las instrucciones que se enumeran a continuación. PRECAUCIÓN: Para reducir el riesgo de daño auditivo, use protección de oídos cuando utilice la aspiradora/soplador por tiempo prolongado o cuando la utilice en áreas ruidosas.
Mantenimiento Cómo Vaciar el Tanque de Recolección 7. Coloque la cabeza motriz sobre el tanque 1. Verifi que que el cable de corriente esté de recolección y asegure los pasadores. desconectado del tomacorriente. (Fig. 1) 2. Desconecte la manguera de la aspiradora. (Fig.
Mantenimiento (continuación) Instalación y Limpieza del Filtro de Cartucho Proporcionado Retirar y limpiar el fi ltro de cartucho Instalación del fi ltro de cartucho 1. Coloque la cabeza motriz en posición 1. Verifi que que el cable de corriente esté invertida.
Page 30
Filtro Craftsman Con Tapa De Caucho Filtro Craftsman Con Tapa De Plástico ESTA ASPIRADORA ESTÁ DISEÑADA PARA USARSE CON FILTROS DE CARTUCHO CRAFTSMAN. 1. Con cuidado, deslice el fi ltro de cartucho 1. Con cuidado deslice el fi ltro de cartucho Craftsman por la caja del fi...
Mantenimiento (continuación) Instalación y Limpieza del Filtro de Manga de Espuma Instalación del fi ltro de manga de espuma Limpieza del fi ltro de manga de espuma 1. Verifi que que el cable de corriente esté 1. Después de retirar la cabeza motriz en desconectado del tomacorriente.
Resolución de Problemas ADVERTENCIA: PARA REDUCIR EL RIESGO DE DESCARGAS ELÉCTRICAS, DESCONECTE LA ASPIRADORA ANTES DE RESOLVER UN PROBLEMA. Problema Causas posibles Acción correctiva 1) Revise el suministro de energía - La aspiradora no funciona. 1) No hay suministro de energía. cable, disyuntores, fusibles.
Partes de Repuesto Aspiradora De Materiales Húmedos/Secos De 10 Galones 125.38907 Siempre ordene por número de parte y no por número de clave. Siempre mencione el número del modelo cuando ordene partes. El número de modelo se encuentra en la placa de serie que se encuentra en la aspiradora.
Page 34
Partes de Repuesto (Continuación) Aspiradora De Materiales Húmedos/Secos De 10 Galones...
