Panasonic EY7542 Service Manual

Hide thumbs Also See for EY7542:

Advertisement

Quick Links

Download this manual See also: Operating Instructions

TABLE OF CONTENTS

1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
5 Wiring Connection Diagram ---------------------------------13
6 Schematic Diagram ---------------------------------------------13
Model No.
North America
PAGE
© 2007 Matsushita Electric Works, Ltd. All rights
reserved. Unauthorized copying and distribution is a
violation of law.
Order Number PTD0707U37CE

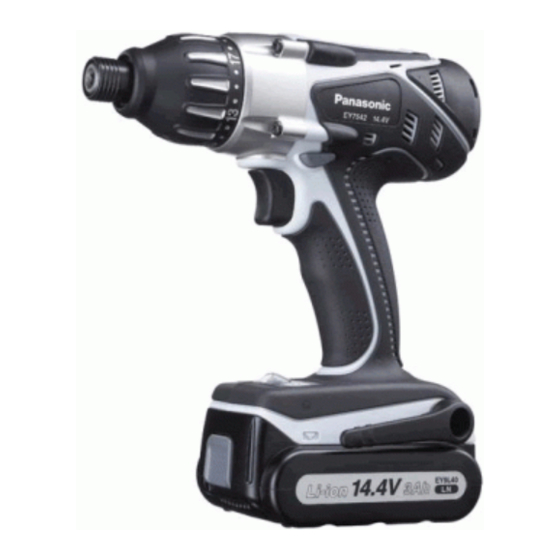

Cordless Impact Driver
EY7542
F16
PAGE

Advertisement

loading

Related Manuals for Panasonic EY7542

Summary of Contents for Panasonic EY7542

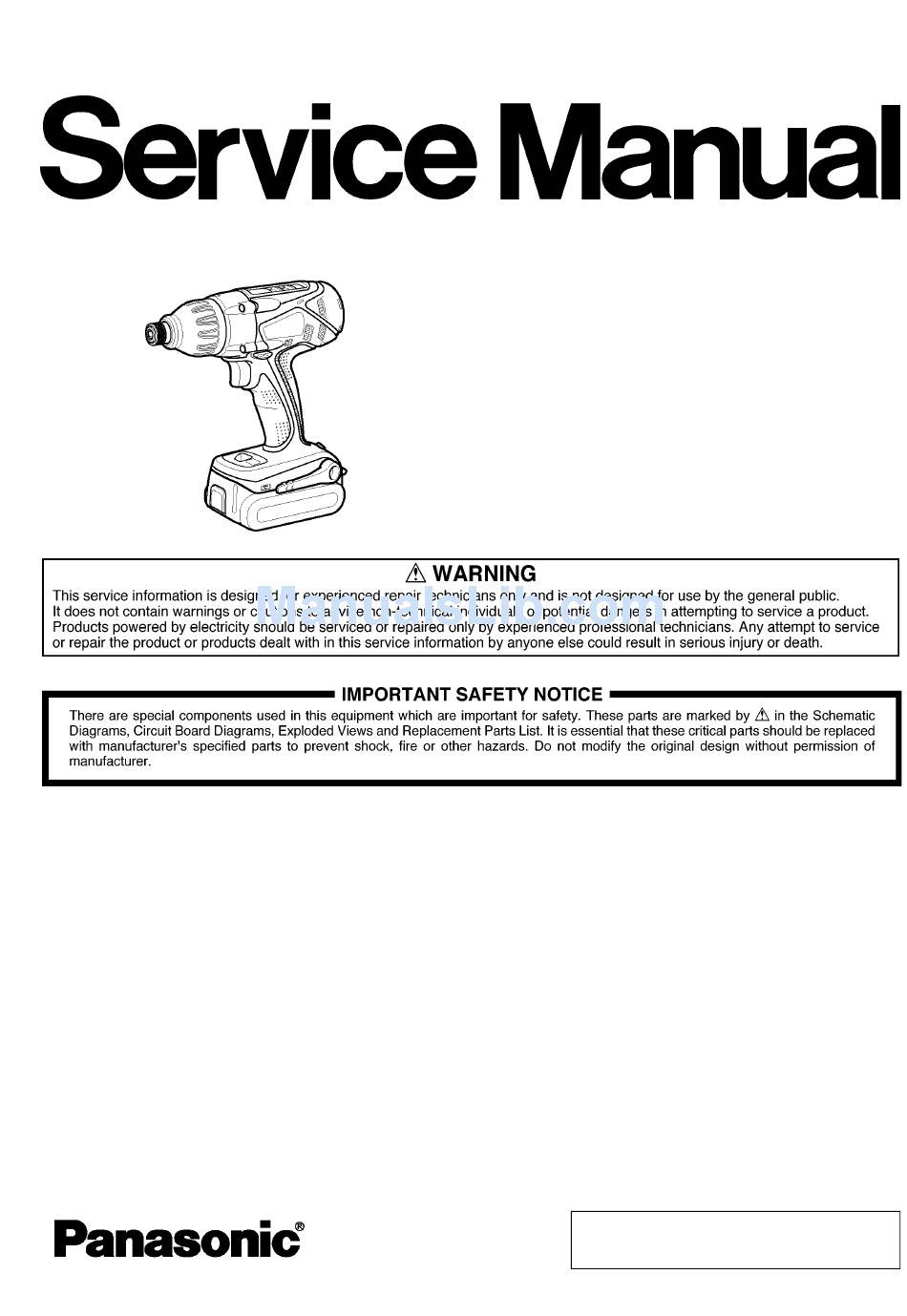

  • Page 1: Table Of Contents

    Order Number PTD0707U37CE Cordless Impact Driver EY7542 Model No. North America TABLE OF CONTENTS PAGE PAGE 1 Warning -------------------------------------------------------------- 2 2 Specifications ----------------------------------------------------- 2 3 Troubleshooting Guide ----------------------------------------- 3 4 Disassembly and Assembly Instructions ---------------- 5 5 Wiring Connection Diagram ---------------------------------13...

  • Page 2: Warning

    1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long.

  • Page 3: Troubleshooting Guide

    3 Troubleshooting Guide (Refer to WIRING CONNECTION DIAGRAM)

  • Page 5: Disassembly And Assembly Instructions

    4 Disassembly and Assembly Instructions 4.1. Disassembly Instructions Ref. No. 1A Procedure 1A Removal of the Housings. 1. Loosen the belt hook bolt turning it counterclockwise, using a coin or a flat blade screwdriver. 2. Take out the belt hook. 3.
  • Page 6 Procedure 1A → 1B Ref. No. 1B Removal of Motor assembly and Gear hammer block. 1. Unscrew to disconnect the lead wires between switch and motor. 2. Take out the motor assembly with the gear box block from the housing. 3.
  • Page 7 Procedure 1A → 1B → 1C Ref. No. 1C Removal of Gear box assembly. 1. Hold the driving carrier as illustrated. 2. Compress the assembly and take out the pin. 3. Take out the driving shaft assembly and the gear case assembly from the shaft of the driving carrier.
  • Page 8 4.2. Reassembly instructions Ref. No. 2A Procedure 2A Assembly of Gear case block. 1. Assemble thrust plate, clutch gear, planet gear (3pcs), carrier, thrust plate and insert pins (2pcs). 2. Reinstall one piece of steel ball into each of 6 holes. 3.
  • Page 9 Procedure 2A → 2B Ref. No. 2B Assembly of Gear box assembly. 1. Insert the driving carrier into the hole of gear case assembly and the driving hammer assembly. 2. Hold the driving carrier as illustrated and confirm if the connect piece is inside of the driving shaft block.
  • Page 10 Procedure 2A → 2B → 2C Ref. No. 2C Assembly of Switch and Motor assembly. 1. Insert the motor and gear & hammer assembly into the housing. 2. Connect the switch assembly with motor lead wires. 3. Set the motor lead wire (black) is on the upper side of switch assembly.
  • Page 11 Procedure 2A → 2B → 2C → 2D Ref. No. 2D Assembly of Housing. 1. Set the hook release lever on the housing. 2. Close the housing A and B. 3. Confirm if the wider protrusion of adjusting screws is placed on bottom (switch side).
  • Page 12 Procedure 2A → 2B→ 2C → 2D → 2E Ref. No. 2E Assembly of Fixing cover. 1. Place the clutch handle with position 1 on top. 2. Set the fixing cover with mark on top. 3. Tighten four screws.

  • Page 13: Wiring Connection Diagram

    5 Wiring Connection Diagram 6 Schematic Diagram...

  • Page 14: Exploded View And Replacement Parts List

    7 Exploded View and Replacement Parts List Model No. : EY7542 Exploded View...
  • Page 15 Model No. : EY7542 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks WEY7542K3078 HOUSING AB SET WEY6507K1167 C-TYPE RING WEY6507L0857 THRUST PLATE WEY6507L0197 BIT HOLDER SPRING WEY6507K3717 BIT HOLDER WEY6504S9067 TIGHT SCREW 4 (4*25) WEY6507S0647 FIXING COVER...
  • Page 16 Model No. : EY7542 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks WEY7542H3247 F/R SELECTOR HANDLE WEY6631L0977 CLICK SPRING WEY6505L0187 CLICK SPRING WEY7542S3238 SELECT SWITCH COVER WEY7542K3257 I/D CHANGE HANDLE WEY7542L1458 GEAR BOX BLOCK WEY7440K7018 TOOL CASE...
