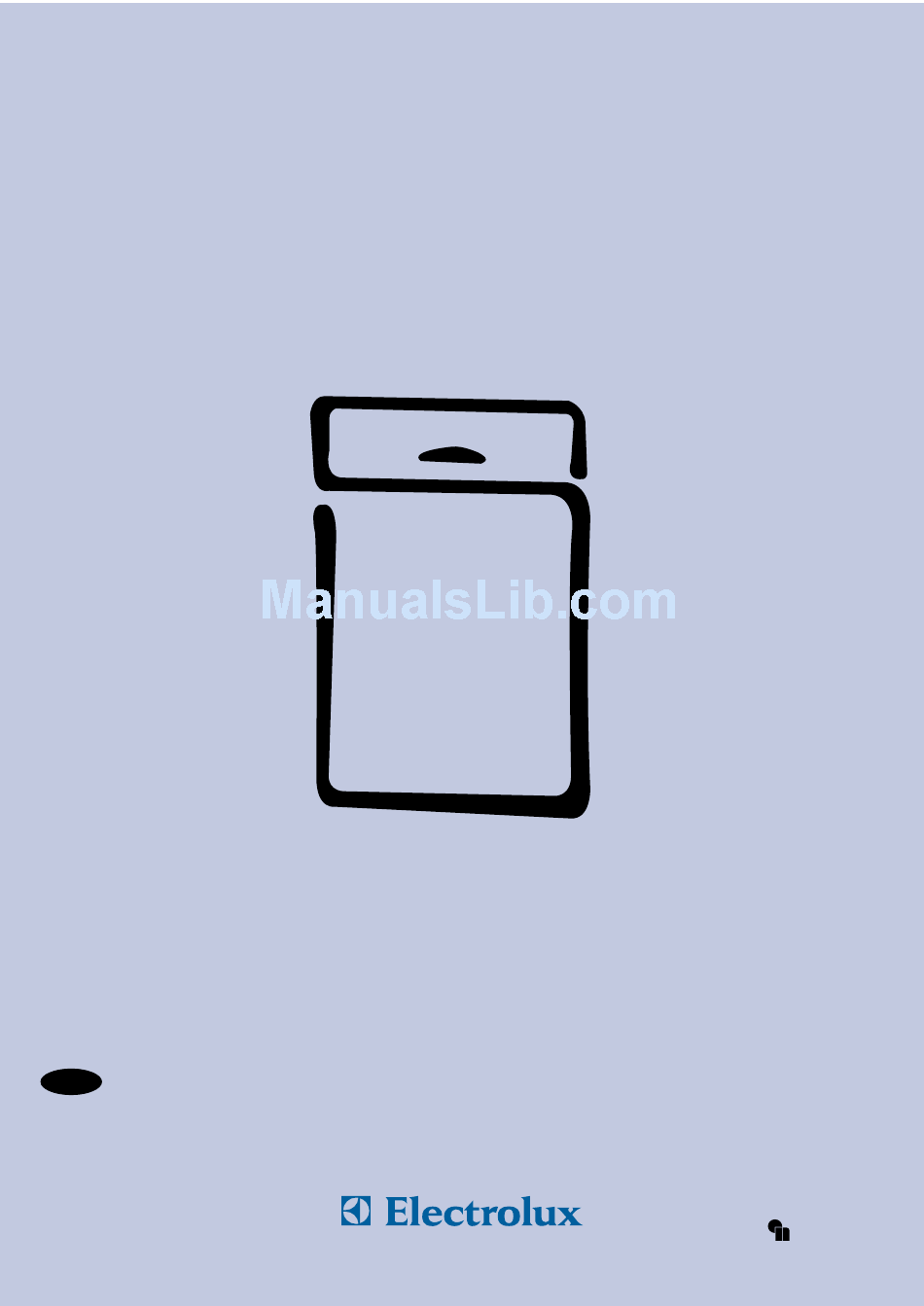

- Page 1 D i s h w a s h e r Model ESL 424 Instruction book 4 02/02...
-
Page 2: Table Of Contents
Contents Important safety information Hints and tips Description of the appliance The control panel Before use Setting the water softener Filling with salt Rinse aid Use of detergent Using your appliance Loading your appliance The lower basket The cutlery basket The upper basket Adjusting the height of the upper basket Washing programmes... -
Page 3: Important Safety Information
Important safety information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information. -
Page 4: Description Of The Appliance
Description of the appliance 1. Water hardness adjustment 2. Upper basket stop 3. Lower spray arm 4. Salt container 5. Detergent dispenser 6. Rinse aid dispenser 7. Control panel 8. Filters 9. Upper spray arm 10. Upper basket 11. Levelling spacers IN99 The control panel 1. -
Page 5: Before Use
Before use Before using your dishwasher for the Levels 4 and 5 (adjustment on the machine) first time: If your water is level 4 or 5, 1. Ensure that the electrical and water connections comply open the door and drill with the installation instructions. -
Page 6: Rinse Aid
Rinse aid Use of detergent Rinse aid is automatically added during the last rinse, ensuring Only use detergents specifically designed for use in thorough rinsing, and spot and streak free drying. The dishwashers. dispenser, which is positioned inside the door, holds about 110 We recommend the use of Finish detergents which are ml of rinse aid, which is sufficient for 16 - 40 dishwashing available in the following options:... -
Page 7: Using Your Appliance
Using your appliance Loading your appliance The upper basket Before placing dishes in the machine, remove any scraps of The upper basket is designed for plates (dessert plates, food, to avoid clogging the filters and consequently reducing saucers, dinner plates of up to 24 cm in diameter), salad the performance. -
Page 8: Washing Programmes
Washing programmes Programme Degree of soil Starting position Required Recommended Cycle quantity of detergent push button description of the programme type of load selector wash prewash Cold prewash Main wash up to 65°C Heavy soil. 1 cold rinse Crockery, cutlery, pots On/Off 20 g POWER WASH 65°... -
Page 9: Operating Sequence
Operating sequence 1. Check the filters 11. Switch off the dishwasher Ensure they are clean and properly positioned (see Switch off the dishwasher by opening the "Maintenance and cleaning"). door and pressing the On/Off push button. Wait a few minutes before removing the dishes; in this way they will be cooler and the drying will be improved. -
Page 10: Maintenance And Cleaning
Maintenance and cleaning Internal cleaning External cleaning Ensure that the seals around the door, the detergent and rinse Clean the external surfaces of the machine and control panel aid dispensers are cleaned regularly with a damp cloth. with a damp soft cloth. If necessary use only neutral detergents. -
Page 11: Something Not Working
Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. Important: If you call out an engineer to a fault listed below or to repair a fault caused by incorrect use or installation a charge will be made even if the appliance is in guarantee. -
Page 12: Service And Spare Parts
+44 (0) 1753 219898 Standard guarantee conditions Italy Pordenone +39 (0) 800 117511 We, Electrolux, undertake that if within 12 months of the date of Ireland Dublin +353 (0) 14090753 purchase this Electrolux appliance or any part thereof is proved to... -
Page 13: Installation Instructions
Installation instructions Any electrical work required to install this appliance The waste connection must be at a height of between 30 cm should be carried out by a qualified electrician or (minimum) and 100 cm (maximum) from the bottom of the competent person. -
Page 14: Electrical Connection
Electrical connection This appliance must be earthed. The manufacturer declines any responsibility should this safety measure not be observed. If the plug that is fitted to your appliance is not suitable for the socket, it must be cut off and the appropriate plug fitted. Important The wires on the mains lead are coloured in accordance with the following code:... -
Page 15: Hints For Test Centres
