5100 402 114 A (BSA....UC cycl)
20.02.2003
15:47 Uhr
Seite 1

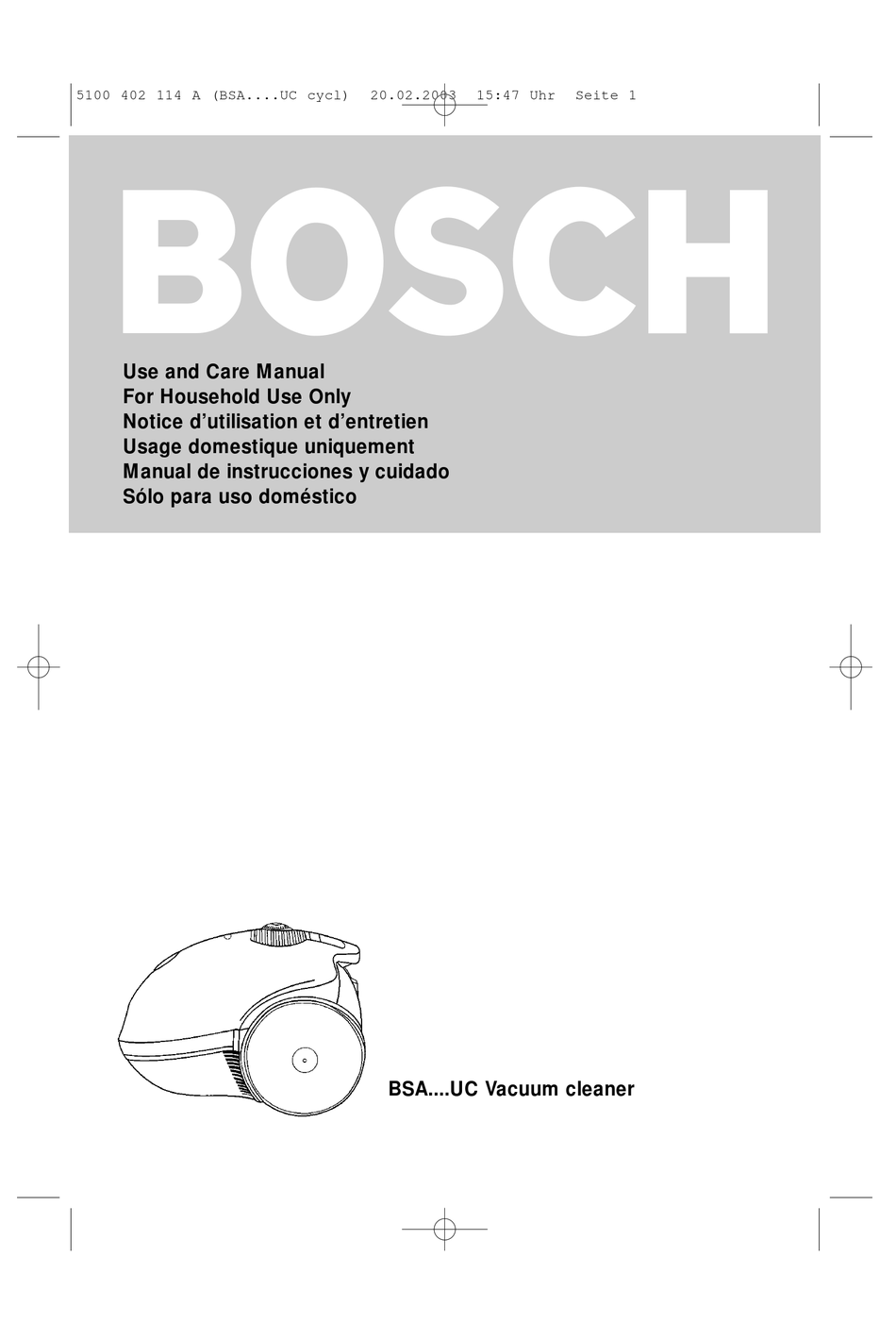

a
Use and Care Manual
For Household Use Only
Notice d'utilisation et d'entretien
Usage domestique uniquement
Manual de instrucciones y cuidado
Sólo para uso doméstico
BSA....UC Vacuum cleaner

Advertisement

Table of Contents
loading

Related Manuals for Bosch BSA.UC

Summary of Contents for Bosch BSA.UC

  • Page 1 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 1 Use and Care Manual For Household Use Only Notice d’utilisation et d’entretien Usage domestique uniquement Manual de instrucciones y cuidado Sólo para uso doméstico BSA..UC Vacuum cleaner...
  • Page 2 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 2 Use and Care Manual ..............3 Notice d’utilisation et d’entretien ..........22 Manual de instrucciones y cuidado ..........41...

  • Page 3: Safety Information

    5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 3 Important Safeguards Use as directed NOTE This vacuum cleaner is intended for use in the home and not for industrial purposes. The vacuum cleaner must be used exclusively in accordance with the specifications stated in the instructions.
  • Page 4 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 4 Do turn off all controls before unplugging. Do use extra care when cleaning on stairs. Do hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding. Do unplug before connecting the Turbo Universal floor brush.
  • Page 5 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 5 16 15 1 Adjustable floor nozzle* 12 Parking aid 13 Dust collector or alternatively 2 Hard floor nozzle * 3 2-part steel tube* 14 Dust bag 4 Combination nozzle 15 Microsan filter 5 Attachment support for the 16 Storing aid...
  • Page 6 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 6 Starting up Lock the suction hose into the suction opening Connect the handle and the suction tube. Connect the floor nozzle and the suction tube. Connect the 2-part steel tube * Depending on version...
  • Page 7 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 7 Unlock the telescopic tube and adjust to the desired length by moving the adjusting button/sliding sleeve up or down. * Depending on version Slide the attachment support on to the combination nozzle and clip on to the suction / telescopic pipe Take the cord by the plug and pull out the desired...
  • Page 8 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 8 Set the level of suction by turning the on/off button left or right. Suction Adjusting the floor nozzle: For cleaning rugs and carpet => For cleaning hard floors => This enables an optimum cleaning effect for the different flooring.
  • Page 9 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 9 Hard floor nozzle For vacuuming hard floor surfaces (tile, wood etc) * Depending on version When taking brief vacuuming pauses, you can use the parking aid on the back of the appliance. Push the hook on the floor nozzle in to the recess on the back of the appliance.

  • Page 10: After Use

    5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 10 After use Pull out the plug from the socket. Pull briefly on the cord and then let go (the cord rolls up automatically) To store / transport the appliance, you can use the storing aid on the underside of the appliance.

  • Page 11: Using The Dust Collector

    5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 11 You have purchased a floor vacuum cleaner which can vacuum up any type of dry dirt using the dust collector or dust bag. We recommend that you use – the dust collector for dirt generated by DIY projects in particular, such as dust from drilling, cement dust or sawdust.
  • Page 12 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 12 Open the base and empty the dust collector by pressing the lid lock in the direction of the arrow. If the base is very dirty (thick dirt), clean this first, e.g. by vacuuming it with the crevice nozzle.
  • Page 13 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 13 Close the base. Refit the dust collector to the vacuum cleaner, push in the carrying handle and close the lid. The inside of the dust collector may become scratched with use and start to look opaque.

  • Page 14: Cleaning The Permanent Filters And Microfilters

    5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 14 Cleaning the permanent filters and microfilters When must the filters be cleaned: After any operating problem, i.e. after a blockage is cleared. At least every six months. Unlock the filter holder by pressing the two lugs in the direction of the arrow and open it.
  • Page 15 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 15 Blockages Removing a blockage in the dust collector. Unfasten the 4 snaplocks by pushing them in the direction of the arrow and remove the dust collector lid. Loosen the blockage, e.g. with a screwdriver, and tap or vacuum it out.
  • Page 16 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 16 Put the dust collector lid back on and push in the direction of the arrow until you hear the 4 clasps lock into place. CLICK! CLICK! Caution: The microfilters and permanent filters must be cleaned after every blockage.

  • Page 17: Using Dust Bags

    5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 17 Using dust bags If necessary, a dust bag can be used instead of the dust collector. Open the dust bag compartment cover Remove the dust collector and insert a dust bag. Close the dust bag compartment cover.

  • Page 18: Replacing The Dust Bag

    5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 18 Replacing the dust bag If suction diminishes considerably, the dust bag must be replaced, even if it is not yet full. In this case it is essential to change the dust bag due to the type of material it contains.

  • Page 19: Maintenance

    5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 19 Replacing the Hepa filter If your vacuum cleaner is equipped with a Hepa filter, this should be replaced once a year. Open the dust compartment lid. Remove the Hepa filter from the guide. Insert the new Hepa filter into the vacuum cleaner and close the lid.
  • Page 20 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:47 Uhr Seite 20 Spare parts and optional extras Dust bag MEGAfilt ® SuperTEX BBZ51AFG1UC Contents: 5 x dust bags MEGAfilt ® SuperTEX with fasteners and 1 Microsan filter HEPA Filter BBZ8SF1UC additional filter for pure exhaust air. Recommended for those with allergies.

  • Page 21: Bosch Small Appliance Warranty

    No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BOSCH. Some states do not allow limitations on how long implied warranties last or the exclusion or limitation of incidental or consequential damages, so the foregoing limitations and exclusions may not apply to you.
  • Page 22 5100 402 114 A (BSA..UC cycl) 20.02.2003 15:48 Uhr Seite 60 BSH Home Appliances Corporation 5551 McFadden Avenue Huntington Beach, CA 92649 Web site: www.boschvacuums.com Customer Service (toll free): 1–866–44BOSCH (1–866–442–6724) GA 5100 402 114 A...
