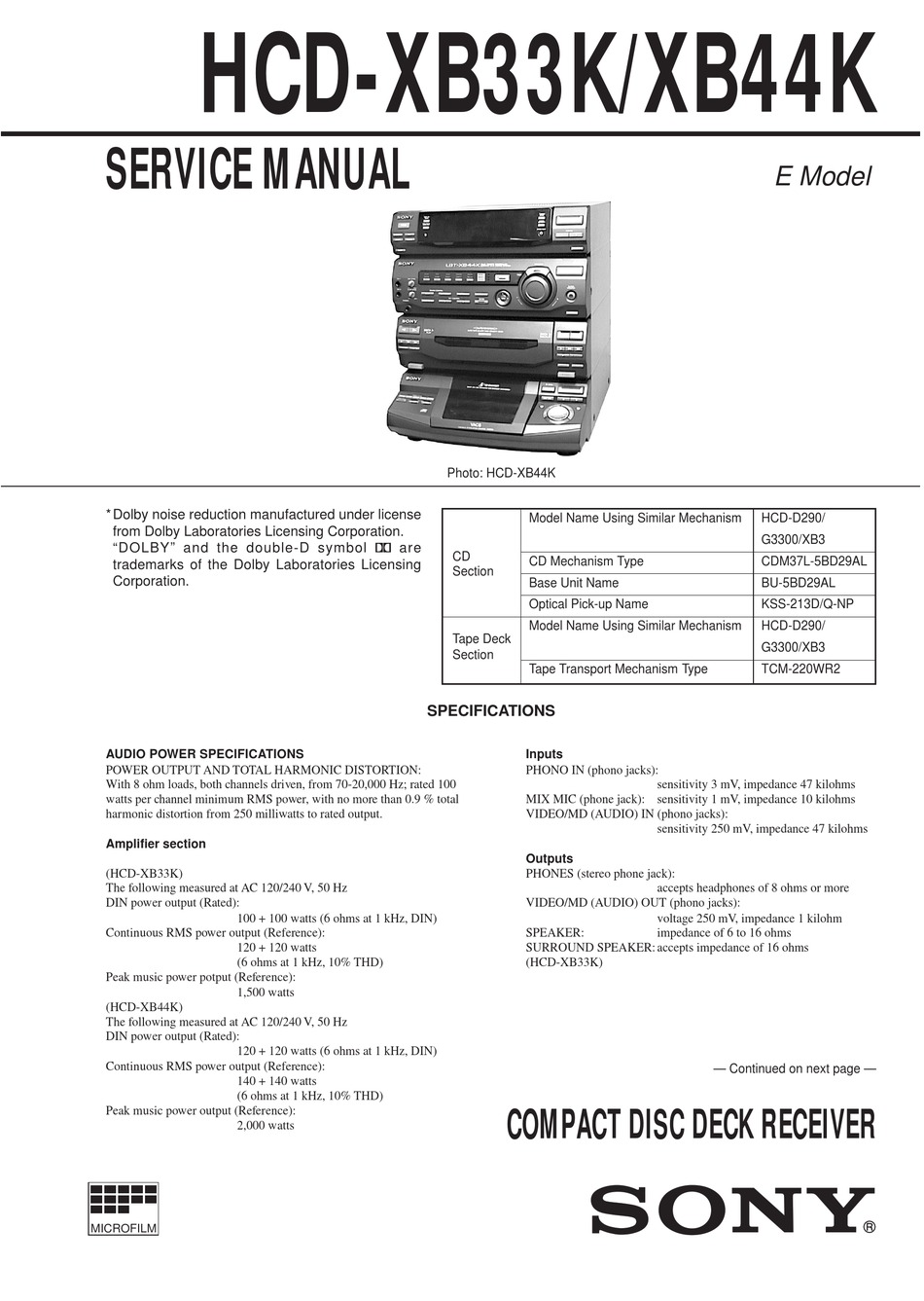

HCD-XB33K/XB44K
SERVICE MANUAL
* Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol a are
trademarks of the Dolby Laboratories Licensing
Corporation.
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION:
With 8 ohm loads, both channels driven, from 70-20,000 Hz; rated 100
watts per channel minimum RMS power, with no more than 0.9 % total
harmonic distortion from 250 milliwatts to rated output.
Amplifier section
(HCD-XB33K)
The following measured at AC 120/240 V, 50 Hz
DIN power output (Rated):
100 + 100 watts (6 ohms at 1 kHz, DIN)
Continuous RMS power output (Reference):
120 + 120 watts
(6 ohms at 1 kHz, 10% THD)
Peak music power potput (Reference):
1,500 watts
(HCD-XB44K)
The following measured at AC 120/240 V, 50 Hz
DIN power output (Rated):
120 + 120 watts (6 ohms at 1 kHz, DIN)
Continuous RMS power output (Reference):
140 + 140 watts
(6 ohms at 1 kHz, 10% THD)
Peak music power output (Reference):
2,000 watts
MICROFILM
Photo: HCD-XB44K
Model Name Using Similar Mechanism
CD
CD Mechanism Type
Section
Base Unit Name
Optical Pick-up Name
Model Name Using Similar Mechanism
Tape Deck
Section
Tape Transport Mechanism Type
SPECIFICATIONS
Inputs
PHONO IN (phono jacks):
MIX MIC (phone jack): sensitivity 1 mV, impedance 10 kilohms
VIDEO/MD (AUDIO) IN (phono jacks):
Outputs
PHONES (stereo phone jack):
VIDEO/MD (AUDIO) OUT (phono jacks):
SPEAKER:
SURROUND SPEAKER: accepts impedance of 16 ohms
(HCD-XB33K)
COMPACT DISC DECK RECEIVER
E Model
HCD-D290/
G3300/XB3
CDM37L-5BD29AL
BU-5BD29AL
KSS-213D/Q-NP
HCD-D290/
G3300/XB3
TCM-220WR2
sensitivity 3 mV, impedance 47 kilohms
sensitivity 250 mV, impedance 47 kilohms
accepts headphones of 8 ohms or more
voltage 250 mV, impedance 1 kilohm
impedance of 6 to 16 ohms
— Continued on next page —
