LG GCC-5240P Owner's Manual

LG GCC-5240P Owner's Manual

Portable pcmcia cd-rw/dvd-rom drive
Hide thumbs Also See for GCC-5240P:
Table of Contents

Advertisement

Quick Links

Download this manual
Portable PCMCIA
GCC-5240P
BZ03

Advertisement

Table of Contents
loading

Related Manuals for LG GCC-5240P

Summary of Contents for LG GCC-5240P

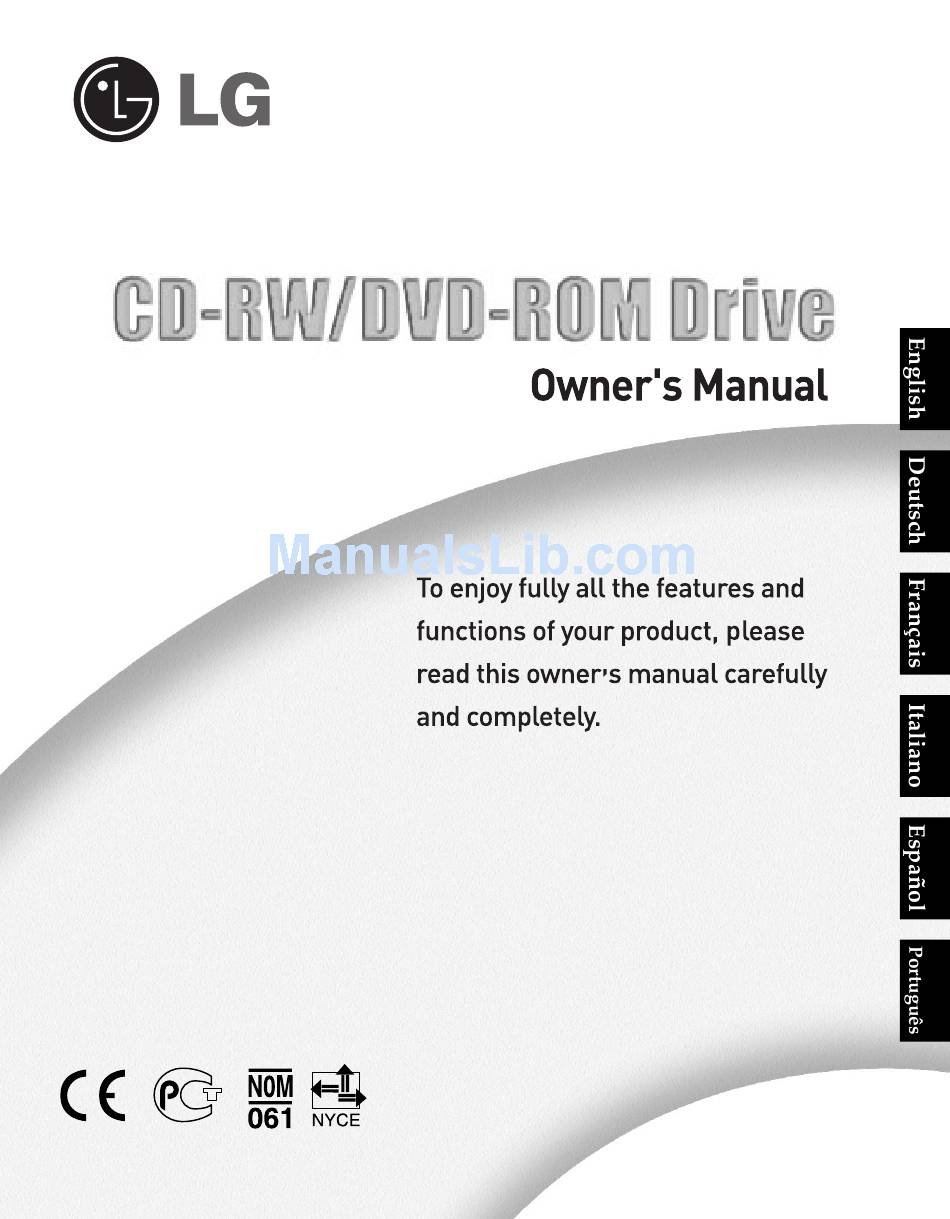

  • Page 1 Portable PCMCIA GCC-5240P BZ03...
  • Page 2 CAUTION : The laser used in the CD-RW/DVD-ROM drive can damage your eyes. Do not attempt to open the cover. To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. Use of controls or performance of procedures other than those specified herein may result in hazardous radiation exposure.
  • Page 3 This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC. CAUTION - INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM. CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT This unit uses the following disc types with the marks:...

  • Page 4: Table Of Contents

    Contents Introduction Features ..........2 System requirements .

  • Page 5: Introduction

    Introduction Thank you for purchasing the Portable CD-RW/DVD-ROM drive. Connecting this drive to your computer will allow you to write and read data to/from a CD-R, CD-RW disc, and read data from other discs, such as DVD-ROM, CD-ROM, etc. Features •...

  • Page 6: Package Items

    Package items Make sure that you have all of the following components and accessories in the package: Item Quantity A. CD-RW/DVD-ROM drive B. PC Card (PC Card, Interface Cable) C. AC Power Adapter D. Writing Software (Nero Burning Rom) E. DVD Player Software (Power DVD) F.

  • Page 7: Important Precautions

    Important precautions Following these precautions when handling the drive or discs. Precautions Please take notice that the manufacturer of this equipment does not offer any warranty against data loss due to inappropriate installation or handling or direct or indirect damages. Please take notice that the manufacturer will bear no responsibility for direct or indirect damages caused by the use of this product or its malfunction.

  • Page 8: Location And Function Of Controls

    Location and function of controls This drive should be used only in its current hardware and software configuration. MANUAL EJECT 1. Top Cover 2. Power Busy Indicator – The indicator lights in green when the power to the drive is on, and the Indicator blinks when the disc is being set, or when the drive is accessing data.

  • Page 9: Installation

    Installation Hardware Installation Notes Connecting to computer Make sure you have a personal computer with an available PC card slot before connecting the drive to your personal computer. Please refer to the device driver manual for the method of setup, and the procedure of connection. Connect the drive to the computer as shown in To AC Wall figure to the left.

  • Page 10: Software Installation For Device Driver

    Software Installation for device driver The drive includes device driver software that tells the drive how to operate from your PC. Install the device driver using the supplied diskette “GCC-5240 Support Software” in your PC. Refer to the manual. Inserting and Removing the PC Card The attached PC card supports the plug and play function of Windows, and can be removed and inserted by performing the following operation.

  • Page 11: Operation

    Operation Loading and ejecting a disc Loading a disc 1. Push the Eject Button to open the Top cover. 2. Load a disc. (Label facing up.) Push down on the center of the disc until the disc clicks into place. Otherwise the disc may spin off the spindle and be damaged.

  • Page 12: Playing A Music Cd

    Playing a music CD Listening to sound You can also attach a pair of headphones for personal listening after setting the Analog mode. Attach headphones with a standard 1/8” stereo plug into the headphone jack on the right side of the drive. When connected to a computer, you can play audio CD’s through your computer’s audio system after setting Digital Audio mode.

  • Page 13: Appendix

    Appendix Troubleshooting guide If the drive does not operate normally, check the following. Since the defect may be caused by device other than this drive, also check the devices that make up your system, the settings of application software being used, etc. If the suggested solutions still cannot restore the drive to normal, do not attempt to repair yourself.
  • Page 14 Problem Possible Causes Corrective Action Drive will not play media or 1. The disc doesn’t match 1. Check the disc format. certain types of CD or DVD your system. (on a PC an ISO9660 IBM media Is the media disc the compatible PC format as correct format for the type opposed to Apple/Mac...

  • Page 15: Specifications

    Specifications Dimensions(WxHxD) 133x21x155mm Weight 350g Interface PCMCIA card Type 2 Data Transfer Rate Read CD-ROM 3,600 kB/s (24x) Max. CD-R 3,600 kB/s (24x) Max. CD-RW 2,250 kB/s (20x) Max. DVD-ROM 11.0Mbytes/s (8x) Max. DVD-R 5.54Mbytes/s (4x) Max. DVD-RW 5.54Mbytes/s (4x) Max. Write CD-R/RW 4xCLV 600kB/s (Mode1) CD-R/RW...
  • Page 16 D-47877 Willich, Germany 1. Take care not to use worn, cracked, damaged, warped or poor quality CD-ROMs, as this may LG Electronics U. K. Ltd. cause damage to your drive. LG House, 264 Bath Road, 2. Check the clear plastic on the center of the disc, Slough Berkshire SL1 4DT cracks here are the main cause of disc crush.
