HP ProCurve 10Base-T Hubs
The HP ProCurve 10Base-T Hubs are a family of multiport repeaters. With
these hubs, you can connect computers, printers, and servers together for file
sharing. These hubs are compliant with the IEEE 802.3 Type 10Base-T
standard and support both 802.3 and Ethernet networks. The HP ProCurve
10Base-T Hubs follow these two standards by providing these features:
A sample hub from the family is shown here to indicate common features.
Front
View
AUI/
Xcvr
LED
Power
LED
ProCurve 10Base-T Hub 24M
HP J3303A
Fault LED
Power
Fault Console
Console
Port
Rear
View
Power
Receptacle
110/220 VAC
Figure 1.
lighting the hub's port LED when it detects the connected device is
powered on and cable is good.
retransmitting data that did not successfully arrive at the destination
device (collision detection).
Twisted Pair AUI/Xcvr
port LEDs Slot
1 2 3 4 5 6 13 14 15 16 17 18
Xcvr
7 8 9 10 11 12 19 20 21 22 23 24
Act Col
Reset Clear
Reset Clear
Button Button

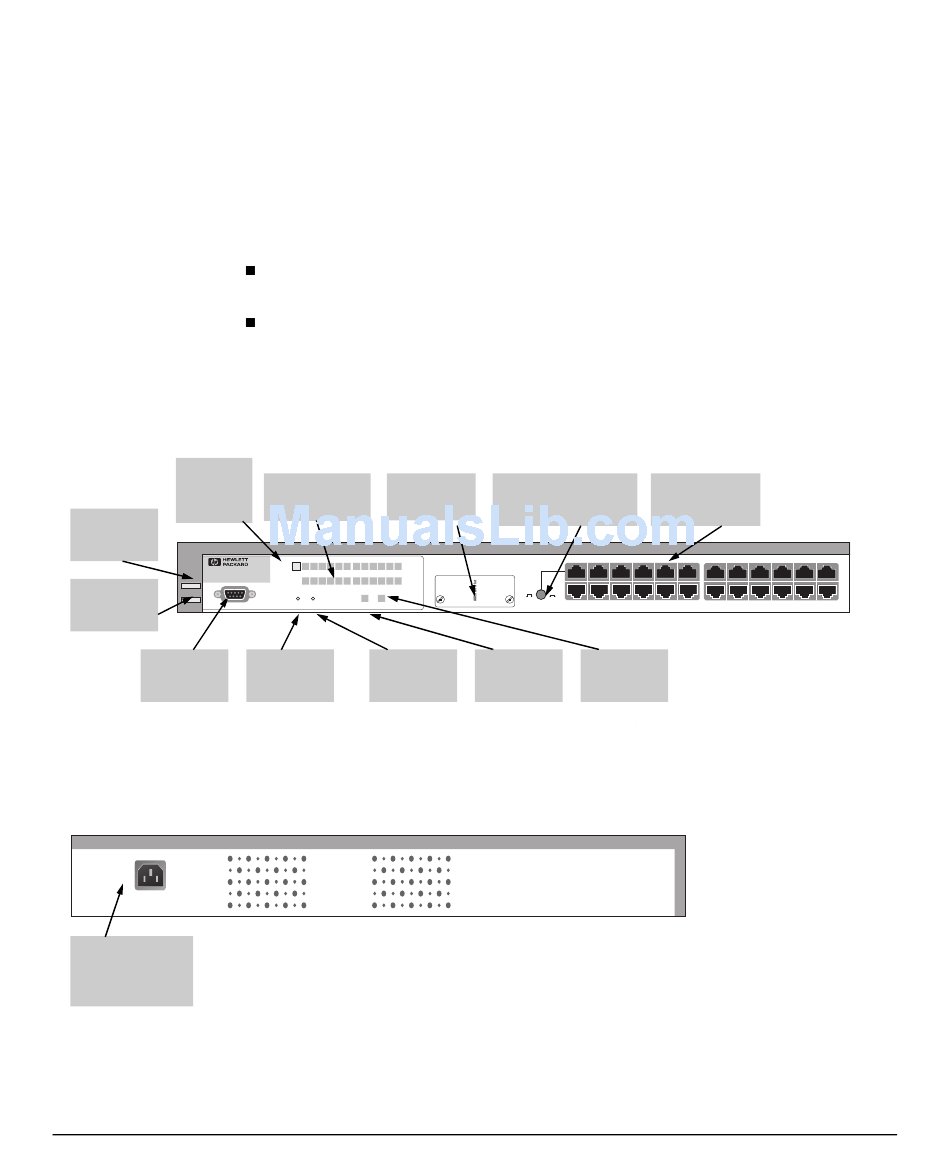

The HP ProCurve 10Base-T Hub 24M (J3303A): Front and Rear Views
MDI/MDI-X switch
for port 1.
1 2X 3X
Port 1 Only
10 Mbps Xcvr Port
MDI
MDI-X
(out) (In)
8X 9X
7X
Activity Collision
LED LED
HP ProCurve 10Base-T Hubs
Twisted-pair
ports
4X 5X 6X 13X 14X 15X 16X 17X
10X 11X 12X
19X 20X 21X 22X 23X
18X
24X
