Installation Guide
Color CCTV Camera
WV-CP310, WV-CP314
Model No:
WV-CP300, WV-CP304

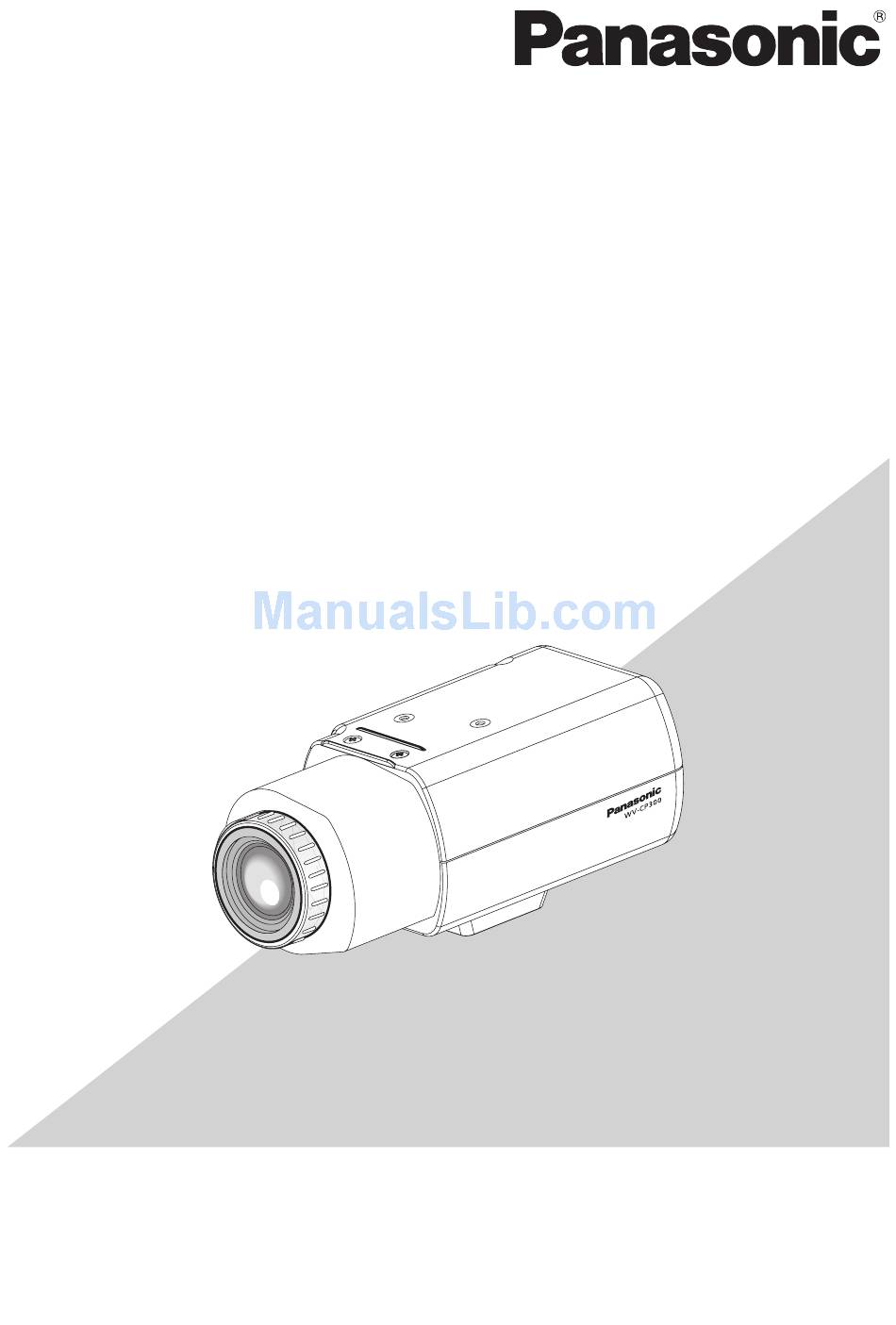

This illustration represents WV-CP300.
Lens: Option
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Advertisement
Table of Contents
Related Manuals for Panasonic WV-CP310
Summary of Contents for Panasonic WV-CP310
-
Page 1: Installation Guide
Installation Guide Color CCTV Camera WV-CP310, WV-CP314 Model No: WV-CP300, WV-CP304 This illustration represents WV-CP300. Lens: Option Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual. - Page 2 WARNING: • To prevent fire or electric shock hazard, do not expose this apparatus to rain or moisture. • The apparatus should not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, should be placed on the appara- tus. • All work related to the installation of this product should be made by qualified service personnel or system installers.
-
Page 3: Table Of Contents
Contents Important safety instructions ......................4 Limitation of liability ......................... 5 Disclaimer of warranty ........................5 Preface ............................6 About notations ..........................6 Features ............................6 About the user manuals ........................7 Trademarks and registered trademarks ................... 7 Precautions ............................ 8 Precautions for installation ...................... -
Page 4: Important Safety Instructions
Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other appara- tus (including amplifiers) that produce heat. -
Page 5: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 6: Preface
• WV-CP310: 120 V AC power supply, with color / black-and-white mode switch function • WV-CP314: 24 V AC, 12 V DC power supply, with color / black-and-white mode switch function •... -
Page 7: About The User Manuals
Note: • The VMD function is not the dedicated function to prevent thefts, fires, etc. We are not respon- sible for any accidents or damages caused by applying the function for the above purposes. About the user manuals The operating instructions of the camera consist of 2 sets: this book and operating instructions (PDF). -
Page 8: Precautions
Precautions Refer installation work to the dealer. This product shall be installed in a vibra- tion-free place. Installation work requires technique and expe- riences. Otherwise injury or damage to this Failure to observe this may cause screws and product may result. bolts to be loosened and consequently to fall Be sure to consult the dealer. - Page 9 [Precautions for use] Do not aim this product at strong light sources. This product is designed to be used indoors. A light source such as a spot light causes a This product is not operable outdoors. blooming (light bleeding) or a smear (vertical lines).
-
Page 10: Precautions For Installation
Precautions for installation Panasonic assumes no responsibility for • Locations where the temperature is not injuries or property damage resulting from within –10 °C to +50 °C {14 °F to 122 °F} . failures arising out of improper installation • Locations subject to vibrations (This prod- or operation inconsistent with this docu- uct is not designed for on-vehicle use.) - Page 11 Power cord (only for WV-CP300‚ WV-CP310) Connect the power cord securely. Run the power cord so that no load is applied to the cord when panning or tilting the camera.
-
Page 12: Major Operating Controls And Their Functions
1 AC power input terminal [120 V~ 60 Hz] Hold down the [SET] button for more than 2 seconds and the setup menu screen will <Only for WV-CP300, WV-CP310> be displayed. Connect with the supplied power cord. • [LEFT]/[RIGHT]: Press the [RIGHT] or [LEFT]... -
Page 13: Installation And Connection
Installation and connection Important: • Follow the installation and connection procedure below to ensure safety. Rotate the lens (option) clockwise slowly to mount the lens. Important: • CS-mount lens can be used on this camera. For use of C-mount lens, use the C-mount adaptor (option). - Page 14 Installation of safety wire The following example shows the installation of safety wire: Important: • Be sure to install safety wire between the camera and the installation position to prevent unex- pected injury caused by fallen camera. • Ensure that the safety wire is installed. Consult the dealer about installation. Attach the safety wire lug (accessory) to the screw hole of the mount base with screw (accessory).
- Page 15 Installation of camera mount bracket (locally procured) Secure the camera mount bracket (locally procured) to the installation position, and mount the camera on the camera mount bracket. Prepare mounting screws according to the material of the area where the camera mount bracket (locally procured) is to be installed.
- Page 16 Mount the camera on the camera mount bracket Follow the instruction of camera mount bracket to mount the camera on the camera mount bracket, and aware of the followings: • Be sure to install the tripod mount base and safety wire before attaching the camera to the camera mount bracket.
- Page 17 Attach safety wire (accessory) to the ceiling or wall. Attach the safety wire to the foundation or other parts of the building with sufficient strength (minimum pull-out strength 196 N {44.06 lbf}). Prepare screws according to the condition of the attachment position. Use the safety wire (accessory), washer (accessory) and spring washer (accessory).
- Page 18 Connect the video output Important: • Be sure to turn off the power of each device before connecting. • Be sure to secure the coaxial cable connectors. Connect a coaxial cable (locally procured) to the video output connector. Coaxial cable To video input VIDEO OUT 120V~60Hz...
- Page 19 Turn on the power. WV-CP300, WV-CP310 Use the power cord (accessory) to connect the power supply. Important: • The included power cord is the dedicated power cord of this product. Do not use it with other devices. Power cord (accessory) 120 V AC, 60 Hz VIDEO OUT 120V~60Hz WV-CP304, WV-CP314 Caution: • ONLY CONNECT WV-CP304, WV-CP314 TO 24V AC OR 24V~IN 2-N 12V DC CLASS 2 POWER SUPPLY.
- Page 20 3 Tighten the screw of the power cord plug. 4 Connect the power cord plug to the power supply terminal on the rear side of the camera. Important: • Make sure that the power cord plug is inserted fully into the power supply terminal. Cable length and wire gauge 24 V AC The recommended cable length and wire gauge are shown in the table for reference. The voltage supplied to the power terminals of the camera should be within 19.5 V AC and 28 V AC.
- Page 21 Adjust the camera angle by loosening the screw of the camera mount bracket while viewing the video monitor. Be sure to loosen the screw of the camera mount bracket when the camera angle is adjusted. If the camera angle is changed when the screw is tight, excessive force is applied to the cam- era mount bracket and camera, and accordingly they may be damaged.
- Page 22 Important: • If the view angle changes during adjustment, press the [SET] button to close the "FOCUS ADJUSTMENT" screen (once the view angle changes, the "PEAK HOLD" and "INDICATOR" values will also change), and repeat from step 3 after the view angle is fixed. •...
-
Page 23: Setup Menu
Setup menu Performing each setting item in the setup menu should be completed in advance to use this unit. Perform the settings for each item in accordance with the installation conditions and customer requirements. List of setup menu Setup item Description CAMERA ID This item specifies the camera title. -
Page 24: Basic Operation
The operations in the setup menu are performed with the operation buttons after calling up the setup menu on the connected video monitor. The description below explains how to operate the setup menu basically. Screenshots of WV-CP310 are shown as an example. Screenshot 1 Step 1... - Page 25 Screenshot 3 Step 4 The selected setup screen in the setup menu Perform the settings for each item. appears on the screen. Selection of setting item: • **CAMERA SETUP** Press the [UP] button or [DOWN] button to SCENE1 ALC/ELC move the cursor. SHUTTER ON(HIGH) • Change of settings: SENS UP WHITE BAL ATW1 Press the [RIGHT] button or [LEFT] button. HIGH D&R(IR) AUTO1...
-
Page 26: Screen Transition Diagram
Screen transition diagram CP310 CP310 Top screen “CAMERA ID” screen CP300 MODEL WV-CP310 SERIES **CAMERA ID** CAMERA ID 0123456789 CAMERA ABCDEFGHIJKLM SYSTEM NOPQRSTUVWXYZ SPECIAL ().,'":;&#!?= LANGUAGE +- */%$ SPACE POSI RET TOP END RESET ....SETUP DISABLE “CAMERA SETUP” screen... -
Page 27: Screen Transition Diagram
CP310 CP310 Screen transition diagram CP300 Top screen “CAMERA ID” screen MODEL WV-CP300 SERIES **CAMERA ID** CAMERA ID 0123456789 CAMERA ABCDEFGHIJKLM SYSTEM NOPQRSTUVWXYZ SPECIAL ().,'":;&#!?= LANGUAGE +- */%$ SPACE POSI RET TOP END RESET ....SETUP DISABLE “CAMERA SETUP” screen **CAMERA SETUP** SCENE1 ALC/ELC... -
Page 28: Troubleshooting
Troubleshooting Before asking for repairs, confirm the causes with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Symptom Reference page Cause/solution • Are the power cord and coaxial cable connected appropriately? 19~20 → Check whether the connection is appropriately established. • Is the monitor brightness appropriately No image displayed adjusted, or is the contrast appropriately adjusted? → Check whether the monitor settings are appropriate. • Is the lens cap detached? →... -
