ISW-EN1233/1235 Installation Guide
Trademarks
Panasonic is a registered trademark of Matsushita Electric Industrial
Co., Ltd.
Trademark names are used throughout this document. In most
cases, these designations are claimed as trademarks or registered
trademarks in one or more countries by their respective owners.
Rather than placing a trademark symbol in every occurrence of a
trademark name, Bosch Security Systems, Inc. (hereinafter referred
to as Bosch) uses the names only in an editorial fashion and to the
benefit of the trademark owner with no intention of infringing the
trademark.
Overview
Table 1: Product Descriptions
Model Number Description

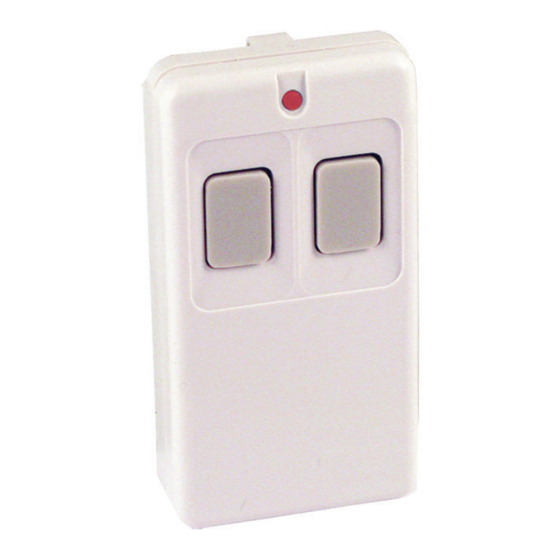

ISW-EN1233D Double-button, necklace pendant transmitter
ISW-EN1233S Single-button, necklace pendant transmitter
ISW-EN1235D Double-button, belt-clip pendant transmitter
ISW-EN1235S Single-button, belt-clip pendant transmitter
1.0 Open the Transmitter Housing
Insert a small, flat-bladed screwdriver into the housing notch, and
gently pry the housing apart.

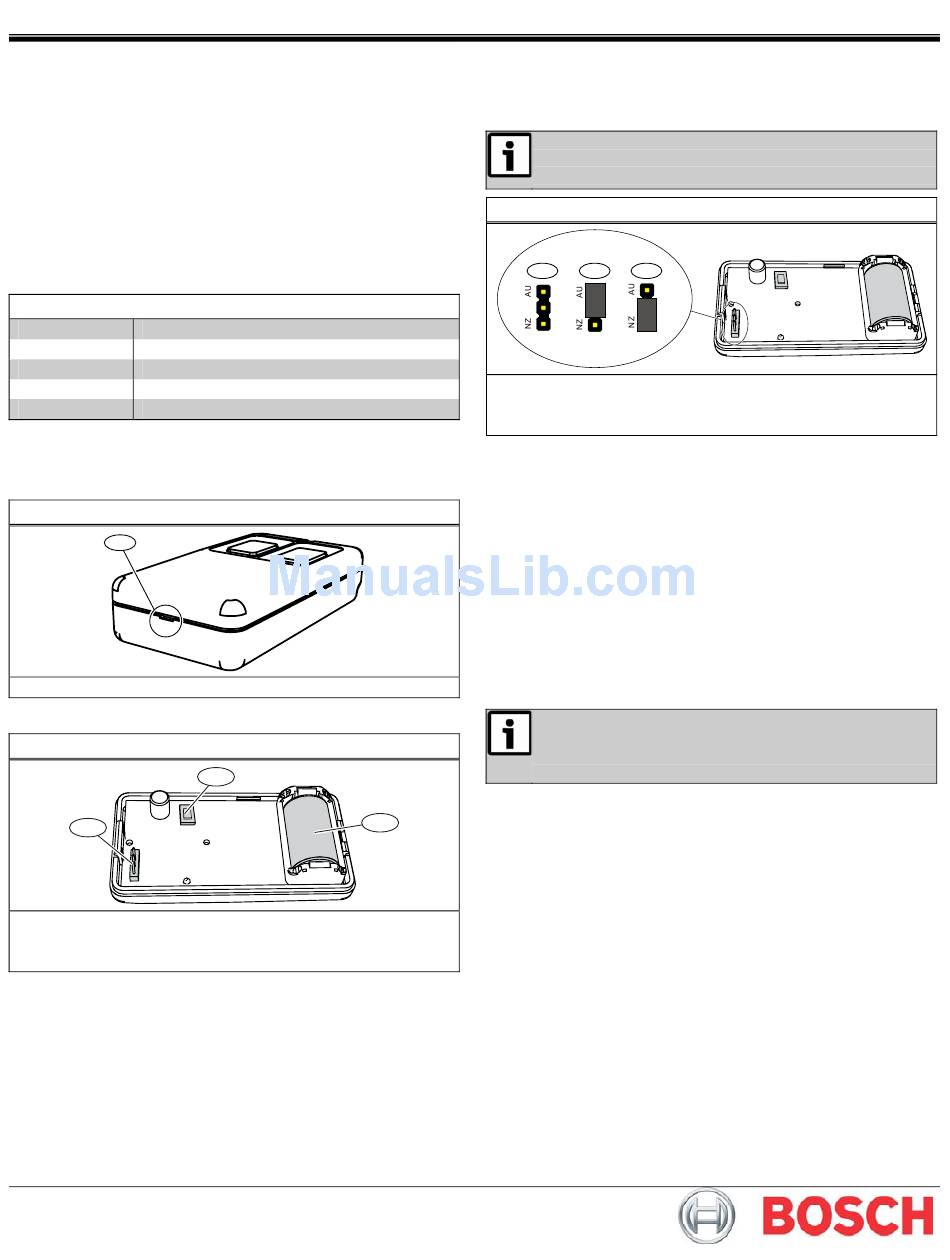

Figure 1: Transmitter Housing (ISW-EN1233D shown)
1
1 - Housing notch
Refer to Figure 2 for component locations.
Figure 2: Transmitter Components
2
1 - Reset button
2 - Frequency Band pins
3 - Battery
1
3
Necklace and Belt-clip Pendant Transmitters
2.0 Select the Frequency Band
Select the appropriate frequency band for your geographic area.
Refer to Figure 3.
If you change the transmitter's frequency band setting
after initial installation, press the Reset button for the
new setting to take effect.
Figure 3: Frequency Band Settings
1 2
1 - North America (902 MHz to 928 MHz) (default)
2 - Australia (915 MHz to 928 MHz)
3 - New Zealand (921 MHz to 928 MHz)
3.0 Install the Battery
1. Install the battery in the location shown in Figure 2.
2. Press the Reset button.
4.0 Register the Transmitter
You must register the transmitter with the system in order for the
transmitter to be monitored and supervised.
When the transmitter is supervised, it sends a check-in message to
the serial receiver or network coordinator every three minutes.
Each transmitter has a unique factory-programmed identification
number. Refer to the receiver's documentation for details on
registering a transmitter.
When prompted by the receiver to reset the transmitter, press the
Reset button on the transmitter. Refer to Figure 2.
Test the transmitter after it is registered with the
system.
To test the transmitter, activate each of the
conditions and ensure an appropriate response.
3
