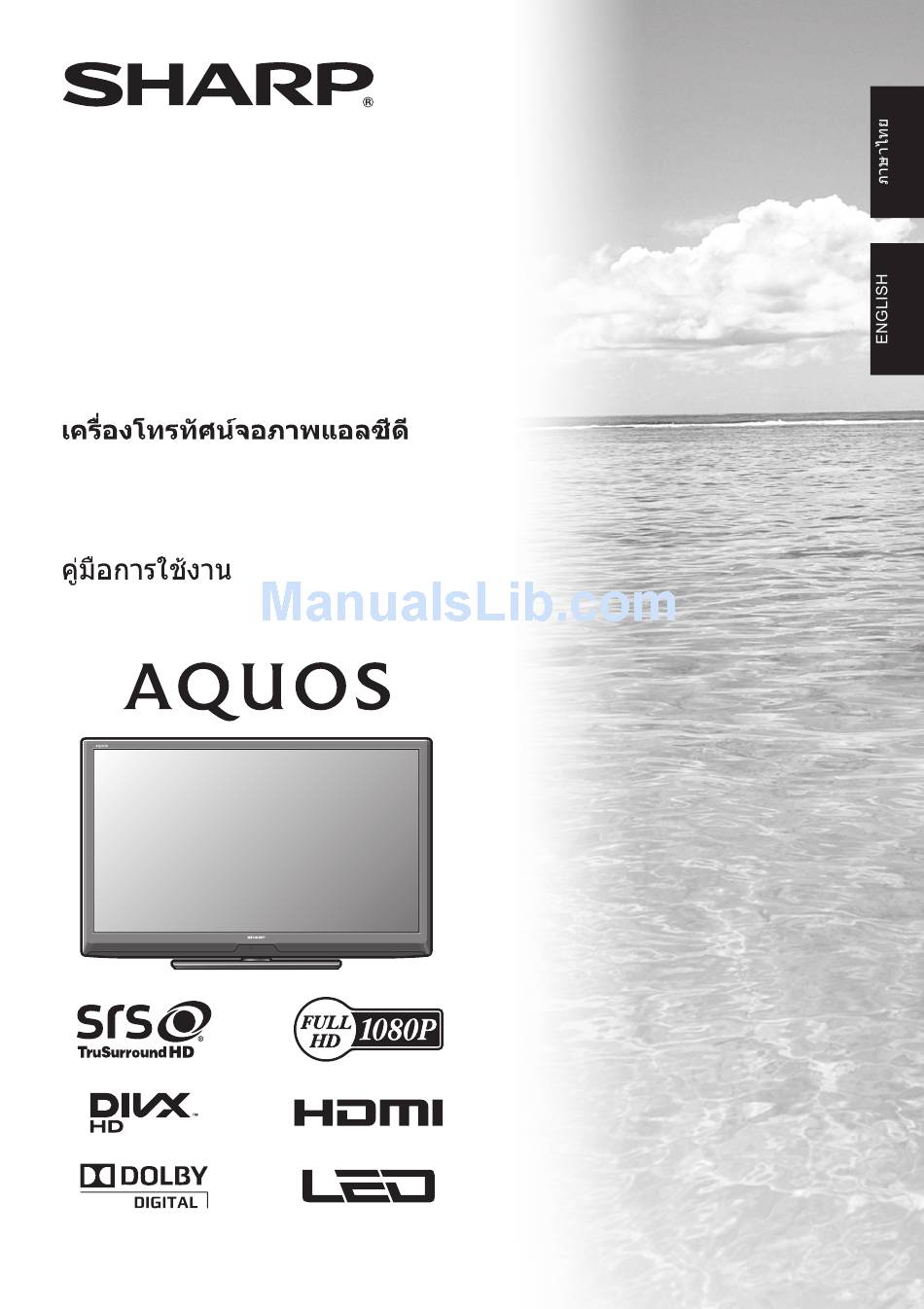

- Page 1 LC-40LE530M LC-46LE530M LC-60LE630M LCD COLOUR TELEVISION OPERATION MANUAL...
-
Page 3: Table Of Contents
Dear SHARP customer Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Precautions carefully before using this product. Contents Page Page Dear SHARP customer ........ -
Page 4: Important Safety Precautions
• The LCD panel used in this product is made of glass. Therefore, it can break when the product is struck forcefully or with a sharp object. If the LCD panel is broken, be careful not to be injured by broken glass. -
Page 5: Attaching The Stand Unit - 40/46Le530M
Insert and tighten middle screws into the holes Attaching the stand unit — on the rear of the TV. 40/46LE530M • Before performing work, spread cushioning over the surface on which you will be laying the TV. This will prevent it from being damaged. -
Page 6: Attaching The Stand Unit - 60Le630M
Attaching the stand cover. Attaching the stand unit — 1 Insert the stand cover. 60LE630M 2 Insert and tighten four short screws into the holes of the stand cover. • Before performing work, spread cushioning over the surface on which you will be laying the TV. This will prevent it from being damaged. -
Page 7: Angle Adjustment (Only For 40/46Le530M)
Angle adjustment (only for 40/46LE530M) The TV can be rotated up to 15 degrees to the right or left. 15° 15° Front CAUTION • Adjust the screen with both hands. Place one hand on the TV and rotate the screen while holding the bottom of the stand (the black part in the above illustration) with your other hand. -
Page 8: Connecting External Devices
Connecting external devices You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD player, Digital TV STB (Set Top Box) and PC. To view external source images, select the input source from INPUT on the remote control unit or INPUT on the TV. -
Page 9: Remote Control Unit
Remote control unit SLEEP Set the Sleep timer. 0 hr. 30 min. 1 hr. 00 min. 1 hr. 30 min. 2 hr. 30 min. 2 hr. 00 min. AV MODE Select an audio and video setting. (See page 10.) Select the sound multiplex mode. e (Mute) Press e s Mutes sound. -
Page 10: Part Names
Part names TV (Front) POWER indicator SLEEP indicator Light off Power off OPC indicator Lighted (Red) The TV is in standby mode. Lighted (Green) The TV is on. Remote control sensor OPC sensor TV (Rear) 1 POWER (On/Off) button 2 MENU button 3 INPUT button 4 Channel up ( r )/down ( s ) buttons 5 Volume up ( e )/down ( f ) buttons... -
Page 11: Initial Auto Installation
Programme setup Initial auto installation When the TV powers on for the first time after Auto search purchase, the initial auto installation wizard appears. Follow the menus and make the necessary settings You can also automatically search by performing one after another. the procedure below. -
Page 12: Selecting A Preset Av Mode
Move it to the desired position by pressing a / Programme setup (Continued) b / c / d , and then press ENTER. Repeat the steps 4 and 5 until all desired • 179.25 MHz: Press 1 s 7 s 9 s 2 s 5. channels are sorted. -
Page 13: Menu Operation
H Advanced Menu operation Colour temp. (Colour temperature) Adjusts the colour temperature to give the best white Press MENU and the MENU screen displays. image. Press c / d to select the desired menu. (Picture, Selected item Description Audio, ECO, Setup, Option) High White with bluish tone Mid-High... -
Page 14: Audio Menu
Audio menu ECO menu Audio Setup Setup Option [ Disable ] STANDARD No signal off Treble –15 Power management [ Disable ] Bass –15 No operation off Ecology Balance [ Off ] SRS TS HD [ On ] Bass enhancer Reset H No signal off You can set the TV to automatically power off in... -
Page 15: Setup Menu
H Input label Setup menu You can assign each input source a label as you prefer. Setup Option Press INPUT to select the desired input source. Auto installation Programme setup Press MENU and the MENU screen displays. Child lock Press c / d to select “Setup”. Input skip Input label Press a / b to select “Input label”, and then... -
Page 16: Option Menu
NOTE Setup menu (Continued) • You must set this to “PC” when connecting devices (including a PC) with an HDMI-certified cable to the HDMI H Quick start 1 terminal. If “HDMI1” is set, there will be no sound output. You can reduce the TV’s start-up time after turning H Output volume select on the power with the remote control unit. -
Page 17: Picture And Still Image
NOTE Option menu (Continued) • For resetting all adjustment items to the factory preset values, press a / b to select “Reset”, press ENTER, press H Game play time c / d to select “Yes”, and then press ENTER. This function displays the elapsed game time so you •... -
Page 18: Teletext Function
Each time you press m , the screen switches Wide Mode (Continued) as shown below. Manual Selection TELETEXT TELETEXT You can select different picture sizes that account for the kind of each picture. NOTE Press WIDE. • If you select a programme with no Teletext signal, “No •... -
Page 19: Usb Media Player
H USB media USB media player Press INPUT to select the “USB” mode or the TV automatically switches to the USB mode when a H Connecting a USB device USB device is connected to the TV. Connect a USB device to the TV as shown below. USB media In this mode, you can enjoy viewing photos, listening to music and watching videos from external USB... -
Page 20: Movie Mode
H Movie mode Viewing video Press c/d to select “Movie mode”, and then press ENTER. Press a/b to select the desired folder or directory, and then press ENTER. Press a/b to select the desired video. Select movie 1/1 Page File name Folder 1 Folder 2 Folder 3... -
Page 21: Music Mode
H Music mode H Photo mode Viewing thumbnails Select music 1 / 1 Page Time File name USB g220\Audio\mp3 Select photo 1/1 Page \USB g220\Audio\mp3 3:05 SONG_01.MP3 3:15 SONG_02.MP3 SONG_03.MP3 3:02 SONG_04.MP3 6:05 SONG_05.MP3 4:52 9:25 SONG_06.MP3 3:13 SONG_07.MP3 SONG_08.MP3 3:23 SONG_09.MP3 3:33... - Page 22 H DivX® setup This is the function to confi rm your registration code. Press MENU and the MENU screen displays. Press c/d to select “Option”. Press a/b to select “DivX (R) Reg. Code”, and then press ENTER. • Copy the 10 digit code down. DivX®...
-
Page 23: Appendix
Appendix Troubleshooting The problems described below are not always caused by malfunctions. Check the TV again before having the TV serviced. Problem Possible Solution • No power. • Check if you pressed POWER on the remote control unit. (See page 8.) If the indicator on the TV lights up red, press POWER. -
Page 24: Specifi Cations
* The HDMI1 and PC terminals can both use the same audio input terminal. • As a part of policy of continuous improvement, SHARP reserves the right to make design and specifi cation changes for product improvement without prior notice. The performance specifi cation fi gures indicated are nominal values of production units. -
Page 25: Removing The Stand- 40/46Le530M
Removing the stand– Removing the stand– 40/46LE530M 60LE630M For wall mounting with the optional bracket (AN- For wall mounting with the optional bracket (AN- 52AG4 or AN-37AG2) remove the stand. 52AG4) remove the stand. Before setting TV on the wall Before setting TV on the wall •... -
Page 26: Mounting The Tv On A Wall
Only for LC-46LE530M • This TV should be mounted on a wall only with the wall mount bracket and attachment* available from SHARP (See page 22). The use of other wall mount brackets may result in an unstable installation and may cause serious injuries. - Page 27 Memo...
- Page 28 Memo...
- Page 30 Printed in Malaysia TINS-F212WJZZ 11P07-MA-NG...
