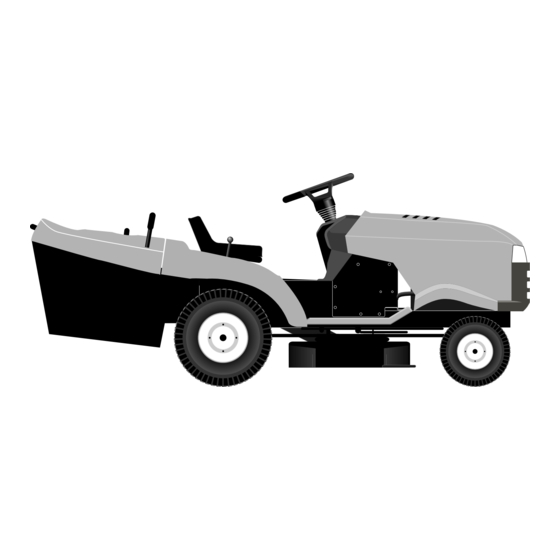

Husqvarna tractor instruction manual
Hide thumbs Also See for CTH160:
Table of Contents

Advertisement

Quick Links

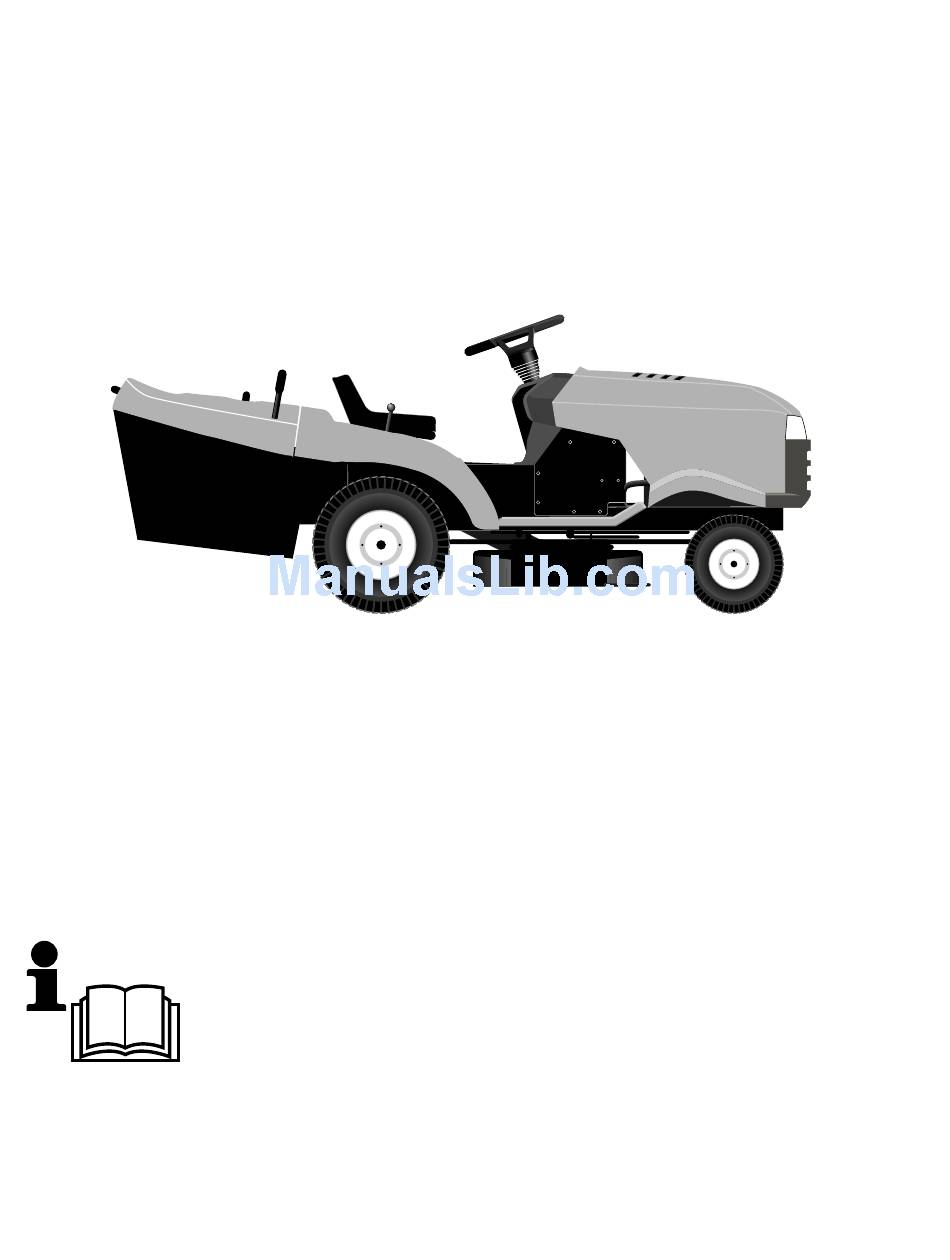

Instruction manual
Please read these instructions
carefully and make sure you
understand them before using this
machine.
Anleitungshandbuch
Bitte lesen Sie diese Anleitungen
sorgfältig durch und vergewissern
Sie sich, daß Sie diese verstehen,
bevor Sie die Maschine in Betrieb
nehmen.
CTH160
CTH160
CTH160
CTH160
CTH160
Manuel d'instructions
Merci de lire trés attentivement le
manuel d'instructions. Assurez-vous
d'avior tout compris avant d'utiliser ce
tracteur.
Manual de las instrucciones
Por favor lea cuidadosamente y
comprenda estas intrucciones antes
de usar esta maquina.
Manuale di istruzioni
Prima di utilizzare la macchina
leggete queste istruzioni con
attenzione ed accertatevi di averle
comprese bene.
Instructieboekje
Lees deze instructies aandachtig en
zorg dat u ze begrijpt voordat u deze
machine gebruikt.

Advertisement

Table of Contents
loading

Related Manuals for Husqvarna CTH160

Summary of Contents for Husqvarna CTH160

  • Page 1 Anleitungshandbuch Bitte lesen Sie diese Anleitungen sorgfältig durch und vergewissern Sie sich, daß Sie diese verstehen, bevor Sie die Maschine in Betrieb nehmen. CTH160 CTH160 CTH160 CTH160 CTH160 Manuel d’instructions Merci de lire trés attentivement le manuel d'instructions. Assurez-vous d'avior tout compris avant d'utiliser ce tracteur.
  • Page 2 Safety rules. Sicherheitsvorschriften. Règles de sécurité. Assembly. Zusammenbau. Montage. Functional description. Funktionsbeschreibung. Description du fonctionnement. Before starting. Maßnahmen vor dem Anlassen. Avant de démarrer. Driving. Betrieb. Conduite. Maintenance, adjustment. Wartung (Instandhaltung), Einstellung. Entretien, réglages. Troubleshooting. Störungssuche. Recherche des pannes. Storage. Aufbewahrung.

  • Page 3: Safety Rules

    Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. I. Training • Read the instructions carefully. Be familiar with the controls and the proper use of the equipment.
  • Page 4 IV. Maintenance and Storage • Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. • Never store the equipment with petrol in the tank inside a building where fumes may reach an open flame or spark.
  • Page 5 Regeln für die sichere Bedienung von Rasentraktoren WICHTIG: DIESE MÄHMASCHINE KANN HÄNDE UND FÜSSE ABTRENNEN UND GEGENSTÄNDE MIT HOHER GESCHWINDIGKEIT SCHLEUDERN. NICHTBEACHTUNG DER FOLGENDEN SICHERHEITSVORSCHRIFTEN KÖNNTE SCHWERE ODER TÖDLICHE VERLETZUNGEN ZUR FOLGE HABEN. I. SCHULUNG • Die Anleitungen sorgfältig durchlesen. Bedienungselementen und der vorschriftsmäßigen Bedienung der Maschine vertraut machen.
  • Page 6 - vor dem Entfernen von Verstopfungen aus dem Mähwerk oder dem Auswurf; - vor dem Prüfen, Reinigen oder Reparieren des Rasenmähers; - nachdem auf ein Fremdkörper gestoßen wurde. Den Rasenmäher auf Schäden untersuchen und die Reparaturen durchführen, bevor die Maschine wieder angelassen und in Betrieb genommen wird;...
  • Page 7 Conseils pour l’utilisation en toute sécurité des tondeuses autoportées IMPORTANT: CETTE TONDEUSE EST CAPABLE D’AMPUTER LES MAINS, LES PIEDS ET DE PROJETER DES OBJETS. L’INOBSERVATION DES RÈGLES DE SÉCURITÉ SUIVANTES PEUT ÊTRE LA CAUSE DE BLESSURES SÉRIEUSES ET ÉVENTUELLEMENT MORTELLES. I.
  • Page 8 • D´ebrayez les lames, arrêtez le moteur, et débranchez le (s) fil (s) de la bougie d'allumage ou enlevez la clef de contact: - avant de retirer l'insert broyeur ou avant de retirer la goulotte d'éjection pour la nettoyer, - avant de contrôler, nettoyer ou travailler sur l'unité de coupe, - avant de retirer un objet coincé...
  • Page 9 Prácticas de Operación Seguras para las Segadoras Conducibles IMPORTANTE: ESTA MAQUINA CORTADORA ES CAPAZ DE AMPUTAR LAS MANOS Y LOS PIES Y DE LANZAR OBJETOS. SI NO SE OBSERVAN LAS INSTRUCCIONES DE SEGURIDAD SIGUIENTES SE PUEDEN PRODUCIR LESIONES GRAVES O LA MUERTE. I.
  • Page 10 - después de golpear un objeto extraño. Inspeccione la segadora cuidadosamente, para verificar si hay daños y haga reparaciones antes de volver a arrancar y a operar el equipo; - si la maquina empieza a vibrar anormalmente (verifíquela inmediatamente). • Desenganche la transmisión a los accesorios cuando haga el transporte o cuando no este en uso.
  • Page 11 1. Norme Antinfortunistiche Regole di sicurezza per trattorini da prato IMPORTANTE: QUESTO TRATTORINO TOSAERBA HA UNA POTENZA SUFFICIENTE AD AMPUTARE MANI E PIEDI E A SCAGLIARE OGGETTI. LA MANCATA OSSERVANZA DELLE SEGUENTI ISTRUZIONI ANTINFORTUNISTICHE POTREBBE CAUSARE LESIONI GRAVI E PERSINO IL DECESSO DELLA VITTIMA. I.
  • Page 12 - dopo aver colpito un oggetto estraneo. Controllare che il tosaerba non sia stato danneggiato ed effettuare le riparazioni del caso prima di riavviare e mettere in funzione l’equipaggiamento; - se il tosaerba, o trattorino, vibra in modo anomalo (in qual caso eseguire immediatamente dei controlli).
  • Page 13 Veilige bedieningsmethoden voor zittrekkers BELANGRIJK: DEZE MAAIMACHINE KAN HANDEN EN VOETEN AMPUTEREN EN VOORWERPEN WEGSLINGEREN. HET NIET OPVOLGEN VAN DEZE VEILIGHEIDSINSTRUCTIES KAN ERNSTIG OF DODELIJK LETSEL TOT GEVOLG HEBBEN. I. TRAINING • Lees de instructies aandachtig. Zorg dat u vertrouwd bent met de bedieningselementen en het juiste gebruik van de machine.
  • Page 14 OPGELET: Maak de bougiekabel altijd los, plaats hem waar hij de bougie niet kan raken teneinde onverhoeds starten te voorkomen tijdens het opstellen, vervoeren, afstellen of uitvoeren van reparaties. Vibration Lärmpegel Vibration Vibratie Vibración Vibrazioni Vibrering Vibration Vibrasjon Tärinä CTH160 15,5/11,6 0-7,3 25-89 4 to 8...
  • Page 15 These symbols may appear on your tractor or in the literature supplied with the product. Learn and understand their meaning. Diese Symbole finden Sie auf Ihrer Maschine oder in Unterlagen, die mit dem Produkt ausgehändigt wurden. Bitte machen Sie sich mit deren Bedeutung vertraut. Ces symboles peuvent figurer sur tracteur ou dans les publications fournies avec le produit.
  • Page 16 These symbols may appear on your tractor or in the literature supplied with the product. Learn and understand their meaning. Diese Symbole finden Sie auf Ihrer Maschine oder in Unterlagen, die mit dem Produkt ausgehändigt wurden. Bitte machen Sie sich mit deren Bedeutung vertraut. Ces symboles peuvent figurer sur tracteur ou dans les publications fournies avec le produit.
  • Page 17 GEFAHR AUGEN SCHÜTZEN EXPLOSIVE GASE KÖNNEN ERBLINDUNG KÖRPERVERLETZUNGEN VERURSAC-HEN. GEVAAR OGEN BESCHERMEN EXPLOSIEVE GASSEN KUNNEN BLINDHEID OF LETSEL VEROORZAKEN. PELIGRO PROTEJE SUS OJOS GASES EXPLOSIVOS PUEDEN CAUSAR CEGUE-DAD O LESIONES. PERICOLO RIPARARE GLI OCCHI VAPORI ESPLOSIVI PUO’ PROVOCARE CECITA’ O LESIONI ZU VERMEIDEN: SCHWEFELSÄURE •...
  • Page 18 2. Assembly. 2. Zusammenbau. 2. Montage. 2. Montaje 2. Montaggio. 2. Montering. Before the tractor can be used certain parts must be as- sembled, which for transportation reasons are enclosed in the packing. The picture shows which parts must be as- sembled.
  • Page 19 VOLANT DE DIRECTION • Monter la rallonge d'arbre de direction sur les orifices souhaités puis installer la vis hexagonale et l'écrou frein, bien serrer le tout, • Positionner le cache sur la colonne de direction. S'assurer que les ergots du cache colonne de direction sont bien clipsés dans les quatre orifices du tableau de bord, •...
  • Page 20 2 2 2 2 2 Seat Remove the hardware securing seat to the cardboard pack- ing and set the hardware aside for assembly of seat to tractor. Pivot seat upward and remove from cardboard packing. Remove the cardboard packing and discard. Place seat on seat pan so head of shoulder bolt is positioned over large slotted hole in pan (1).
  • Page 21 1. Battery Cover 2. Screw 3. Cable Positive (+) 4. Cable Negative (-) 5. Fender 6. Battery terminal 7. Battery 1. Batterieabdeckung 2. Schraube 3. Positives Kabel (+) 4. Negatives Kabel (-) 5. Schutzblech 6. Batterieklemme 7. Batterie 1. Cache batterie 2.
  • Page 22 1. Tapador del acumulador 2. Tornillo 3. Cable positivo (+) 4. Cable negativo (-) 5. Protección 6. Terminal de batería 7. Batería 1. Coperchio dellí accumulatore 2. Vite 3. Cavo elettrico positivo (+) 4. Cavo elettrico negativo (-) 5. Paraurti 6.
  • Page 23 WARNING: Positive terminal must be connected first to prevent sparks from accidental grounding. Remove terminal caps and discard. Connect the red cable to + and then the black earth cable to -. Screw tight the cables. Grease the battery poles with vaseline to prevent corrosion.
  • Page 24 To install bagger components to tractor 1. Discharge Chute 2. 3/8 Nut 3. Flat Washer • Remove discharge chute from rear of tractor. Unhook the two (2) straps and pull chute out and away from tractor. • Remove the two (2) 3/8 nuts and flat washers from the bolts at the tractor back plate.
  • Page 25 1. Front bagger tube 2. Lower bagger tube 3. 1/4 x 50,8mm Carriage Bolts 4. 1/4 Lock nut 1. Front bagger tube 2. 1/4 x 50,8mm Carriage Bolts 3. 1/4 Lock nut 4. Vinyl Binding 5. Dump handle tube 6. Clevis pin 7.
  • Page 26 2 2 2 2 2 Installation der Aufhängung der Grasfangbox des Traktors 1. Auswurfkanal 2. Kontermutter 3/8 3. Flache unterlegscheibe • Nehmen Sie den Auswurfkanal aus dem hinteren Teil des Traktors. Lösen Sie beide (2) Klammern und ziehen Sie den Kanal aus dem Traktor. •...
  • Page 27 1. Vorderer Rahmen der Grasfangbox 2. Unterer Rahmen der Grasfangbox 3. Tragbolzen 1/4 x 50,8mm 4. Kontermutter 1/4 1. Vorderer Rahmen der Grasfangbox 2. Bolzen 3. Kontermutter 1/4 4. Vinylverkleidung 5. Rohr des Handgriffs zum Entleeren der Grasfangbox 6. Fixierfeder 7.
  • Page 28 2 2 2 2 2 Assemblage des composants du collecteur 1. Manche de décharge 2. 3/8 Écrou 3. Rondelle Plate • Retirer la goulotte d'éjection d'herbe. Pour ce faire,libérer les deux attaches à l'arrière du tracteur et tirer la goulotte d'éjection hors de son logement. •...
  • Page 29 1. Tube antériur 2. Tube infèrieur d'ensacheur 3. Boulons 1/4 x 50,8 4. Contre écrous 1/4 1. Tube antréieur 2. Boulons 1/4 x 50,8 3. Contre écrous 1/4 4. Revêtement en vinyl 5. Tube de la poignée décharge 6. Ressort de fixation 7.
  • Page 30 2 2 2 2 2 Para montar los componentes del contenedor para costales al tractor 1. Descarga de adaptarse 2. Tuercas de 3/8 3. Arandelas planas • Quite el colector de la parte trasera del tractor. Desbloquee las dos (2) grapas y tire el colector fuera del tractor. •...
  • Page 31 1. Tubos frontales del contenedor 2. Tubos inferiores del contenedor 3. Tornillos portadores 1/4 x 50,8mm 4. Contratuercas 1/4 1. Tubos frontales del contenedor 2. Tornillos14x50,8 mm 3. Contratuercas 1/4 6MM (1/4") - 9MM (3/8") 4. Capas de vinil 5. Tubo de la manilla 6.
  • Page 32 2 2 2 2 2 Per montare i componenti del cesto di raccolta 1. Convogliatore di scarico 2. Dadi 3/8 3. Rondella Piatta • Rimuovere il convogliatore dalla parte posteriore del trattore. Allentare le due graffe, sganciare ed estrarre il convogliatore.
  • Page 33 1. Piastrina d'arresto dell'asta di scarico 2. Telaio inferiore del cesto 3. Bulloni di supporto 1/4 x 50,8 mm 4. Dadi 1/4 1. Telaio anteriore 2. Bulloni 1/4 x 50,8 3. Dadi 1/4 4. Rivestimento in plastica 5. Asta di scarico 6.
  • Page 34 2 2 2 2 2 Hetmonteren van componenten van de grascontainer op de trekker 1. Afvoertrechter 2. 3/8 borgmoer 3. Vlakke sluitring • Verwijder de afvoertrechter van de achterzijde van de trekker. Haak de twee (2) riemen los en trek de trechter van de trekker af.
  • Page 35 1. Voorstenn 2. Onderste container steun 3. 1/4 x 50,8 mm slotbouten 4. 1/4 Borgmoer 1. Voorstenn 2. 1/4 x 50.8 mm bouten 3. 1/4 Borgmoeren 4. Vinylafdichting 5. Hendel voor legen 6. Vorkbout 7. Sluitveer 6MM (1/4") - 9MM (3/8") 1.
  • Page 36 2 2 2 2 2 TO ADJUST GAUGE WHEELS Gauge wheels are properly adjusted when they are slightly off the ground when mower is at the desired cutting height in operating position. Gauge wheels then keep the deck in proper position to help prevent scalping in most terrain conditions.
  • Page 37 3. Functional description. 3. Description du fonctionnement. 3. Descripción del funcionamiento. Positioning of controls 1. Light Switch. 2. Throttle/Choke control. 3. Brake and clutch pedal. 4. Motion Control Lever. 5. Attachment clutch switch. 6. Quick lifting/lower of the cutting unit. 7.
  • Page 38 3 3 3 3 3 Emplacement des commandes 1. Interrupteur des phares. 2. Commande de et starter. 3. Pédale de frein et d'embrayage. 4. Embrayage et débrayage de la boîte de vitesses. 5. Embrayage et débrayage de l’unite de coupe. 6.
  • Page 39 1. Light switch 1. Lichtschalter 1. Interrupteur des phares 1. Interruptor de alumbrado 1. Interruttore luci 1. Schakelaar verlichting 2. Throttle and choke control The accelerator control regulates the motor speed and also the speed of the blades. If the lever is in its forward position the choke function is connected.
  • Page 40 3 3 3 3 3 3. Brake and clutch pedal When the pedal is pushed down the brake is applied and the motor is disengaged. 3. Brems- und Kupplungspedal Beim Vorwärtsdrücken des Pedals wird das Fahrzeug abge- bremst. Gleichzeitig wird der Motor ausgekuppelt und das Fahrzeug rollt aus.
  • Page 41 4. Motion control lever There are four different positions for this lever: N = Neutral (no drive) S = Slow F = Fast R = Reverse The lever can be moved steplessly between S and F to ensure the required speed. 4.
  • Page 42 6. Quick lifting/lowering of the cutting unit Pull the lever backwards to quickly lift the cutting unit when passing over irregularities in the lawn, etc. During transporta- tion the cutting unit shall be in the highest position. Pull the lever back until it locks. To lower the unit: Pull the lever backwards (1).
  • Page 43 7. Ignition Lock There are three different positions for the ignition key: All electric current broken. Electric current connected. START Start motor connected. WARNING! Never leave the key in the ignition lock when leaving the machine on its own. 7. Zündschloß Der Zündschlüssel hat drei Rasten: Strom ausgeschaltet Strom eingeschaltet...
  • Page 44 8. Frein de parking Pour enclencher le frein de parking : 1. Enfoncer à fond la pédale de frein/embrayage, 2. En même temps, relever vers le haut le levier du frein de parking et le maintenir dans cette position, 3. Relâcher la pédale de frein, Pour déserrer le frein de parking, il suffit ensuite d'enfoncer à...
  • Page 45 10. Cutting height setting The required cutting height is set with the aid of the wheel. The cutting height is increased when it is turned clockwise. The wheel is easier to turn if the lever for lifting/lowering of the cutting unit is pulled backwards at the same time. 10.

  • Page 46: Antes Del Arranque

    4. Before starting. 4. Avant de démarrer. 4. Prima dell’avviamento. Filling up The engine should be run of pure (not oil mixed) unleaded petrol. Do not fill beyond the lower edge of the filling hole. Do not fill over max level. WARNING! Petrol is highly inflammable.
  • Page 47 Oil level The combined oil refilling cap and the oil stick is accessible when the bonnet is lifted forwards. The oil level in the engine should be checked before each run. Make sure that the tractor is horizontal. Unscrew the oil stick and wipe clean. Replace the oil stick and screw tight.
  • Page 48 5. Driving. 5. Betrieb. 5. Conduite. 5. Conducción. Starting of motor Make sure that the cutting unit is in the transport position (top position) and that the lever for connection/disconnection of the cutting unit is in the disconnection position. Anlassen des Motors Darauf achten, daß...
  • Page 49 Turn the ignition key to “START position”. NOTE! Do not run the start motor more than 5 seconds at once. If the engine will not start, wait about 10 seconds before the next try. Zündschlüssel auf “START” drehen. HINWEIS! Den Anlasser nicht jeweils länger als ca. 5 Sekunden betäti- gen.
  • Page 50 5 5 5 5 5 IMPORTANT! COLD STARTING FOR HYDRO IMPORTANT: COLD STARTING FOR HYDRO (BELOW 40°F[4°C]) - AFTER STARTING ENGINE AND BEFORE DRIVING, LET TRANSMISSION WARM UP FOR ONE (1) MINUTE BY PLACING MOTION CONTROL LEVER IN NEU TRAL (N) POSITION AND RELEASING CLUTCH/BRAKE PEDAL.
  • Page 51 • Débrayez la transmission en mettant la commande de roue libre dans la position de la marche à roue libre (Référez-vous à la section de “POUR TRANSPORTER“ dans cette section de ce manuel). • Démarrez le moteur et déplacez la commande des gaz à...
  • Page 52 5 5 5 5 5 NOTE! The machine is equipped with a safety switch which immediately breaks the current to the engine if the driver leaves the seat with engine running and with the connection/ disconnection lever in position “connection”.Your machine is also equipped with a system that will not allow mower to operate if the bagger or optional rear discharge deflector is not installed properly.
  • Page 53 Cutting tips • Clear the lawn from stones and other objects which can be thrown away by the blades. • Localize and mark stones and other fixed objects to avoid collision. • Begin with a high cutting height and reduce until the required cutting result is obtained.
  • Page 54 5 5 5 5 5 To Dump Bagger Your tractor is equipped with a Dump Bag Alarm. To turn off the alarm disengage the attachment clutch switch. • Position tractor in location you wish to dump bagger. • Place motion control lever in Neutral position and set parking brake.
  • Page 55 To convert mower (Converting to mulching or rear discharging will require the purchase of these accessories.) To mulching • Place deck into the high cut position. • Remove bagger or optional rear discharge deflector. • Unhook the two (2) straps and remove discharge chute. •...
  • Page 56 5 5 5 5 5 • Monte el deflector sobre la placa posterior atornillando los cuatro (4) tornillos de mariposa en los orificios aterrajados encontr·ndose en la placa trasera. • Apriete establemente los tornillos de mariposa Para llenar el recogedor •...
  • Page 57 Switching off the engine Move the gas control to “ ”. Disconnect the cutting unit by moving the connect/disconnect lever downwards. Lift up the cutting unit and turn the ignition key to “OFF” position. Allow the engine to idle for 1-2 minutes to cool down before switching off after a hard work.
  • Page 58 6. Maintenance, adjustment. 6. Wartung (Instandhaltung), Einstellung. 6. Entretien, réglages. 6. Mantenimiento, ajuste. 6. Manutenzione. 6. Onderhoud, afstelling. WARNING! Before servicing the engine or cutting unit the following shall be carried out: • Press down the clutch/brake pedal and engage the parking brake lever.
  • Page 59 (1) Capot (2) Connexion des phares (1) Cubierta (2) Conector de cables de los faros delanteros (1) Cofano (2) Connettore cavo luci (1) Motorkap (2) Aansluitkabel koplampen Capot moteur • Soulever le capot. • Déconnecter les phares, • Se plaver devant le tracteur, prendre le capot par les côtés, l'incliner à...
  • Page 60 6 6 6 6 6 Maintenance NOTE: Periodic maintenance should be performed on a regular basis in order to keep your tractor in good running condition. WARNING: Disconnect spark plug wire to prevent accidental starting before attempting any repair, inspection, or mainte- nance.
  • Page 61 To service engine See engine manual. Oil drain valve • Remove cap and install drain tube. • To open valve, push in slightly, turn counterclockwise and pull out. • To close valve, push in and turn clockwise . • Remove drain tube and install cap. 1.
  • Page 62 6 6 6 6 6 SERVICE RECORD FILL IN DATES AS YOU COMPLETE REGULAR SERVICE Change engine oil ... Lubricate pivot points ... Check brake operation ... Clean air screen ... Clean air filter and pre-cleaner ... Replace air cleaner paper cartridge ... Clean engine cooling fins ...
  • Page 63 COMPE-RENDU D'ENTRETIEN INDIQUER LES DATES APRÈS CHAQUE MESURE D'ENTRETIEN Vidange d'huile moteur ... Graissage des articulations ... Vérification des freins ... Nettoyage de la grille d'aération ... Nettoyage du filtre à air et du pré-filtre ... Remplacement de la cartouche du filtre à...
  • Page 64 6 6 6 6 6 DATI DI SERVIZIO COMPILARE OGNI QUALVOLTA SI ESEGUE UN REGOLARE SERVIZIO Cambio dell'olio ... Lubrificazione punti di articolazione ... Controllo freni ... Pulizia schermo aria ... Pulizia filtro aria e prefiltro ... Sostituzione depuratore aria ... Pulizia raffreddamento motore ...
  • Page 65 Blades The blades should be sharp to achieve best cutting results. Sharpening can be carried out with a file or grinding disc. NOTE! It is very important that both blades are sharpened equally to avoid imbalance. Messerbalken Für ein gutes Mähergebnis müssen die messcrbalken scharf sein.
  • Page 66 6 6 6 6 6 1. Hex bolt right hand threaded. 2. Lock Washer 3. Flat Washer 4. Blade 1. Sechskantschraube mit Rechtsgewinde 2. Federscheibe 3. Flache Unterlegscheibe 4. Schneidmesser 5. Fünfeckige Zentrier- bohrung 1. Boulon de type hex- agonal avec filetage à droite 2.
  • Page 67 1. Tornillo de cabeza de 5. Orifico de centraje- cinco facetas, dextro- giro 6. Mandril-estrella de 2. Arandela elistica 3. Arandela plana 7. Canto (auxiliar cort- 4. Filo cortador 8. Nudo del mandril 1. Bullone a testa esa- 5. Foro stellare a cinque gonale con filettatura destrorsa 6.
  • Page 68 6 6 6 6 6 For best results mower blades must be kept sharp. Replace bent or damaged blades. BLADE REMOVAL • Raise mower to highest position to allow access to blades. • Remove hex bolt, lock washer and flat washer securing blade.
  • Page 69 43 mm 1. Measure the distance between the brake lever and the adjuster nut. 2. The distance should be 40 mm (1.56"). 3. Adjust the distance if necessary by first loosening the lock nut (2) and then adjusting with the nut (1). 1.
  • Page 70 6 6 6 6 6 Dismantling of the cutting unit Work from the right side of the machine. 1. Take off the belt from the engine pulley (1). 2. Remove the two rear retainer springs (2) and knock off the axle taps with a hammer.
  • Page 71 3. Remove the retainer springs (3), (4), (5) and axles. 4. Pull the lever for lifting/lowering the cutting unit back- wards. 5. Pull out the cutting unit from the machine. 3. Die Federklammern (3), (4), (5) und die jeweiligen Bolzen ausbauen. 4.
  • Page 72 Replacement of drive belt for cutting unit 1. Dismantle the cutting unit as described previously. 2. Work off the belt from the unit's left pulley and then from the other wheels. 3. Pull the belt away from the cutting unit. 4.
  • Page 73 Adjustment of the cutting unit A. In the direction of travel 1. Check that the air pressure is correct in all four tires. 2. Make sure that the machine is on a horizontal surface. 3. Lift up the cutting unit to its highest position. 4.
  • Page 74 “A” (1) Bottom edge of mower (2) Lift link adjustment nut (1) Unterkante des Mähwerks (2) Hubstangen-Stellmutter (1) Fond du bord de la tondeuse (2) Écrou de réglage du raccord de levage (1) Parte inferior de la esquina de la segadora (2) Tuerca de ajuste del várillaje de levantamiento (1) Bordo inferiore del tagliaerba (2) Dado di regolazione dell'articolazione di sollevamento...
  • Page 75 Replacement of drive belt 1. Dismantle the cutting unit as described previously. 2. Pull apart the contact for the cable to the electrical connec tion (1). 3. Dismantle the motion restrainer for the clutch (2). 4. Engage the parking brake and work off the belt upwards from the pulley (3), the clutch pulley (4).
  • Page 76 6 6 6 6 6 1. Motion Control Lever 2. Neutral Lock Gate 3. Adjustment Bolt 1. Steuerknüppel 2. Verschlussperre in Leerlaufstellung 3. Einstellbolzen 1. Leiver De Controle Du Mouvement 2. Point Mort Vanne De Fermeture 3. Boulon De Reglage TRANSAXLE MOTION CONTROL LEVER NEU- TRAL ADJUSTMENT The motion control lever has been preset at the factory and...
  • Page 77 1. Palanca de Control Del Movimento 2. Neutro Cierre Metálico 3. Perno de Regulación 1. Leva Di Comando Del Movimento 2. Blocco In Posizione Folle 3. Bullone Di Regolazione 1. Stuurbedieningshandel 2. Vrijloop-Sluitboomgrendel 3. Stelbout REGULACIÓN DE LA PALANCA DE CONTROL DEL MOVIMIENTO DEL CAMBIO MECÁNICO La palanca de control del movimiento del cambio mecánico ya viene predefinida por la Casa constructora y por lo tanto...
  • Page 78 6 6 6 6 6 TRANSAXLE COOLING The fan and cooling fins of transmission should be kept clean to assure proper cooling. Do not attempt to clean fan or transmission while engine is running or while the transmission is hot. •...
  • Page 79 7. Troubleshooting. 7. Störungssuche. Engine will not start 1. No fuel in fuel tank. 2. Plug defective. 3. Plug connection defective. 4. Dirt in carburetor or fuel pipe. Start motor will not turn engine 1. Battery flat. 2. Poor contact between cable and battery pole. 3.
  • Page 80 7. Recherche des pannes. 7. Búsqueda de averías. Le moteur ne démarre pas 1. Manque d’essence dans le réservoir. 2. Bougie d’allumage défectueuse. 3. Raccord de bougie défectueux. 4. Impuretés dans le carburateur ou la canalisation de carburant Le démarreur n’entraîne pas le moteur 1.
  • Page 81 7. Ricerca guasti. 7. Het localiseren van fouten. Il motore non parte 1. Manca il carburante. 2. Difetto di candela. 3. Collegamento della candela difettoso. 4. Sporco nel sistema di alimentazione e o nel carburatore. Il motorino di avviamento non fa girare il motore 1.
  • Page 82 8. Storage. 8. Aufbewahrung. 8. Rangement. 8. Conservación. The following steps should be taken when mowing season is over: • Clean the entire machine, especially underneath the cutting unit cover. • Touch up all chipped paint surfaces in order to avoid corrosion.
  • Page 83 8. Rismessaggio. 8. Stallen. Al termine della stagione effettuare i seguenti interventi: • Pulire tutto il tagliaerba e particolarmente sotto il coper- chio della falciatrice. • Ritoccare danni alla verniciatura per evitare ossidazio- • Cambiare l’olio del motore. • Vuotare il serbatoio della benzina. Avviare il motore e farlo girare fino allo svuotamento completo del carbura- tore.
  • Page 84 532175625 Rev. 1 5.18.01 TR Printed in U.S.A.
