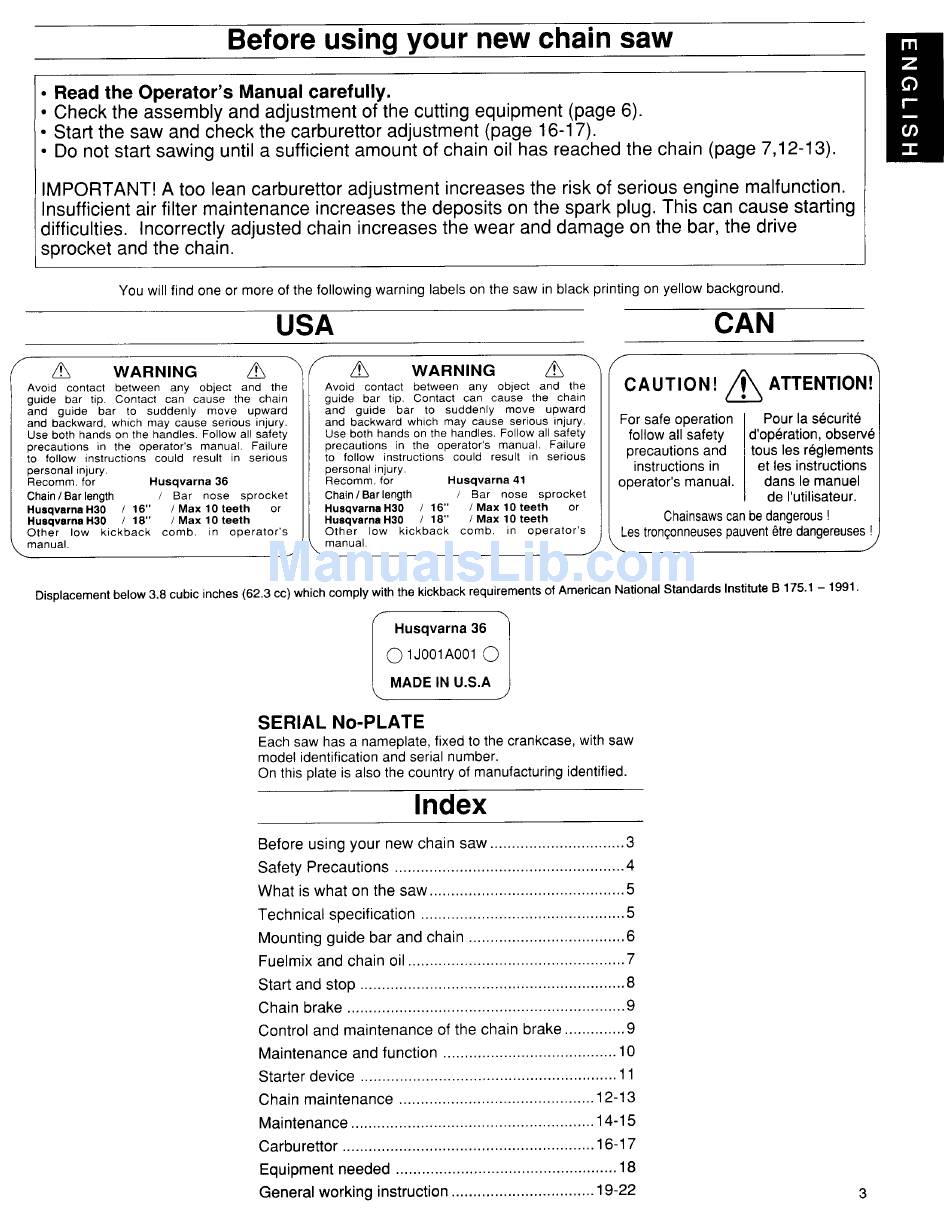

Husqvarna 36 Operator's Manual page 3

Before using your new chain saw
c
Read the Operator's Manual carefully.
Check the assembly and adjustment of the cutting equipment (page 6).
Start the saw and check the carburetor adjustment (page 16-17).
s Do not start sawing until a sufficient amount of chain oil has reached the chain (page 7,12-13).
IMPORTANT! A too lean carburetor adjustment increases the risk of serious engine malfunction.
Insufficient air filter maintenance increases the deposits on the spark plug. This can cause starting
difficulties. Incorrectly adjusted chain increases the wear and damage on the bar, the drive
sprocket and the chain.
You will find one or more of the following warning labels on the saw in black printing on yellow background.
USA
CAN
A
\
WARNING
A
Avoid contact between any object and the
guide bar tip. Contact can cause the chain
and guide bar to suddenly move upward
and backward, which may cause serious injury.
Use both hands on the handles. Follow all safety
precautions in the operator's manual. Failure
to follow instructions could result in serious
personal injury.
Recomm. for
Husqvarna 36
Chain /Bar length
/ Bar nose sprocket
Husqvarna H30
/ 16" I Max 10 teeth or
Huaqvarna H30 / 18" I Max 10 teeth
Other low kickback comb. in operator's
manual.
.
/
/-
.
A
WARNING
A
Avoid contact between any object and the
guide bar tip. Contact can cause the chain
and guide bar to suddenly move upward
and backward which may cause serious injury.
Use both hands on the handles. Follow all safety
precautions in the operator's manual Failure
to follow instructions could result in serious
personal injury.
Recomm. for Huaqvarna 41
Chain / Bar length
/ Bar nose sprocket
Huaqvarna H30 / 16"
/ Max 10 teeth or
Huaqvarna H30
/ 18" / Max 10 teeth
Other low kickback comb. in operator's
manual.
\
/-
>
(b
CAUTION! I ATTENTION!
For safe operation Pour la securite
follow all safety
d'operation, observe
precautions and tous Ies reglements
instructions
in et Ies instructions
operator'smanual. clansIe manuel
de I'utilisateur.
Chainsaws canbedangerous !
Lestron~onneuses pauvent @tre d angereuses !
'.-
/
Displacement below
3.8 cubic
inches(62.3cc)whichcomplywiththe kickback requirements o f AmericanNational S tandards InstitutaB 175.1– 1991.
(
Husqvarna 36
0 IJOOIAOOI O
MADE IN U.S.A
)
SERIAL No-PLATE
Each saw has a nameplate, fixed to the crankcase, with saw
model identification and serial number.
On this plate is also the country of manufacturing identified.
Index
Before using your new chain saw ...............................3
Safety Precautions .....................................................4
What is what on the saw. ............................................5
Technical specification ...............................................5
Mounting guide bar and chain ....................................6
Fuelmix and chain oil ..................................................7
Start and stop .............................................................8
Chain brake ........ ........................................................ 9
Control and maintenance of the chain brake ..............9
Maintenance and function ........................................ 10
Starter device ........................................................... 11
Chain maintenance .............................................12 -13
Maintenance ........................................................14-15
Carburetor .......................................................... 16-17
Equipment needed ................................................... 18
General working instruction ................................. 19-22
3
