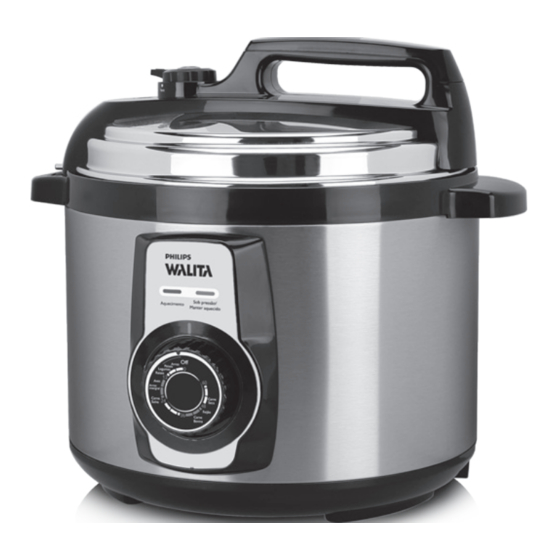

Philips WALITA RI3103 User Manual

Register your product and get support at
www.philips.com/welcome
RI3103
EN User manual PT-BR Manual do Usuário
Specifications are subject to change without notice.
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.
RI3103_UM_PT-BR_V1.0_121221
English
1 Your electric pressure cooker
Congratulations on your purchase, and welcome to Philips!
To fully benefit from the support that Philips offers, register your
product at www.Philips.com/welcome.
What's in the box
2
Electric pressure cooker main unit Rice spoon
Soup ladle Measuring cup
Power cord User manual
Safety leaflet Warranty card
Service list Recipe
Overview
Pressure regulator valve Side handle
a i
Floating valve Water level indications
b j
Floater Sealing ring
c k
Locking pin Top lid
d l
Inner pot Lid handle
e m
Power socket Heating indicator
f n
Control knob Keep pressure indicator
g o
Heating element
h
3 Before first use
1
Remove all packaging materials from the appliance.
2
Take out all the accessories from the inner pot.
3 Clean the parts of the electric pressure cooker thoroughly
before using it for the first time (see chapter 'Cleaning').
Note
•
Make sure all parts are completely dry before you start using the
electric pressure cooker.
4 Using the electric pressure
cooker
Before using the electric pressure cooker to cook food, you need to
follow below preparations:
1
Hold the lid handle and turn it clockwise until the top lid cannot
move any more, then lift up the top lid.
2 Take out the inner pot from the electric pressure cooker and
put the prewashed food in the inner pot.
3
Put the inner pot back into the electric pressure cooker.
4
Place the top lid onto the electric pressure cooker and turn it
anti-clockwise. You will hear a "click" sound when the top lid is
properly locked.
What's in the box Conteúdo da caixa
a
m
b
c
l
d
k
e
j
i
h
g
f
To disassemble the pressure regulator valve
Para desmontar a válvula reguladora de pressão
5
Turn the pressure control valve to the "Cooking with pressure"
position ( ).
Cozinhar com pressão
Note
•
To braise, fry or bake food, turn the pressure control valve to the
"Cooking without pressure" position ( ).
Cozinhar sem pressão
•
Make sure the sealing ring is properly assembled around the inside
of the top lid.
•
Make sure the pressure regulator valve and floating valve are clean
and not blocked.
•
Make sure the outside of the inner pot is dry and clean, and that there
is no foreign residue on the heating element or the magnetic switch.
•
Make sure the inner pot is in proper contact with the heating element.
Cooking food
Note
•
Do not fill the inner pot with less than 1/3 or more than 2/3 full
of food and liquid.
•
For food that expands during cooking, do not fill the inner pot
with more than 1/2 full of food and liquid.
•
For rice cooking, follow the water level indications on the inside
of the inner pot. You can adjust the water level for different types
of rice and your own preference. Do not exceed the quantities
indicated on the inside of the inner pot.
•
Make sure the floater falls down before cooking.
1
Follow the preparation steps in "Using the electric pressure
cooker".
2
Put the plug in the power socket.
» The "Heating" indicator ( ) lights up.
» The electric pressure cooker starts heating and pressurizing.
3
Turn the control knob clockwise to choose the pressure keeping
time.
4
When the electric pressure cooker reaches the working
pressure, the "Heating" indicator ( ) turns off and
the "Keep Pressure" indicator ( ) lights up.
» The electric pressure cooker enters pressure keeping mode.
5
When the pressure keeping time has elapsed, the electric
pressure cooker automatically switches to keep warm mode.
6 Turn the pressure regulator valve to the "Release pressure"
position ( ).
Liberar pressão
» The electric pressure cooker starts releasing pressure.
» The floater drops when the pressure is released sufficiently.
7
Hold the top lid handle and turn the lid clockwise until it cannot
move any more, then lift it up.
n o
Aquecimento Sob pressão
www.philips.com/welcome www.philips.com/welcome www.philips.com/welcome
HD3103 HD3103 HD3103
Safety leaflet Warranty
User manual
To assemble the pressure regulator valve
Para montar a válvula reguladora de pressão
Note
•
When cooking soup or viscous liquid, do not release pressure by
turning the pressure regulator valve to the steam vent position,
otherwise liquid might spurt from the pressure control valve. Wait
until the pressure is naturally released and the floater has dropped
to open the top lid.
•
Once the pressure cooker is on, turn the control knob and set
the pressure keeping time. This is to avoid the pressure cooker to
automatically switch to keep warm mode after heating.
•
The pressure keeping timer will start counting when the working
pressure is reached.
•
After the cooking is finished and the pressure is released, unplug
the electric pressure cooker to turn off the keep warm function or
when not in use.
Tip
•
Choose the desired pressure keeping time according to the time
indications on the control panel. You can also adjust the pressure
keeping time for different types of food and your preference.
Adjustable pressure keeping time range
Cooking function Adjustable pressure
keeping time (minute)
3
White rice ( )
4
Fish ( )
3-5
Vegetables ( )
4-7
Roots ( )
10-15
Poultry ( )
15
Brown rice ( )
20-25
Pork ( )
45
Beans ( )
40-60
Beef ( )
50-60
Dry meat ( )
Assembling and disassembling the pressure
regulator valve
Caution
•
Do not disassemble the pressure regulator valve during
cooking. Always unplug the electric pressure cooker and wait
until the pressure has been released sufficiently.
To disassemble the pressure regulator valve:
1
Turn the pressure regulator valve clockwise to the "Cooking
without pressure" position ( ).
Cozinhar sem pressão
2 Press down the pressure regulator valve and turn it clockwise
until it cannot move any more, then pull up the pressure
regulator valve.
Using the electric pressure cooker
Como usar a panela de pressão elétrica
Cooking food
Cozinhar alimentos
Aquecimento Sob pressão
Aquecimento Sob pressão
To assemble the pressure regulator valve:
1
Place the pressure regulator valve in position and turn it anti-
clockwise to the "Release pressure" position ( ).
Liberar pressão
2
When the pressure regulator valve is properly assembled, you
will hear a "click' sound.
5 Specifications
Model Number RI3103
Rated power output 900W
Rated capacity 5.0L
Diameter 22cm
Pressure keeping time 0-60 minutes
Note
•
Always unplug the appliance if not used for a longer period.
6 Cleaning and Maintenance
Note
•
Unplug the electric pressure cooker before starting to clean it.
•
Wait until the electric pressure cooker has cooled down
sufficiently before cleaning it.
Interior
Inside of the outer lid and the main body:
•
Wipe with wrung out and damp cloth.
•
Make sure to remove all the food residues stuck to the electric
pressure cooker.
Heating element:
•
Wipe with wrung out and damp cloth.
•
Remove food residues with wrung out and damp cloth or
toothpicks.
Sealing ring:
•
Soak in warm water and clean with sponge.
Exterior
Surface of the outer lid and outside of the main body:
•
Wipe with a cloth damped with soap water.
•
Only use soft and dry cloth to wipe the control panel.
•
Make sure to remove all the food residues around the pressure
regulator valve and floating valve.
Pressure control valve and floating valve:
•
Disassemble the pressure control valve, soak it in warm water,
and clean with sponge.
•
Remove food residues in the pressure control valve and floating
valve with toothpicks.
Accessories
Rice spoon, soup ladle, and inner pot:
•
Soak in hot water and clean with sponge.
