1

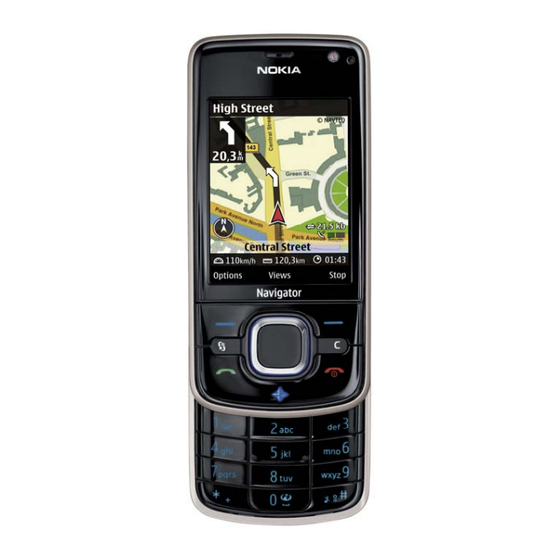

SERVICE MANUAL
Level 1&2
Transceiver characteristics
Band:
RM-367: WCDMA 900/2100 HSDPA and GSM/EDGE
850/900/1800/1900
RM-386: GSM/EDGE 850/900/1800/1900
RM-408: WCDMA 850/2100 HSDPA and GSM/EDGE
850/900/1800/1900
RM-419: WCDMA 850/1900 HSDPA and GSM/EDGE
850/900/1800/1900
Display:
2.4'' QVGA (240 x 320 pixels) TFT colour display, 16
million colours
Camera:
3.2 mpix, 4 x digital zoom
Operating System:
S60 3.2
Connections:
Bluetooth 2.0, 2.5 mm AV connector, High Speed
Micro USB Interface to PC, 2.0 mm charger
connection, MicroSD card (hot swap)
Transceiver with battery pack
Talk time
GSM: Up to 3.6
hours
WCDMA: Up to
2.6 hours
Confidential
Copyright @ 2008 NOKIA. All rights reserved
6210 Navigator RM-367, RM-386, RM-408, RM-419
Service Manual Level 1&2
Standby
GSM: Up to 244
hours
WCDMA: Up to
231 hours
Note
Depends on
network
parameters
and phone
settings
ISSUE 1

Advertisement

Table of Contents
loading

Related Manuals for Nokia 6210 Navigator

Summary of Contents for Nokia 6210 Navigator

  • Page 1 6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 SERVICE MANUAL Level 1&2 Transceiver characteristics Band: RM-367: WCDMA 900/2100 HSDPA and GSM/EDGE 850/900/1800/1900 RM-386: GSM/EDGE 850/900/1800/1900 RM-408: WCDMA 850/2100 HSDPA and GSM/EDGE 850/900/1800/1900 RM-419: WCDMA 850/1900 HSDPA and GSM/EDGE...

  • Page 2: Table Of Contents

    6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 Change history ..........................3 Copyright ............................4 Warnings and cautions ........................5 Warnings ..........................5 Cautions ........................... 5 ESD protection..........................6 Care and maintenance ........................6 Battery information......................... 8 Spare parts overview ........................9 Service devices ..........................

  • Page 3: Change History

    2.7.2008 Approved. The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential. Please note that NOKIA provides also other guidance documents (e.g.

  • Page 4: Copyright

    Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

  • Page 5: Warnings And Cautions

    6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 3. WARNINGS AND CAUTIONS Please refer to the phone’s user guide for instructions relating to operation, care and maintenance including important safety information. Note also the following: 3.1 Warnings 1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS.

  • Page 6: Esd Protection

    6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 4. ESD PROTECTION Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone. Any product of which the covers are removed must be handled with ESD protection.
  • Page 7 6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 • Use only the supplied or an approved replacement antenna. Unauthorised antennas, modifications or attachments could damage the phone and may violate regulations governing radio devices. All of the above suggestions apply equally to the product, battery, charger or any accessory.

  • Page 8: Battery Information

    6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 6. BATTERY INFORMATION Note: A new battery’s full performance is achieved only after two or three complete charge and discharge cycles! The battery can be charged and discharged hundreds of times but it will eventually wear out.

  • Page 9: Spare Parts Overview

    6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 7. SPARE PARTS OVERVIEW See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL. ISSUE 1 Confidential Copyright @ 2008 NOKIA. All rights reserved...

  • Page 10: Service Devices

    6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 8. SERVICE DEVICES FLS-5 incl. Driver and User Guide Dongle and flash device incorporated into one package, developed specifically for POS use. Charger AC-8 SS-102 CA-101 Service Cable to connect the PC with the Micro USB Camera removal tool.
  • Page 11 6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 0772040 Nokia Standard Toolkit (V2) For more information, refer to the Service Bulletin (SB-011) on Nokia Online. Supplier or manufacturer contacts for tool re-order can be found in “Recommended service equipment”...

  • Page 12: Sw-Update

    Flash concept – (Point of Sales) To use the FLS-5 Flash Dongle, you have to follow the user guide inside the sales package. Please check always for the latest version of flash software, which is available on Nokia Online. ISSUE 1 Confidential Copyright @ 2008 NOKIA.

  • Page 13: Disassembly Instruction

    Note! There is glue on the screws. Using an electric torx driver is recommended during the disassembly in order to not damage the screw caps. Nokia 6210 Navigator disassembly. You need the Nokia Standard Tool kit version 2. 1) Unlock and remove the Battery Cover. 2) Remove the battery if not already done.
  • Page 14 6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 3) Unscrew the four T6+ screws. 4) Remove the Antenna Module Assy. 5) Unscrew the two T6+ screws. 6) Release the Alpha Keymat. Start from snap on the bottom (number 1 in the picture) and continue with right side of snap (number 2).
  • Page 15 6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 7) Remove the Alpha Keymat carefully in the 8) Press the C-Cover in the direction shown in the direction as shown. picture. Note! There is adhesive on the bottom of the keymat.
  • Page 16 6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 11) Close the slide and open the Connector of the UI 12) There are two hooks to fix the PWB. Flex. 13) Use the SS-93 to release the PWB. 14) Release the PWB.
  • Page 17 6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 15) Open the connector of the Main Flex. 16) Remove the PWB. 17) Peel off the UI Flex Assy. 18) Peel off the Back Plate with SS-93. ISSUE 1 Confidential...
  • Page 18 6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 19) Remove the Back Plate. Do not use it again. 20) Unscrew the two T6+ screws. Discard these screws. 21) Carefully release the A-Cover. 22) Use the SS-93 tool to release it.
  • Page 19 6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 23) Lift up the A-Cover Assy. 24) Remove the A-Cover Assy in the direction shown in the picture. 25) Lift up the Function Keymat carefully. 26) Remove it in the direction shown in the picture.
  • Page 20 6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 27) Release the latches of the LCD Shield. 28) Use the dental pick to release them. 29) Remove the LCD Shield. Do not use it again. 30) Push out the Earpiece.
  • Page 21 6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 31) Open the connector of the LCD. 32) Remove the LCD according to the instructions in steps 32.1 and 32.2. 32.1) Remove the LCD rom the top part with the 32.2) You can also remove the LCD carefully one side...
  • Page 22 6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 33) Lift up the Main Flex Assy from top side at first. 34) Peel off the Main Flex Assy and remove it. ISSUE 1 Confidential Copyright @ 2008 NOKIA. All rights reserved...

  • Page 23: Assembly Hints

    6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 11. ASSEMBLY HINTS 1) Tighten the screws to the torque of 17 Ncm in 2) Tighten the screws to the torque of 17 Ncm in the order shown. the order shown.

  • Page 24: Assembling The Function Keymat

    6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 11.2 Assembling the Function Keymat 1. Start from the hooks on the bottom of the keymat and continue by pressing the keymat in place. Note! Do not damage the guiding pins.

  • Page 25: Lcd Flex Assembly

    6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 11.4 LCD Flex assembly Note! In order not to damage LCD flex, special attention must be taken to notice when bending the flex to correct position! Follow the below instructions and all the time, avoid any sharp curves when bending the flex! 1.

  • Page 26: Solder Components

    6210 Navigator RM-367, RM-386, RM-408, RM-419 Service Manual Level 1&2 12. SOLDER COMPONENTS Nokia 6210 Navigator (RM-367, RM-386, RM-408, RM-419) Components overview Solder components only for Level 2 ISSUE 1 Confidential Copyright @ 2008 NOKIA. All rights reserved...
