CHAPTER 4: INTERFACES
MULTISYNC 100 GPS CLOCK – INSTRUCTION MANUAL
5.
When using IRIG-B, the best practice is to enable at least one port for IRIG-B time
synchronization.

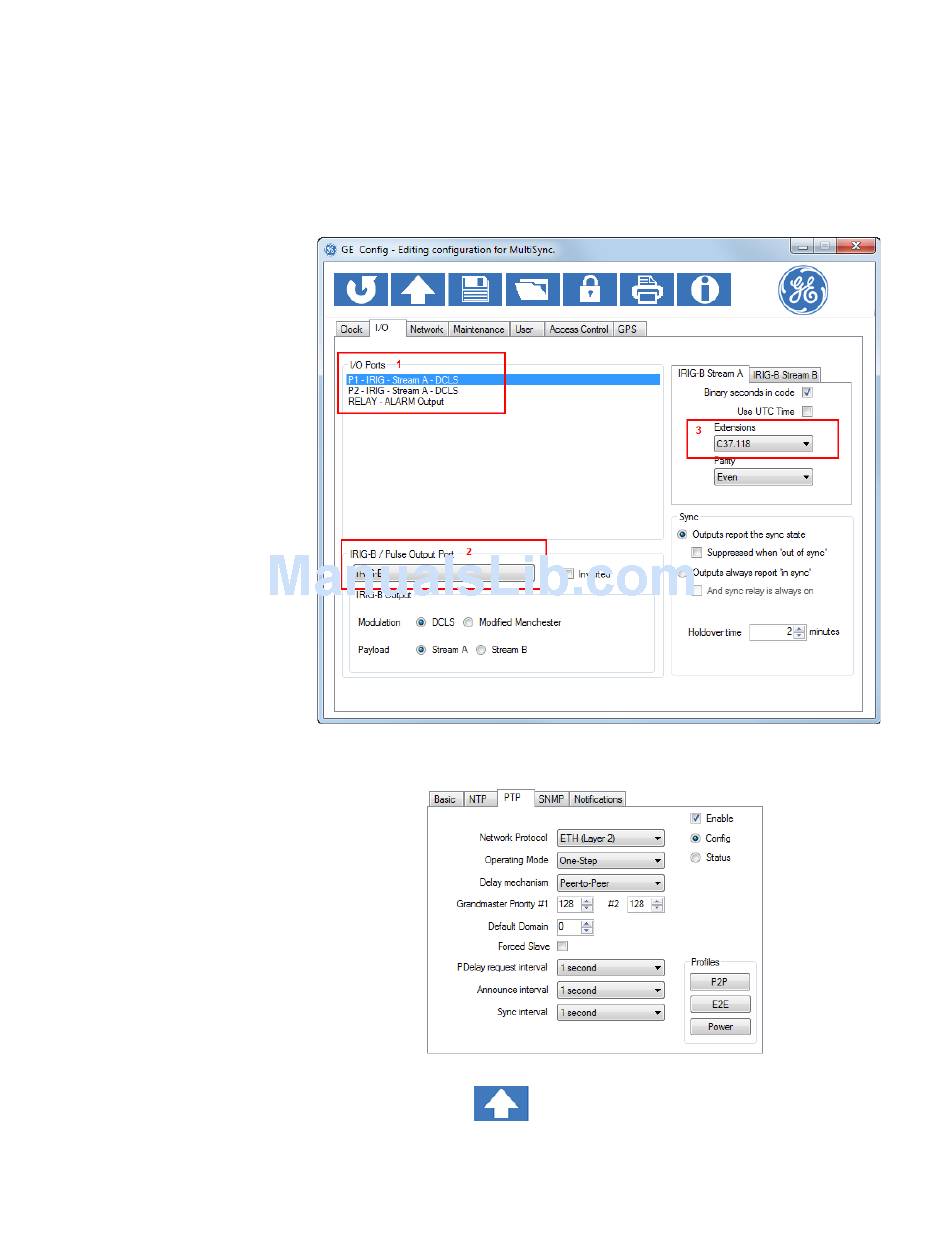

On the I/O tab, for a standard installation, do the following for each port:
5.1.
Select the port from the I/O Ports list.
5.2.
Set the IRIG-B Pulse Output Port type to IRIG-B.
5.3.
For both IRIG-B Streams A and B, change the Extensions to C37.118. to include
the year in the IRIG-B data.
6.
If using IEEE 1588 / C37.238, click the PTP tab and check Enable if not already
checked. (Configuration changes may be required for your network.)
7.
Click the Update icon
changed configuration to the clock.
You are now ready to use the MultiSync 100 GPS Clock.
GE CLOCK CONFIGURATION TOOL SOFTWARE INTERFACE
at the top of the GE Config window to save the
25
