Summary of Contents for HP ProLiant ML110
Page 1

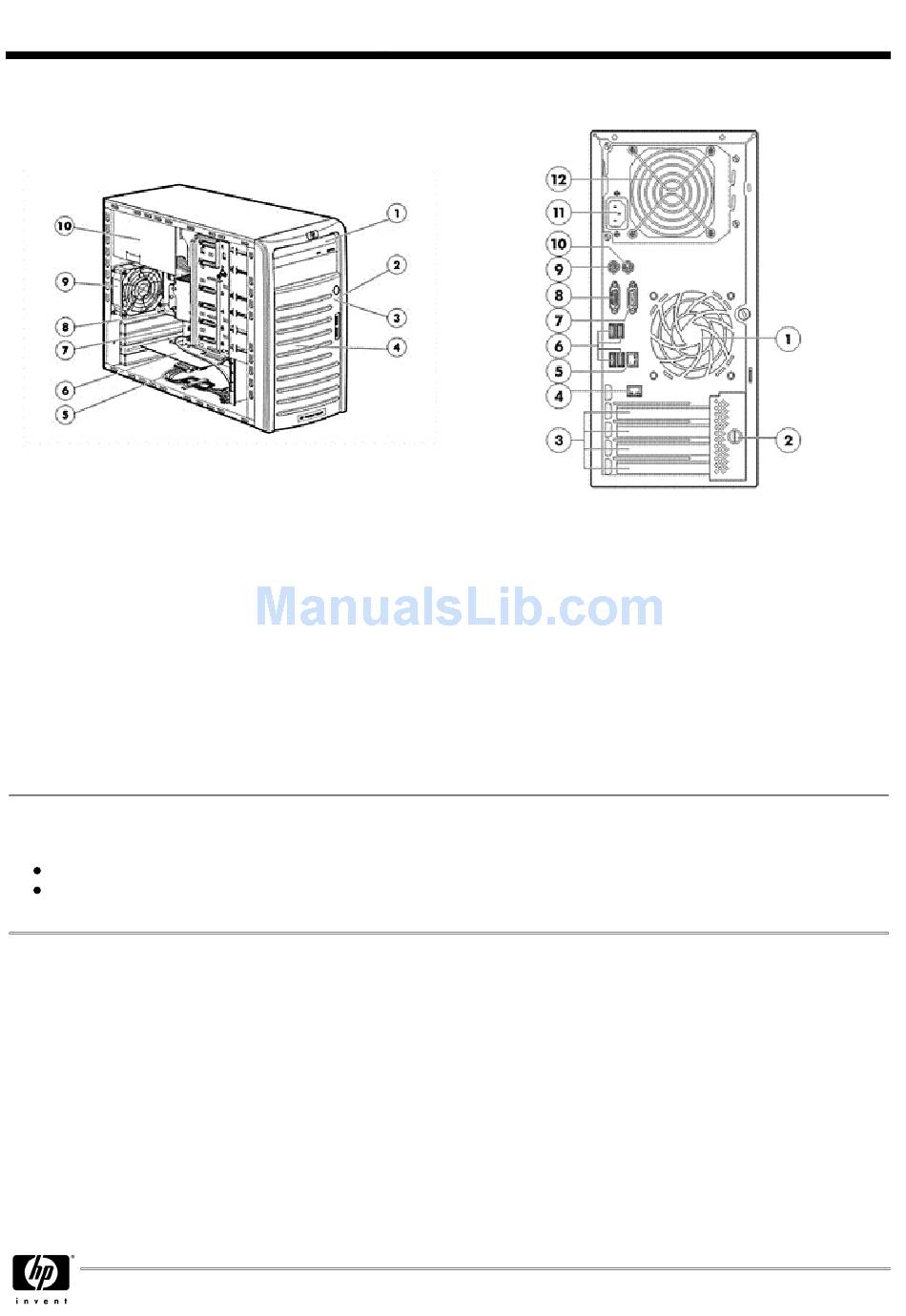

Drive Activity LED Front Bezel SAS cable (SAS model only) HDD controller card (Optional) System Board HP LO 100c Management Card (Optional HP PL100 G5 Lights-Out 100c Kit ALL ) System Fan 365W Power Supply What's New Support for Dual-Core Intel® Xeon® E3110 and Dual-Core Intel® Core 2 E4600 processors Standard ProLiant Easy Set Up CD - simplifies deployment and installation process and has a SmartStart "like"...
Page 2
HP Lights-Out 100c Remote Management Card (RMC) for remote sites or second offices. Like all HP ProLiant products, the ML110 G5 comes with ProLiant reliability. The ProLiant ML110 G5 is a value- packed server with appropriate technology suitable for small to medium businesses.
Standard Maximum Network Controller Embedded NC105i PCI Express Gigabit Ethernet Server Adapter DA - 12867 Worldwide QuickSpecs — Version 10 — 4.18.2008 HP ProLiant ML110 Generation 5 PC2-6400 unbuffered DDR2 ECC 800MHz 512 MB 1GB (SAS Models) 8 GB FSB,8M)*...
Page 4
Width*** Width Number* 32-bit Integrated 6 ports SATA controller with embedded RAID (4 ports available for Hard Disks) HP SC40Ge Host Bus Adapter with RAID 0, 1 support SATA DVD-ROM Drive SATA 1.2TB HP ProLiant ML110 Generation 5 Device Form Factor...
Page 5
HP ProLiant ML110 Generation 5 8 total (4 rear, 2 front panel, 2 internal (one for USB Tape connectivity)) NOTE: Internal USB ports are optimal for the attachment of HP USB DAT Tape Drives NOTE: Please see the following URL for additional information regarding USB support: http://h18004.www1.hp.com/products/servers/platforms/usb-...
Page 6
HP entry server setup, providing a repeatable way to deploy reliable and consistent single-server configurations. The HP ProLiant Easy Set-up CDs assist with the OS installation process by preparing the system for installing "off-the-shelf" versions of Windows operating system software and automatically integrating optimized HP ProLiant server software drivers and utilities.
Page 7
USB floppy drive (part number DC361B), or HP 256MB/1GB USB 2.0 Floppy Drive Key is required on the ML110 G5 to accomplish this operation. NOTE: For the installation of Windows and other OS's, a floppy drive or HP's USB floppy key (P/N: 442084-B21 or 442085-B21) may be required to complete driver installation. A USB drive key may not work to complete driver installation.
Page 8
Standard Features Service and Support This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.
Page 9
800 FSB, 1MB) 1 x 1MB Level 2 cache 512 MB PC2-6400 ECC (DDR2-800MHz) (1 x 512 MB) HP Embedded 6 Port SATA Controller with embedded RAID (4 ports for HDD) 160 GB SATA HDD Maximum 2.0TB (4 x 500GB) SATA...
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configuration. Contact your local sales representative for information on CTO product offerings and requirements.
Page 11
HP 72GB SAS 3.5" 15K NHP NOTE: The purchase of SAS hard drives requires the purchase of part number 430479-B21, the HP Internal SAS/SATA 4-Port Cable. This cable is standard in the SAS BTO model Step 3: Choose Additional Options for Factory Integration NOTE: For additional options, please refer to the "Options"...
Page 12
Remote Management HP ProLiant Lights-Out 100c Remote Management Card HP ProLiant 100 G5 Lights-Out 100c Remote Management Card NOTE: Supports HP ProLiant DL180 G5, ML110 G5, ML115 G5 and ML150 G5 servers, NOTE: For additional information on Lights-Out 100c Remote Management Card, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12468_na/12468_na.html...
Page 13
A USB drive key may not work to complete driver installation. HP SAS/SATA 4-Port Cable NOTE: The purchase of a SAS Storage Controller requires the purchase of HP SAS/SATA 4-Port Cable NOTE: SAS Storage Controllers will run both SATA and SAS drives.
Page 14
Lights Out HP ProLiant ML100 G5 Lights-Out 100c Remote Management Card Management Card NOTE: Supports HP ProLiant DL180 G5, ML110 G5, ML115 G5 and ML150 G5 servers, NOTE: For additional information on Lights-Out 100c Remote Management Card, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12468_div/12468_div.html...
Page 15
HP KVM Switch HP 1x4 Console Switch Options HP PS2 Server Console Cable, 6 foot, 2-Pack HP USB Server Console Cable, 6 foot, 2-Pack NOTE: required for supporting USB peripherals. NOTE: For additional information regarding KVM Switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm...
4-Hour On-Site Service - 24-Hour x 7-Day Coverage, 3 Years, Electronic Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of the deployment of ProLiant servers - and free customers people to focus on what they do best, their business.
Page 17
Standard 512 MB Optional Maximum Following are memory options available from HP: 2 GB Unbuffered PC2-6400 ECC DIMM (1 x 2 GB) 1 GB Unbuffered PC2-6400 ECC DIMM (1 x 1 GB) 512 MB Unbuffered PC2-6400 ECC DIMM (1x512 MB) DA - 12867 Worldwide QuickSpecs —...
6 Port SATA controller with Embedded RAID on Motherboard Position Supported Controller 3,4,5,6 HP 4 Internal Port SAS HBA SC40Ge with RAID (0,1) HP ProLiant ML110 Generation 5 16x SATA DVD-ROM Removable Media Bays (5.25" each) Four Non-Hot Plug Drive Bays...
Page 19
USB 2.0 port USB 2.0 port HP SC44Ge Host Bus Adapter HP SC44Ge Host Bus Adapter HP SC11Xe Host Bus Adapter HP SC11Xe Host Bus Adapter Embedded Network Controller HP ProLiant ML110 Generation 5 (Worldwide) Controller/HBA Option Kit Part Number 416096-B21 416096-B21...
100 to 127 and 200 to 240 V auto ranging 50 to 60 Hz >65% >65% <0.45mA No component was damaged and input fuse shall not blow HP ProLiant ML110 Generation 5 >65% >65% No component was damaged and input fuse shall not blow >65% Page 20...
QuickSpecs System Specifications HP ProLiant ML110 G5 Fully Configured Fully Loaded System output Wattage Fully Loaded System Input Current (A rms) Fully Loaded System Thermal (BTU- Fully Loaded System VA (Volt-Amp) 600 VA System Leakage with all power supplies loaded (mA)
Relative Humidity (non-condensing) Altitude DA - 12867 Worldwide QuickSpecs — Version 10 — 4.18.2008 HP ProLiant ML110 Generation 5 14.5 x 6.9 x 16.8 in (36.7 x 17.5 x 42.6 cm) Maximum 39 lb (17.5 kg) (all hard drives, power...
Page 23
7.2K NHP 3.5" HDD 411275-B21 DA - 12867 Worldwide QuickSpecs — Version 10 — 4.18.2008 HP ProLiant ML110 Generation 5 Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment.
Page 24
Cache Buffer Start-up Time (typical) < 7 seconds Stop Time Laser Parameters Operating Conditions Dimensions DA - 12867 Worldwide QuickSpecs — Version 10 — 4.18.2008 HP ProLiant ML110 Generation 5 Capacity 73,407,856,856 Height 1.0 in (25.4mm) Width 4.0 in. (101.6 mm)
Page 25
Disk Drive and Enclosure Protocol Support DA - 12867 Worldwide QuickSpecs — Version 10 — 4.18.2008 HP ProLiant ML110 Generation 5 SATA 1.5Gb/s 4 internal 1.5 Gb/s total up to 3 TB (4 x 750GB non hot plug SATA HDD) RAID 0 (Striping) 6.6 x 2.5 x 0.6 in (16.8 x 6.4 x 1.6 cm)
Page 26
Disk Drive and Enclosure Protocol Support DA - 12867 Worldwide QuickSpecs — Version 10 — 4.18.2008 HP ProLiant ML110 Generation 5 RAID 1 (Mirroring) RAID 0 (Striping) Up to 2 Logical Volumes Up to 10 drives total in all RAID volumes...
Page 27
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
