HP ProLiant DL320e Quickspecs

1p rack server
Hide thumbs Also See for ProLiant DL320e:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, User Manual
QuickSpecs
Overview

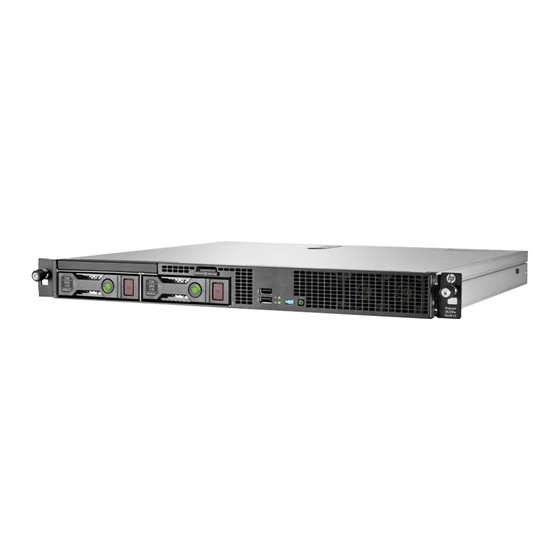

The latest 1P rack server, HP ProLiant DL320e Gen8 Server series, is a new entry level rack-optimized platform, ideal for single-
application IT infrastructure, web and edge-of-network applications. The ProLiant DL320e Gen8 Server is not only affordable but is
more powerful by enabling powerful quad-core processor computing performance with larger memory & storage capacity, all in a small
package.
The DL320e Gen8 supports the latest technology, such as Intel® Xeon® E3, Core i3 and Pentium processors, PCI-E Gen3, DDR3 1600MHz
memory, up to 12TB internal storage, RAID solution as well as High Efficiency Hot Plug Redundant Power Supply Kit.
HP ProLiant DL320e Gen8 Server series supports HP iLO Management Engine, a complete set of embedded management features
supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote
support.
Front View:
1.
Access Panel
2.
Power Supply
3.
PCI Riser Cage
4.
Processor
5.
DIMMs
6.
Fans
7.
Optical drive
8.
2 USB Connectors
9.
UID LED button
10.
Health LED
11.
NIC status LED
12.
Power On/Standby button and LED
13.
Hard Drive Bays
DA - 14326 North America — Version 5 — November 17, 2012
HP ProLiant DL320e Generation 8 (Gen8)
Rear View:
1.
Expansion slot 2, PCIe x16
2.
Expansion slot 1, PCIe x8
3.
Power Supply 2
4.
Power Supply 1
5.
Dedicated iLO port
6.
UID LED button
7.
Serial Connector
8.
Video Connector
9.
USB Connectors
10.
NIC Connector 1
11.
USB Connectors
12.
NIC Connector 2
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP ProLiant DL320e

Summary of Contents for HP ProLiant DL320e

  • Page 1 Overview The latest 1P rack server, HP ProLiant DL320e Gen8 Server series, is a new entry level rack-optimized platform, ideal for single- application IT infrastructure, web and edge-of-network applications. The ProLiant DL320e Gen8 Server is not only affordable but is more powerful by enabling powerful quad-core processor computing performance with larger memory &...

  • Page 2: Standard Features

    QuickSpecs HP ProLiant DL320e Generation 8 (Gen8) Standard Features NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. Processor Entry Processors One of the following Intel® Pentium® G630 (2.7GHz/2-core/3MB/65W) Processor depending on Model NOTE: Intel ®Pentium®...
  • Page 3 Network Controller HP Ethernet 1Gb 2-port 330i Adapter NOTE: The HP ProLiant DL320e Gen8 server has an embedded dual-port network adapter . The server can be further upgraded with various networking products DA - 14326 North America — Version 5 — November 17, 2012...
  • Page 4 NOTE: PCIe 3.0 support with Intel Xeon E3-1200v2 family only. HP Server ROM HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.
  • Page 5 NOTE: The DL320e Gen8 can support other advanced controllers as well, depending on model and configuration NOTE: For set up instructions for HP Smart Array B120i SATA Controller please refer to the HP ProLiant DL300 series server user guide. NOTE: For general information about HP Smart Array B120i SATA RAID Controller, please visit: http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers...
  • Page 6 (NEMA-15), the 12-foot NEMA 5-15 to C13 power cord must be ordered separately. See Power Cords section for Worldwide Power Cord options. Power Specifications To review typical system power ratings use the HP Power Advisor which is available via the online tool located at URL: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor.
  • Page 7 Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. The 460W HP CS power supply option provides an efficiency rating of up to 94%. All HP Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations.
  • Page 8 HP iLO Management Engine comes standard on all HP ProLiant Gen8 servers. The HP iLO Management Engine portfolio includes: HP iLO: The HP iLO management processor is the core foundation for HP iLO Management Engine. HP iLO for HP ProLiant servers simplify server...
  • Page 9 BladeSystem enclosure components (Onboard Administrator and Virtual Connect). This testing ensures the highest quality as well as providing the input for HP SUM to deploy updates taking into account all interdepencies, when determining the correct updates and order of update deployment.
  • Page 10 Administrator's password Warranty This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.

  • Page 11: Optional Features

    Lights-Out functionality ships standard across all HP ProLiant Gen8 rack, tower and blade servers. The HP iLO can be accessed from any location via a web browser and works hand- in-hand with HP Systems Insight Manager, Insight Control, and Insight Dynamics, helping customers unleash the value of the ProLiant platform and deliver the highest possible quality of IT service to the business.
  • Page 12 BladeSystem enclosure components (Onboard Administrator and Virtual Connect). This testing ensures the highest quality as well as providing the input for HP SUM to deploy updates taking into account all interdepencies, when determining the correct updates and order of update deployment.
  • Page 13 Optional Features HP Insight Online HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime.

  • Page 14: Service And Support

    Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.
  • Page 15 Provides problem resolution support across the stack of HW, firmware, and HP and 3rd party SW. In case the issue is with 3rd party SW, HP does known issue resolution. If HP cannot solve the issue, it will contact the third-party vendor and create a problem incident on your behalf.
  • Page 16 The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by HP as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.

  • Page 17: Pre-Configured Models

    NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit.

  • Page 18: Base Models

    Storage Controller HP Dynamic Smart Array B120i Controller Hard Drive None ship standard NOTE: Only SATA 3 Gbit/s data transmission guaranteed without HP Smart Array Card. Internal Storage 4 LFF HDD Bays; includes 3 LFF hard drive blanks Optical Drive Bay...

  • Page 19: Smart Buys

    687520-S01 Storage Controller HP Dynamic Smart Array B120i Controller Hard Drive (1) HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Midline Hard Drive Internal Storage 4 LFF HDD Bays; includes 3 LFF hard drive blanks Optical Drive Bay None ships standard...

  • Page 20: Configuration Information - Factory Integrated Models

    NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
  • Page 21 SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html NOTE: HP memory from previous generation servers are not fully compatible with new Active Health features on the DL320e Gen8 Server. Unbuffered with ECC DIMMs (UDIMMs)
  • Page 22 NOTE: PC3L is a low voltage memory. HP Power Supplies NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
  • Page 23 The HP 1U Gen8 Cable Management Arm is not available when using Friction Rails. Caution: HP recommends that a minimum of two people is required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

  • Page 24: Core Options

    HP ProLiant DL320e Generation 8 (Gen8) Core Options NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
  • Page 25 658071-B21 6G SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive 628065-B21 HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive 659339-B21 HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive...
  • Page 26 QuickSpecs HP ProLiant DL320e Generation 8 (Gen8) Core Options HP 800GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State 653109-B21 Drive 6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid...
  • Page 27 HP Power Supplies NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor...

  • Page 28: Additional Options

    HP ProLiant DL320e Generation 8 (Gen8) Additional Options NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
  • Page 29 QuickSpecs HP ProLiant DL320e Generation 8 (Gen8) Additional Options HP iLO Advanced License HP Integrated Lights-Out (iLO) Advanced for ProLiant Remote Management HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server 512485-B21 License NOTE: For more information, visit: http://www.hp.com/go/ilo.
  • Page 30 HP 2GB P-series Smart Array Flash Backed Write Cache 631681-B21 HP DL320e Gen8 Mini SAS Cable Kit 685018-B21 HP Smart Array Advanced Pack 2.0 No Media 1 Server 1yr 24x7 Support Software BC377A HP Smart Array Advanced Pack 2.0 No Media Electronic Lic 1yr 24x7 Support Software BC390AAE...
  • Page 31 (SC11Xe HBA) HP Backup & Recovery HP Data Protector Express Software HP Basic Upgrade to Data Protector Express V6 for 1 Server E-LTU TC333BAE HP Data Protector Express V6.0 for 10 Server E-LTU TC332BAE HP Data Protector Express V6.0 for 1 Server E-LTU TC330BAE HP Data Protector Express V6.0 for 3 Server E-LTU...
  • Page 32 NOTE: For additional information on sizing your HP UPS, please reference: http://www.upssizer.com NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units.
  • Page 33 NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units.
  • Page 34 Service HP 3 year 6 hour Call to Repair 24x7 ProLiant DL320e Hardware Support U6F05E HP 3 year 6 hour Call to Repair 24x7 w /Defective Media Retention ProLiant DL320e U6F06E Hardware Support HP 3 year 6 hour Call to Repair 24x7 ProLiant DL320e Collaborative Support...
  • Page 35 HP Startup non Standard Hours Proliant DL320e Service U6F54E HP 3 year 24 hour Call to Repair 24x7 ProLiant DL320e Hardware Support U6F55E HP 3 year 24 hour Call to Repair 24x7 w/Defective Media Retention ProLiant DL320e U6F56E Hardware Support NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack...
  • Page 36 HP SmartMemory New HP SmartMemory now provides additional protection for your servers. With HP Authentication it can verify that you have true HP Qualified Memory in your HP ProLiant Gen8 server. With HP SmartMemory your new HP ProLiant server can take advantage of...
  • Page 37 SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html NOTE: HP memory from previous generation servers are not fully compatible with the DL320e Gen8 Server. Unbuffered with ECC DIMMs (UDIMMs) HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory...
  • Page 38 QuickSpecs HP ProLiant DL320e Generation 8 (Gen8) Storage 1 - 4 4 x 3.5" (LFF) SAS/SATA hard drive bays Optical Drive Bay: Optional DVD-ROM, or DVD-RW drive 1 - 8 8 x 2.5" (SFF) SAS/SATA hard drive bays Optical Drive Bay: Optional DVD-ROM, or DVD-RW drive...

  • Page 39: Technical Specifications

    QuickSpecs HP ProLiant DL320e Generation 8 (Gen8) Technical Specifications System Unit Dimensions (H x W x D) 8 SFF 1.7 x 17.11 x 27.5 inches (4.32 x 43.46 x 69.90 4 LFF 1.7 x 17.11 x 29.5 inches (4.32 x 43.46 x 75.0 cm)
  • Page 40 QuickSpecs HP ProLiant DL320e Generation 8 (Gen8) Technical Specifications with ISO 9296 (ECMA 109). Idle (Note 1) LWAd 5.0 B LpAm 35 dB Average Bystander Operating LWAd 5.1 B LpAm 35 dB Average Bystander NOTE: Values are subject to change without notification and are for reference only.
  • Page 41 AMD, the AMD Arrow logo, AMD Opteron™, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
