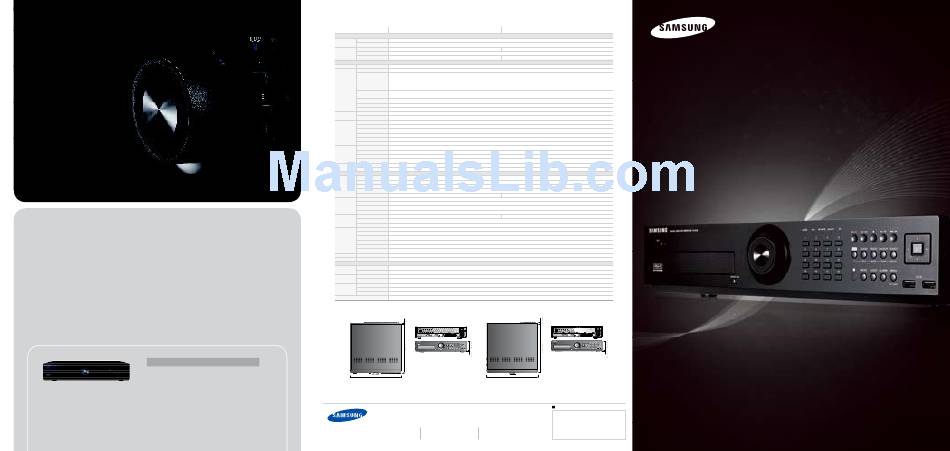

Samsung SRD-1630D Specifications

Easy-to-Use
the DVR for Users
>>
DVR with Easy Graphical User Interface
SAMSUNG TECHWIN 8Ch / 16Ch DVR
I Dual Codec to Enhance Recording & Network Transmission
I H.264 High Performance Compression
I Powerful Search Capabilities & Easy Back Up during Playback
I Networking and integration capabilities using Samsung central monitoring system (Smart Viewer)
SRD-1630D/1630/1610D/1610/830D/830
• CIF 240 / 200 (NTSC / PAL) ips recording (SRD-1630D/1630)
• CIF 120 /100 (NTSC / PAL) ips recording (SRD-1610D/1610/830D/830)
• 4Ch Audio Input & 1Ch Audio Output
• Main Display Capabilities : Composite, VGA
• Spot Monitor Output (1EA)
• Built-in Web Viewer
• SATA I/F HDD Support (Internal Max. HDDx6 / HDDx5)
• H.264 High Performance Compression
• Smart Viewer (Samsung Central Monitoring S/W) Support
• Dual Codec to enhance recording and network transmission
Specifications
SRD-1630D/1630/1610D/1610
DISPLAy
Inputs 16 Composite video 0.5-1 Vpp, 75 ohm automatic termination
V
ideo
Resolution NTSC : 704 x 480 / PAL : 704 x 576
Frame Rate NTSC : 480ips / PAL : 400ips
Live Resolution NTSC : 704 x 480 / PAL : 704 x 576
Multi Screen Display 1 / 4 / 6 / 8 / 9 / 13 / 16 / PIP
PERFORMANCE
Operating System Embedded Linux
Compression H.264
SRD-1630D/1630 : NTSC : Up to 60ips@704 x 480, NTSC : Up to 120ips@704 x 240, NTSC : Up to 240ips@352 x 240
PAL : Up to 50ips@704 x 576, PAL : Up to 100ips@704 x 288, PAL : Up to 200ips@352 x 288
Record Rate
SRD-1610D/1610/830D/830 : NTSC : Up to 30ips@704 x 480, NTSC : Up to 60ips@704 x 240, NTSC : Up to 120ips@352 x 240
PAL : Up to 25ips@704 x 576, PAL : Up to 50ips@704 x 288, PAL : Up to 100ips@352 x 288
Recording NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (0.9 / 1.9 / 3.8 / 7.5 / 15ips)
Mode
PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (0.8 / 1.6 / 3.1 / 6.2 / 12.5ips)
Overwrite Modes Continuous
Pre-alarm Up to 30sec. (5, 10, 20, 30sec.)
Post-alarm Up to 6hour. (5, 10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search & Search Mode Date/Time, Event, Back up, Pos, Motion (*All searching mode include prview function)
Playback Playback Function Fast forward / backward, Slow forward / backward, Step forward / backward
Transmission Speed Up to 4 Mbps, Unlimited 4M / 2 / 1.5 / 1 Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50 kbps
Bandwidth Control Automatic
Multi Stream H.264 (4CIF / CIF)
Network
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring Net-i viewer, Smart viewer, Web viewer
Internal HDD Up to 5 SATA HDDs, D : Up to 6 SATA HDDs
Storage DVD Writer (Back up) N/A, D : Yes
USB (Back up) 3 USB ports
File Format (Back up) AVI, MDB (DVR play back), EXE (Include player)
Password Protection 1 Admin, 10 Group , 20 User per 1 Group, User can be assigned authority for function
Security
Data Authentication Watermark
INTERFACE
VGA Analog RGB 800 x 600, 1024 x 768, 1280 x 1024 resolution
HDMI N/A
Monitors Main Composite BNC, 1 Vp-p, 75 ohm
Spot Composite 1 BNC, 1 Vp-p, 75 ohm, Support multi screen and camera title
Loop Outputs 16
Inputs 4 Line in
Output 1 Line
Audio
Compression ADPCM
Sampling Rate 16KHz
Inputs
Terminal 16 inputs, NO/NC
Alarm Outputs Terminal 4 relay outputs, NO/NC
Remote Notification Notification via e-mail
Ethernet 1 RJ-45 10/100/1000 Base-T
>> Serial Interface RS-232
PTZ Control Interface RS-485
Connections
PTZ Keyboard RS-485
USB USB 2.0, 3 ports
Application Support Mouse, Remote controller
Communication Supported Samsung-E, Samsung-T, Pelco-D, Pelco-P, Panasonic, Phillips, AD
Protocols PTZ Cameras DIAMOND, ERNA, KALATEL, VCL TP, VICON
GENERAL
Input Voltage 100 ~ 240V AC ±10%, 50/60Hz, Auto ranging
Electrical
Power Consumption Max. 35W (With 1x HDD) / Max. 45W (With 2x HDD)
Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
Environmental
Operating Humidity 20% ~ 85%RH
Dimensions (WxHxD) 440 x 88 x 430mm (17.32" x 3.46" x 16.93")
Mechanical Weight (2x Hard Disks) Approx. 7.3Kg (16.09 lb)
Rack Mount Kit 2ea
Language English, Korean, Spanish, French, German, Italian, Portuguese, Polish, Russian,Turkish, Japanese, Czech, Swedish, Danish, Chinese, Netherlands
440 (17.32")
440 (17.32")
440 (17.32")
SRD-1630D/1630/1610D/1610
SAMSUNG TECHWIN CO., LTD.
701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400
Tel : +82-70-7147-8741~8749, 8752~8760 Fax : +82-31-8018-3745
www.samsungsecurity.com www.samsungcctv.com
SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD.
1480 Charles Willard St, Carson, CA 90746, UNITED STATES Samsung House, 1000 Hillswood Drive, Hillswood Business Park
Tol Free : +1-877-213-1222 Fax : +1-310-632-2195 Chertsey, Surrey, UNITED KINGDOM KT16 OPS
www.samsungcctvusa.com
Tel : +44-1932-45-5300 Fax : +44-1932-45-5325
SRD-830D/830
NTSC : 240ips / PAL : 200ips
1 / 4 / 6 / 8 / 9 / 13 / PIP
8
Terminal 8 inputs, NO/NC
440 (17.32") 440 (17.32")
440 (17.32")
SRD-830D/830
Design and specifications are subject to change without notice.
DISTRIBUTED BY
TIANJIN SAMSUNG TECHWIN OPTO-ELECTRONICS CO., LTD.
No.11 Wei 6 Street. Micro-Electronic Industrial Park
Jingang Road, Tianjin, P.R. CHINA 300385
Tel : +86-22-23887788 Fax : +86-22-23887788
I.E-0104
Explore a fully Featured DVRs
H.264 DVR
Series
>>
SRD-1630D/1630/1610D/1610/830D/830
I Incredible searching performance with easy-to-use User Interface
I H.264 High Performance Compression
I Smooth video over the network I Innovative and simple design
I
Networking and integration capabilities using Samsung central monitoring system Smart Viewer
